Seasonic Focus GX-1000 - FOCUS-GX-1000-V4-WHITE - 1000W ATX 3.1, 80+ Gold, Fully-Modular, White (Boxed)
Seasonic Focus GX-1000 V4 White is a 1000W ATX 3.1 fully modular PSU with 80 PLUS Gold efficiency, Cybenetics Gold noise & efficiency. Features 135mm fan, OptiSink tech, 1x 12V-2x6 + 6x PCIe 8/6-pin, compact 140mm depth. 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Seasonic Focus GX-1000 V4 White (FOCUS-GX-1000-V4-WHITE) delivers 1000W of reliable power in a compact 140mm deep fully modular ATX 3.1 chassis, certified 80 PLUS Gold with Cybenetics Gold for efficiency and low noise. Ideal for high-end gaming rigs with modern GPUs, it supports PCIe 5.1 via native 12V-2x6 (12+4 pin) connector plus six 6+2-pin PCIe cables. Advanced OptiSink PCB design enhances airflow and heat dissipation for cooler, quieter operation under heavy loads.

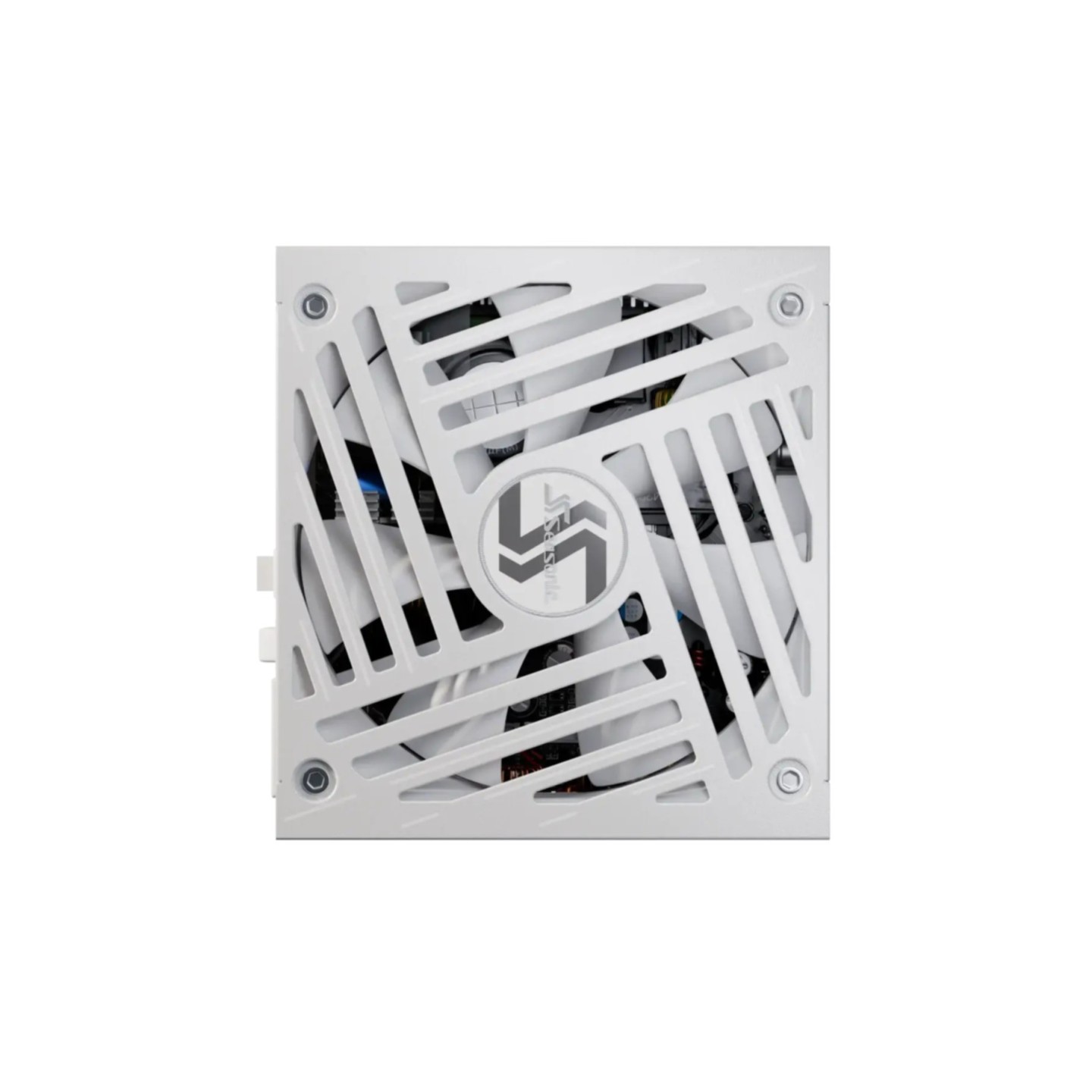

Equipped with a 135mm Hong Hua fluid dynamic bearing fan and hybrid silent control, it ensures minimal noise even at full load. Premium Japanese capacitors and full protection suite (OPP/OVP/UVP/SCP/OCP/OTP) guarantee longevity, backed by a 10-year warranty. White finish complements modern builds.
- ✅ 1000W continuous power on single +12V rail (83A)

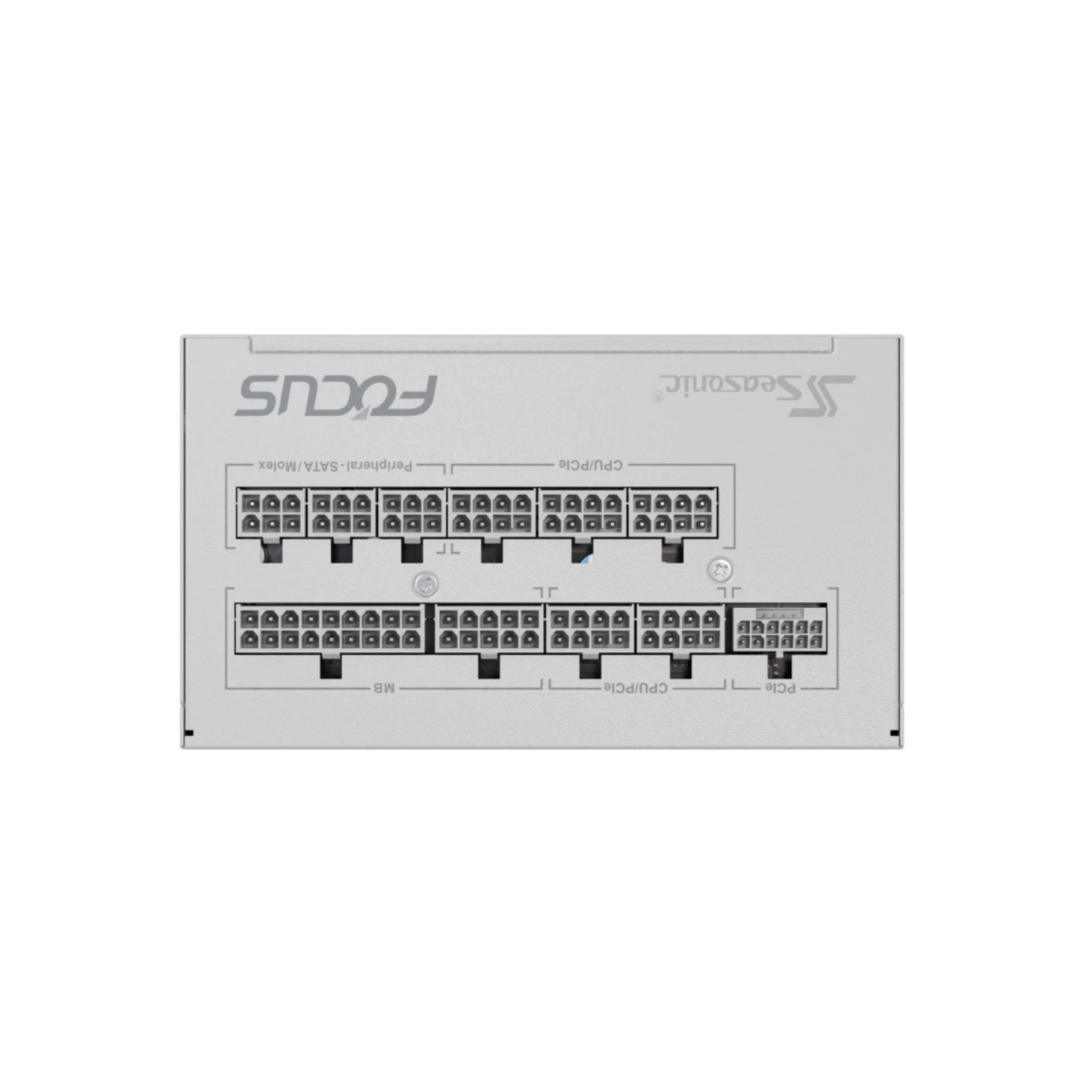

- ✅ Connectors: 1x 12V-2x6, 6x 8/6-pin PCIe, 2x 4+4-pin EPS12V, 8x SATA, 5x Molex
- ✅ Compact: 150x86x140mm, 0-50°C operation
- ✅ Fully modular for clean cable management
- ✅ ATX 3.1 compliant with excellent load regulation
| Width | 150 mm |
| Height | 86 mm |
| Depth | 140 mm |
| Max Power | 1000 W |
| Continuous Power | 1000 W |
| Form Factor | ATX |
| Efficiency | 80 PLUS Gold / Cybenetics Gold |
| Modularity | Fully Modular |
| +3.3V | 25 A |
| +5V | 25 A |
| +5Vsb | 3 A |
| +12V | 83 A (1000W combined) |
| -12V | 0.3 A |
| Mainboard | 20+4 Pin ATX |
| EPS/CPU | 2x 4+4 Pin |
| PCIe GPU | 6x 6+2 Pin + 1x 12V-2x6 (16-pin) |
| SATA | 8 |
| Molex | 5 |
| Fan Count | 1 |
| Fan Size | 135 mm |
| Color | White |
| Warranty | 10 Years |
| Standards | ATX 3.1 / PCIe 5.1, cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Fan Bearing | Fluid Dynamic Bearing (Hong Hua) |
| Operating Temp | 0-50°C |
