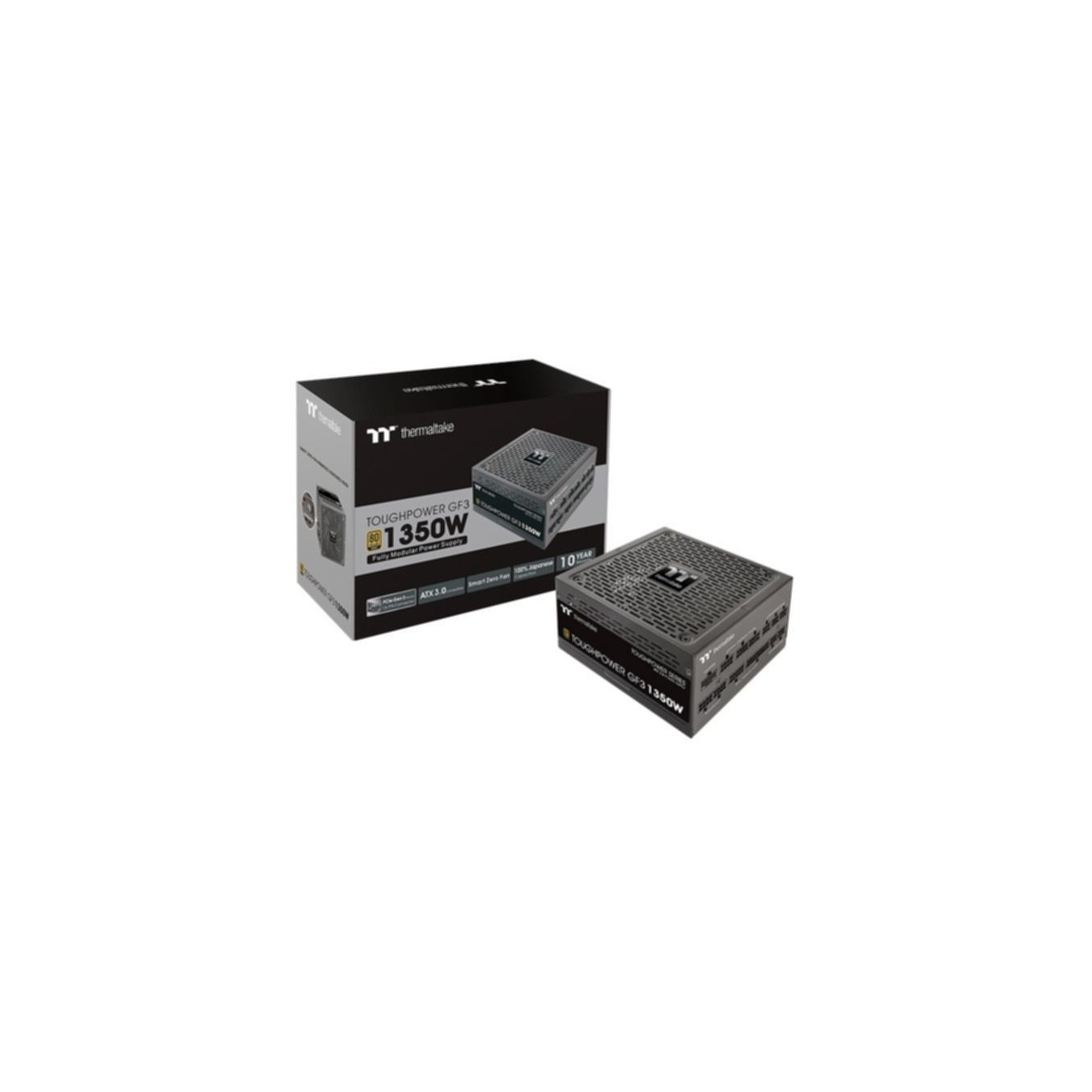

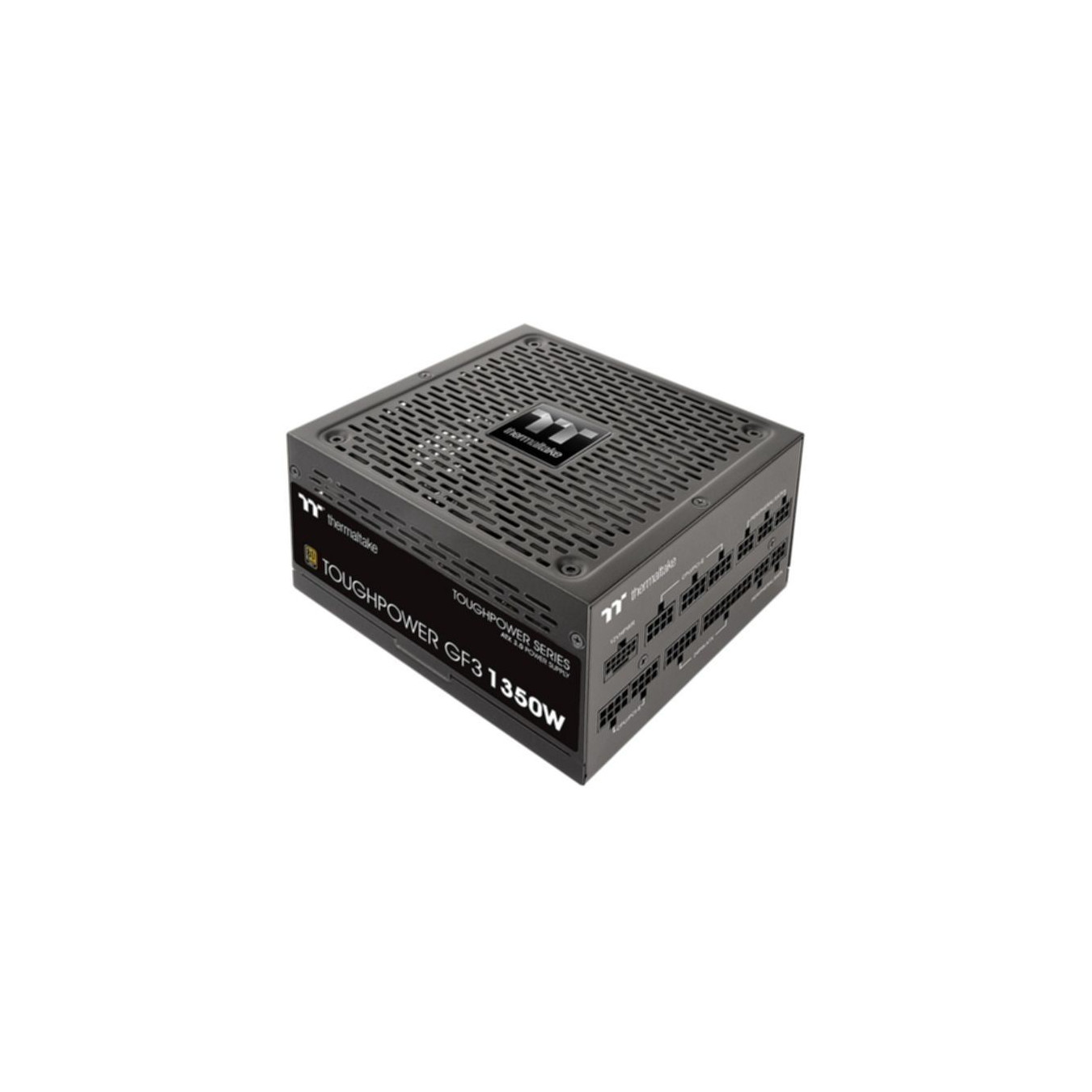

Thermaltake TOUGHPOWER GF3 1350W - ATX 3.0, Fully-Modular, 80 PLUS Gold
1350W ATX 3.0 fully‑modular PSU, 80 PLUS Gold efficiency, single +12V 1350W rail, 6x 6+2 PCIe, 1x 16-pin 12VHPWR, 24-pin ATX, comprehensive protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|
| Total power | 1350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1350 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 112.5 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500, 650, 800 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Silent mode | Yes |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 95% |
| Cable tie(s) included | Yes |
| Certification | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.83 kg |
| Package type | Box |
