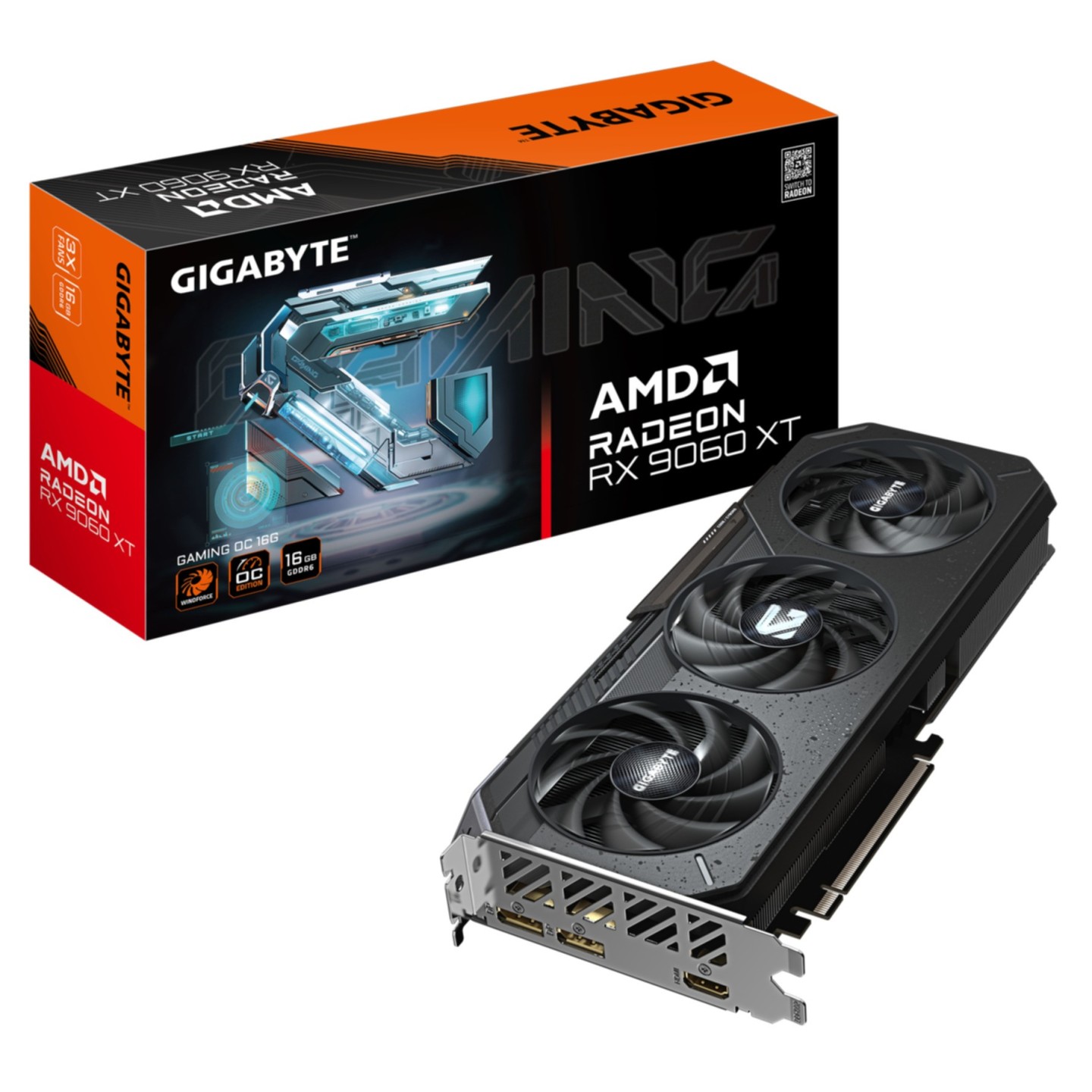

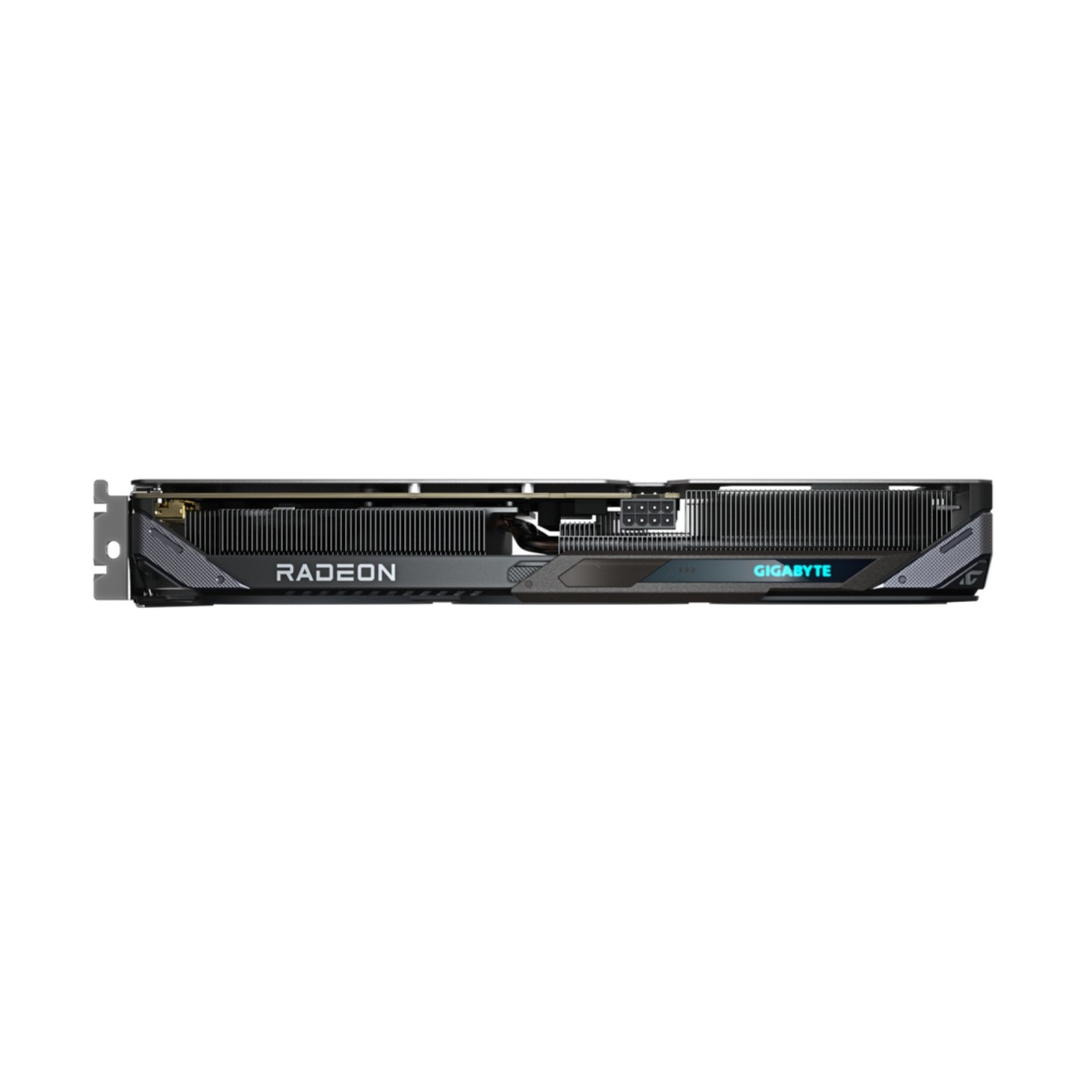

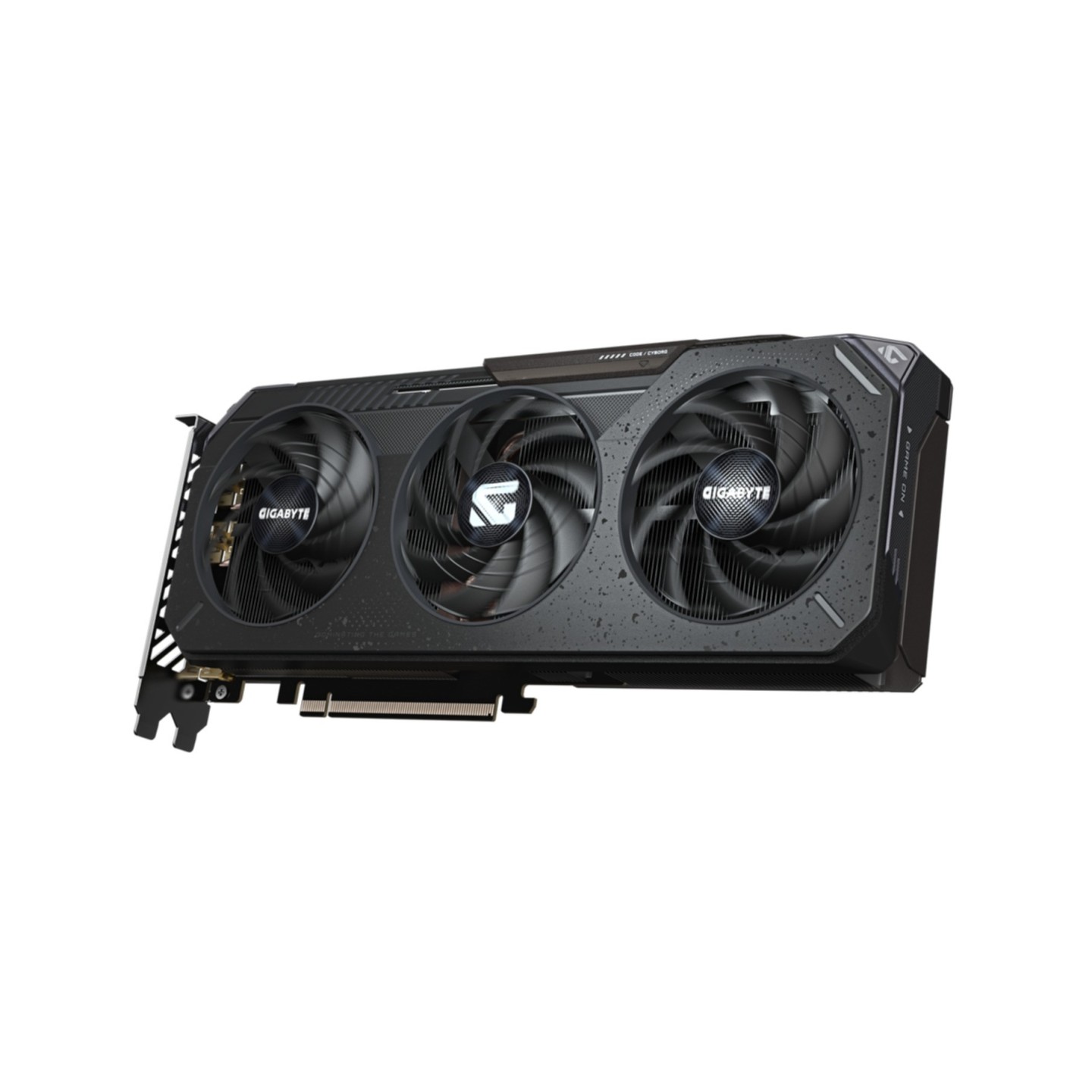

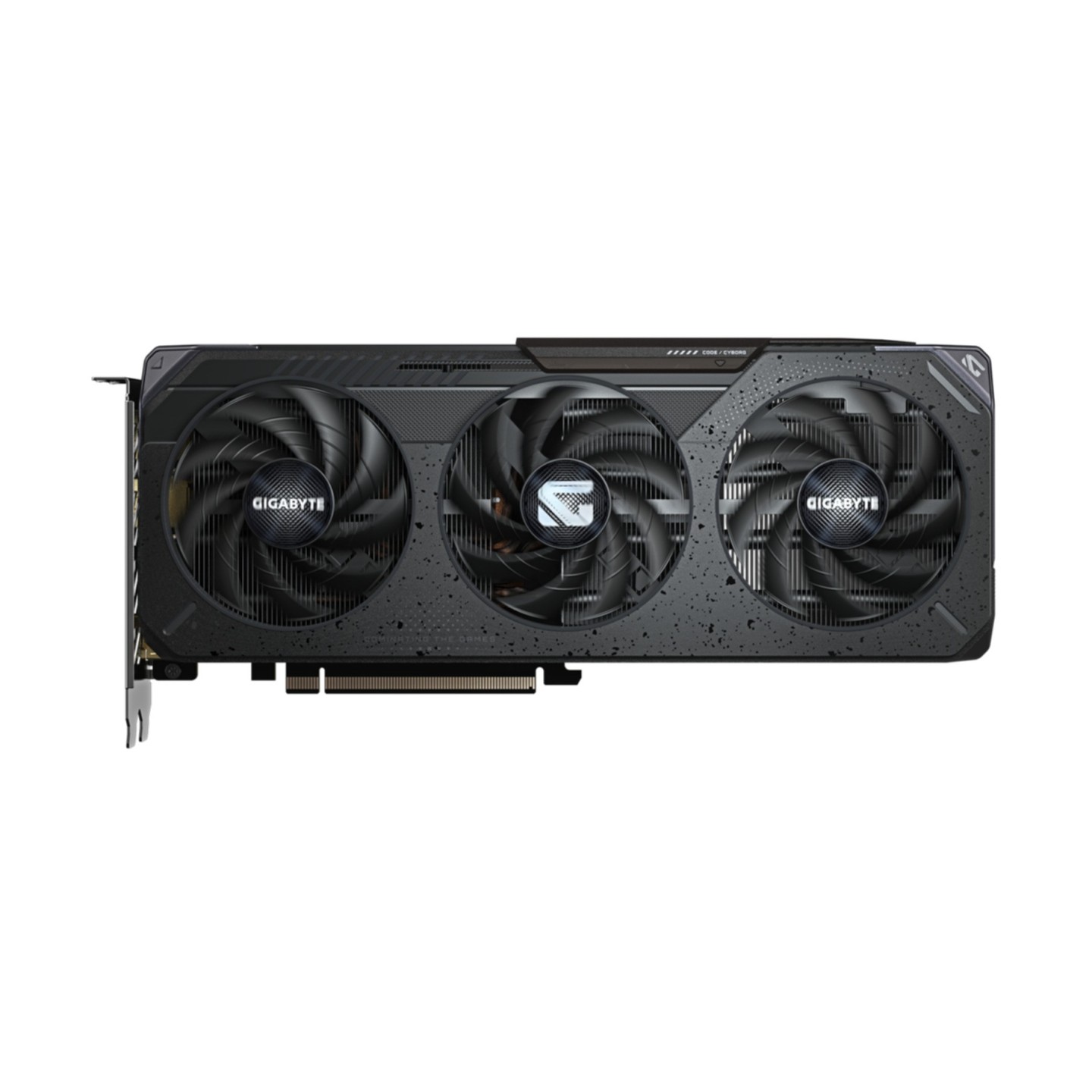

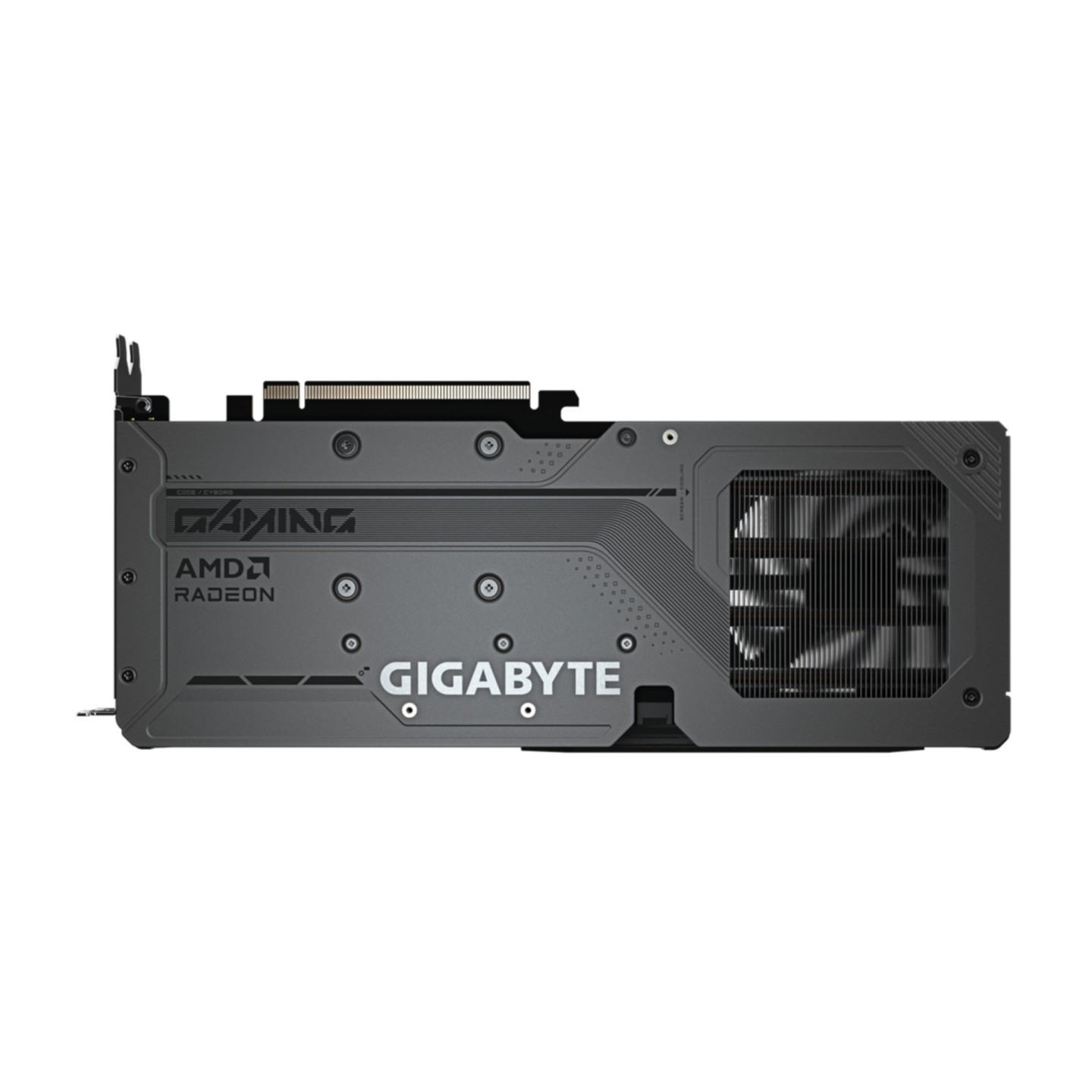

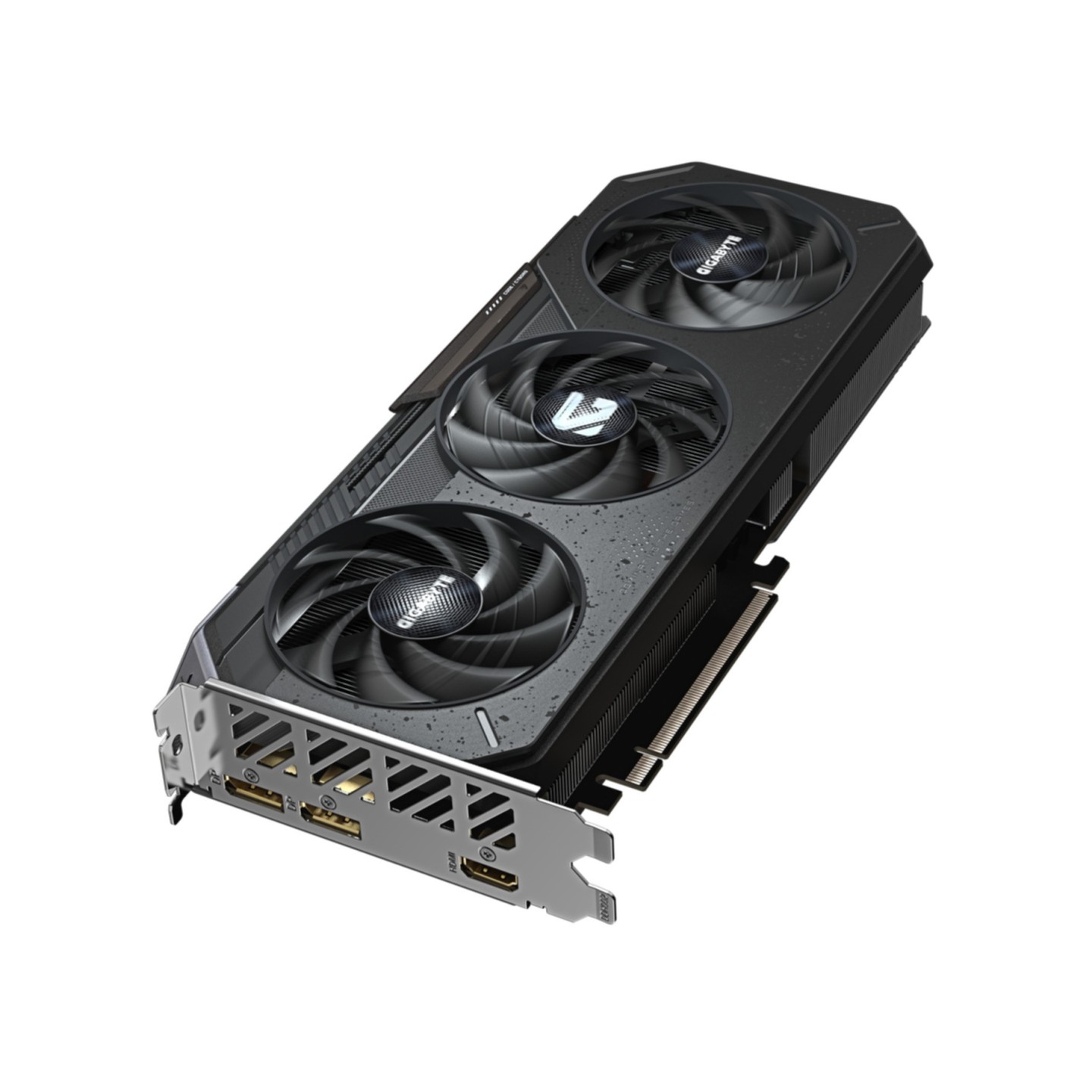

Gigabyte Radeon RX 9060 XT GAMING OC 16GB GDDR6 - Boost 3320 MHz - WINDFORCE 3X RGB, PCIe 5.0 (Boxed)
Gigabyte Radeon RX 9060 XT GAMING OC: 16GB GDDR6, 128-bit, boost up to 3320 MHz (ref 3130), PCIe 5.0, WINDFORCE 3X RGB cooling, 1x HDMI 2.1b, 2x DP 2.1a, 151W TDP, 450W PSU rec.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
Experience top-tier 1440p gaming with the Gigabyte Radeon RX 9060 XT GAMING OC 16G, powered by AMD RDNA 4 architecture. This overclocked GPU delivers boost clocks up to 3320 MHz, 2048 stream processors, and 16GB GDDR6 memory at 20 Gbps on a 128-bit bus for smooth, immersive gameplay with ray tracing and AI-enhanced visuals via FidelityFX Super Resolution 4.

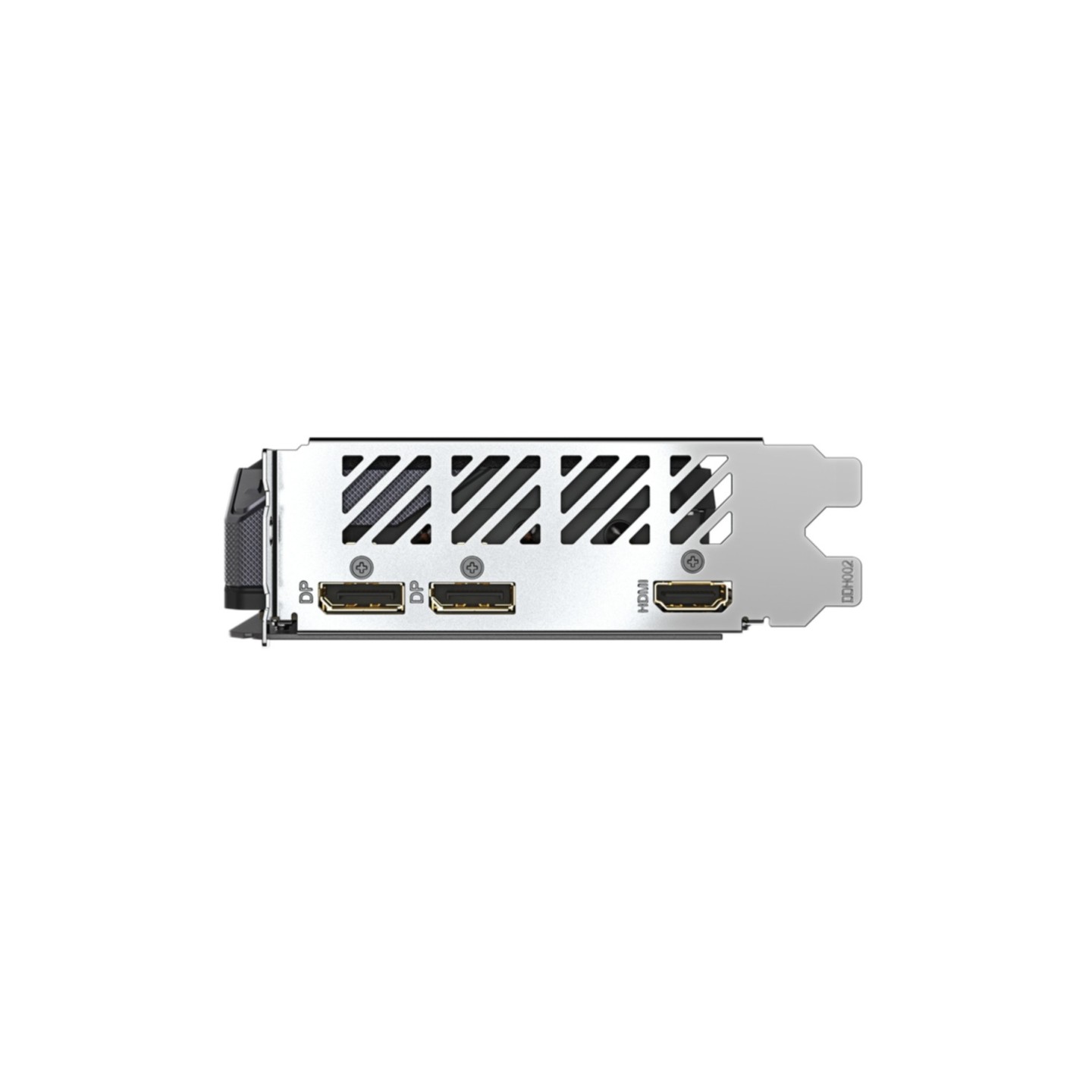

Featuring the advanced WINDFORCE 3X cooling system with Hawk fans, server-grade thermal gel, composite heat pipes, and screen cooling for optimal temperatures. RGB lighting adds style, while reinforced structure ensures durability. Supports up to 7680x4320 resolution, DisplayPort 2.1a x2, HDMI 2.1b x1, and PCI Express 5.0 interface.
- Boost Clock: up to 3320 MHz (Game Clock: 2780 MHz)
- Memory: 16GB GDDR6 20 Gbps
- Cooling: Triple-fan WINDFORCE 3X with RGB
- Power: 1x 8-pin, 450W PSU recommended, 151W TDP
- Dimensions: 281 x 118 x 40 mm
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3320 MHz |
| Processor boost clock speed (Gaming mode) | 2780 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 2048 |
| Maximum displays per videocard | 3 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 20000 MHz |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 151 W |
| Weight | 840 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 118 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.29 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
