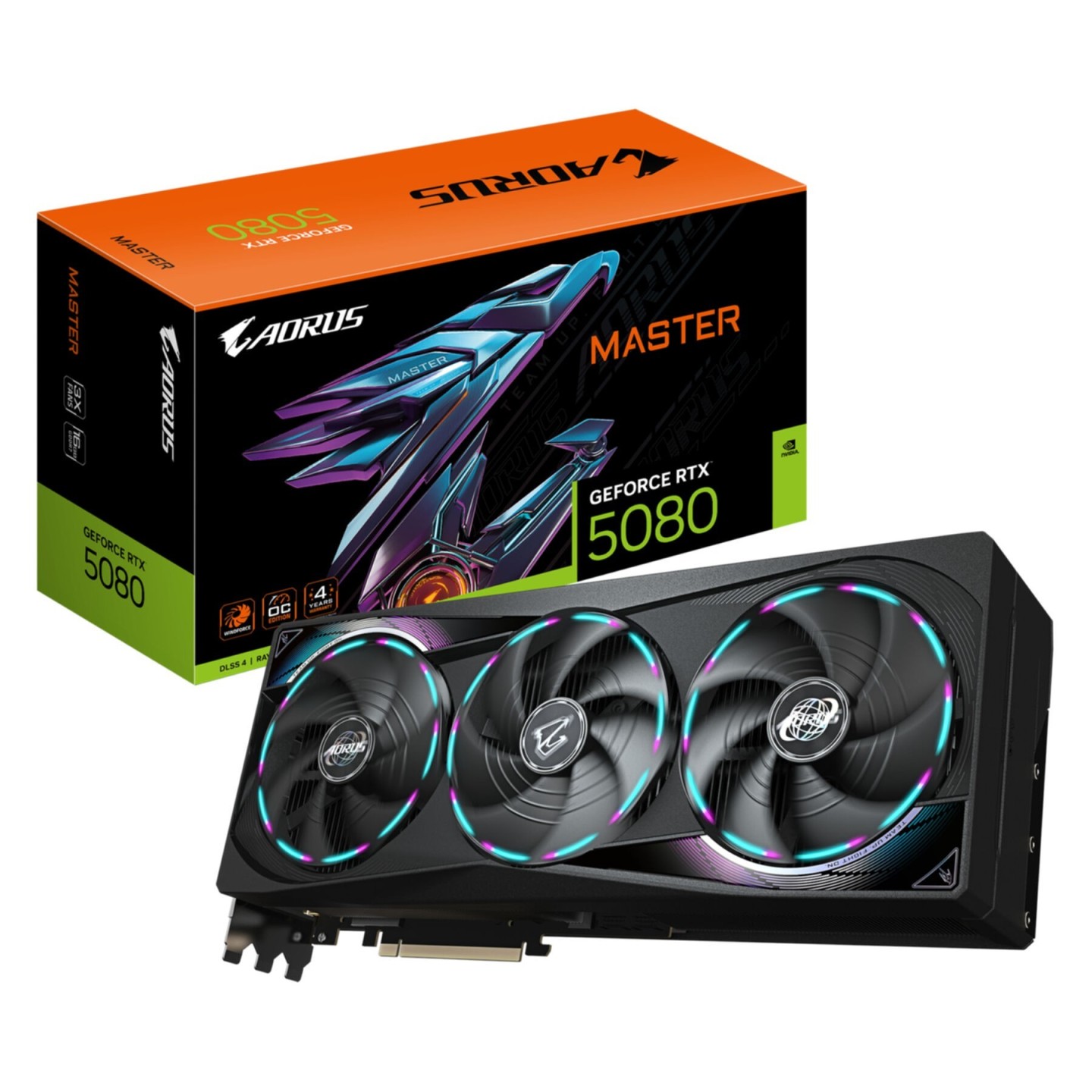

GIGABYTE AORUS MASTER GeForce RTX 5080 - 16GB GDDR7, 2805MHz Boost, PCIe 5.0 (Boxed)
GIGABYTE AORUS MASTER GeForce RTX 5080: 16GB GDDR7, 10752 CUDA cores, 2805MHz boost (highest factory OC), PCIe 5.0 x16, WINDFORCE 3X cooling, 1x16-pin, up to 8K@60Hz, HDMI 2.1b/DP 2.1b.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extreme (341-360 mm) |
Experience elite gaming and content creation with the GIGABYTE AORUS MASTER GeForce RTX 5080, featuring NVIDIA's Blackwell architecture, 10752 CUDA cores, and a factory overclocked boost clock of 2805MHz—the highest among air-cooled RTX 5080 models. Paired with 16GB GDDR7 memory at 30Gbps on a 256-bit bus, it delivers blistering performance for 4K/8K gaming, ray tracing, and AI workloads like DLSS 4. Advanced PCIe 5.0 interface ensures future-proof bandwidth.

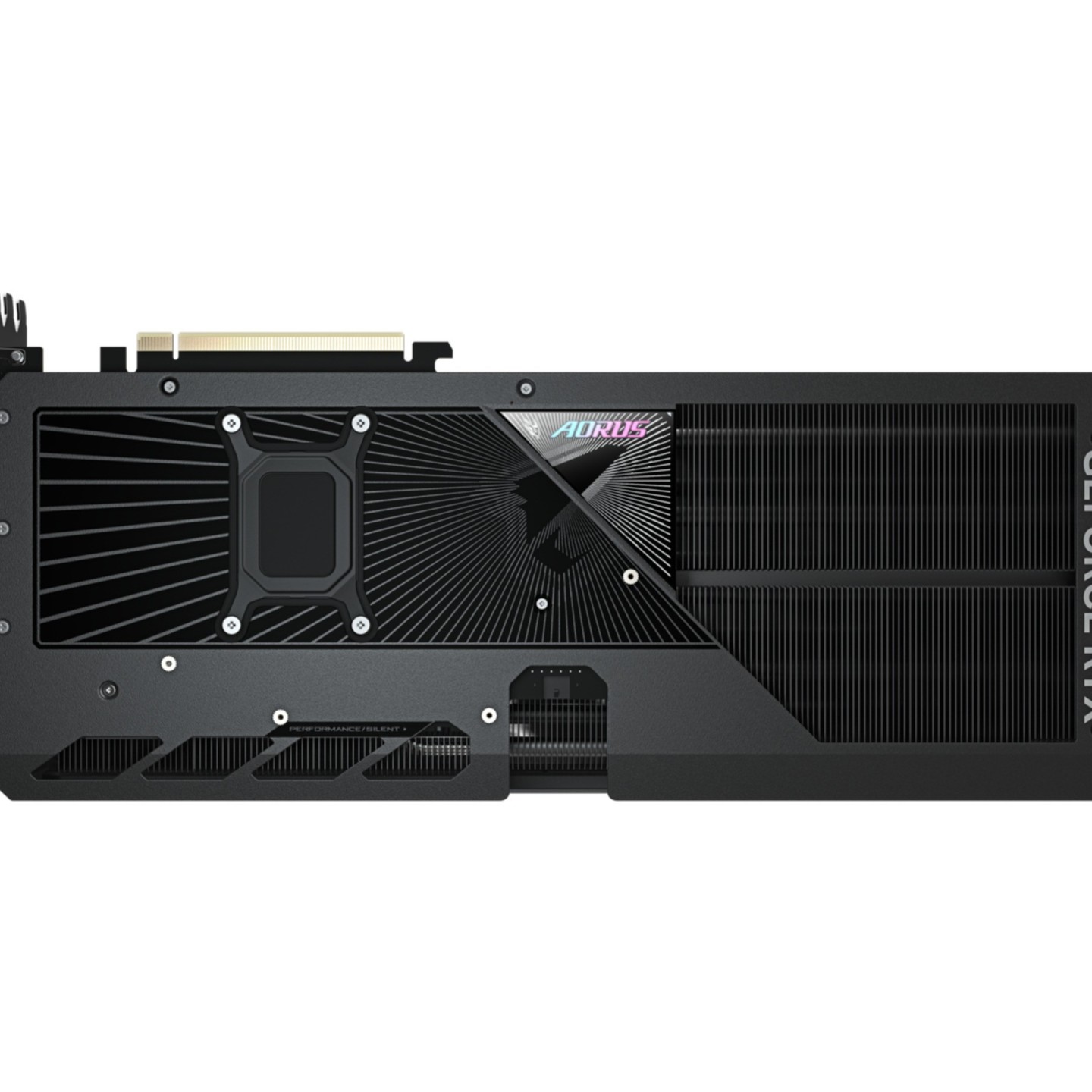

The premium WINDFORCE 3X cooling system with triple fans, vapor chamber, and composite copper heat pipes keeps temperatures low even under extreme overclocks (+440MHz headroom reported). Robust build includes metal backplate, RGB lighting, and 3.7-slot design (360x149x75mm). Powers via single 16-pin connector; 850W PSU recommended. Supports 4 displays up to 7680x4320.
- Extreme factory OC: 2805MHz boost clock

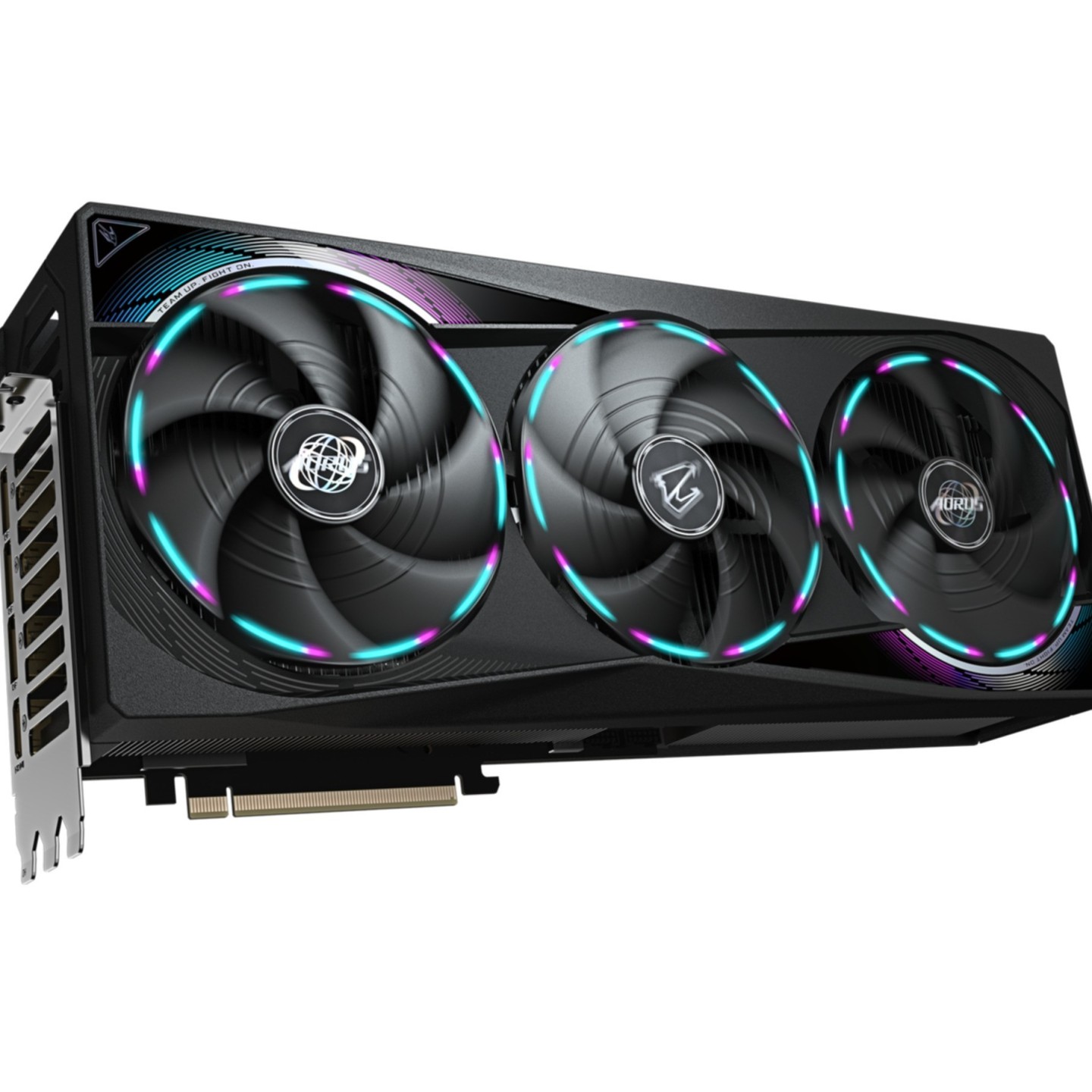

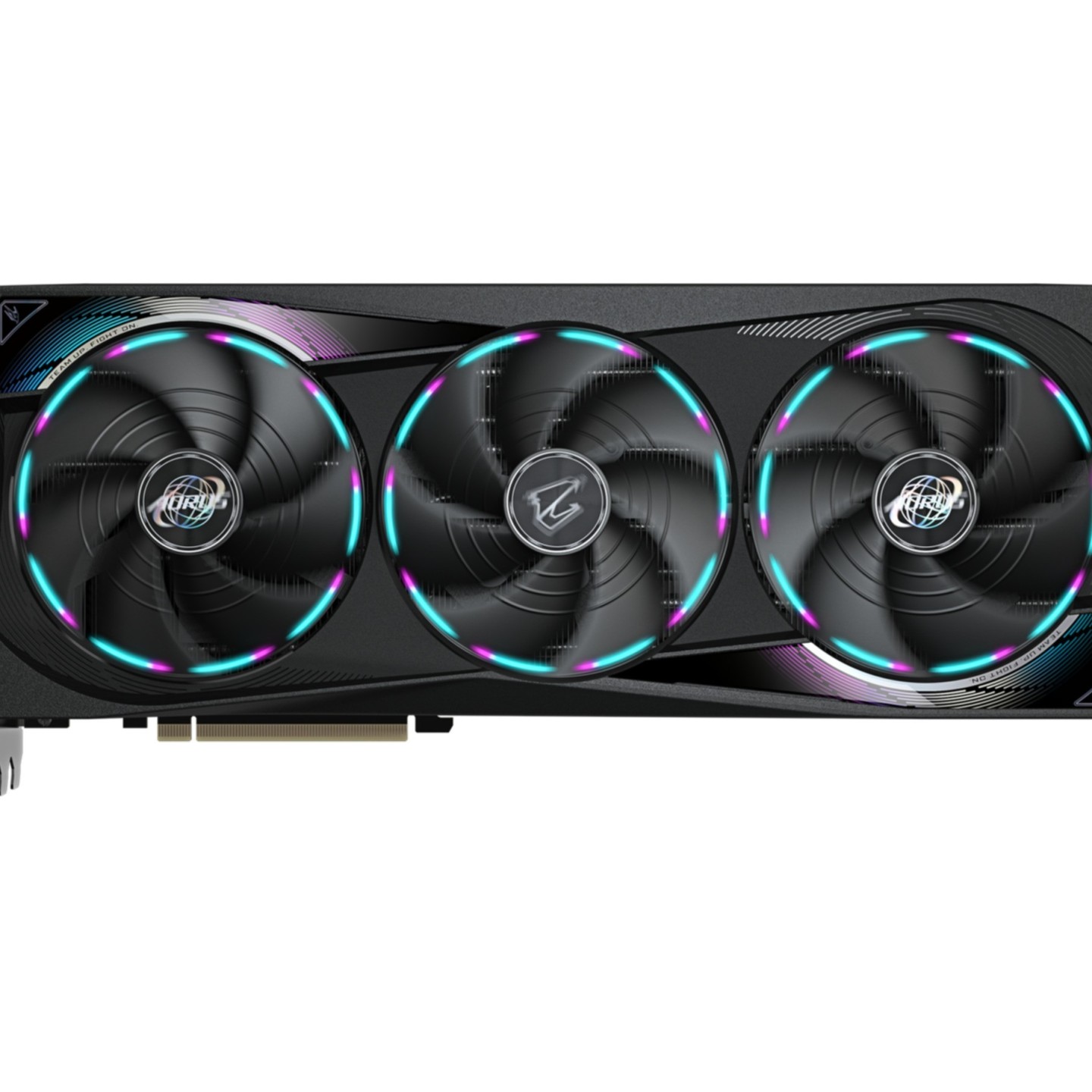

- WINDFORCE 3X triple-fan cooling stays cool & quiet
- 16GB GDDR7 30Gbps | 10752 CUDA cores | PCIe 5.0

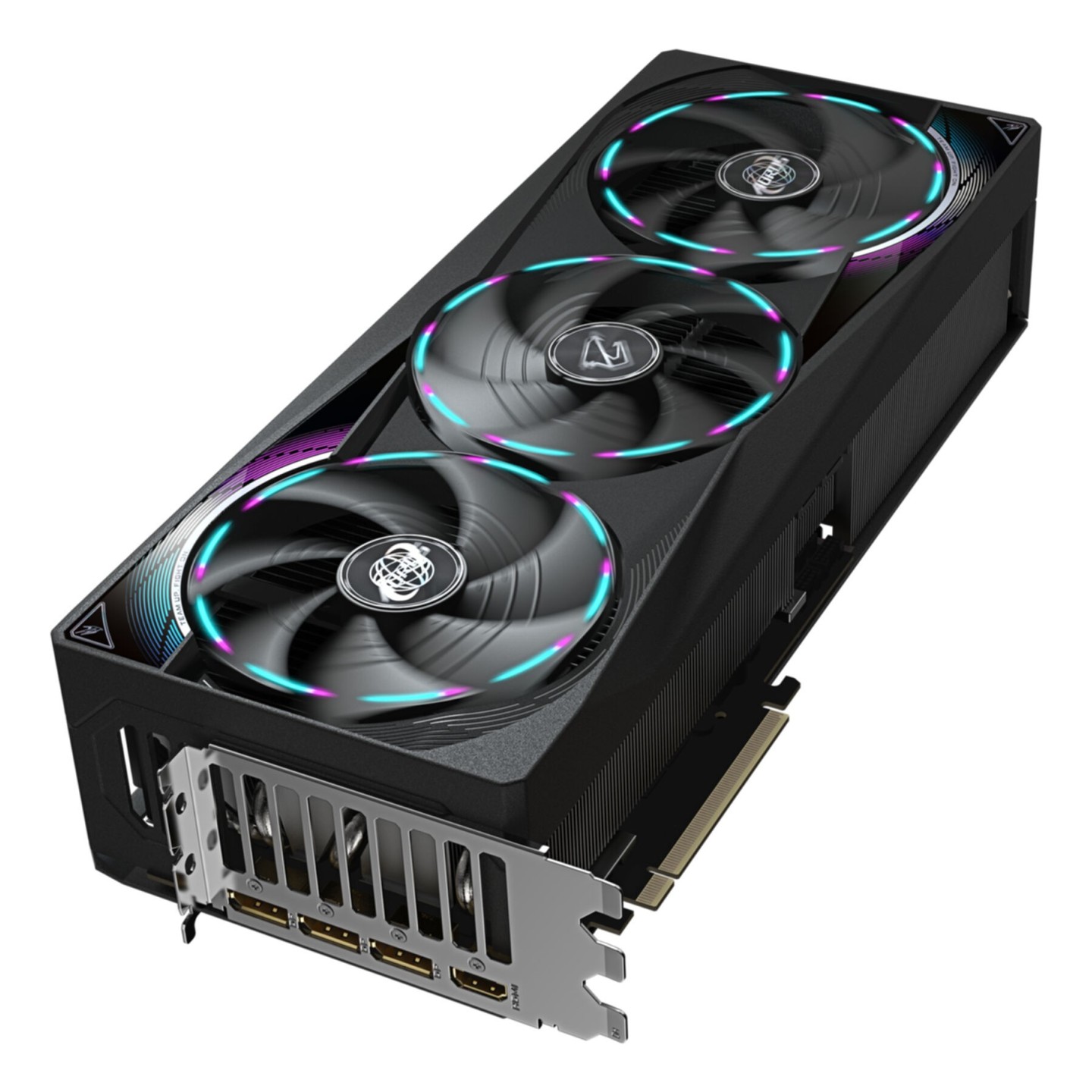

- 1x HDMI 2.1b + 3x DP 2.1b | Multi-color RGB Aura
- 4-year warranty | Ideal for high-end gaming & creators
| CUDA | Yes |
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor frequency | 2805 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 30 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| SFF ready | No |
| Supplementary power connectors | 1x 16-pin |
| Length | 360 mm |
| Depth | 75 mm |
| Package type | Box |
