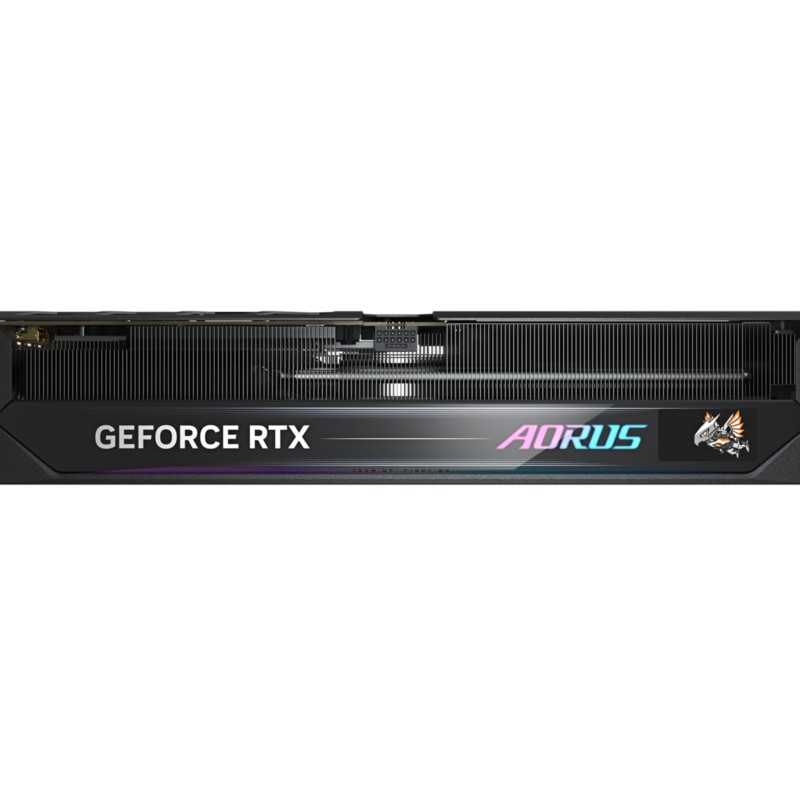

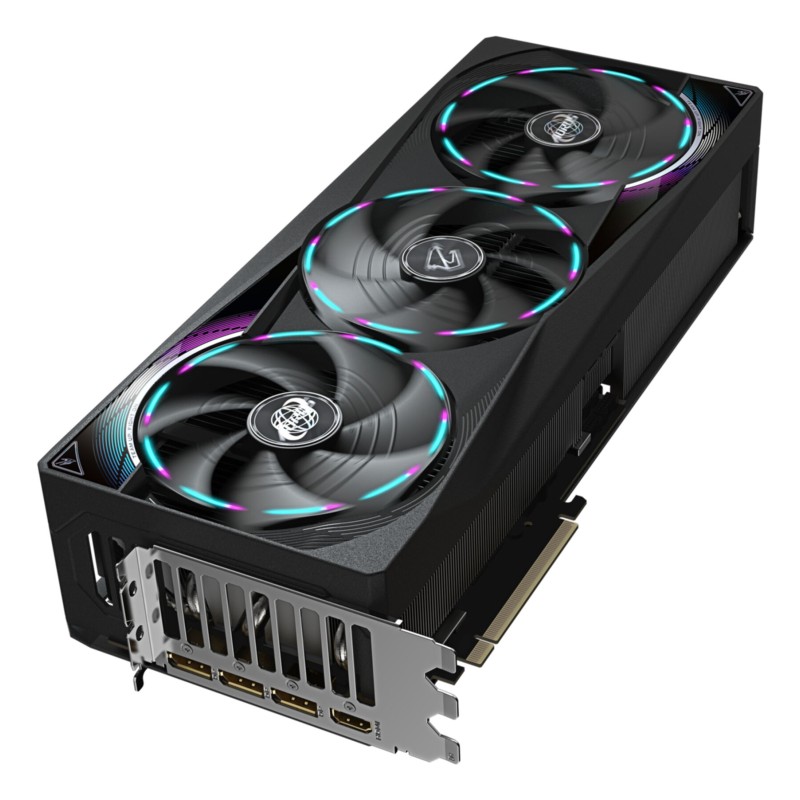

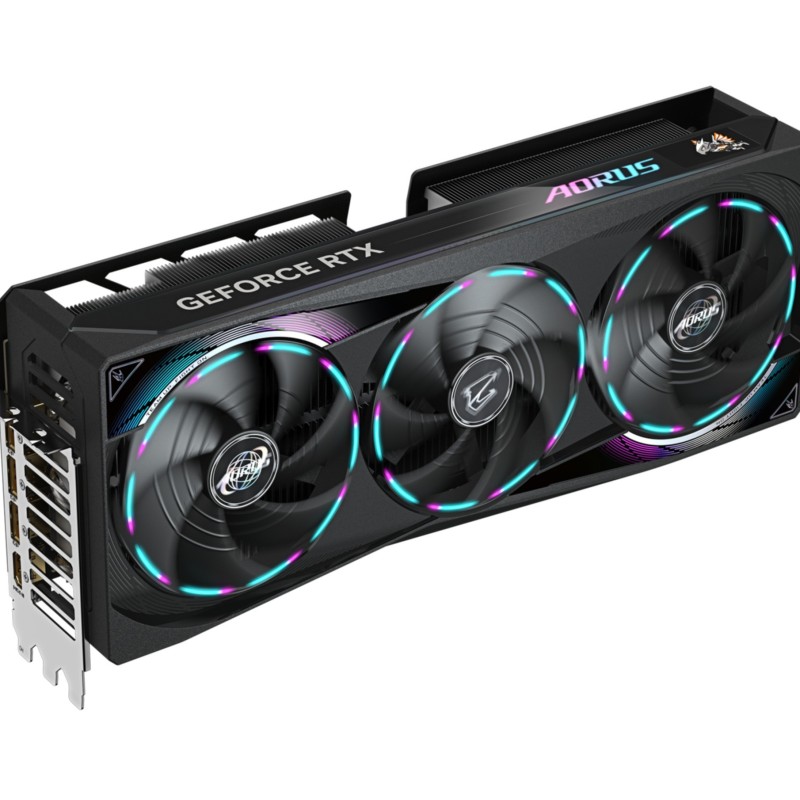

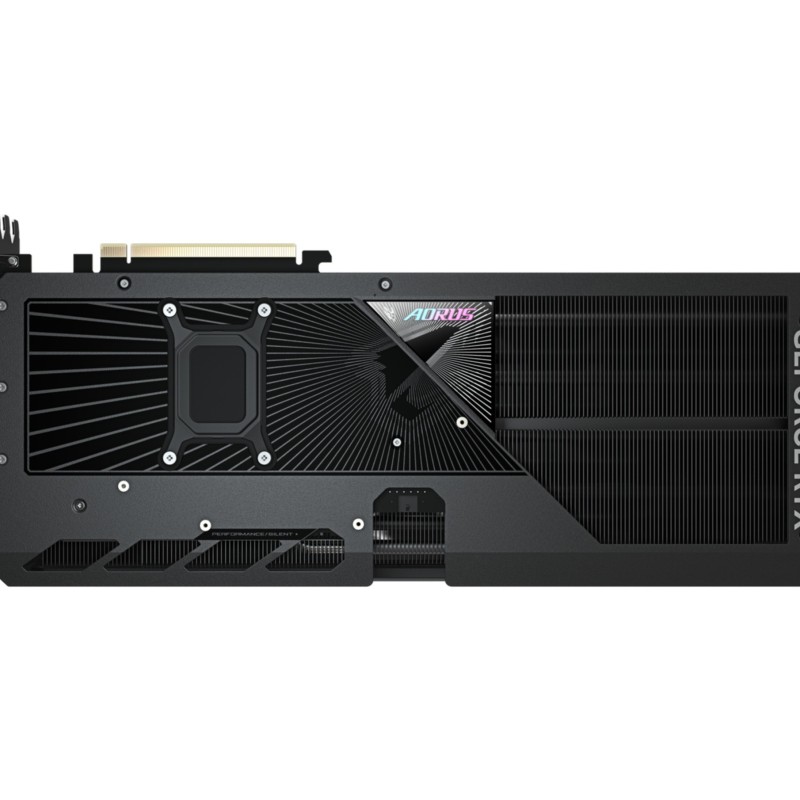

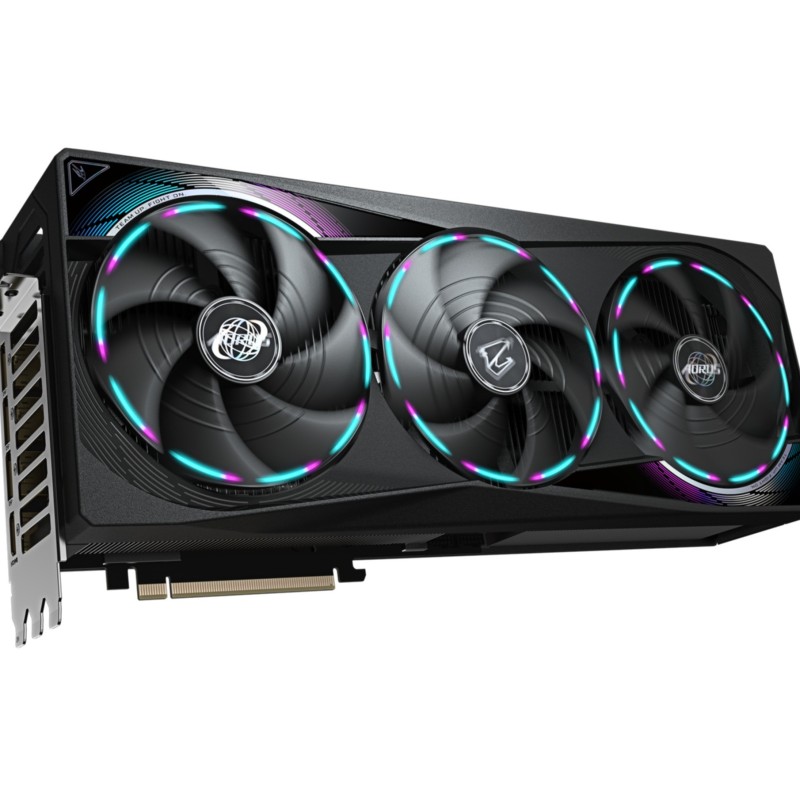

GIGABYTE AORUS MASTER GeForce RTX 5080 - 16GB GDDR7, 2805MHz Boost, PCIe 5.0
GIGABYTE AORUS MASTER GeForce RTX 5080 — 16GB GDDR7, 10752 CUDA cores, up to 7680x4320, PCIe 5.0, HDMI 2.1b & DisplayPort 2.1b for high-end gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
| CUDA | Yes |
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor frequency | 2805 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 30 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 4 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.7 |
| Illumination | Yes |
| Illumination colour | Multi |
| SFF ready | No |
| Product colour | Black |
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 2 kg |
| Length | 360 mm |
| Depth | 75 mm |
| Height | 149 mm |
| Package width | 245 mm |
| Package depth | 453 mm |
| Package height | 160 mm |
| Package weight | 3 kg |
| Package type | Box |
| Cables included | Power |
| Products per shipping (inner) case | 1 pc(s) |
