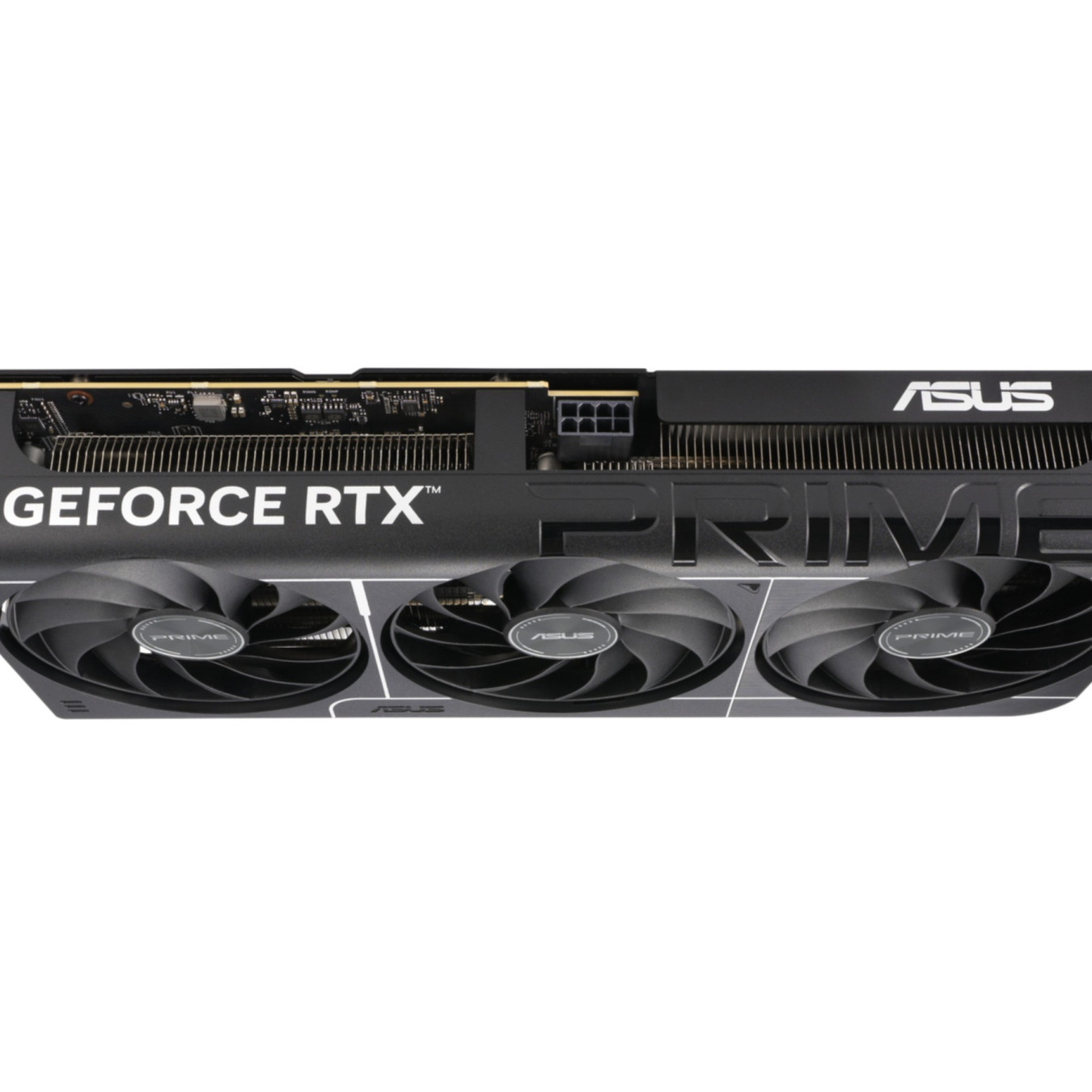

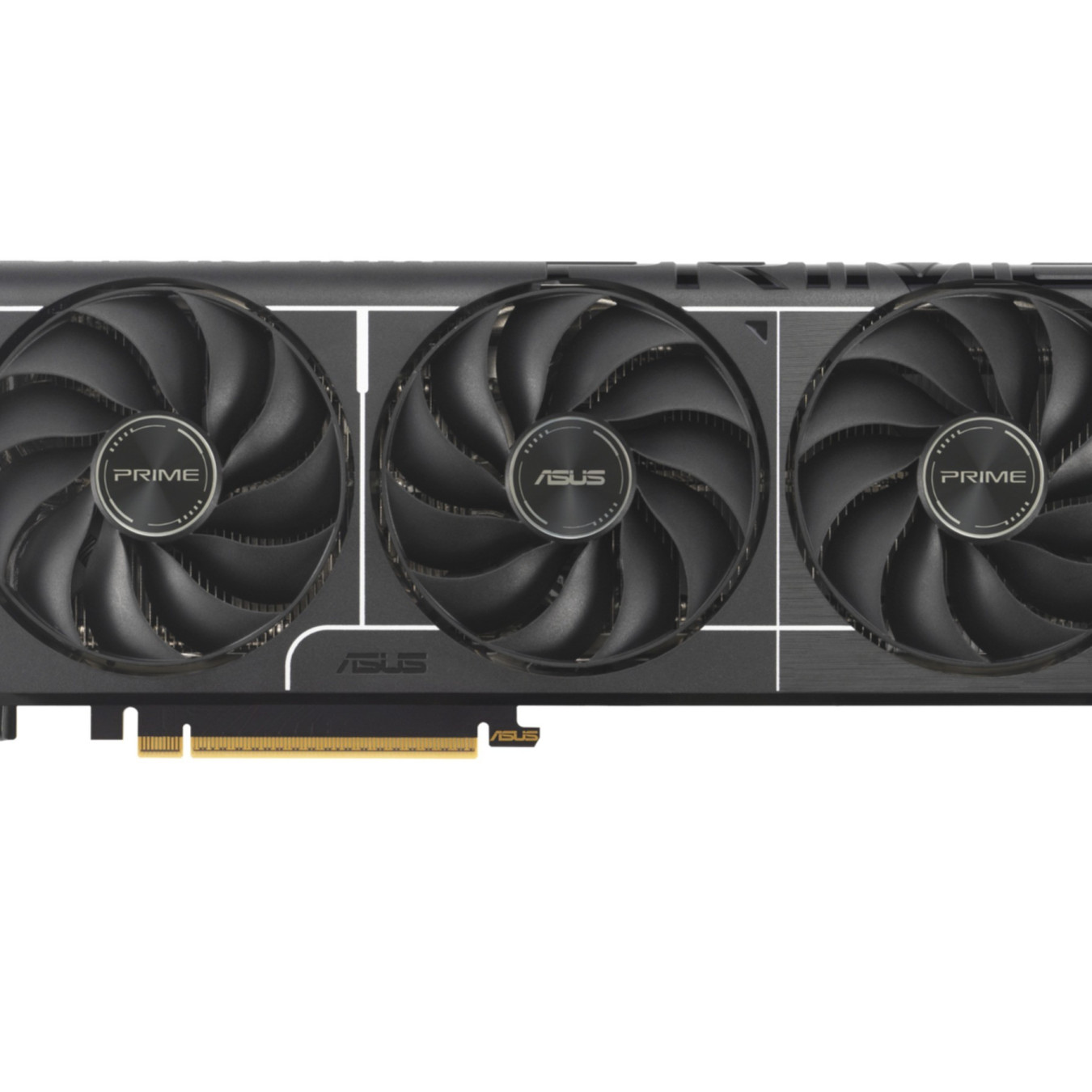

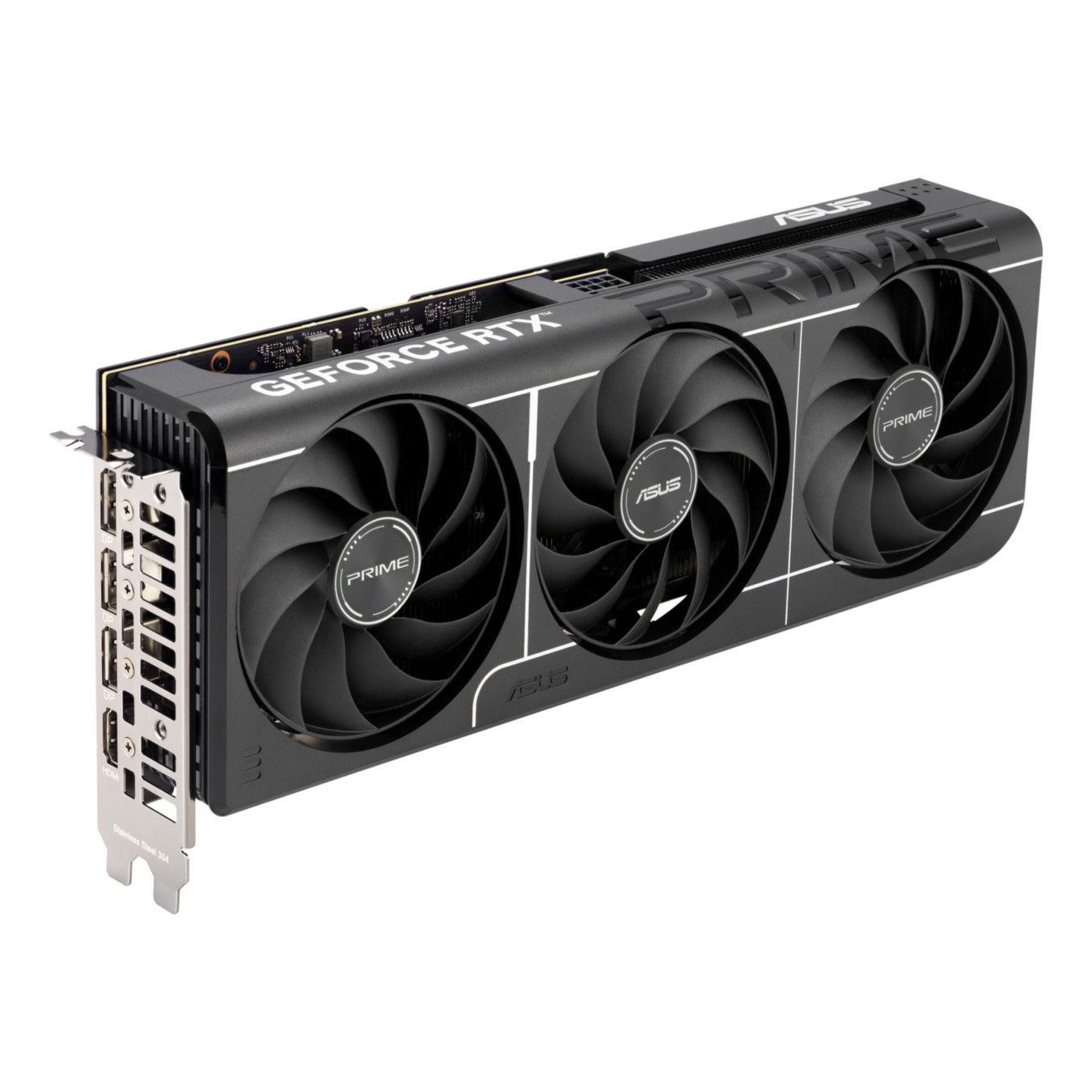

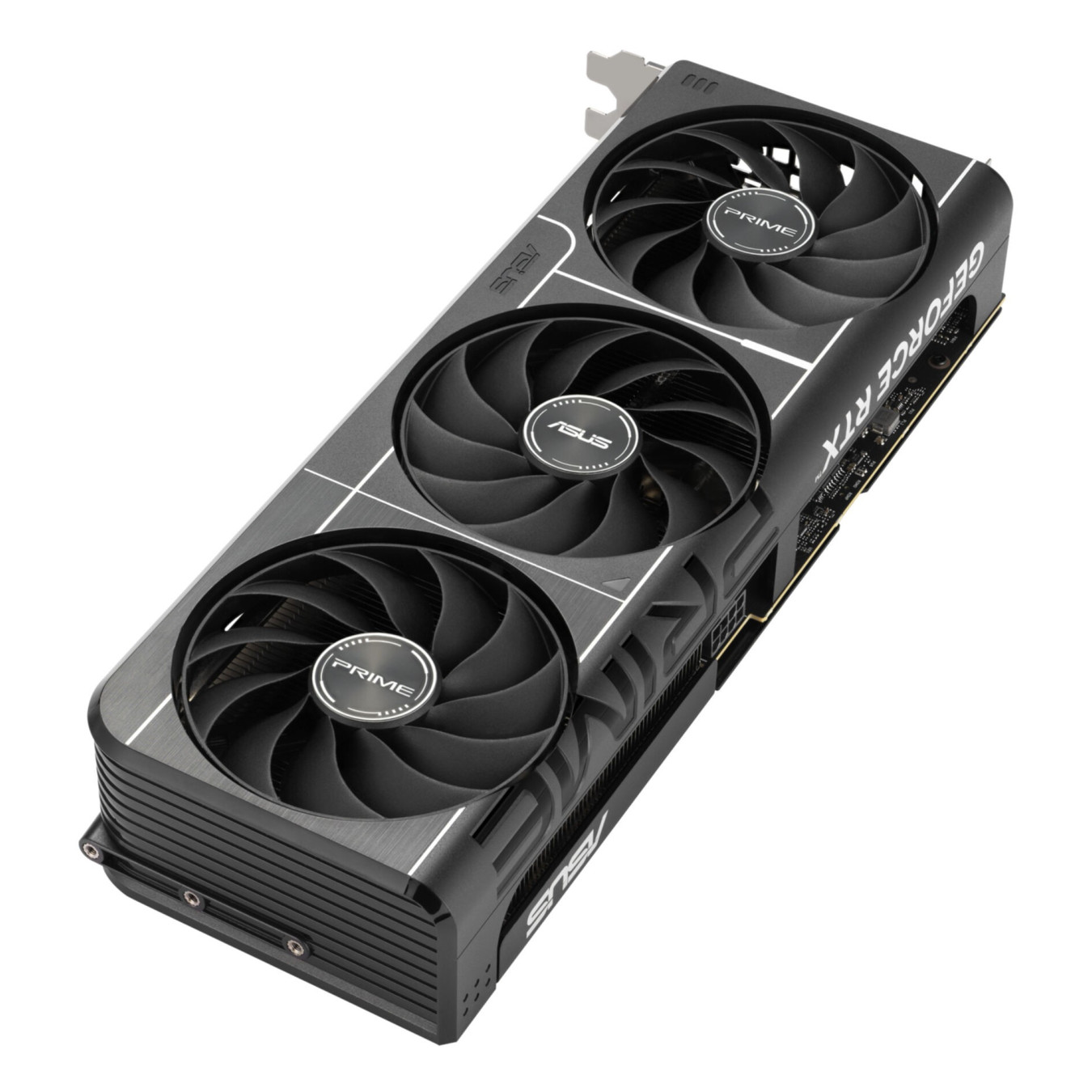

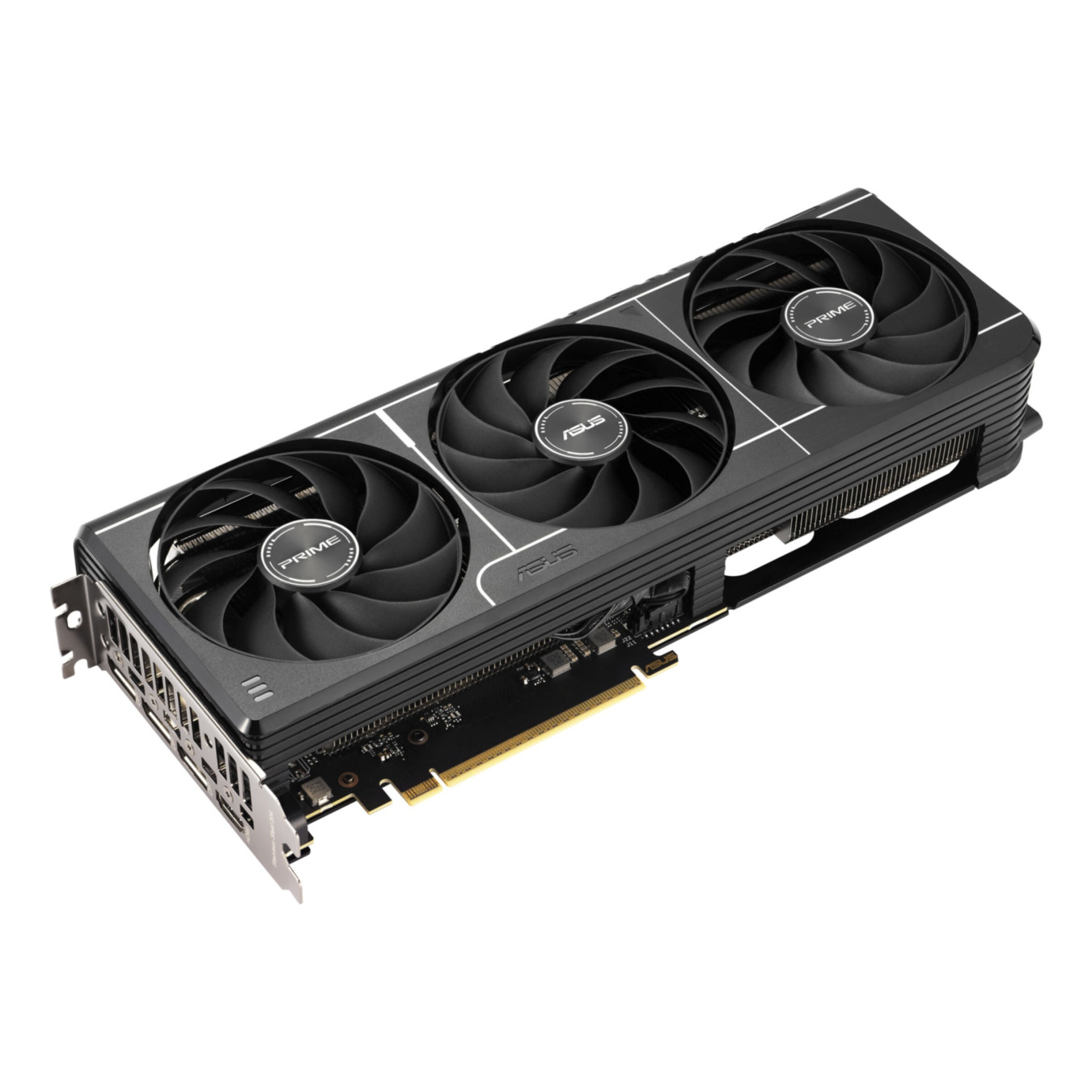

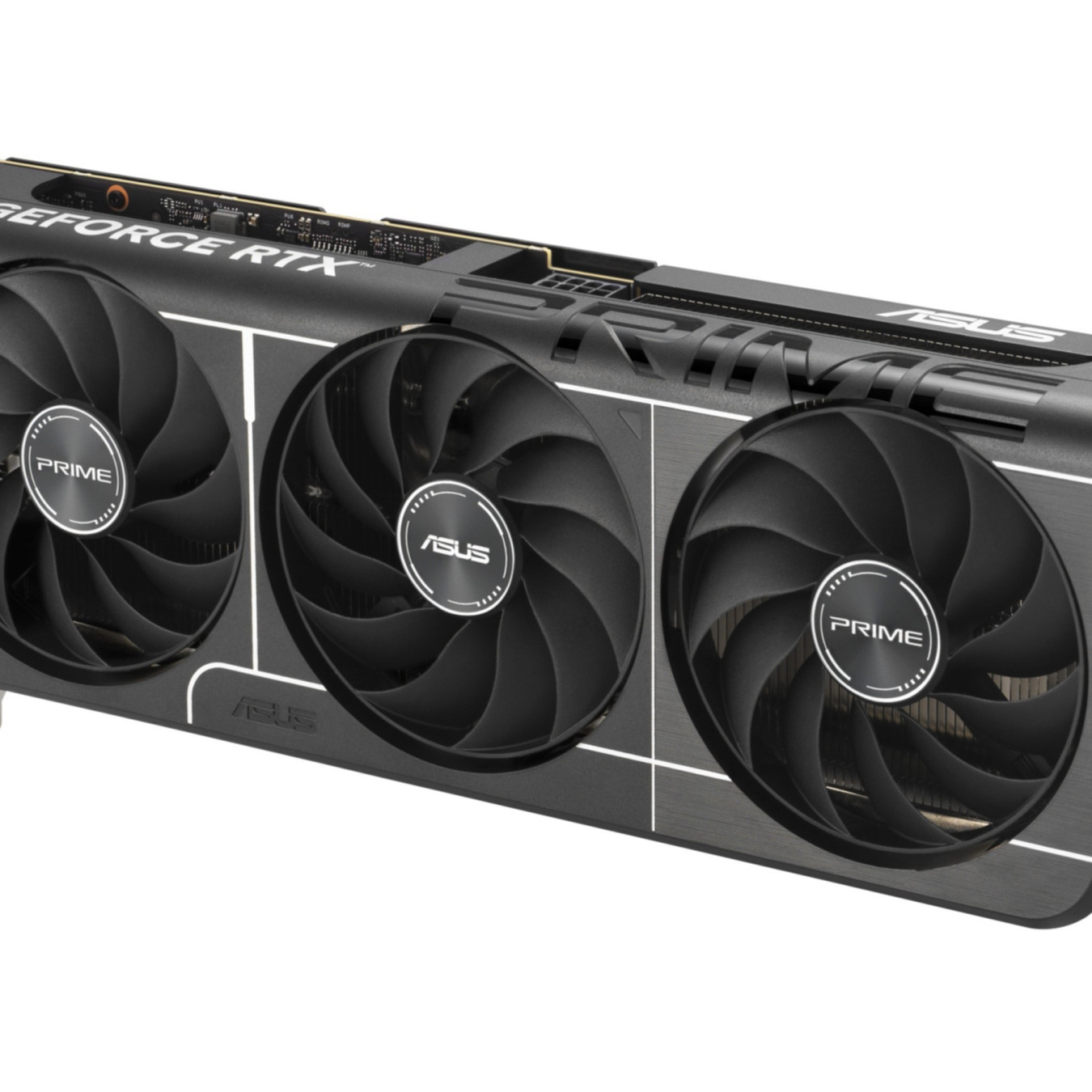

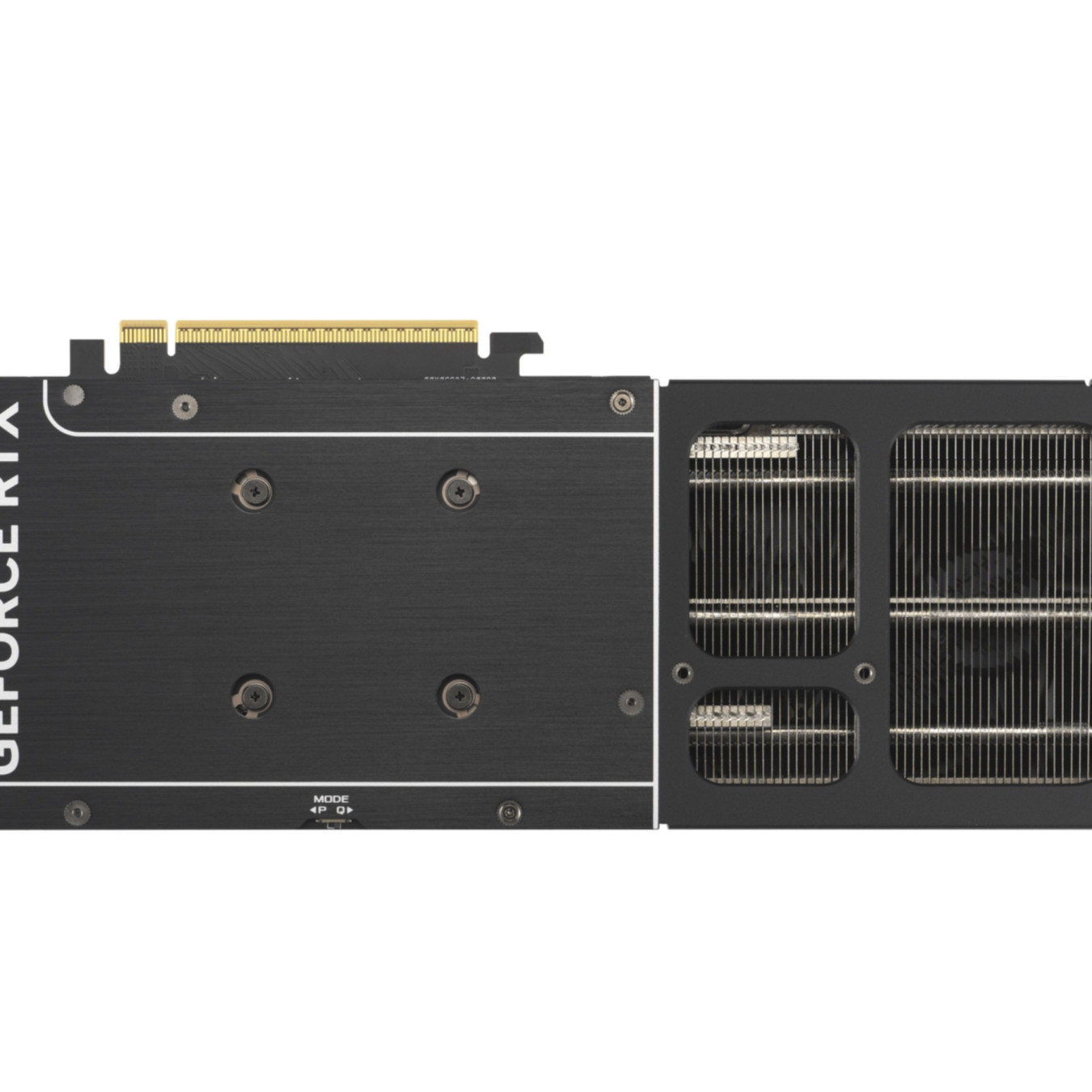

ASUS PRIME GeForce RTX 5060 Ti OC 16GB GDDR7 - PCIe 5.0 (Boxed)
ASUS PRIME RTX 5060 Ti OC 16GB GDDR7 GPU with 2617 MHz boost, triple-fan cooling, PCIe 5.0, HDMI 2.1b + 3x DP 2.1b outputs, 2.5-slot design for SFF compatibility.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Other |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
High-Performance Gaming GPU for 1440p and Beyond
The ASUS PRIME GeForce RTX 5060 Ti OC Edition delivers exceptional gaming performance with 16GB of GDDR7 memory, making it ideal for 1440p gaming and capable of handling 4K titles with DLSS 4 upscaling. Featuring a 2617 MHz base boost clock (2647 MHz in OC mode) and 4,608 CUDA cores, this card achieves approximately 15% better performance than the RTX 4060 Ti at 1080p, 25% improvement at 1440p, and 65% gains at 4K resolution. The card supports advanced features including hardware ray tracing, variable-rate shading, and DLSS 4 with Super Resolution for enhanced visual quality at higher frame rates.
Built for enthusiasts and compact builds, the PRIME OC features a distinctive 2.5-slot design with triple-fan axial cooling technology for superior thermal management and airflow efficiency. Connectivity includes 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs supporting up to 4 simultaneous displays at resolutions up to 7680x4320. The card utilizes PCIe 5.0 for high-speed data transfer, operates at 180W power consumption, and requires a single 8-pin supplementary power connector. With G-SYNC support, HDCP 2.3 protection, and VR-ready capabilities, this GPU is optimized for both gaming and professional applications requiring AI acceleration (785 AI TOPS).
- 16GB GDDR7 memory with 128-bit interface and 448 GB/s bandwidth
- Triple-fan active cooling with ASUS Axial-tech design
- PCIe 5.0 x16 interface for maximum bandwidth
- HDMI 2.1b and DisplayPort 2.1b connectivity
- SFF-ready 2.5-slot compact form factor
- NVIDIA DLSS 4 and ray tracing support
- G-SYNC and HDCP 2.3 compatible
| GPU Architecture | NVIDIA Ada Lovelace |
| Graphics Processor | GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Base Clock Speed | 2400 MHz |
| Boost Clock Speed (Stock) | 2617 MHz |
| Boost Clock Speed (OC Mode) | 2647 MHz |
| Memory Capacity | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 448 GB/s |
| GPU Memory Interface | PCIe 5.0 x16 |
| Theoretical Performance | 23.22 TFLOPS |
| AI Performance | 785 AI TOPS |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Version | 4.6 |
| Video Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 x 4320 pixels |
| Power Consumption | 180 W |
| Power Connectors | 1x 8-pin PCIe |
| Minimum PSU Requirement | 550 W |
| Cooling Solution | Triple-fan ASUS Axial-tech active cooling |
| Form Factor | Full-Height, Full-Length |
| Card Length | 304 mm |
| Card Height | 120 mm |
| Card Depth | 50 mm |
| Slot Configuration | 2.5-slot |
| SFF Ready | Yes |
| Card Weight | 898 g |
| G-SYNC Support | Yes |
| HDCP Version | 2.3 |
| VR Ready | Yes |
| DLSS Support | DLSS 4 with Super Resolution |
| Ray Tracing | Hardware ray tracing supported |
| Variable Rate Shading | Supported |
| Operating System Support | Windows |
| Package Contents | Graphics card, documentation, driver software |
| Warranty | Standard ASUS warranty (typically 3 years) |
