Enermax Revolution 3 1000W ATX 3.1 PSU - 80 PLUS Gold, Fully-Modular, Black, PCIe 12VHPWR & 6+2
1000W ATX 3.1 power supply, 80 PLUS Gold, fully modular cables, supports PCIe 12VHPWR + 6+2 connectors, single +12V rail (83.3A), 120mm fan — ideal for RTX 50 series.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
80 PLUS® GOLD CERTIFIED
REVOLUTION III 1000W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
REVOLUTION III 1000W power supply meets the Intel ATX 3.1 standards to ensure top-notch performance of power hungry graphics cards.
100% JAPANESE CAPACITORS
REVOLUTION III 1000W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.

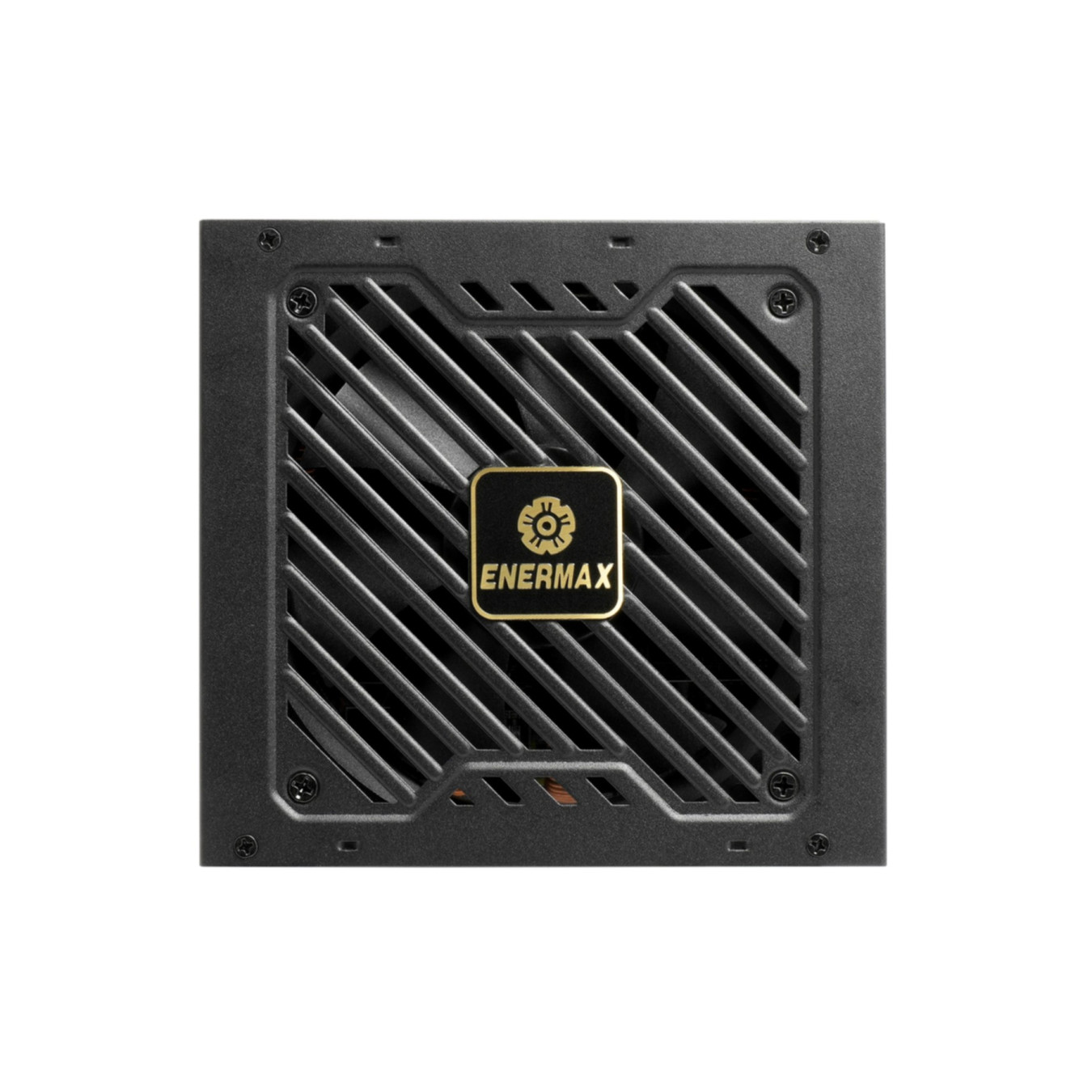

FLUID DYNAMIC BEARING FAN
The F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
REVOLUTION III 1000W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.
PREMIUM MESH-SLEEVED CABLES

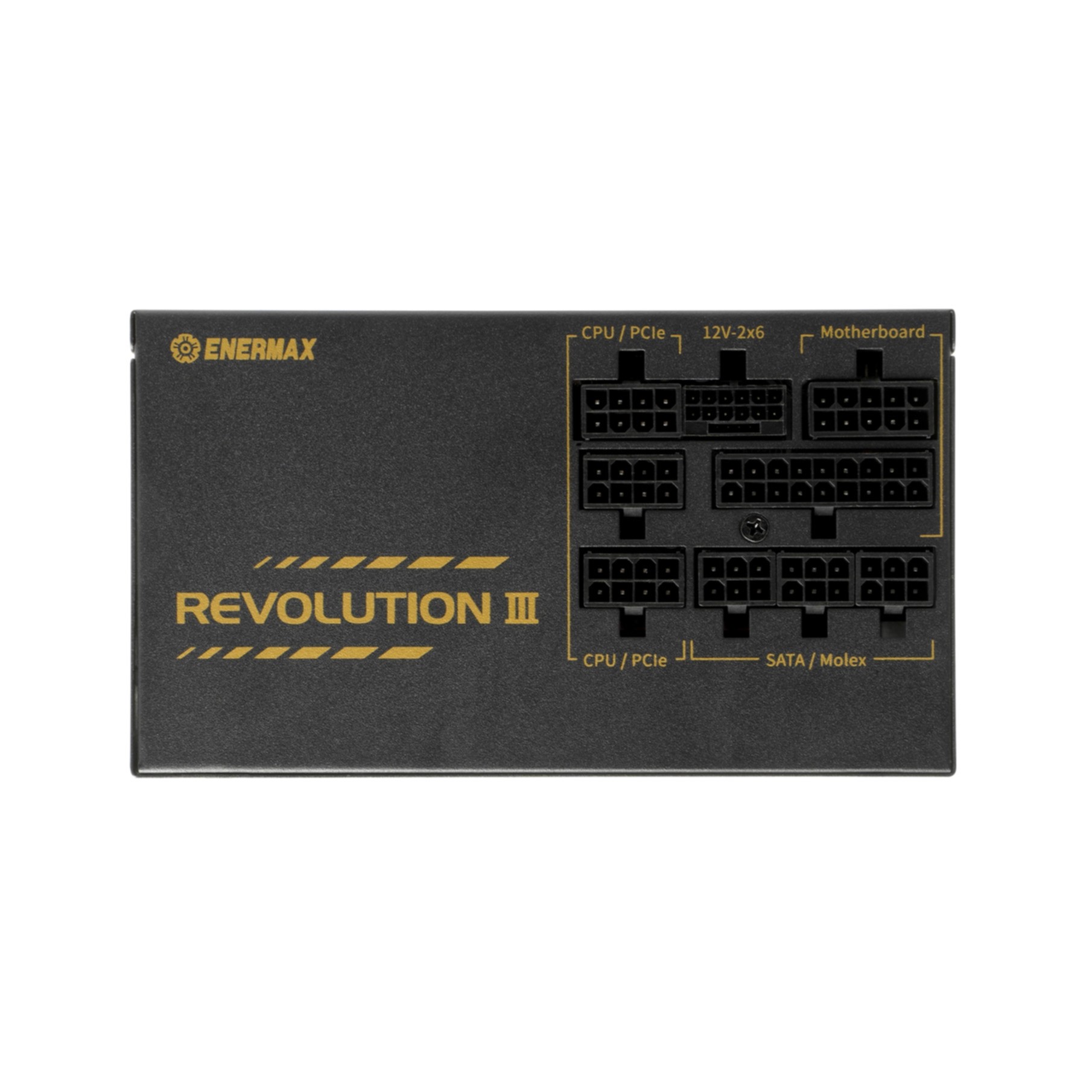

The REVOLUTION III 1000W power supply features premium individually mesh-sleeved cables with cable combs for a clean and organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15-8 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power connectors (12+4 pin) | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package width | 190 mm |
| Package depth | 310 mm |
| Package height | 110 mm |
| Package weight | 1.5 kg |
