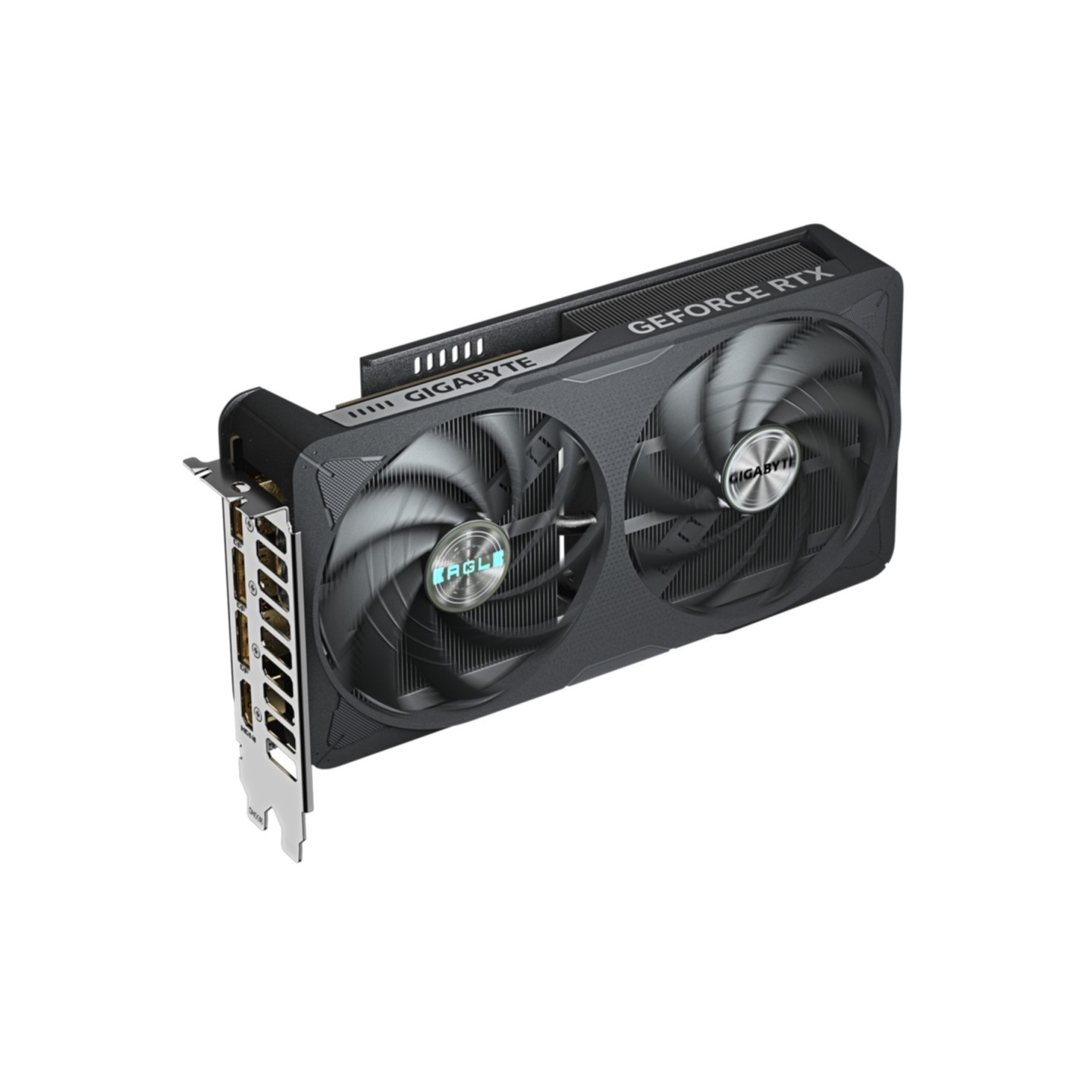

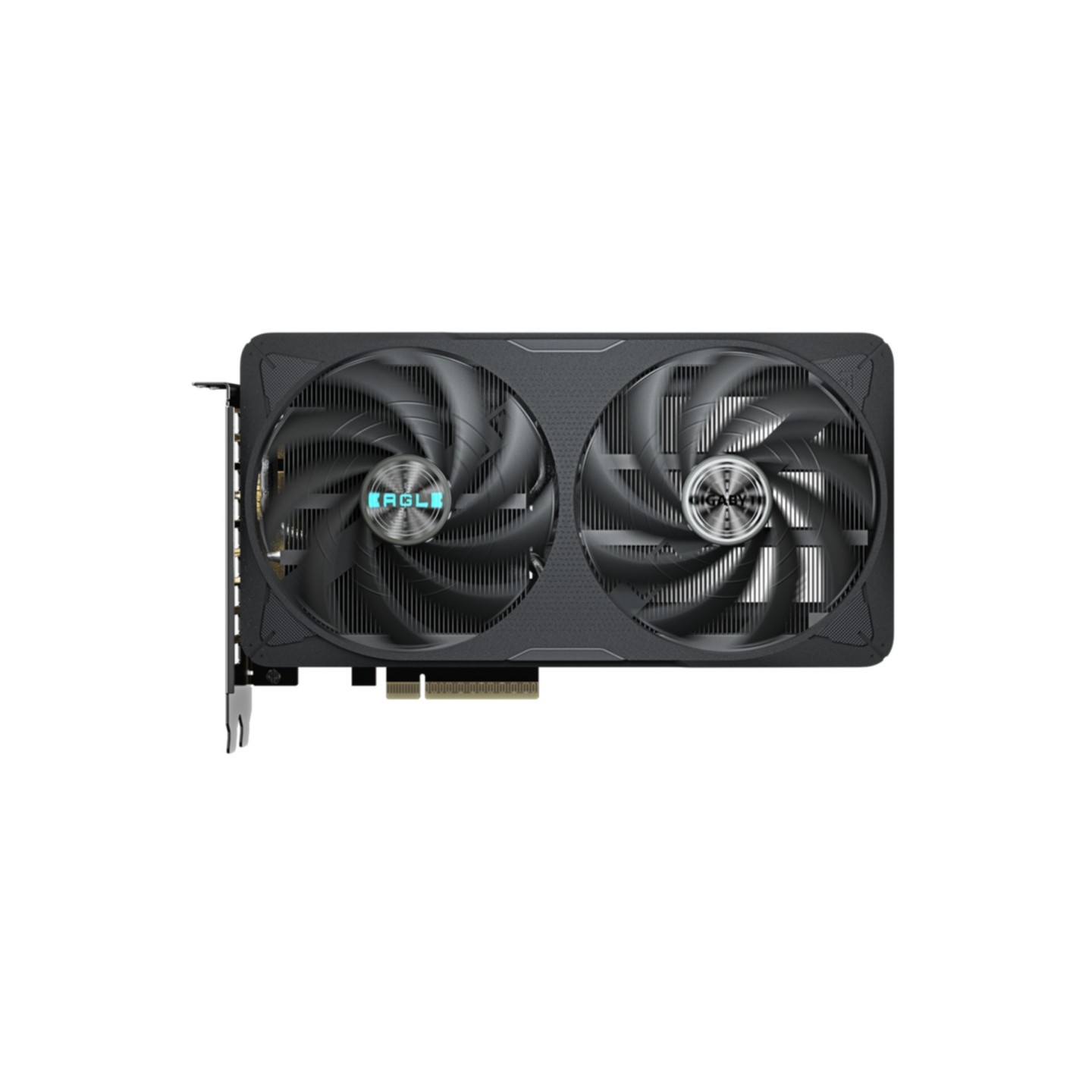

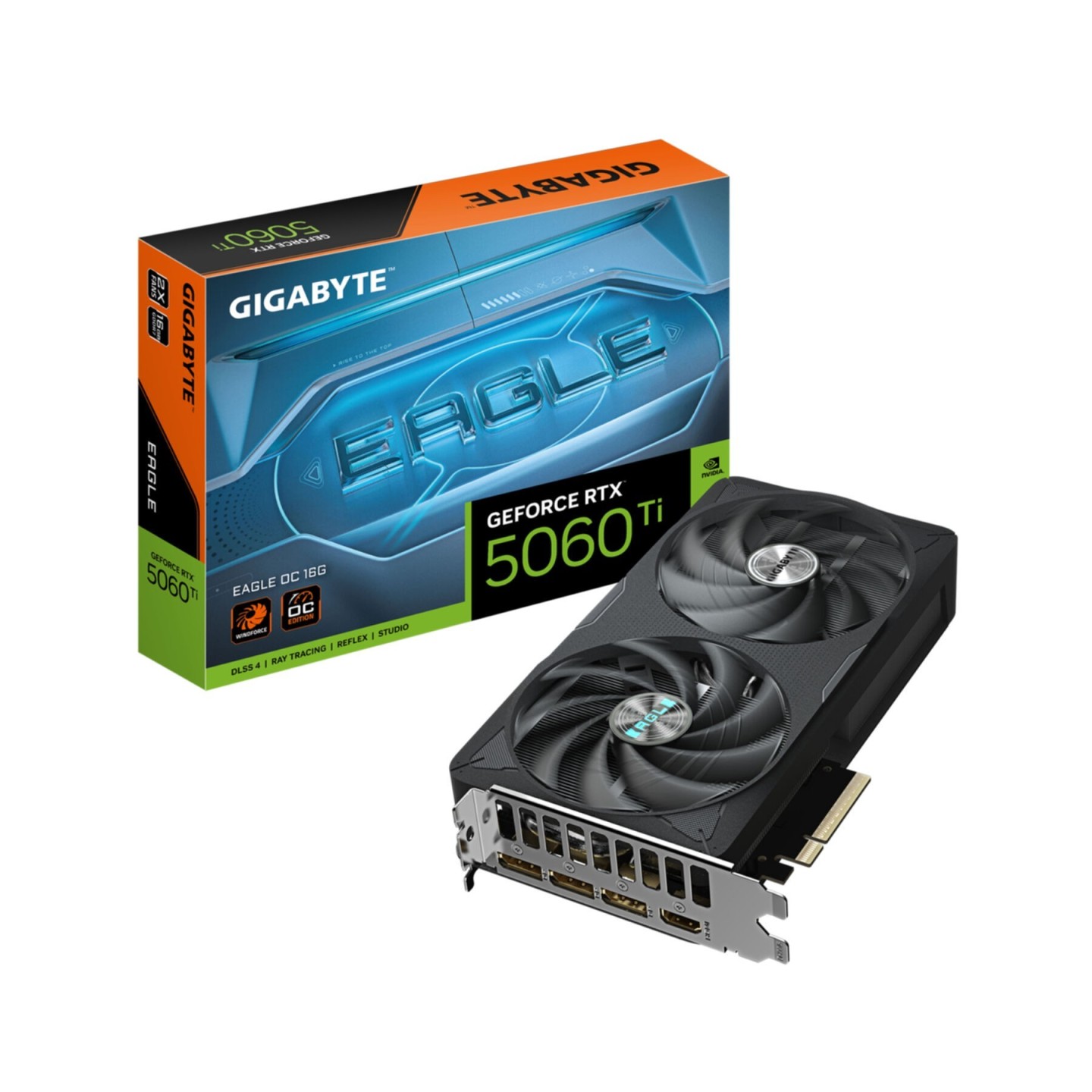

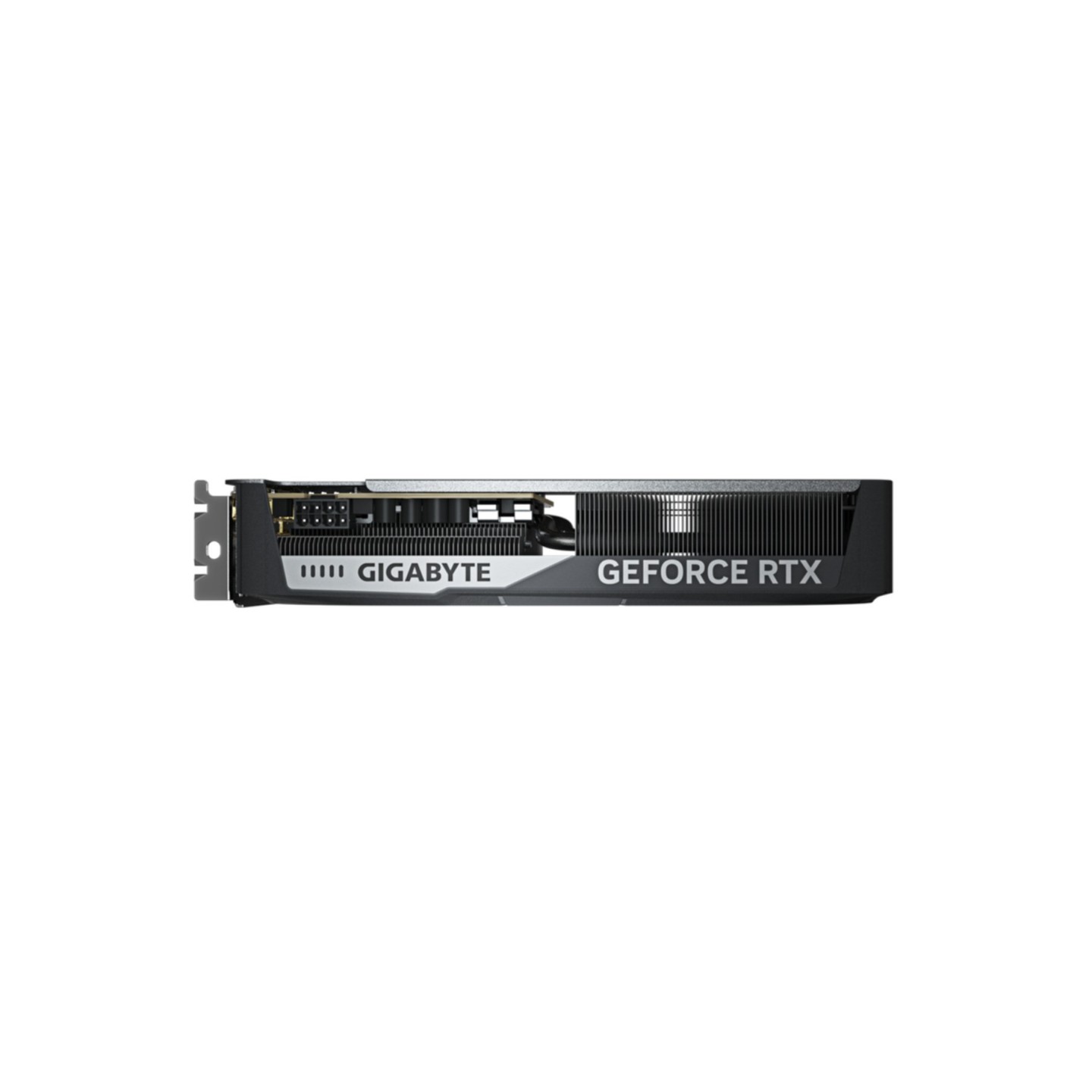

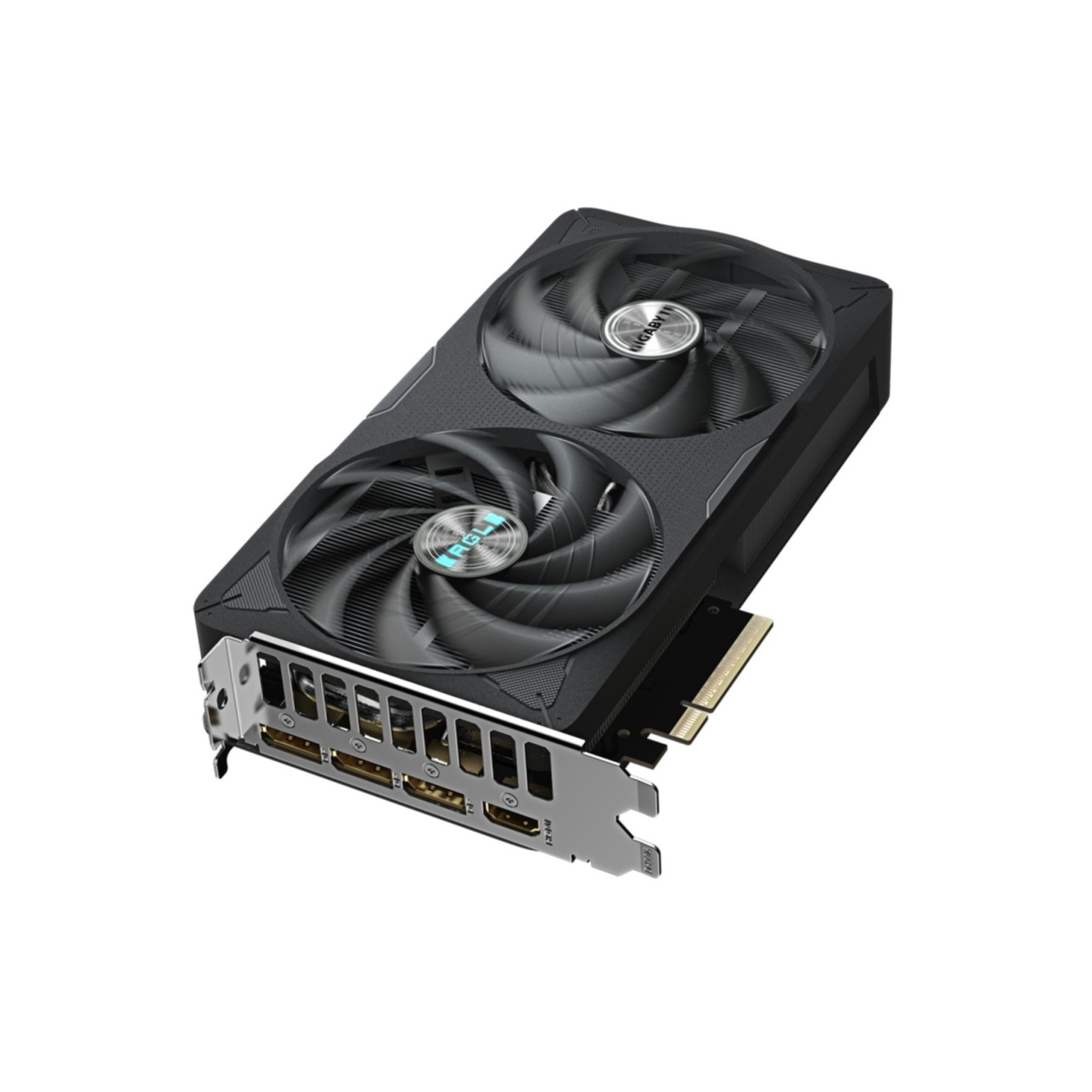

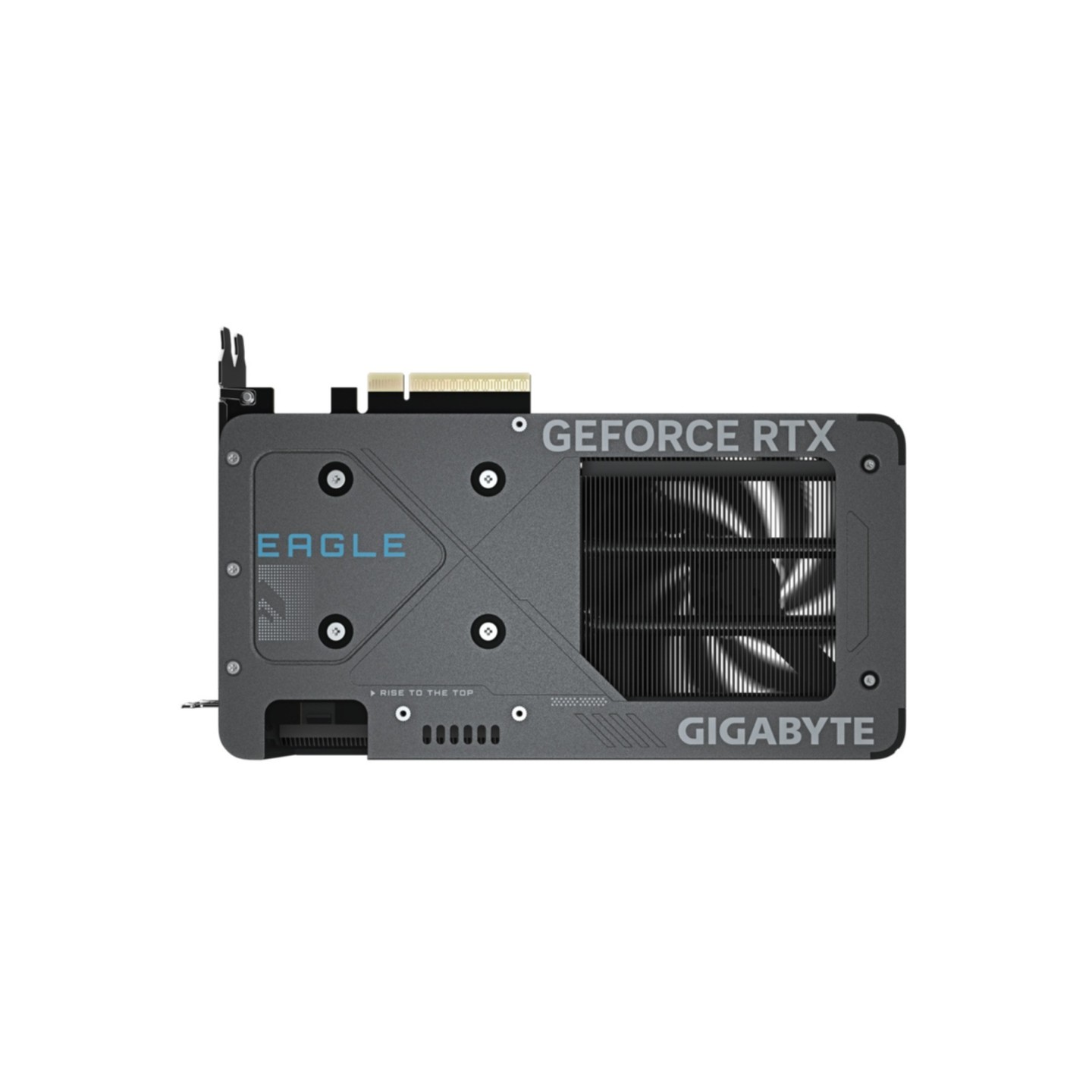

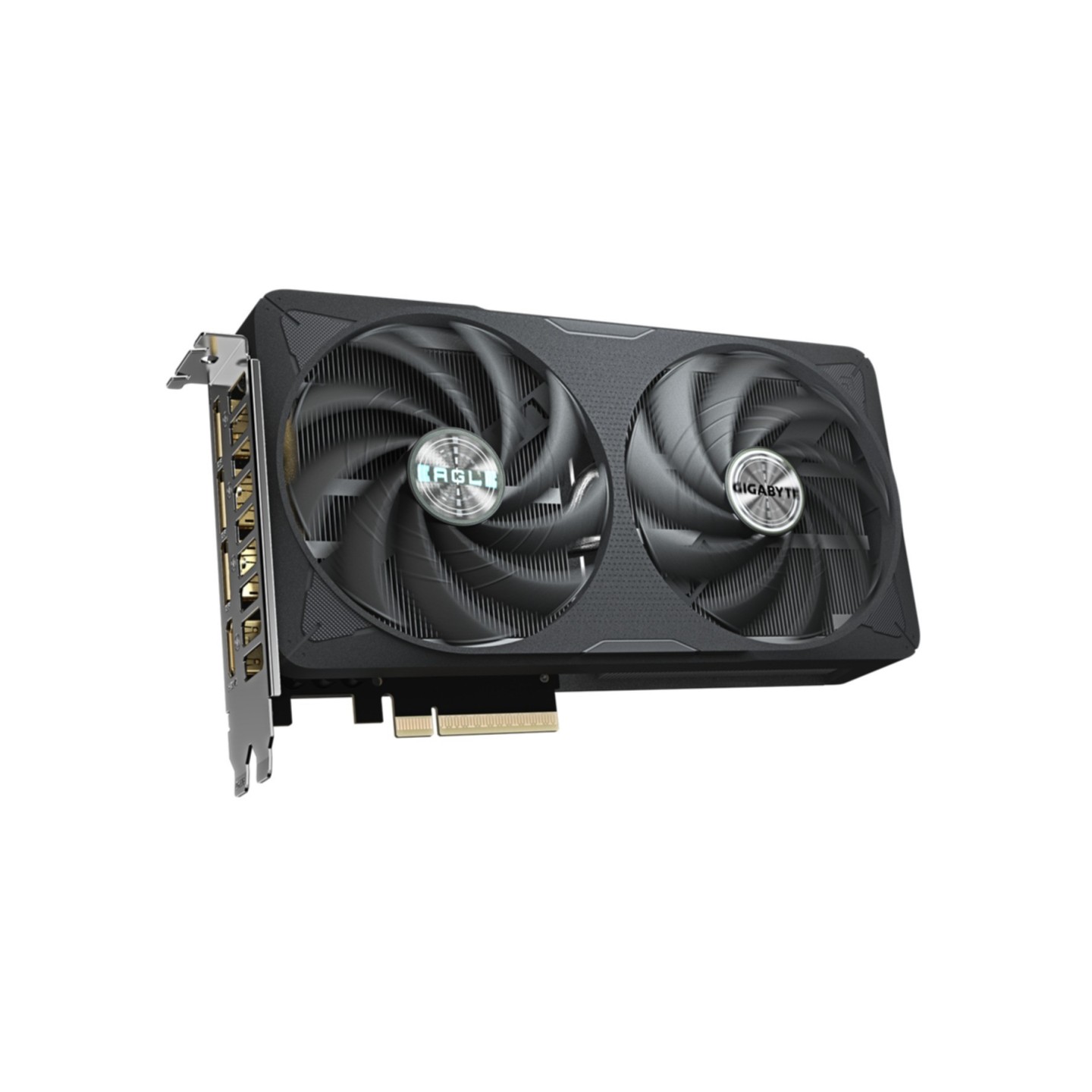

GIGABYTE Eagle GeForce RTX 5060 Ti OC 16GB GDDR7 2617 MHz PCIe 5.0 WINDFORCE (Boxed)
GIGABYTE Eagle RTX 5060 Ti OC: 16GB GDDR7, 4608 CUDA cores, 2617 MHz boost, PCIe 5.0. WINDFORCE 2X cooling keeps temps under 67°C. 3xDP 2.1b + HDMI 2.1b. Excellent 1080p/1440p gaming, ~175W power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
Experience superior gaming performance with the GIGABYTE Eagle GeForce RTX 5060 Ti OC. Featuring 16GB GDDR7 memory at 28 Gbps on a 128-bit bus and 4608 CUDA cores, this card delivers smooth 1080p and 1440p gameplay. The 2617 MHz boost clock ensures high frame rates in demanding titles like Cyberpunk 2077 and Black Myth: Wukong[1][3].
Equipped with PCIe 5.0 x8 interface and WINDFORCE 2X dual-fan cooling, it maintains temperatures around 67°C under load with quiet operation at 1200-1500 RPM. Power draw averages 175W via 1x 8-pin connector, making it efficient for mid-range builds. Supports 4 displays up to 8K with 3x DisplayPort 2.1b and 1x HDMI 2.1b[3].
Ideal for gamers seeking RTX features like DLSS and ray tracing without excessive power use. Compact FH/HL form factor (215x122x40 mm) fits most cases. Backed by 3-year warranty.
- 4608 CUDA cores for strong rasterization and RT performance
- 16GB GDDR7 VRAM handles modern games at high settings
- WINDFORCE cooling: low noise, effective temps
- Overclocks well, up to 10.5M PPD in Folding@Home[1]
- MSRP competitive vs AMD RX 7700 XT equivalents[2]
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor frequency | 2617 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 600 g |
| Length | 215 mm |
| Depth | 40 mm |
| Height | 122 mm |
| Package width | 235 mm |
| Package depth | 330 mm |
| Package height | 57 mm |
| Package weight | 960 g |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
