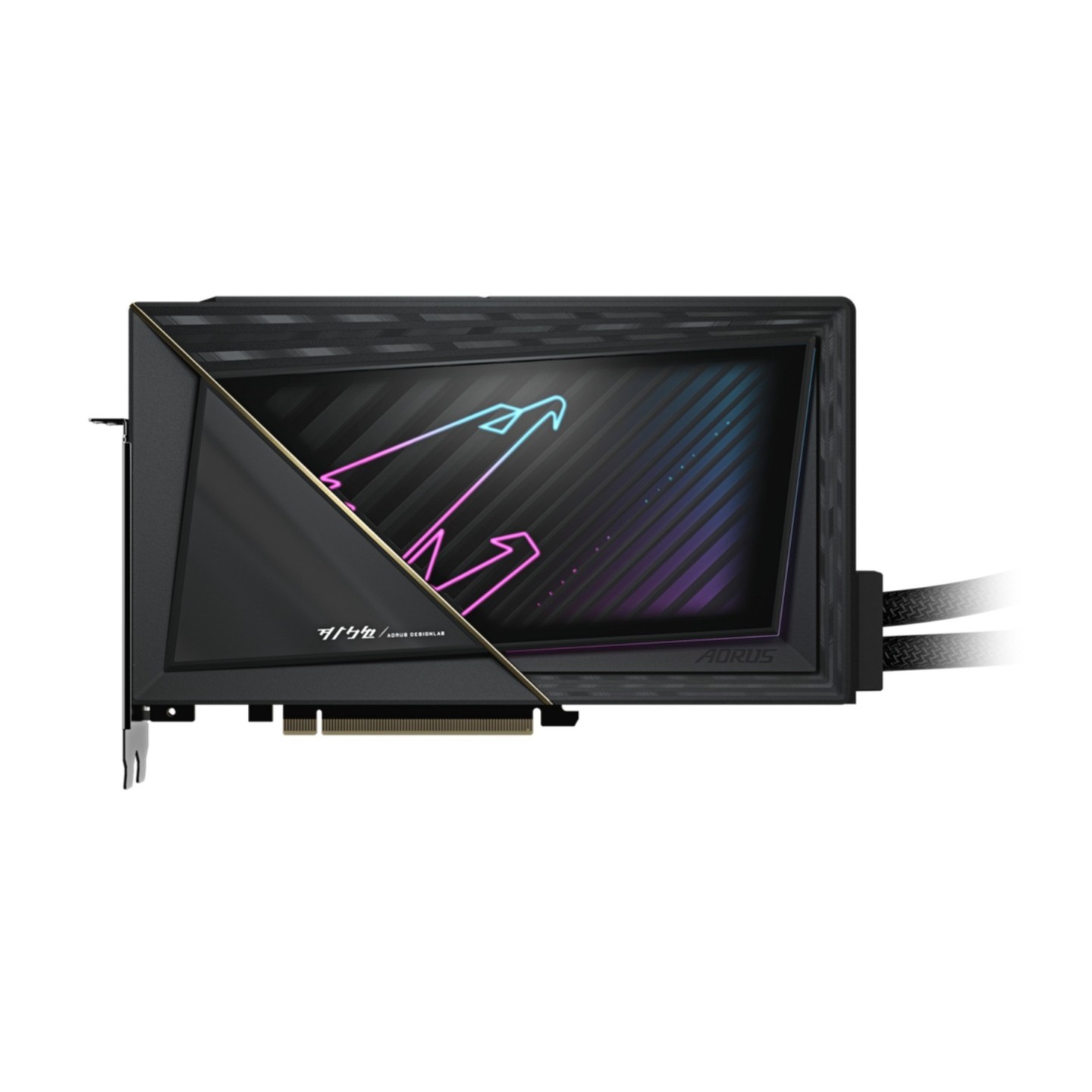

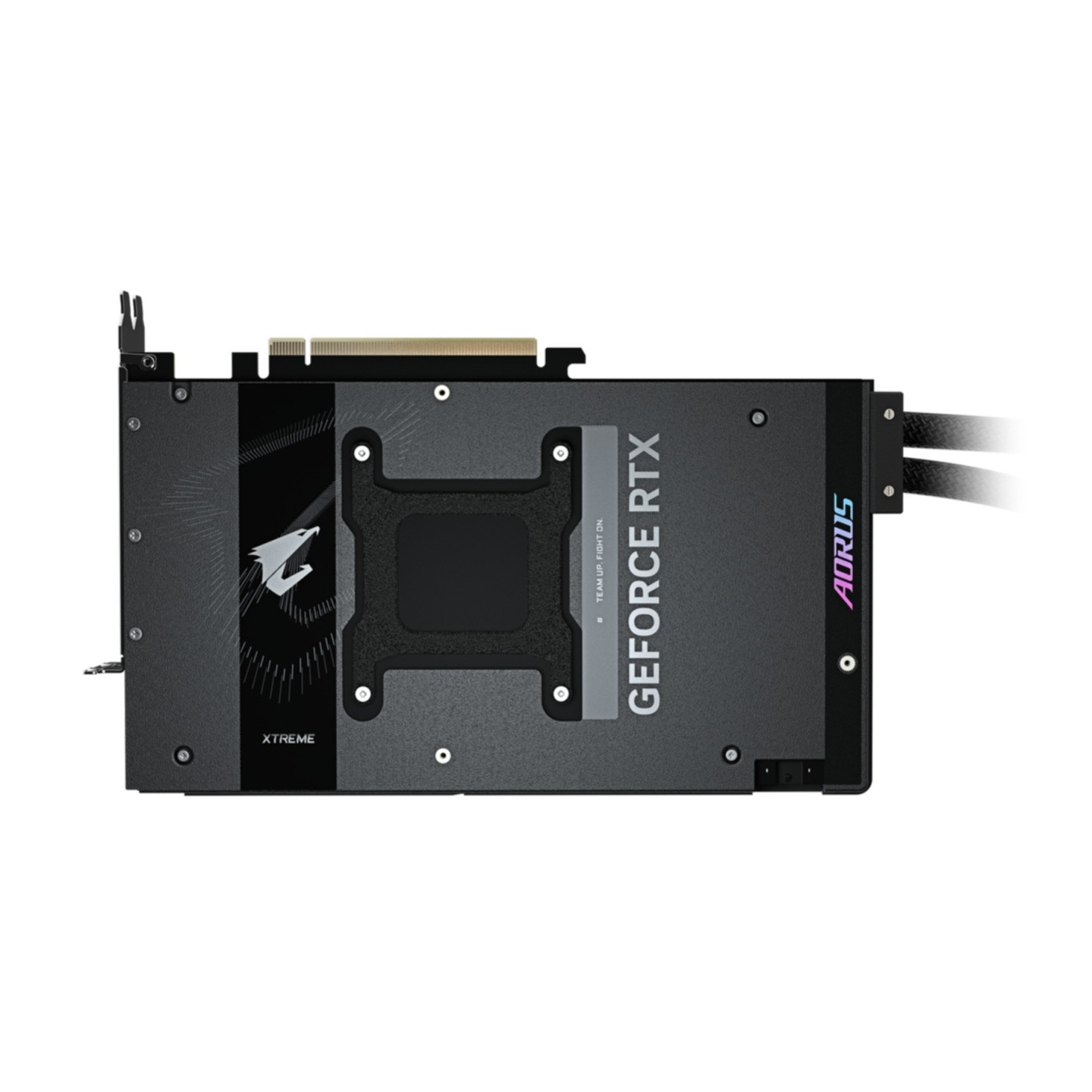

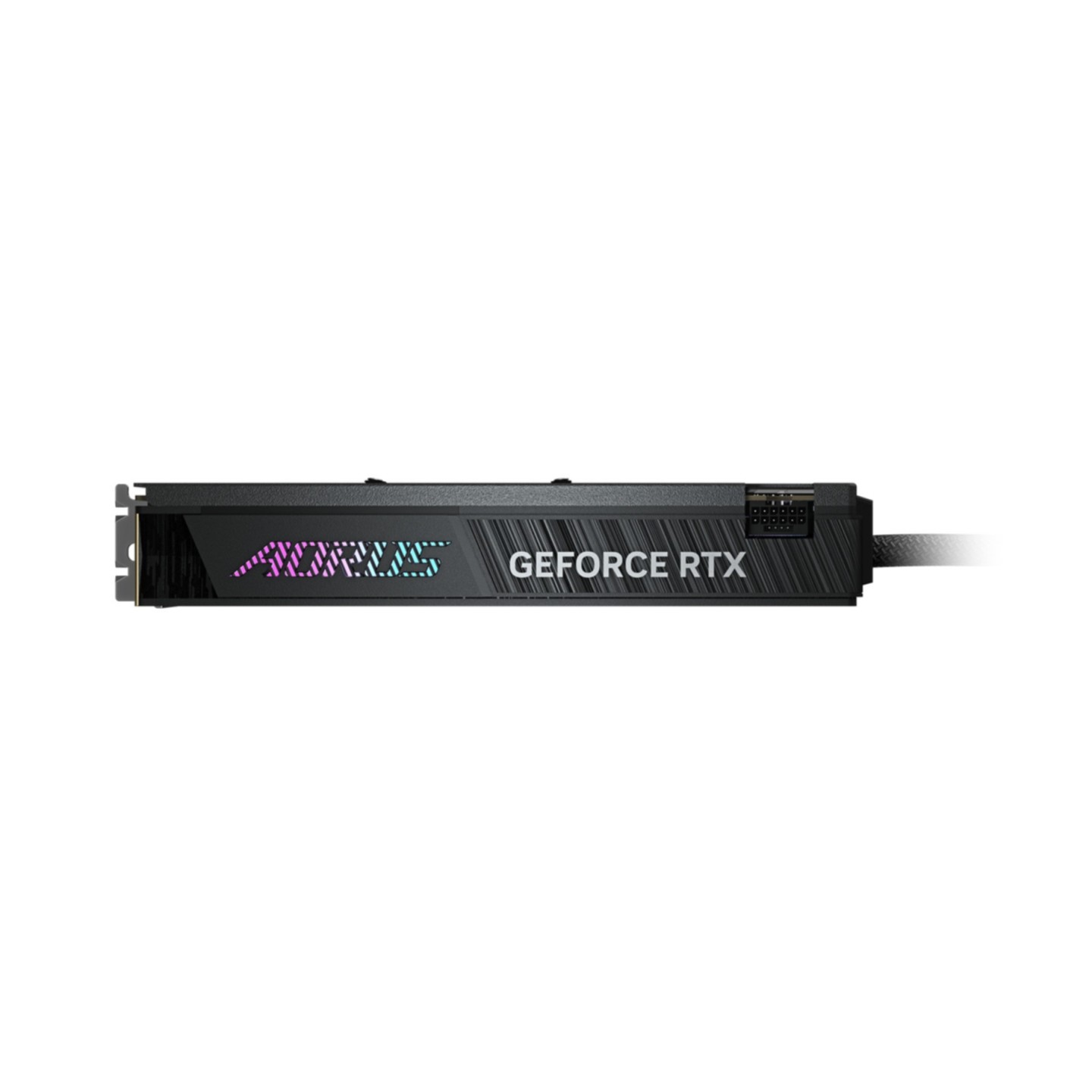

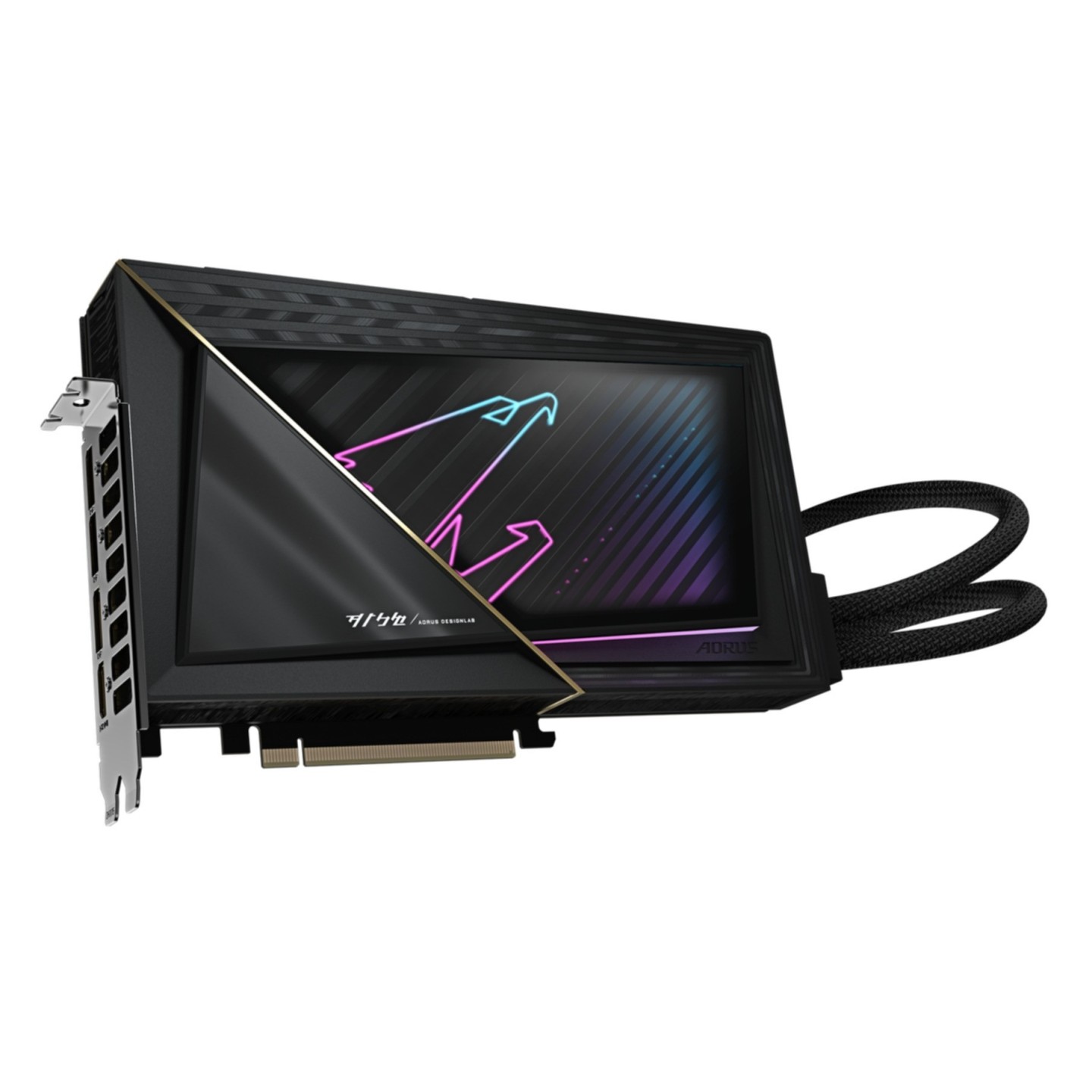

Gigabyte AORUS XTREME WATERFORCE GeForce RTX 5090 - 32GB GDDR7 2655MHz Liquid AIO PCIe 5.0 Black (Boxed)
High-end liquid-cooled GeForce RTX 5090 with 32GB GDDR7 512-bit at 28Gbps, 2655MHz boost, PCIe 5.0. WATERFORCE AIO/Block, 3xDP2.1a+HDMI2.1b, VR-ready. Needs 1000W PSU, 1x16-pin.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | AIO Liquid Cooling |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 32 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
Experience ultimate gaming performance with the Gigabyte AORUS XTREME WATERFORCE GeForce RTX 5090. Powered by NVIDIA Blackwell architecture and DLSS 4, this GPU delivers unmatched speed and visuals. Featuring 32GB GDDR7 memory on a 512-bit interface at 28Gbps, it supports 4K/8K resolutions with full ray tracing and AI-enhanced features like Multi Frame Generation.

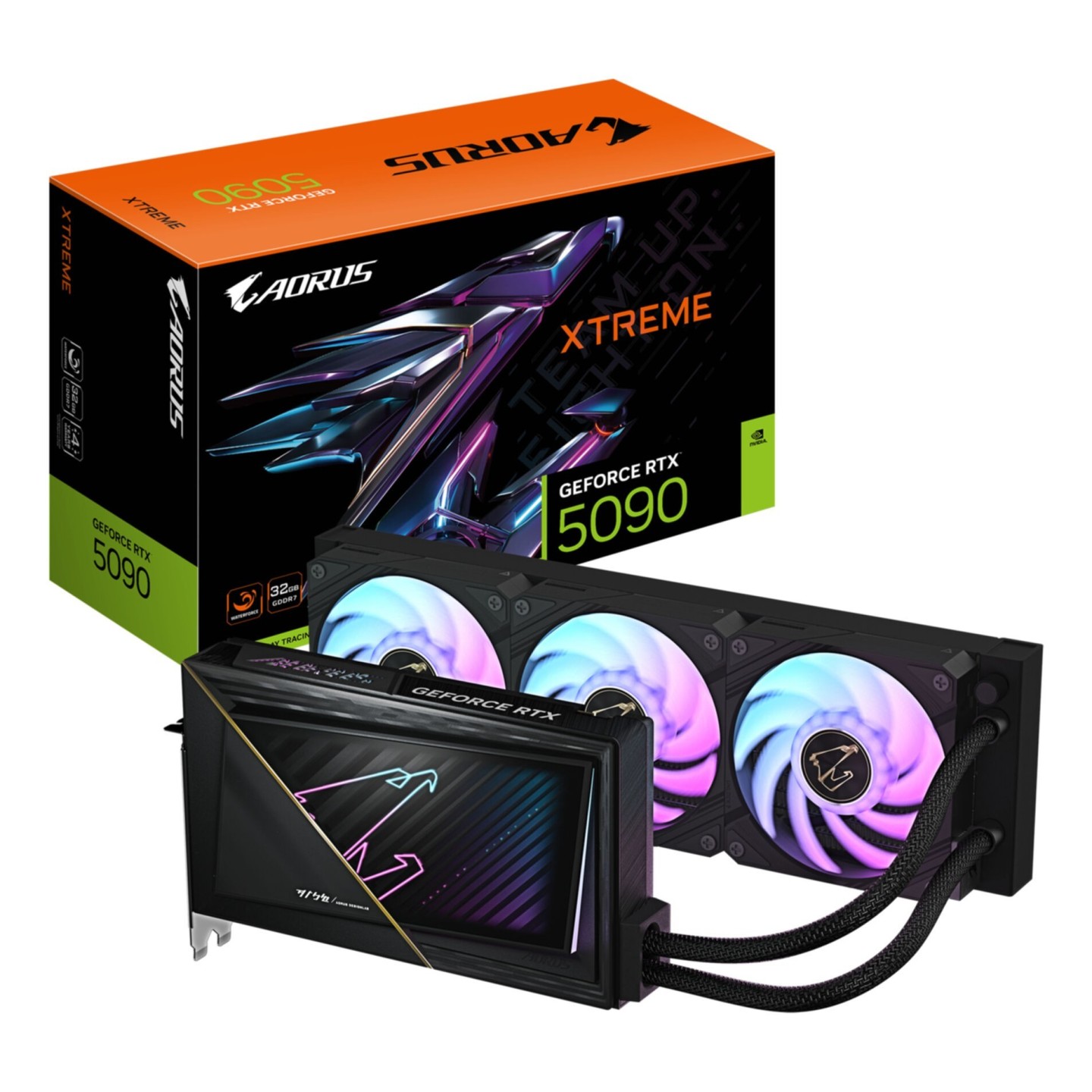

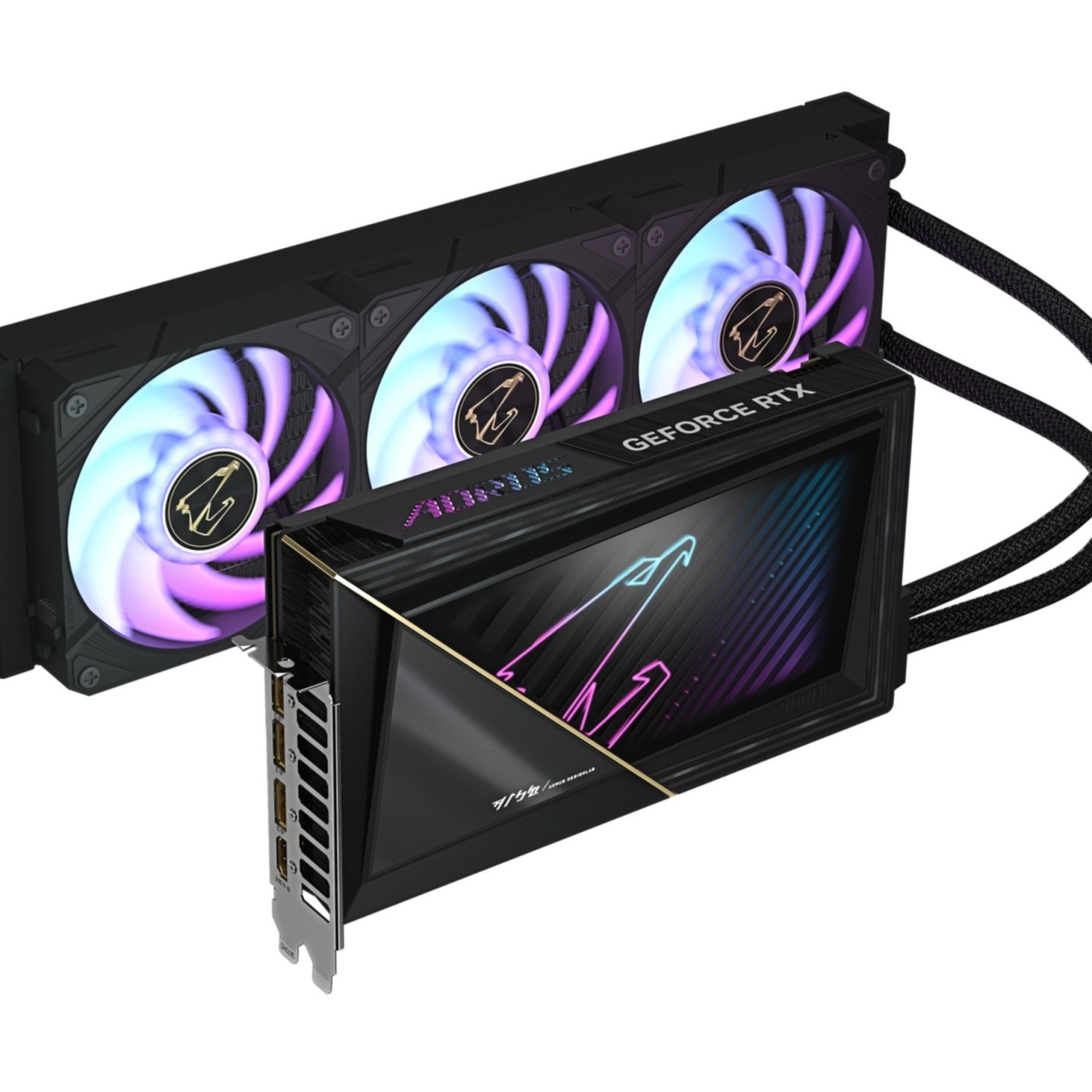

The advanced WATERFORCE cooling system ensures low temperatures under heavy loads—AIO variant with 360mm radiator and three ARGB fans, or Water Block for custom loops with patented leak detection. Core clock boosts to 2655MHz (vs reference 2407MHz), with 21760 CUDA cores for creators and gamers. RGB lighting and metal backplate add premium aesthetics.

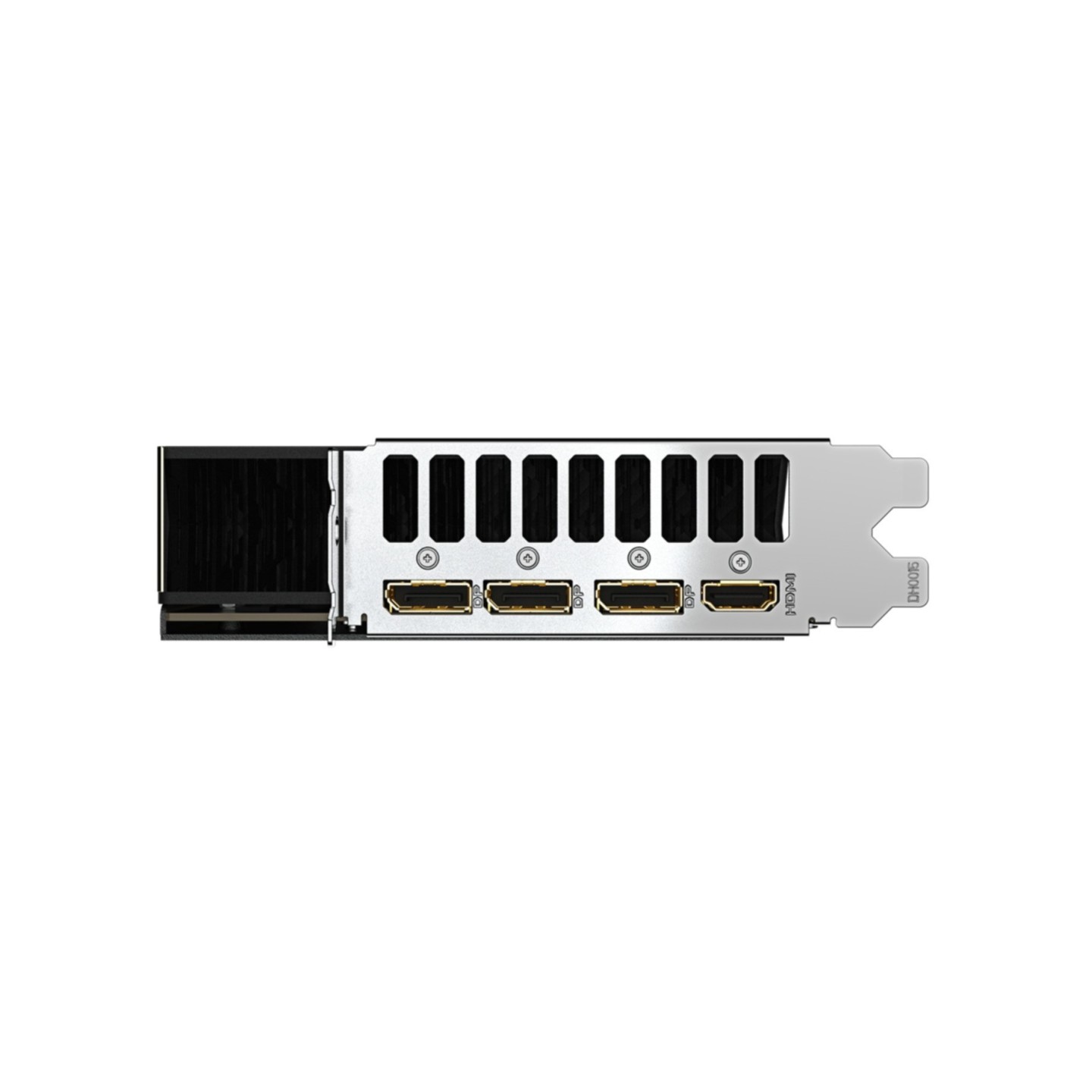

- Outputs: 3x DisplayPort 2.1a + 1x HDMI 2.1b
- Power: 1x 16-pin connector, 1000W PSU recommended
- Interface: PCIe 5.0 x16, VR Ready, G-SYNC
- Dimensions: 245 x 146 x 36 mm (card), 4-year warranty
| CUDA | Yes |
| CUDA cores | 21760 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Processor frequency | 2655 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 4 year(s) |
| Cooling type | Active |
| Cooling technology | Gigabyte WATERFORCE |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 3 kg |
| Length | 245 mm |
| Depth | 36 mm |
| Height | 146 mm |
| Package width | 274 mm |
| Package depth | 443 mm |
| Package height | 165 mm |
| Package weight | 4.5 kg |
