Gigabyte AORUS XTREME WATERFORCE GeForce RTX 5090 - 32GB GDDR7, 2655MHz, Liquid AIO, PCIe 5.0, Black
High-end liquid-cooled GeForce RTX 5090 with 32GB GDDR7, 512-bit bus, 28 Gbps memory, PCIe 5.0, VR-ready. Outputs: 3x DP2.1a + 1x HDMI2.1b. Requires 1000W PSU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
|---|---|
| GPU (Graphics Cards) - Card Length | 221-280 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | AIO Liquid |
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
| CUDA | Yes |
| CUDA cores | 21760 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Processor frequency | 2655 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x16 5.0 |

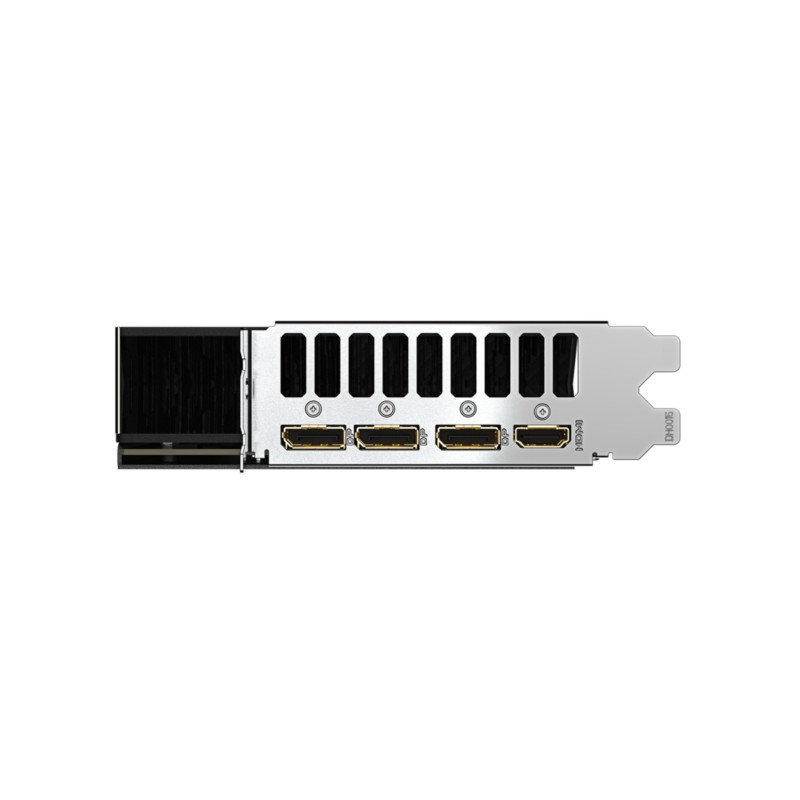

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 4 year(s) |
| Cooling type | Active |
| Cooling technology | Gigabyte WATERFORCE |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 3 kg |
| Length | 245 mm |
| Depth | 36 mm |
| Height | 146 mm |
| Package width | 274 mm |
| Package depth | 443 mm |
| Package height | 165 mm |
| Package weight | 4.5 kg |
| Quick installation guide | Yes |
| Cables included | Power |
| Products per shipping (inner) case | 1 pc(s) |
