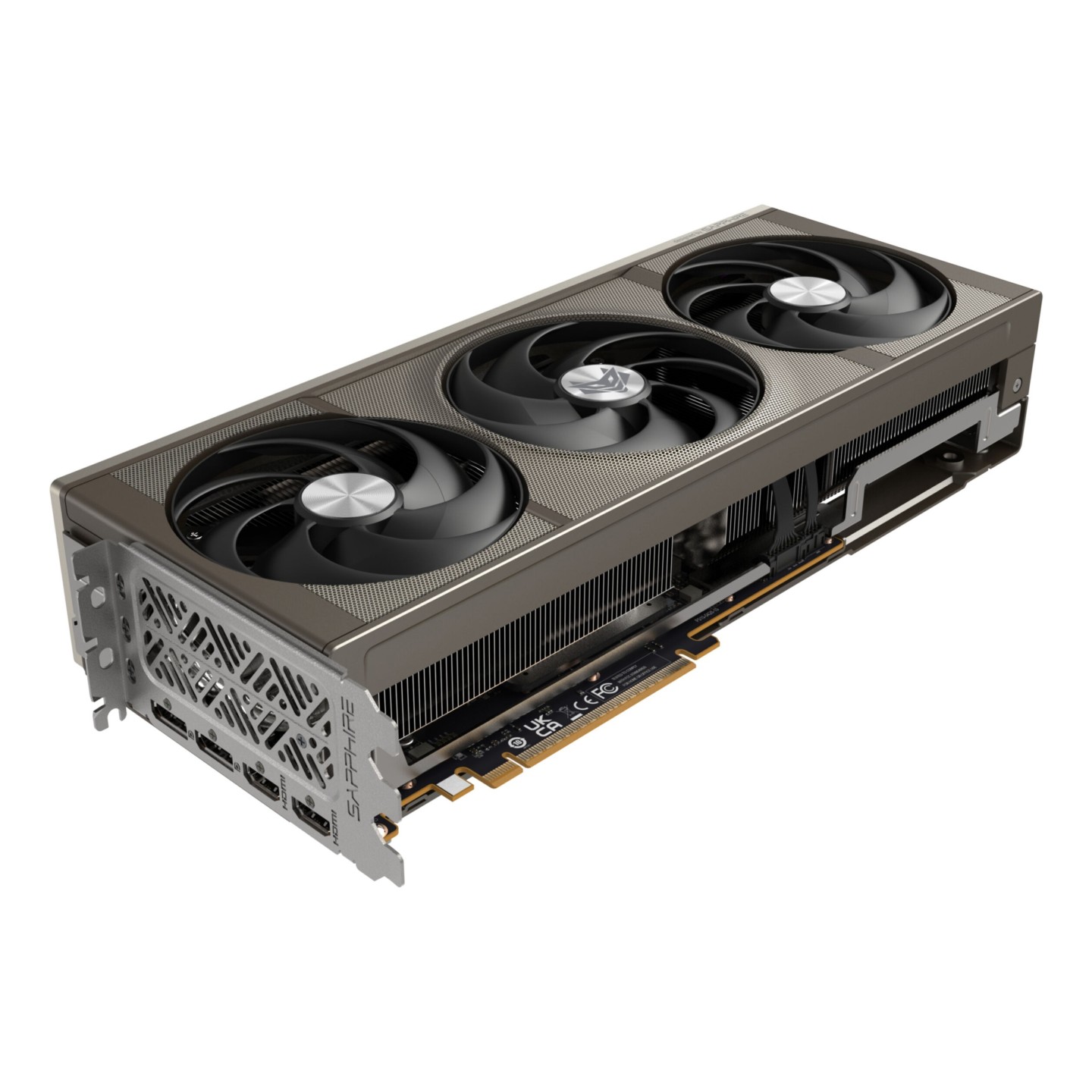

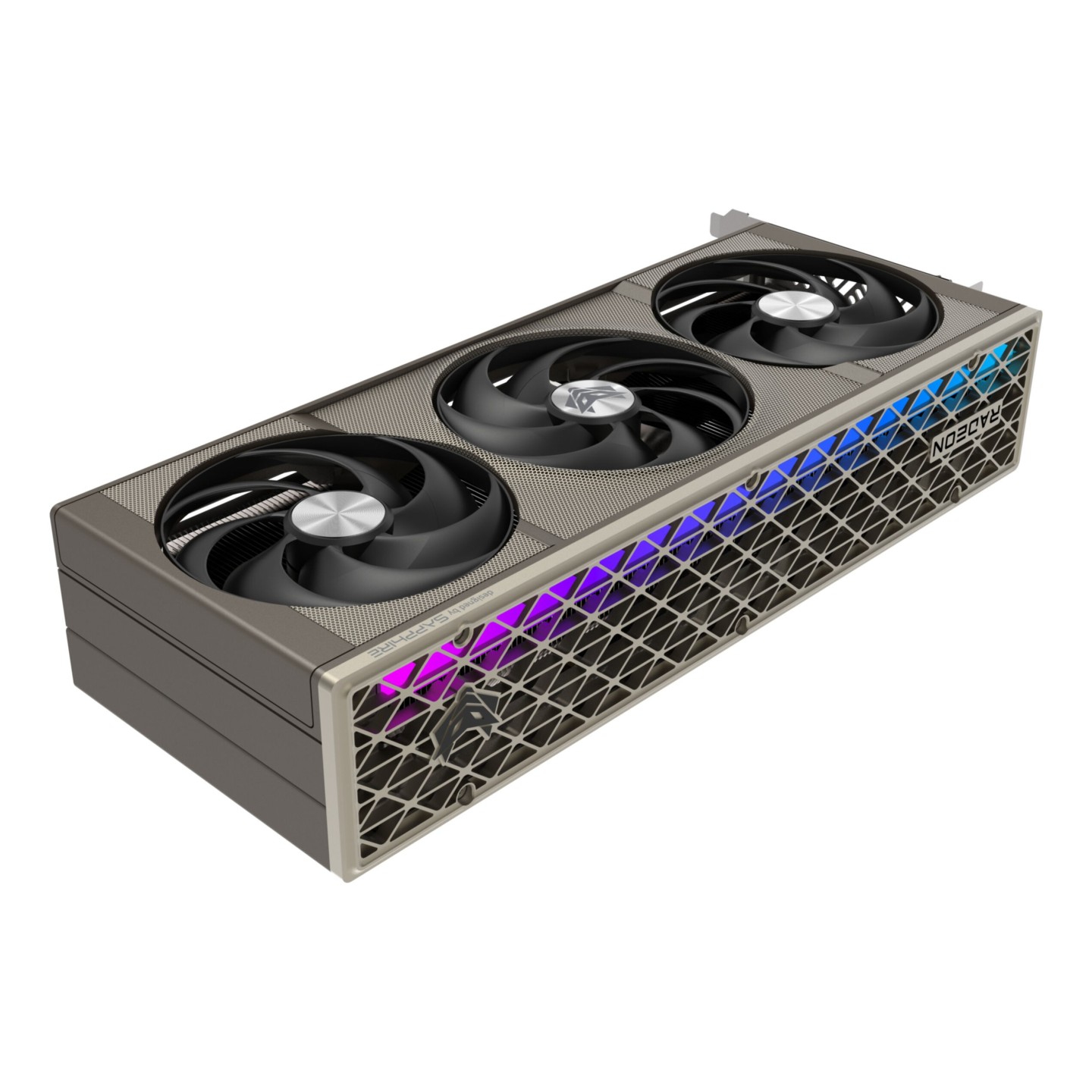

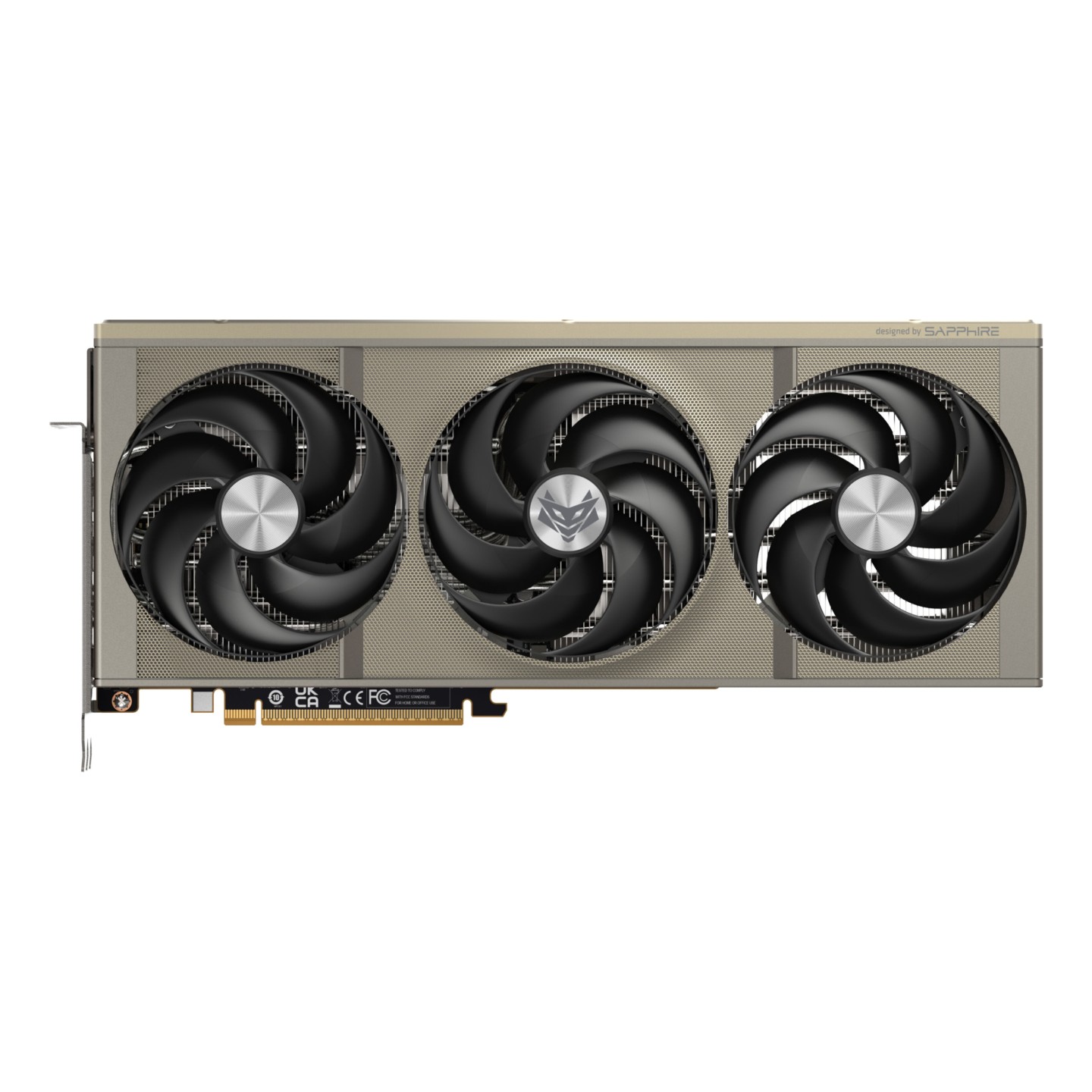

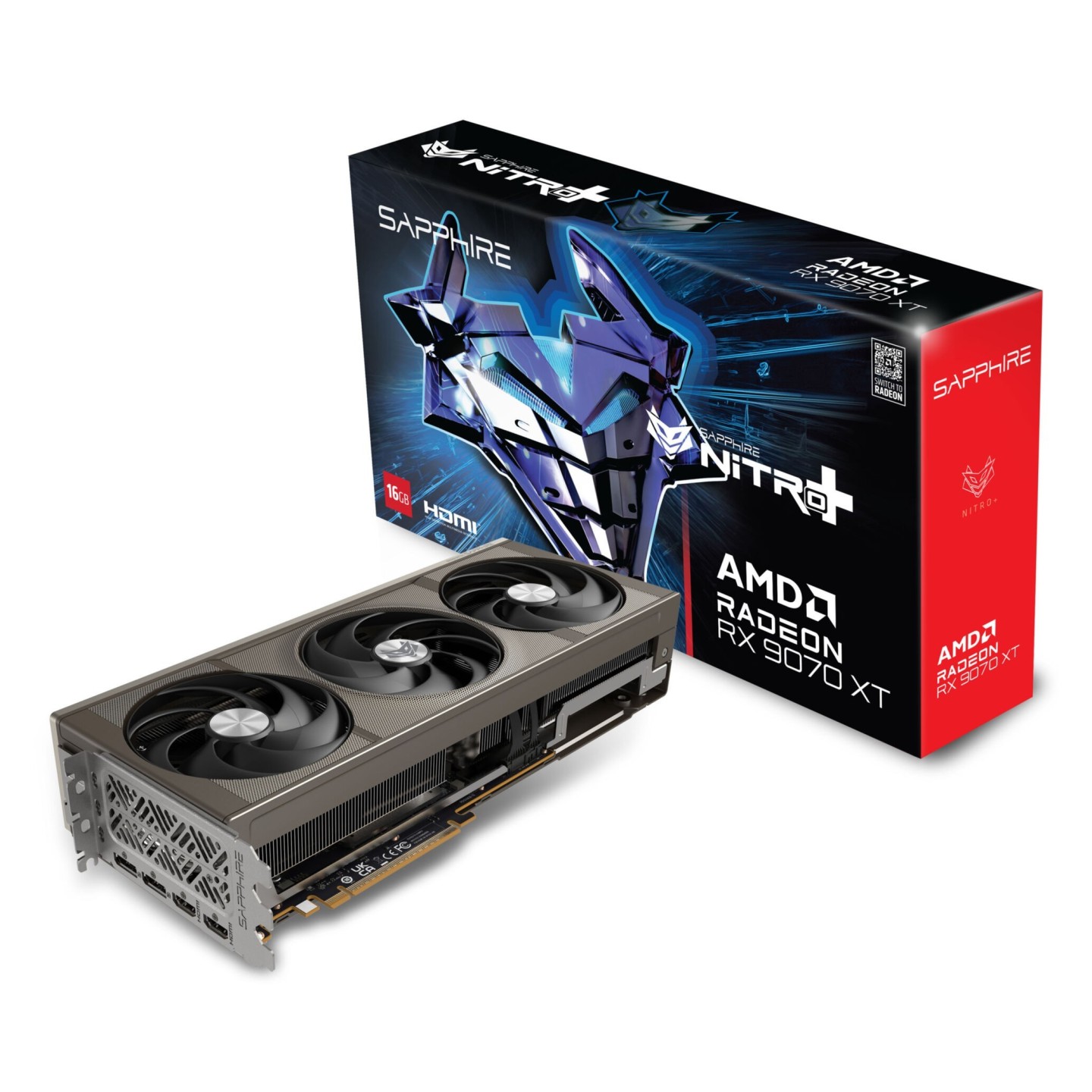

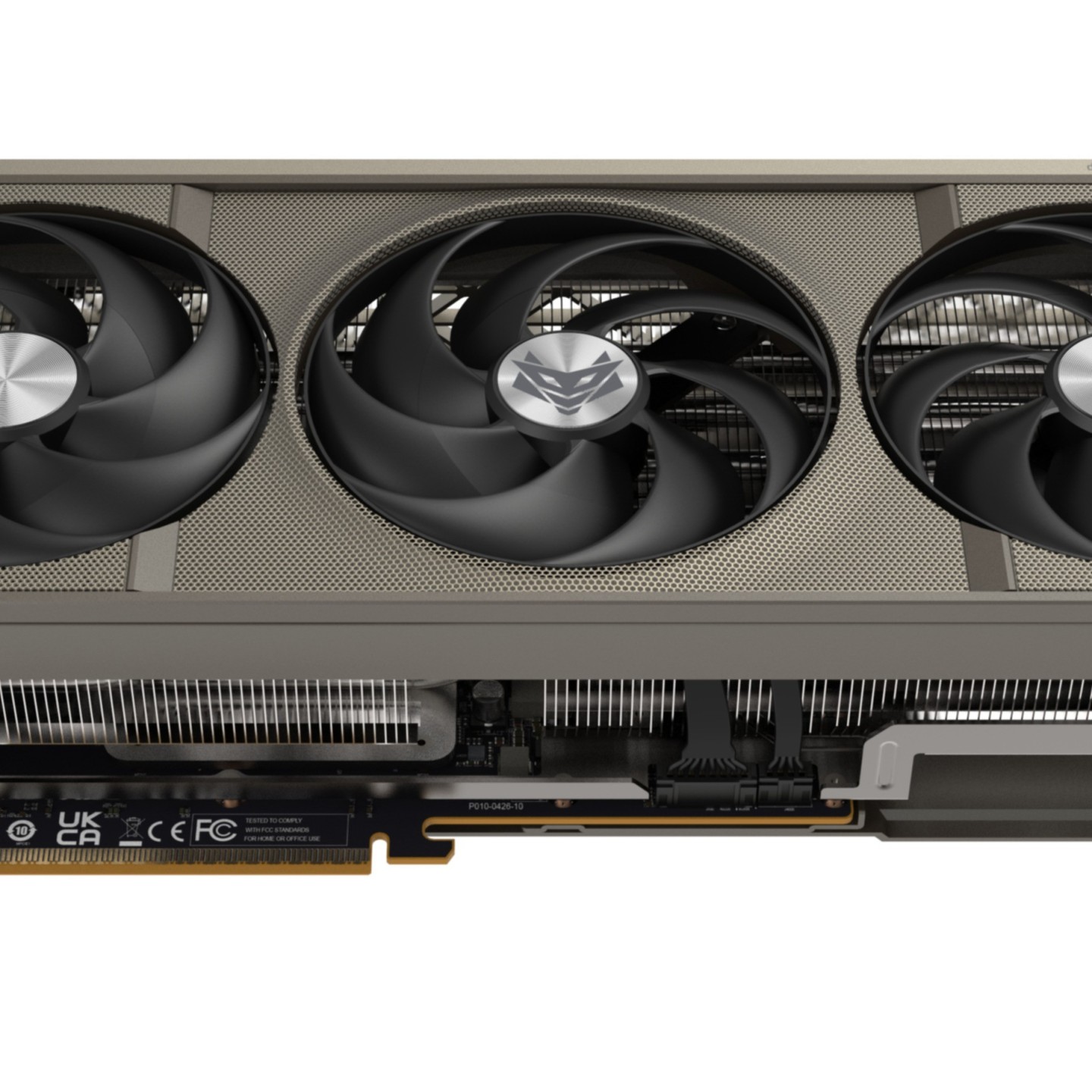

Sapphire NITRO+ RX 9070 XT 16GB Gaming OC 3060MHz Tri-X 11348-01-20G (Boxed)
Sapphire NITRO+ Radeon RX 9070 XT 16GB GDDR6 OC. Boost up to 3060MHz, PCIe 5.0 x16, Tri-X 3-fan cooling, 2xHDMI+2xDP2.1a. ARGB, 330W TDP, 4096 shaders, 64MB Infinity Cache.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Other |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12-pin |
| GPU (Graphics Cards) - Card Length | Ultra (321-340 mm) |
The Sapphire NITRO+ Radeon RX 9070 XT 16GB Gaming OC (MPN: 11348-01-20G) delivers exceptional gaming performance powered by AMD RDNA 4 architecture with 4096 stream processors, 64 ray accelerators, and 128 AI accelerators. Featuring a boost clock up to 3060 MHz (game clock 2520 MHz), 16GB GDDR6 memory at 20 Gbps on a 256-bit bus, and 64MB Infinity Cache, this card excels in 4K gaming, ray tracing, and AI-enhanced features like FSR 4.

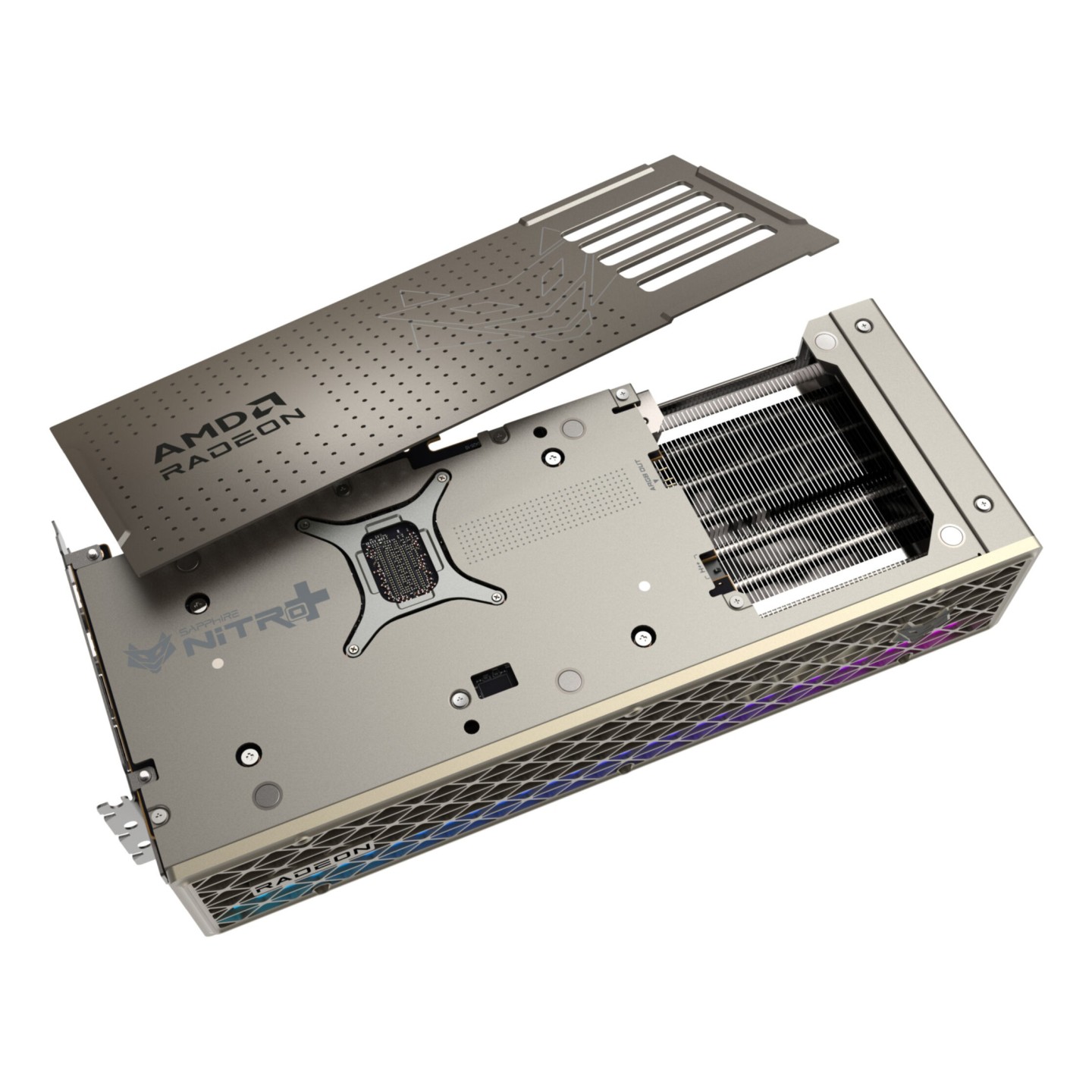

Sapphire's Tri-X cooling with three AeroCurve dual-ball bearing fans, Honeywell PTM7950 TIM, Optimized Composite Heatpipes, and Free Flow heatsink ensures quiet, efficient cooling under heavy loads. Premium build includes Cold Rolled Steel Frame, FrameDefense, Quick Connect MagniPlate backplate, and STEALTH hidden 12V-2x6 power connector for a clean aesthetic. ARGB lighting with external sync and Fan Quick Connect for easy maintenance.
- PCIe 5.0 x16 interface, supports up to 4 displays (2x HDMI 2.1, 2x DisplayPort 2.1a)
- 330W TDP, requires 750W+ PSU with 1x 12V-2x6 connector
- Dimensions: 331 x 129 x 66 mm, 3.2-slot design
- Advanced features: AMD FreeSync, DirectX 12 Ultimate, Windows 11 ready
- MPN confirmed: 11348-01-20G, EAN: 4895106295872
| Manufacturer Part Number | 11348-01-20G |
| CUDA | No |
| Compute units | 64 |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 XT |
| Architecture | RDNA 4 |
| Processor boost clock speed | 3060 MHz |
| Processor boost clock speed (Gaming mode) | 2520 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 4096 |
| Infinity cache | 64 MB |
| Ray accelerators | 64 |
| AI accelerators | 128 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Cooling type | Active |
| Cooling technology | Sapphire Tri-X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 3.2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 12V-2x6 |
| Thermal Design Power (TDP) | 330 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Length | 330.8 mm |
| Depth | 65.7 mm |
| Height | 128.5 mm |
| Package type | Box |
