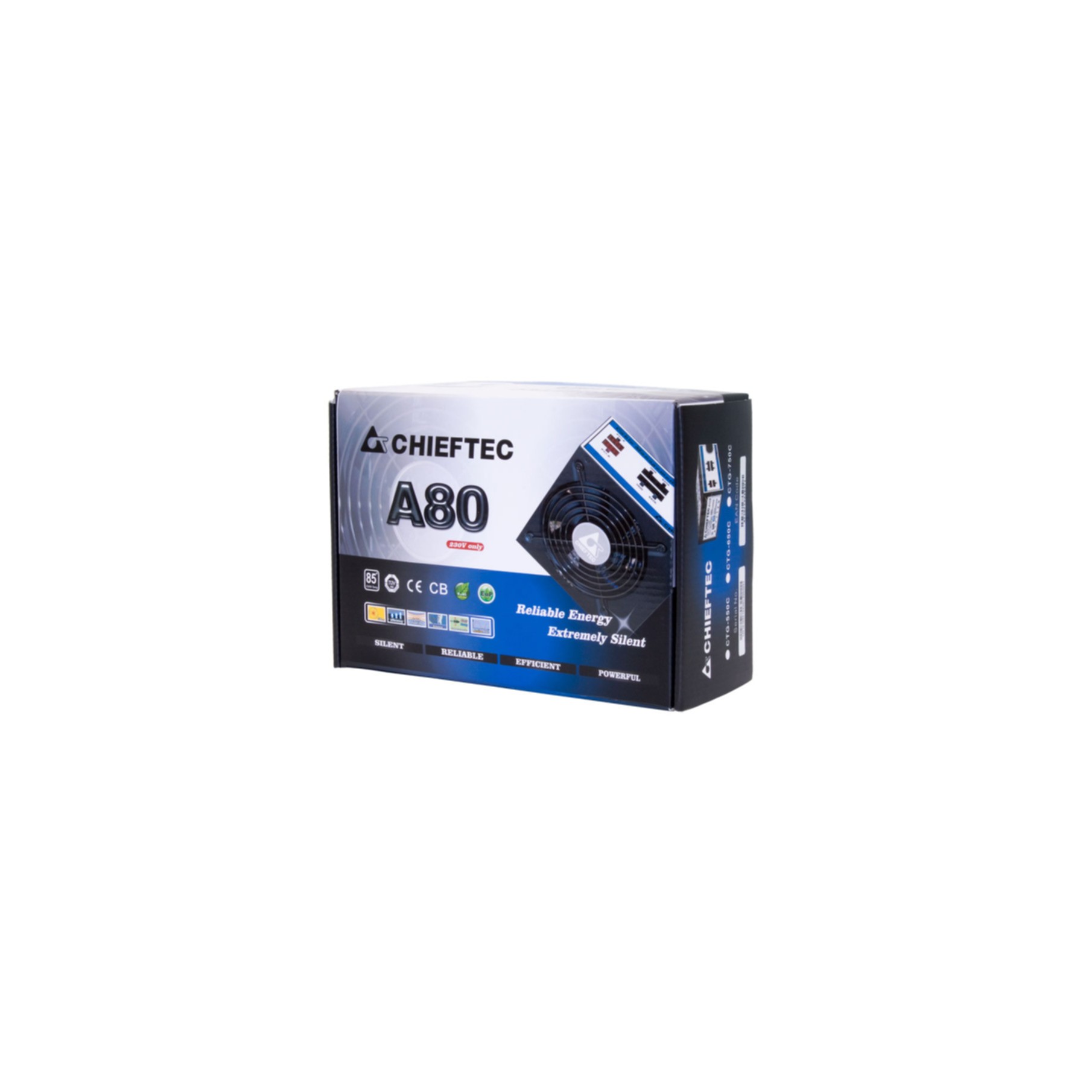

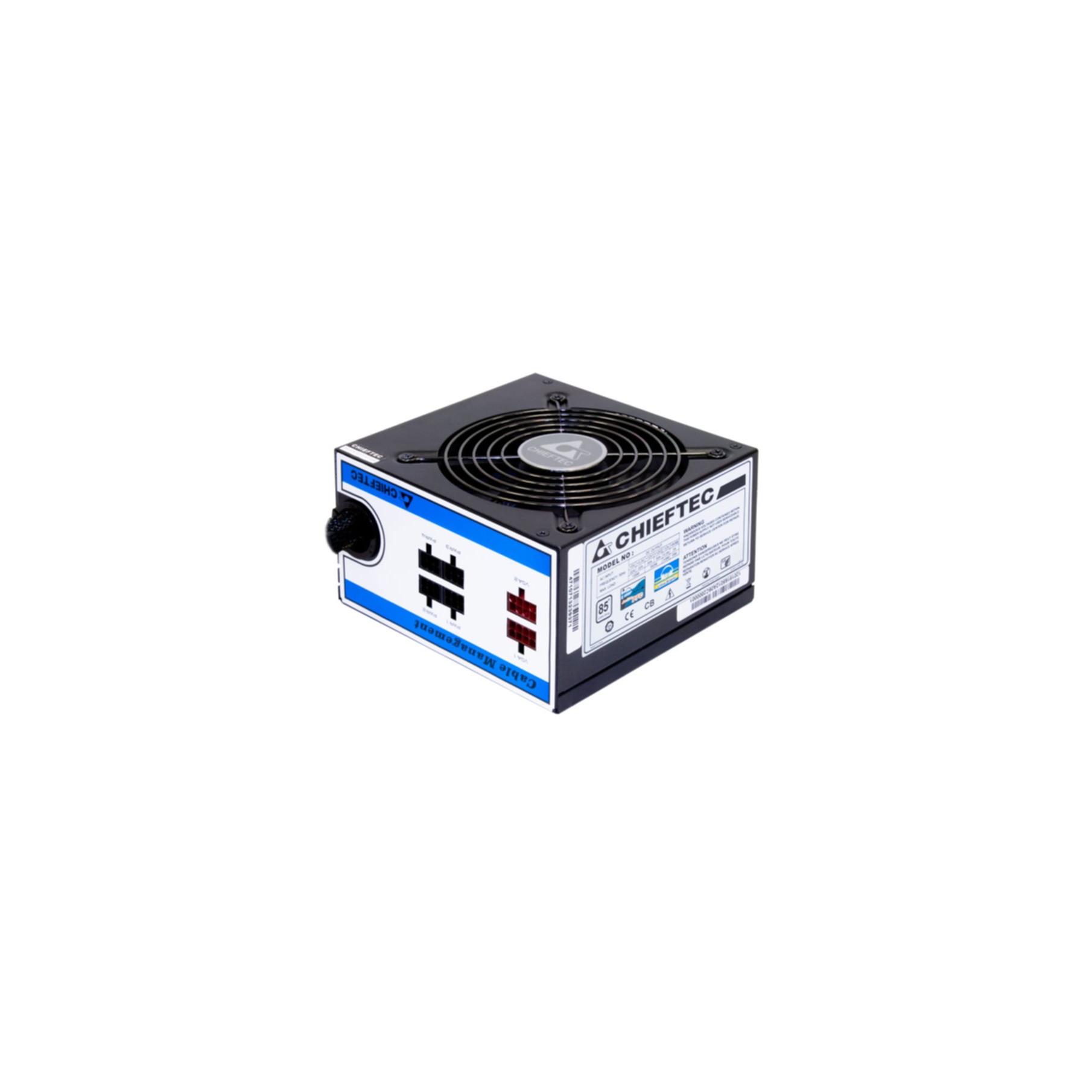

Chieftec A-80 CTG-550C - 550W Semi-Modular ATX Power Supply, 80 PLUS
Chieftec CTG-550C 550W semi-modular ATX PSU, 80 PLUS certified (~85% efficiency). 1×8-pin EPS, 6× SATA, 4× Molex, multiple protections (OCP/OVP/OTP/OLP/SCP/UVP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 550 W |
|---|---|
| PSU (Power Supplies) - Modularity | Semi-modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
| Total power | 550 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 2 |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Compliance certificates | RoHS |
| Certification | CE, CB, FCC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
