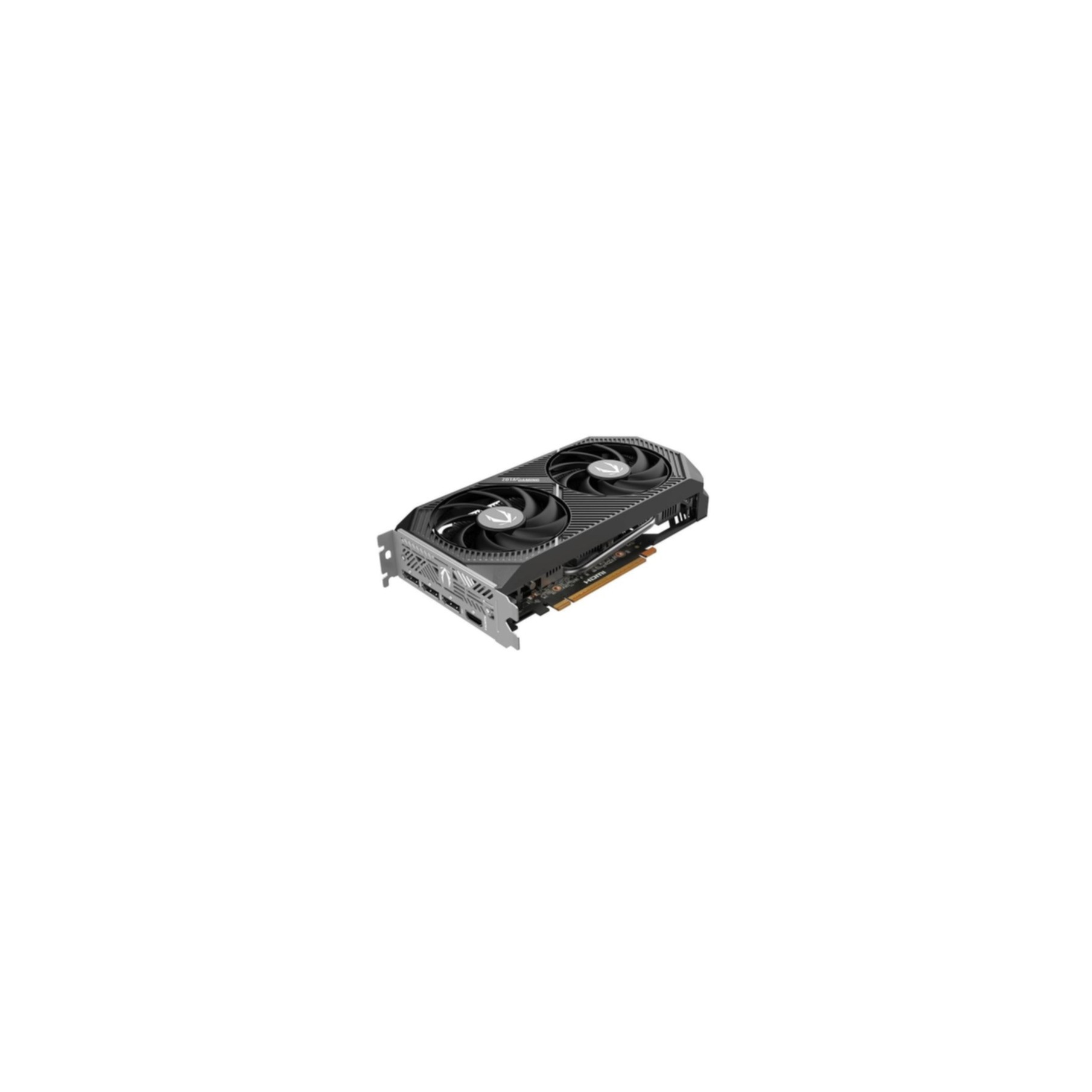

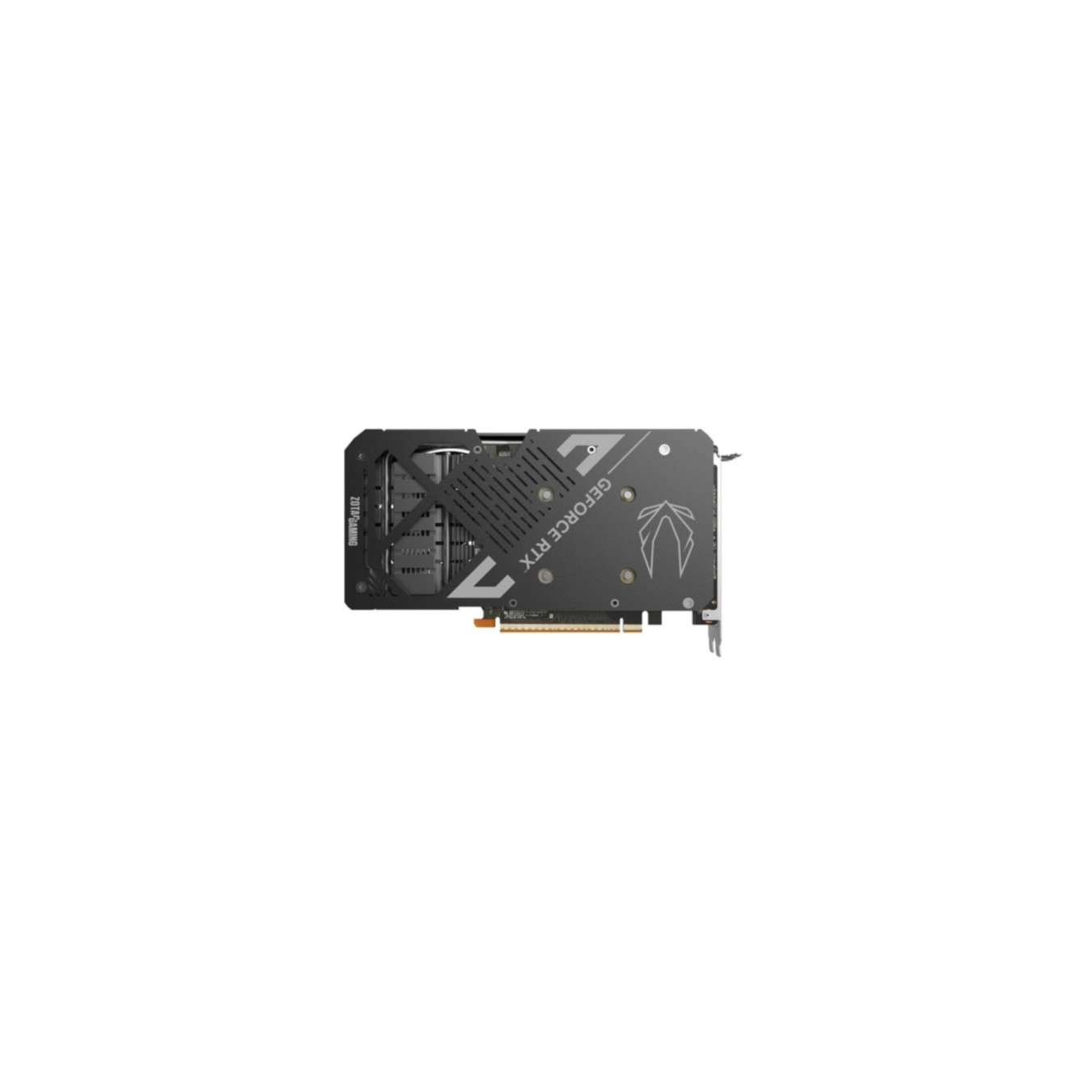

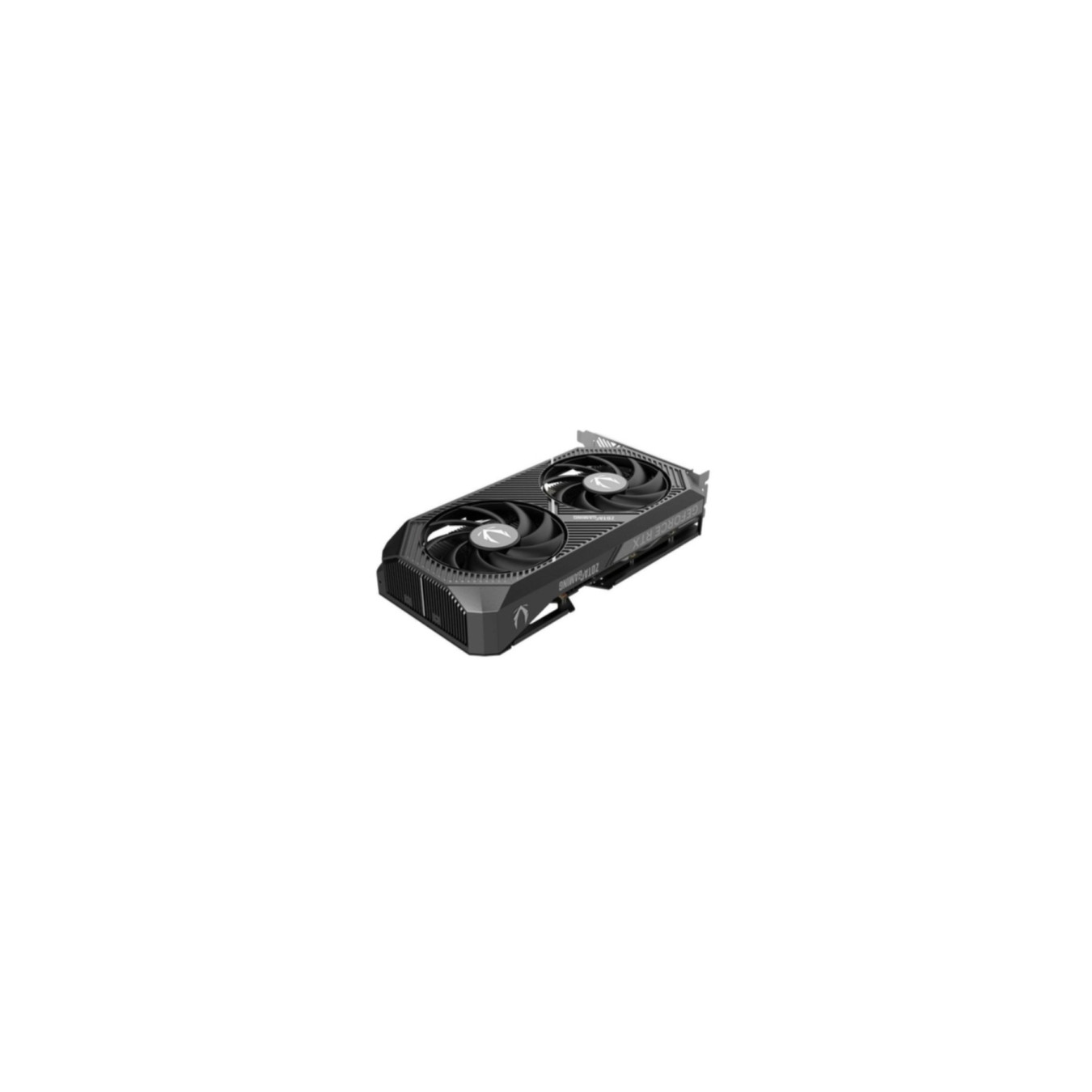

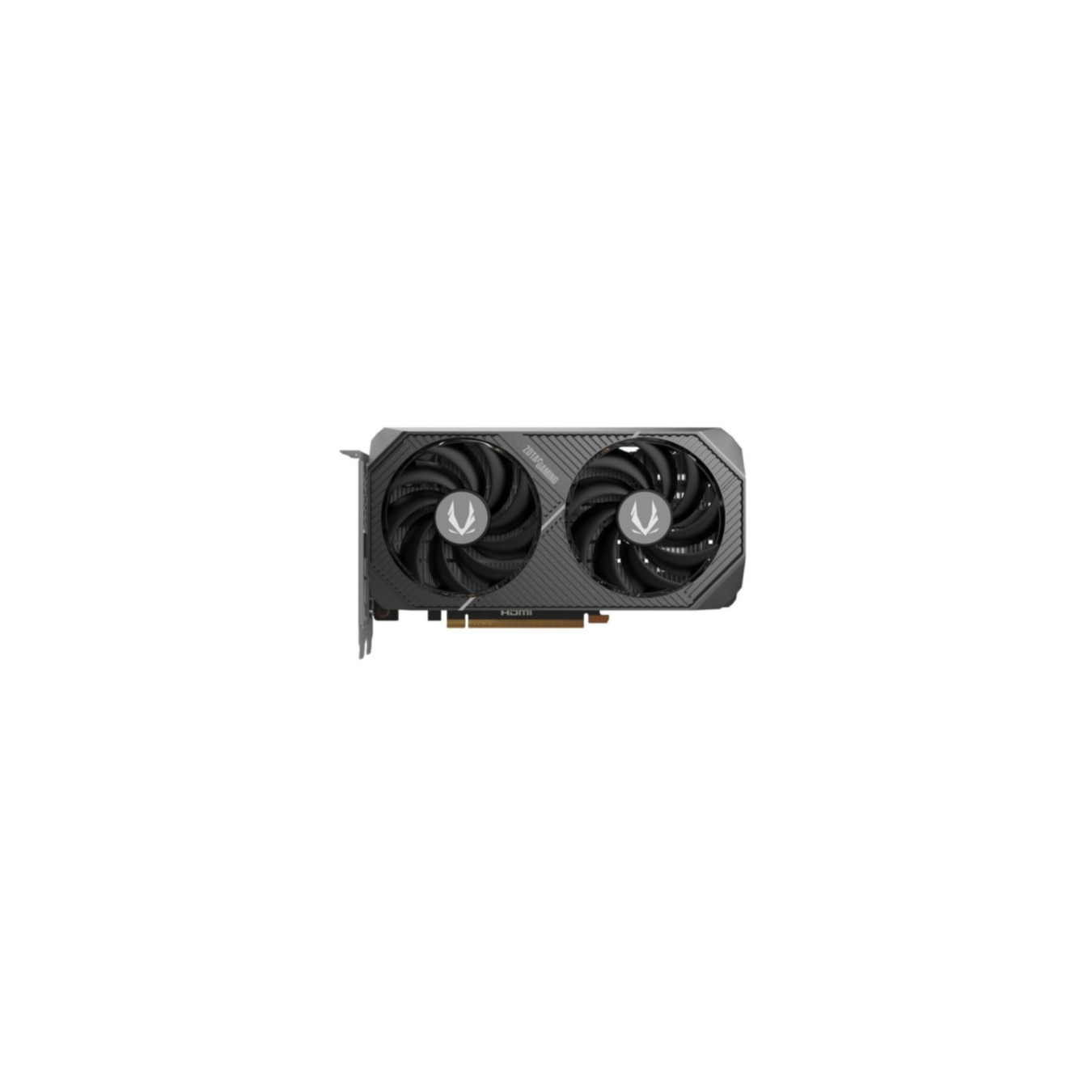

ZOTAC GeForce RTX 5060 Twin Edge - 8GB GDDR7, 2497 MHz Boost - Dual-Fan 2-Slot, Compact
GeForce RTX 5060 GPU, 8GB GDDR7, 2497 MHz boost, 3840 CUDA cores, PCIe 5.0 x8, 1x HDMI 2.1b, 3x DisplayPort 2.1b, 145W TDP, 550W PSU recommended.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
|---|---|
| GPU (Graphics Cards) - Outputs | DisplayPort |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor boost clock speed | 2497 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |

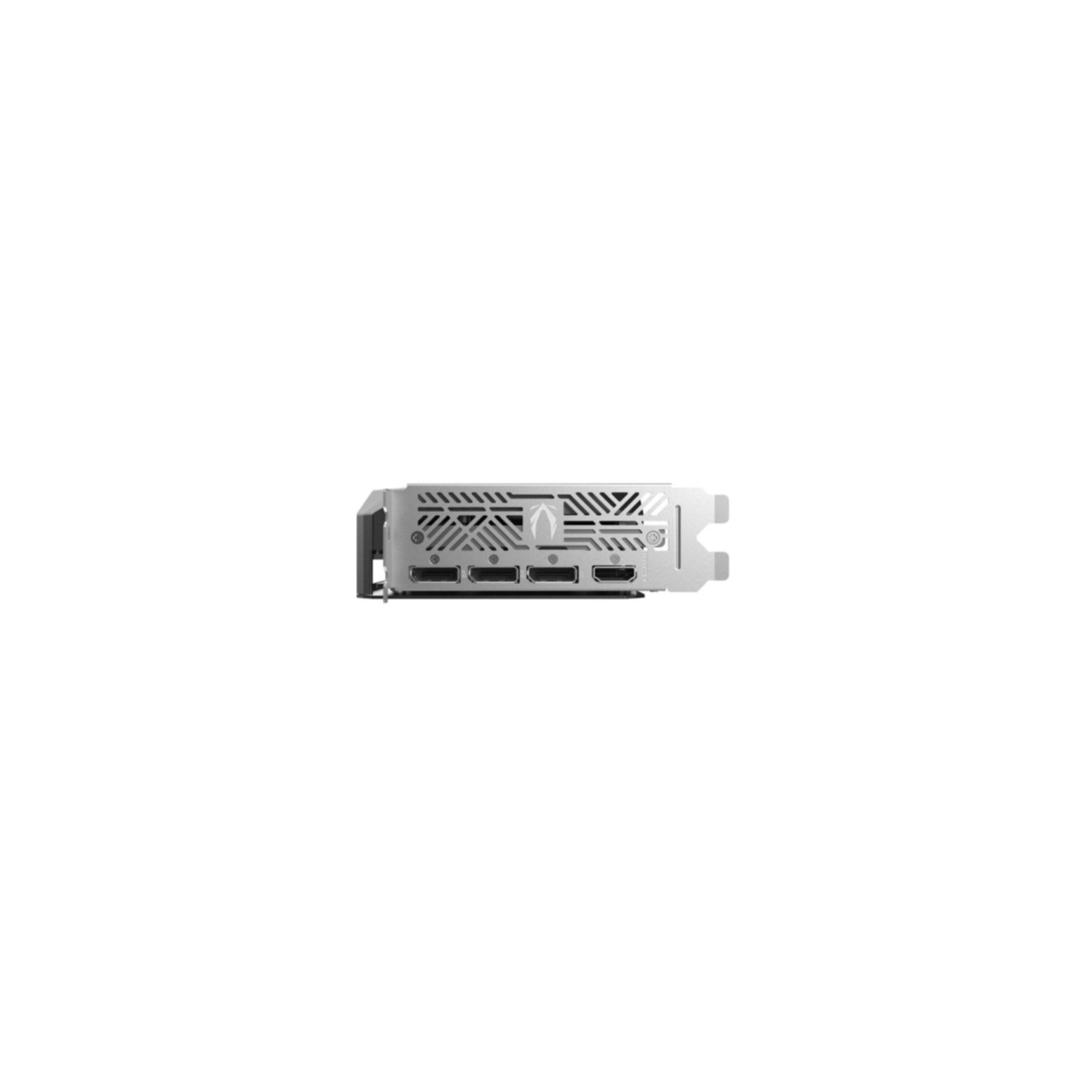

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| SFF ready | Yes |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 145 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Length | 220.5 mm |
| Depth | 41.6 mm |
| Height | 120.2 mm |
| Package width | 218 mm |
| Package depth | 83 mm |
| Package height | 283 mm |
| Package type | Box |
