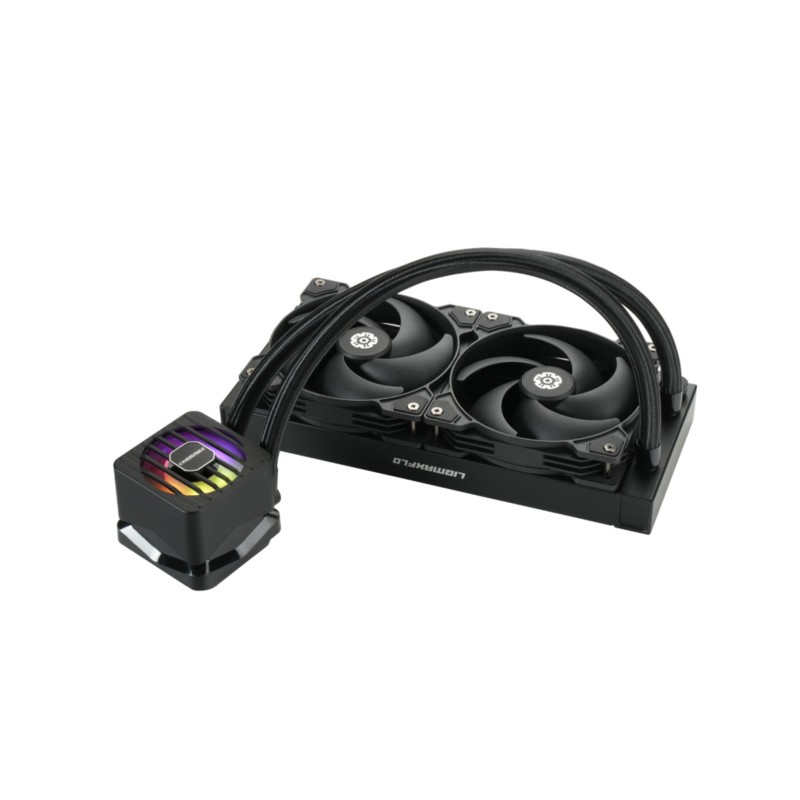

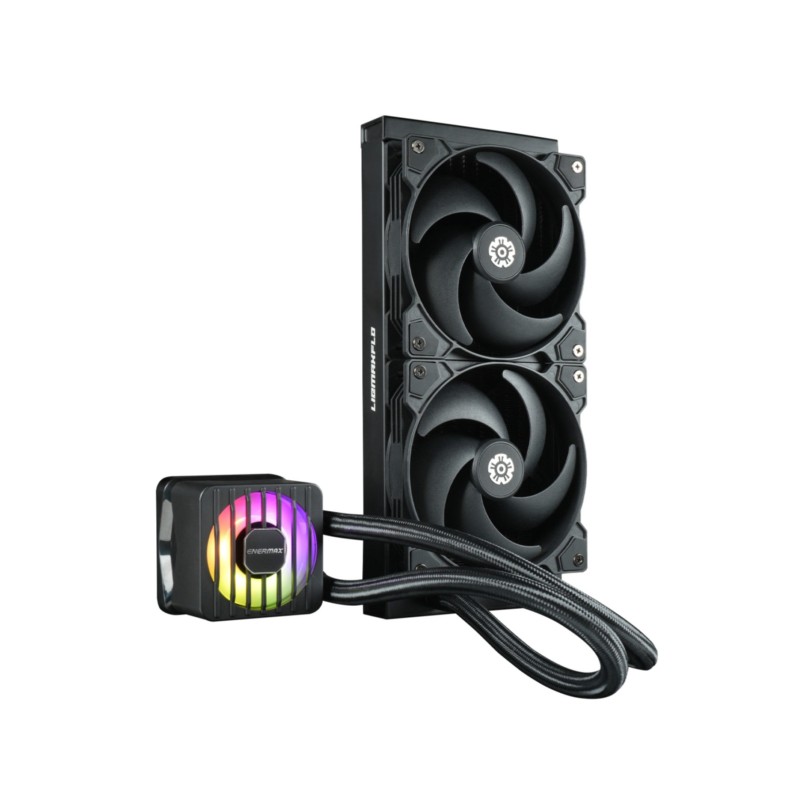

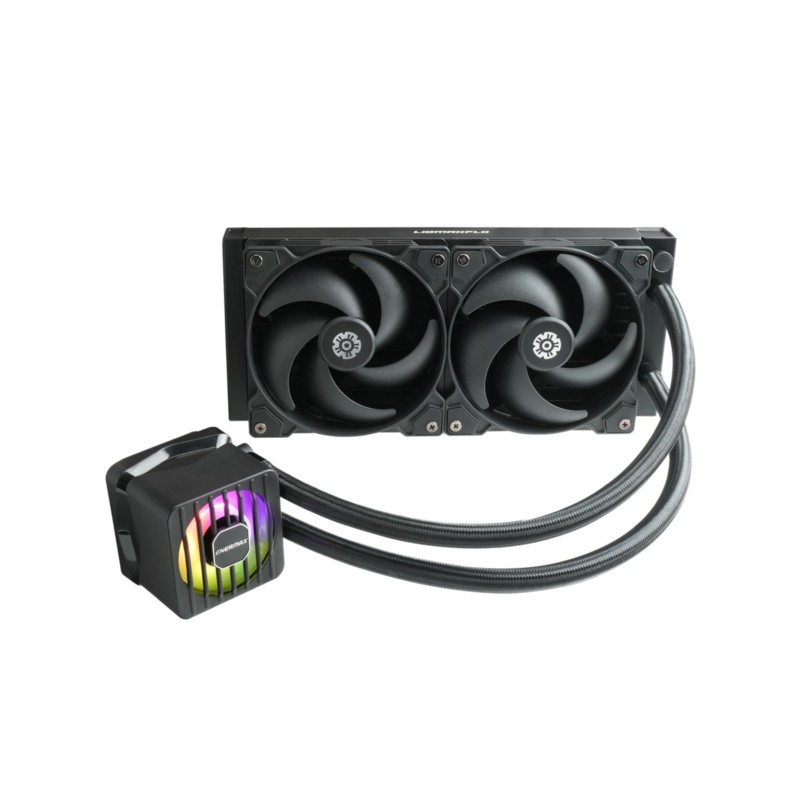

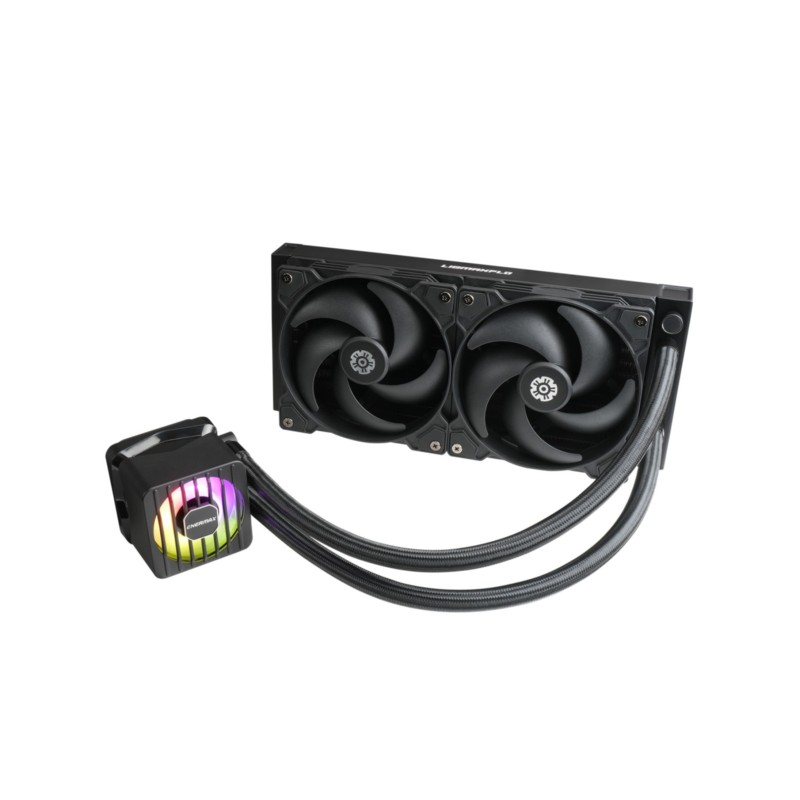

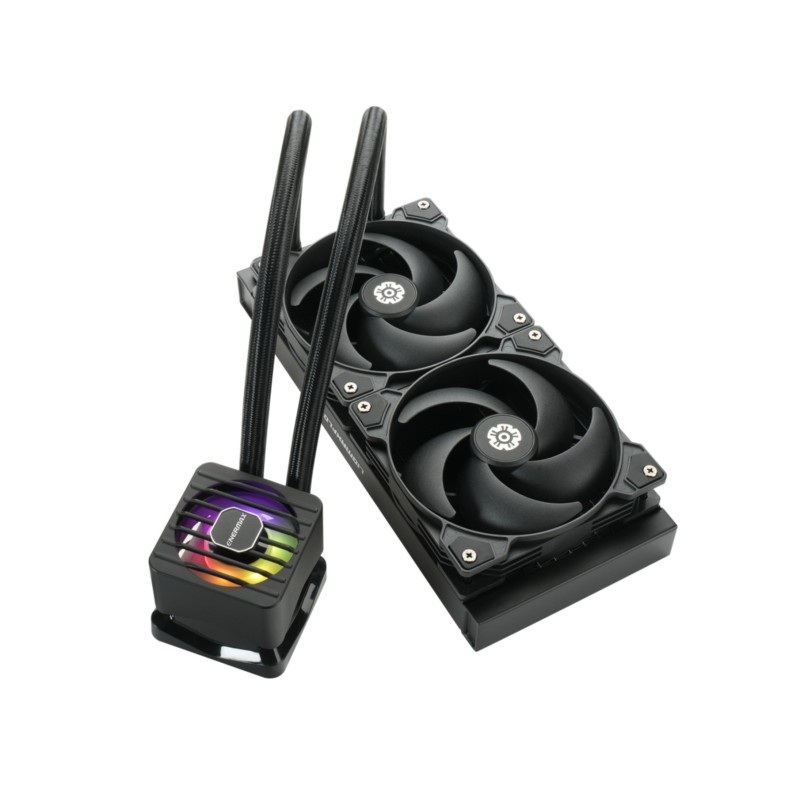

Enermax LIQMAXFLO SR ELC-LMF240-SF - 240mm AIO Liquid CPU Cooler, 2x120mm PWM Fans, Black
240mm AIO CPU cooler with 2x120mm PWM fans (12 cm), multicolor LED, 12V pump, pump 1,200–3,000 RPM, fan 500–1,800 RPM, supports AM4/AM5 and Intel LGA1200/LGA1700, 350W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | AIO Liquid 240 |
|---|---|
| Cooling (CPU & Case) - Socket Support | LGA1700 |
| Cooling (CPU & Case) - TDP Rating | greater than220 W |
| Cooling (CPU & Case) - Fans Included | 2x120 mm |
| Cooling (CPU & Case) - Noise Level | less than or equal to25 dBA |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Speed (RPM) | 1501-2000 |
| Cooling (CPU & Case) - Use Case | Static Pressure (radiator) |
The LIQMAXFLO series, an AIO CPU Cooler featuring ENERMAX’s latest Dual-Chamber Xtreme pump and latest silent fan, delivers exceptional improvements in cooling performance with maximum quietness. LIQMAXFLO series is recommending as Intel® compatible vendor liquid cooling solutions, The combination of the LIQMAXFLO series and Intel® Core™ processors (14th gen) will maximize performance for your most demanding needs and deliver even more ultra-efficient multitasking, so you can game, stream, and record at once or video conference while sharing 4K video seamlessly.
60MM VRM FAN
LIQMAXFLO series comes with a 60mm VRM Fan with the 3-phase 6-pole motor to provide stable and silent airflow for the motherboard VRM.
ULTRA COOLING WITH MORE AIRFLOW
With the fan speed up to 3,000 rpm, the VRM fan delivers better airflow to effectively reduce temperatures of components surrounding the CPU, especially in overclocking scenarios.
MAGNETIC AND ROTATABLE PUMP COVER
The pump cover is changeable with a magnetic connection that the orientation of the logo can be changed at 90° for easier customization.
*Different options for pump cover will be available soon.
VRM FAN WITH RGB LIGHTING
With the ARGB VRM fan, you can create stunning synchronized lighting with supported motherboard’s software.
UPGRADED PRE-APPLIED THERMAL GREASE
The LIQMAXFLO series provides pre-applied premium Dow Corning® TC-5888 thermal grease and an extra tube for effortless installation.
EXTENSIVE COMPATIBILITY IN DIFFERENT SIZES
Intel Socket: LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD Socket: AM5/AM4/AM3+/FM2+/FM1
ADVANCED DUAL-CHAMBER XTREME PUMP
Introducing ENERMAX’s latest Dual-Chamber Xtreme pump with ENERMAX’s patented Shunt-Channel technology with an enlarged coolant inlet and optimized flow design, increasing the overall pump pressure (hydraulic head) by up to 30% and the coolant flow rate by up to 20%. The improvement in cooling efficiency results in an impressive 4°C lower thermal output for every 100-watt load.
TRANSCENDENCE TO EXTRAORDINARY – SILENT FLOW FAN
ENERMAX brings you the ultimate solution for radiator fans, the Silent Flow fan, which applies high-quality F.D.B. bearing and ENERMAX exclusive high-pressure fan blade design to significantly enlarge the airflow and air pressure without increasing noise levels. A maximum of 25.47dB(A), making it nearly inaudible at mid-speed.
EXCEPTIONAL FAN BLADE
With thicker fan blade in 3mm (compare to standard 1.8 to 2.2mm fans), the Silent Flow Fan accomplish quieter operation through minimized vibration, a significant leap forward in silent performance.
ANGLE OF ATTACK
The leading edge of the Silent Flow fan is characterized by a carefully calibrated “Angle of Attack” of 34.73°, a design parameter unique to its 5-blade configuration. This expertly crafted angle forms a perfect equilibrium between enhanced cooling performance and minimized noise levels.
AN ALL-PWM-CONTROLLED LIQUID CPU COOLER
The LIQMAXFLO series embraces the PWM mechanism that the pump, VRM fan and radiator fan(s) can alter their speed and airflow based on temperature to save unnecessary power churn and create a quieter environment.
PUMP
The ENERMAX’s very first PWM pump
1,200 – 3,000 RPM
VRM FAN
Smart extra cooling
500 – 3,000 RPM
RADIATOR FAN
Powerful and quiet
500 – 1,800 RPM
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Maximum airflow | 58.03 cfm |
| Maximum air pressure | 2.4 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Ceramic bearing |
| Fan noise level (max) | 23.46 dB |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (min) | 1200 RPM |
| Pump motor speed (max) | 3000 RPM |
| VRM fan speed (min) | 500 RPM |
| VRM fan speed (max) | 3000 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 5 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Thermal Design Power (TDP) | 350 W |
| Pump voltage | 12 V |
| Pump current | 430 mA |
| Fan voltage | 12 V |
| Fan current | 0.08 A |
| Radiator width | 27.6 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| VRM fan diameter | 6 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 26.8 mm |
| Package width | 322 mm |
| Package depth | 205 mm |
| Package height | 137 mm |
| Package weight | 2.18 kg |
| Package type | Box |
| Cables included | SATA |
| Screws included | Yes |
| Thermal pad included | Yes |
| Number of washers included | 4 |
| Number of clips | 3 |
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
| Tube material | Rubber |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 338 mm |
| Master (outer) case height | 440 mm |
| Master (outer) case gross weight | 13.1 kg |
| Products per master (outer) case | 6 pc(s) |
