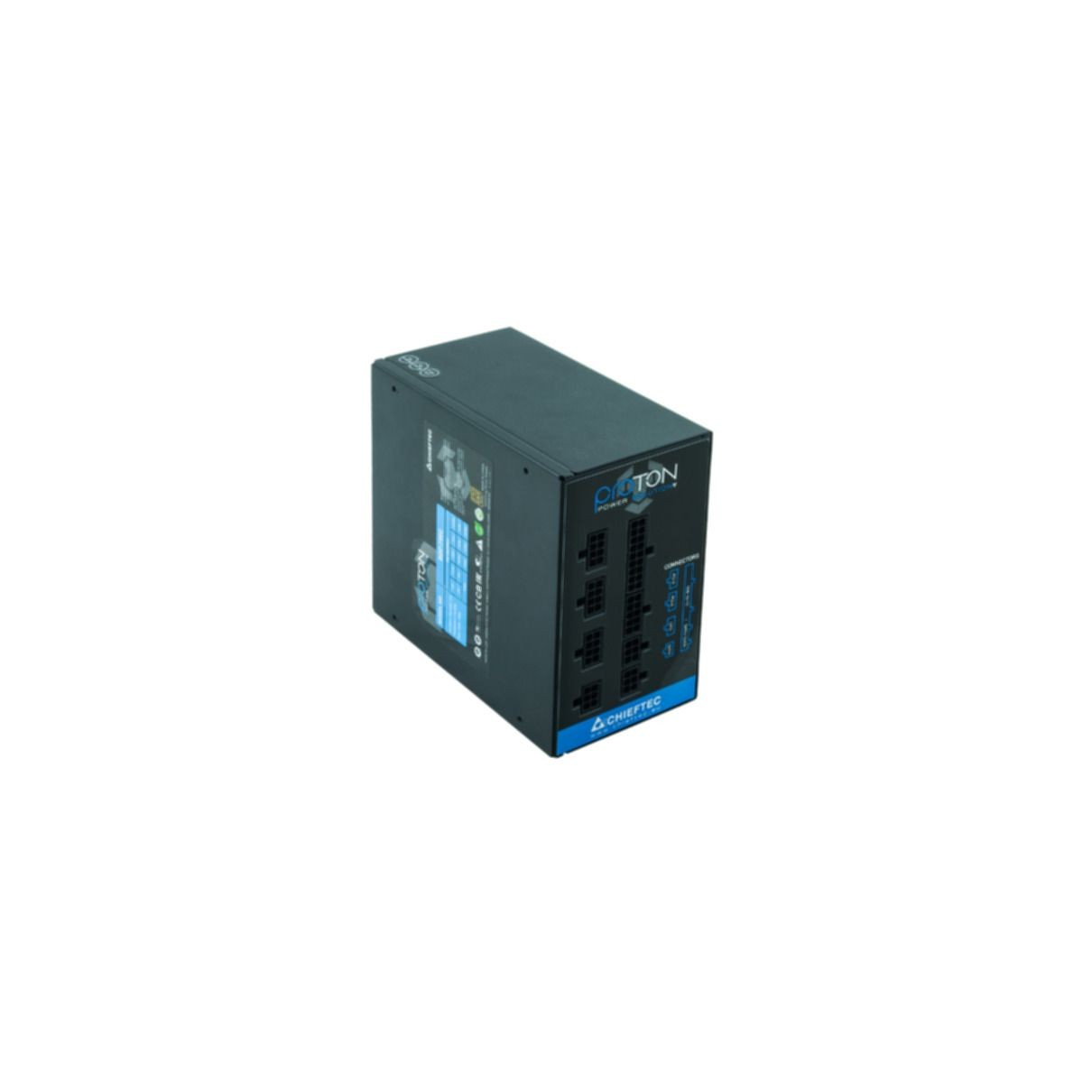

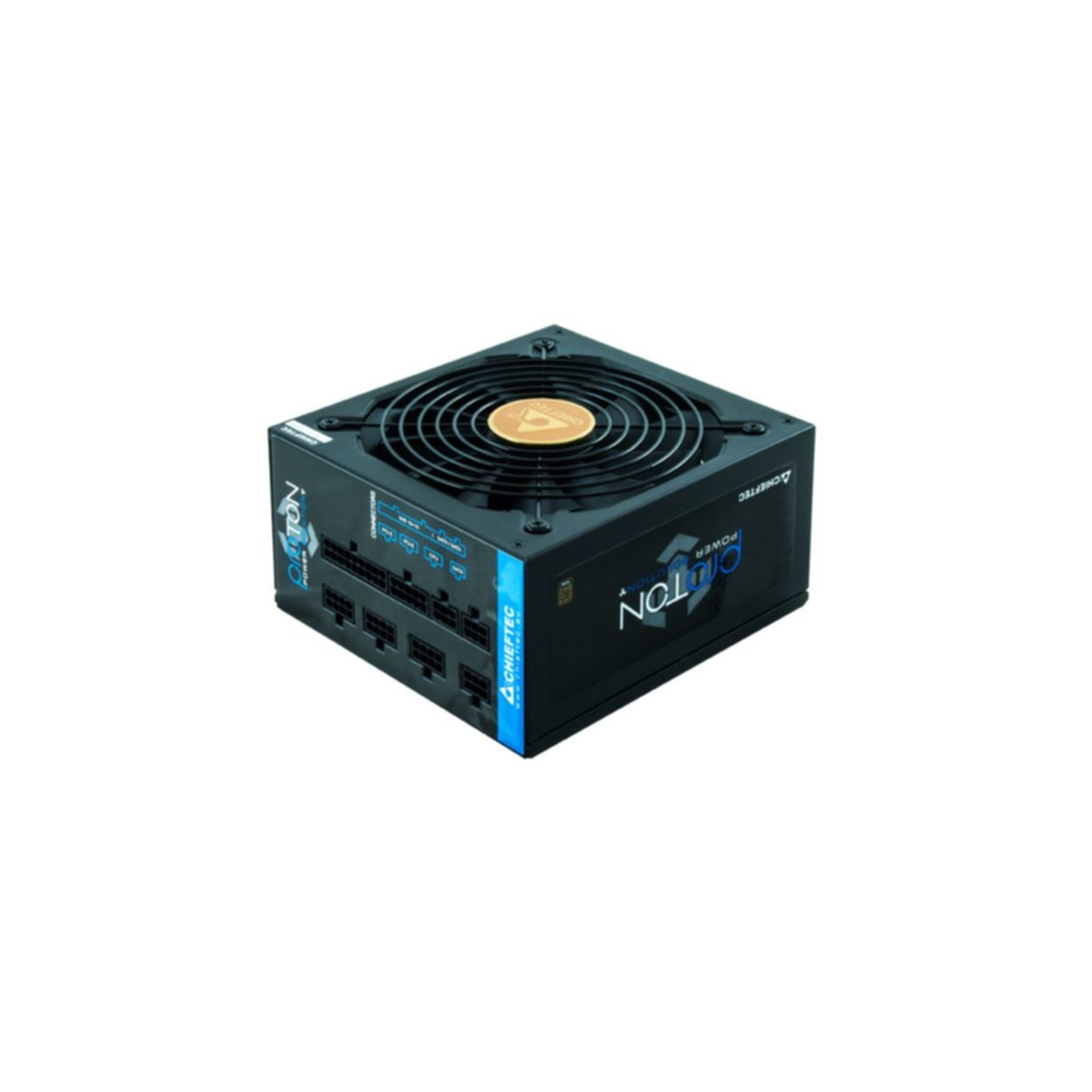

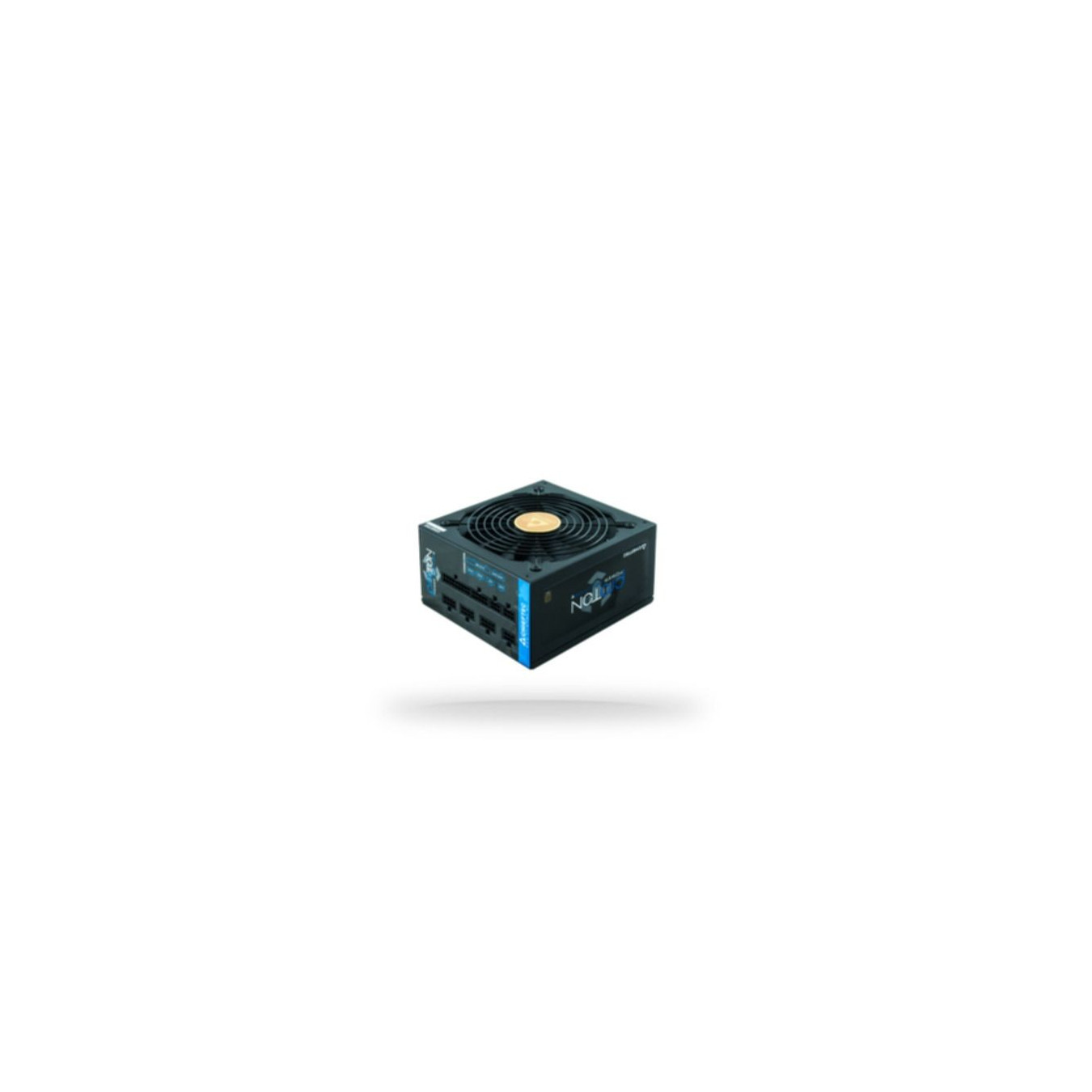

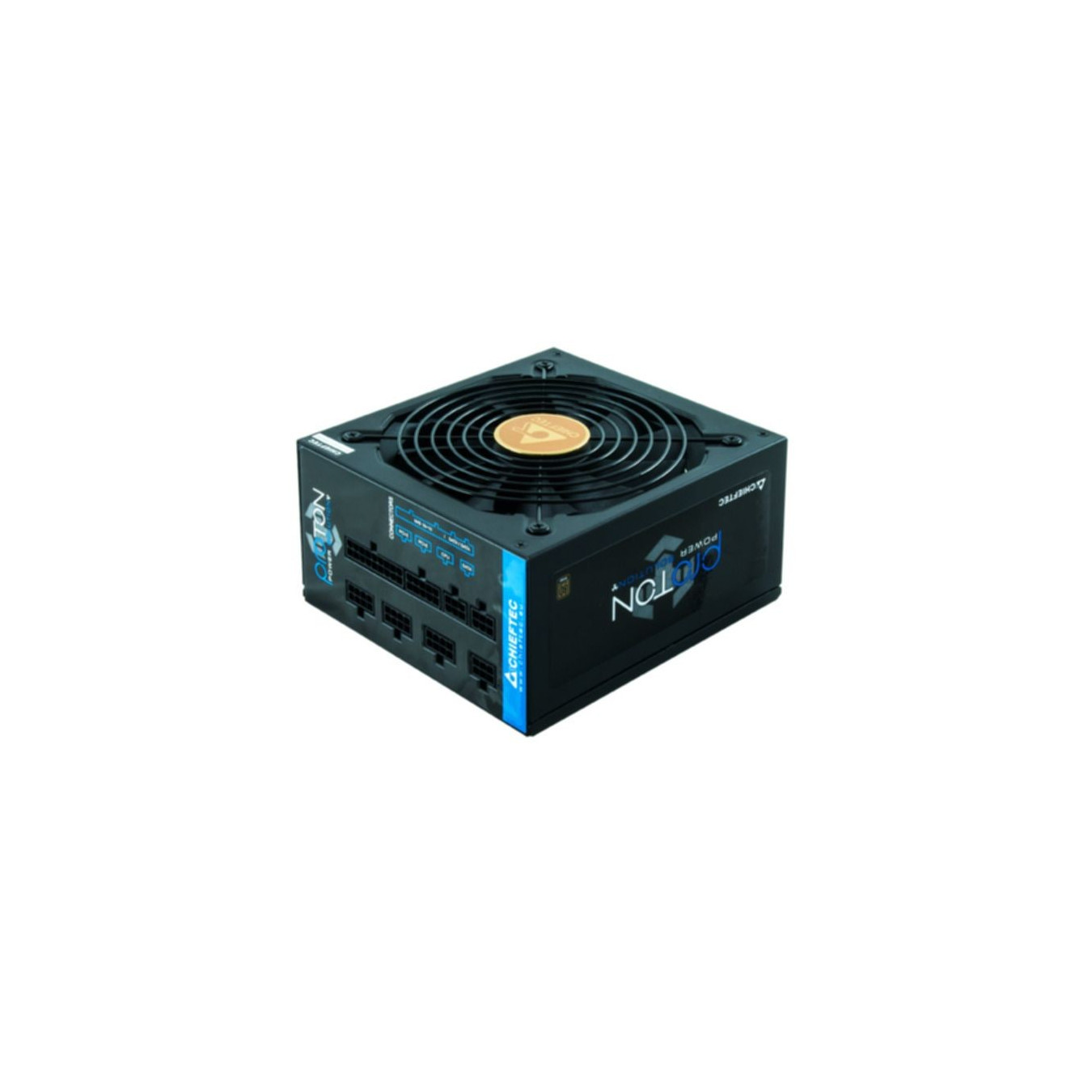

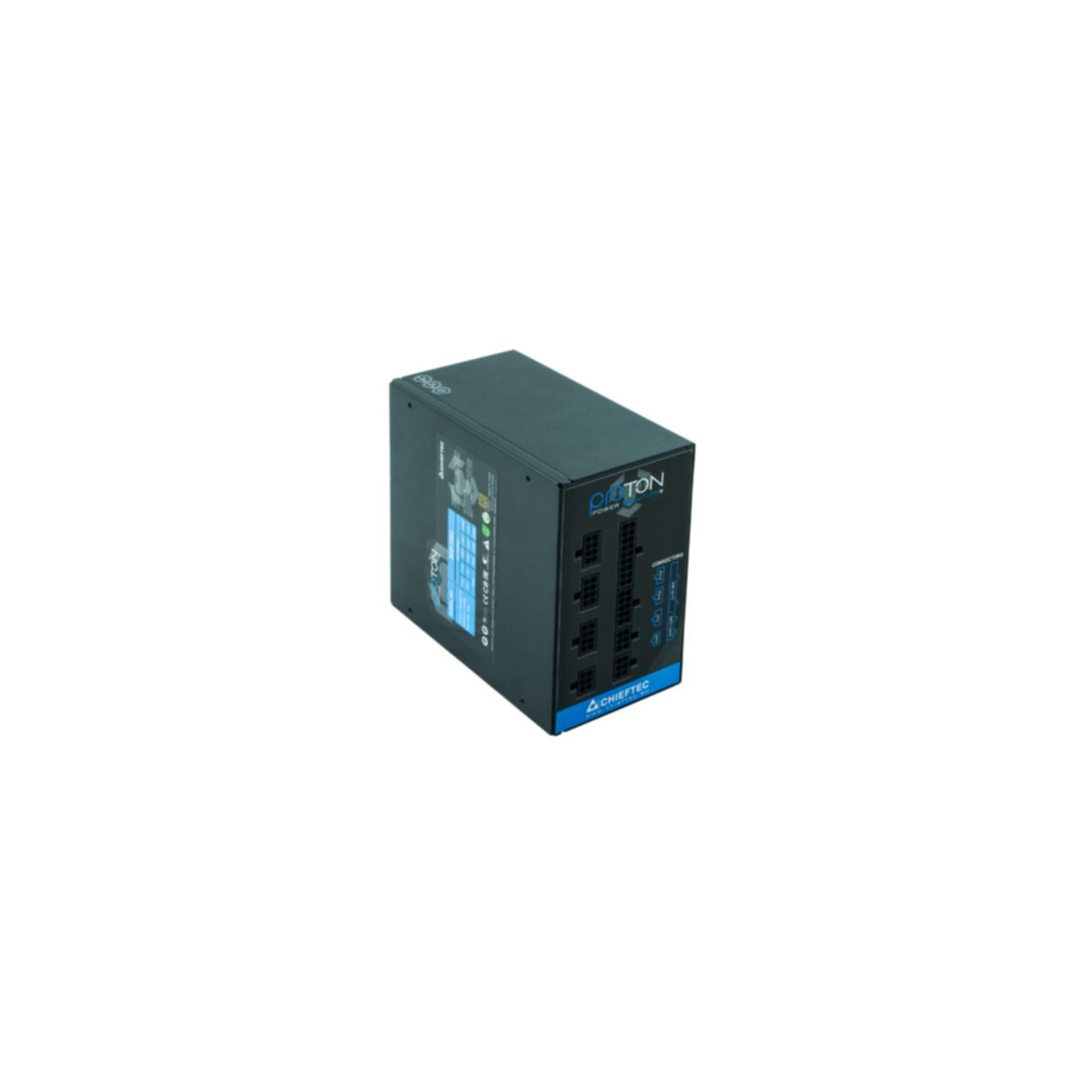

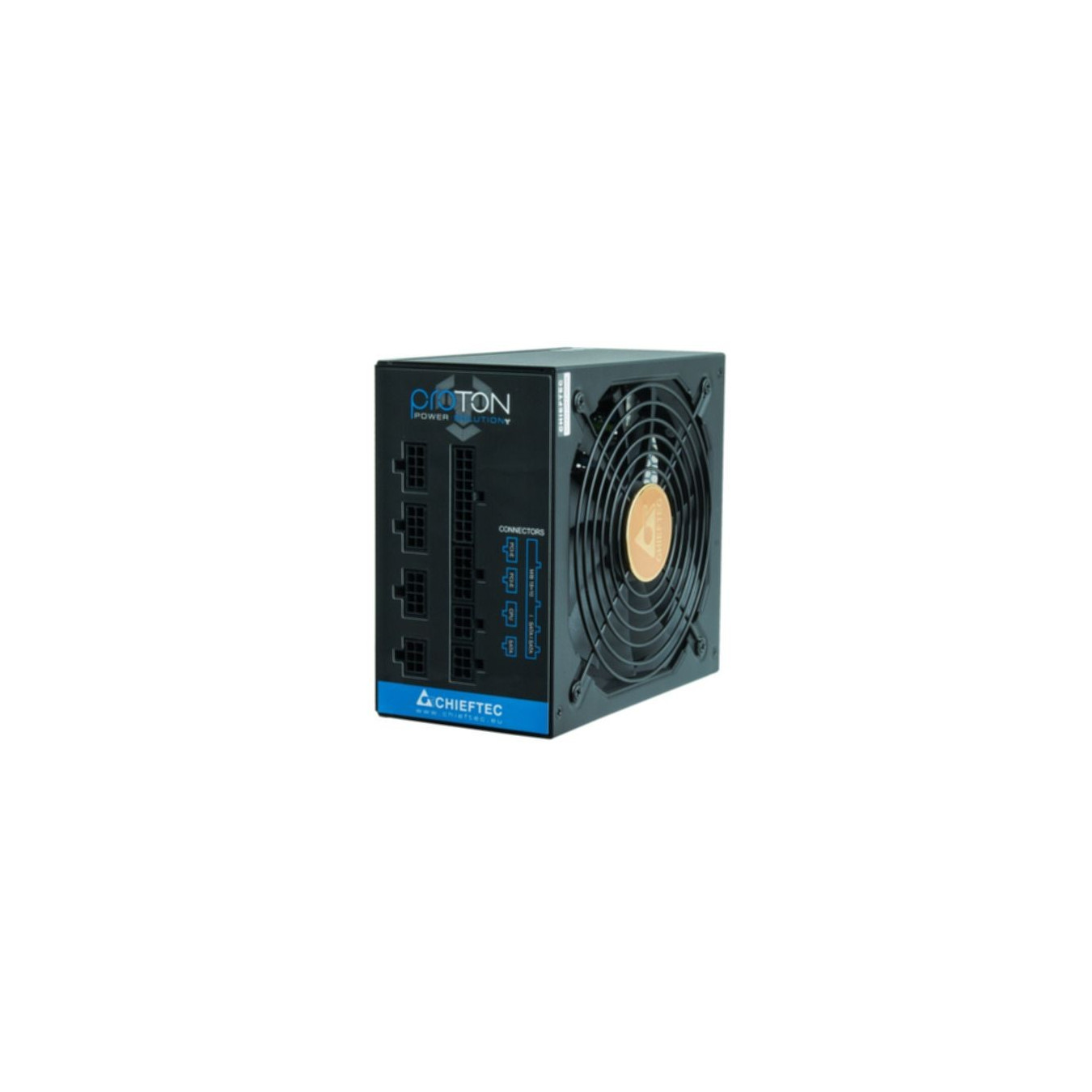

Chieftec Proton BDF-650C - 650W 80 PLUS Bronze DC-to-DC ATX Power Supply
650W Chieftec PROTON BDF-650C PSU, 80 PLUS Bronze, DC-to-DC design, 20+4 ATX connector, 6×SATA, 3×Molex, multi-protection (OCP/OVP/OTP/OLP/SCP/UVP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
| Total power | 650 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Manual | Yes |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Warranty card | Yes |
