ASUS Dual Radeon RX 9060 XT - 8GB VRAM - Dual Axial Fans, 2.5-slot Compact Gaming GPU
Radeon RX 9060 XT with 8GB VRAM, ASUS Dual with dual Axial-tech fans, 2.5-slot compact design and 0dB fan-stop under 55°C for quiet gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
|---|---|
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

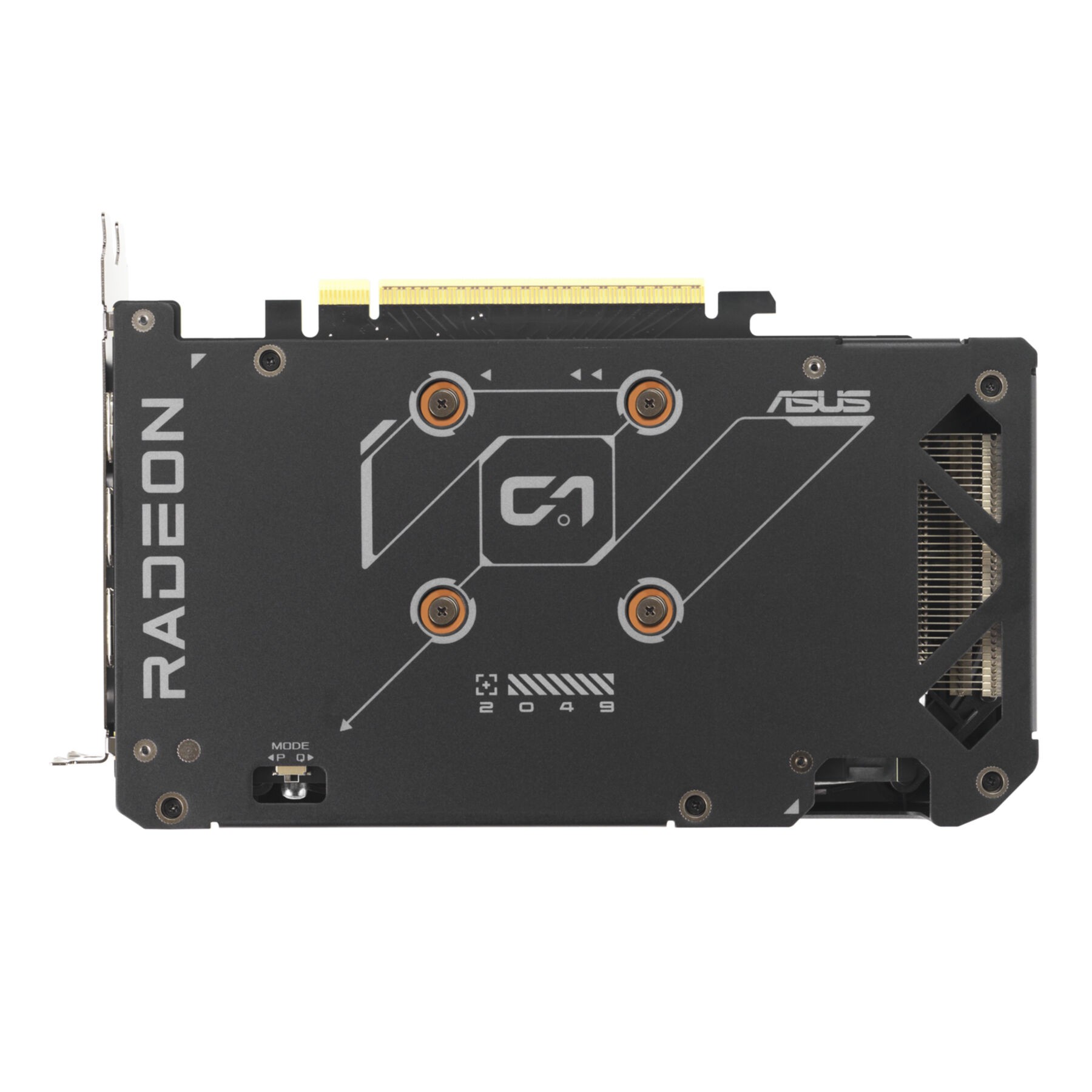

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| CUDA | No |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3130 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
| Maximum displays per videocard | 3 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express 5.0 |

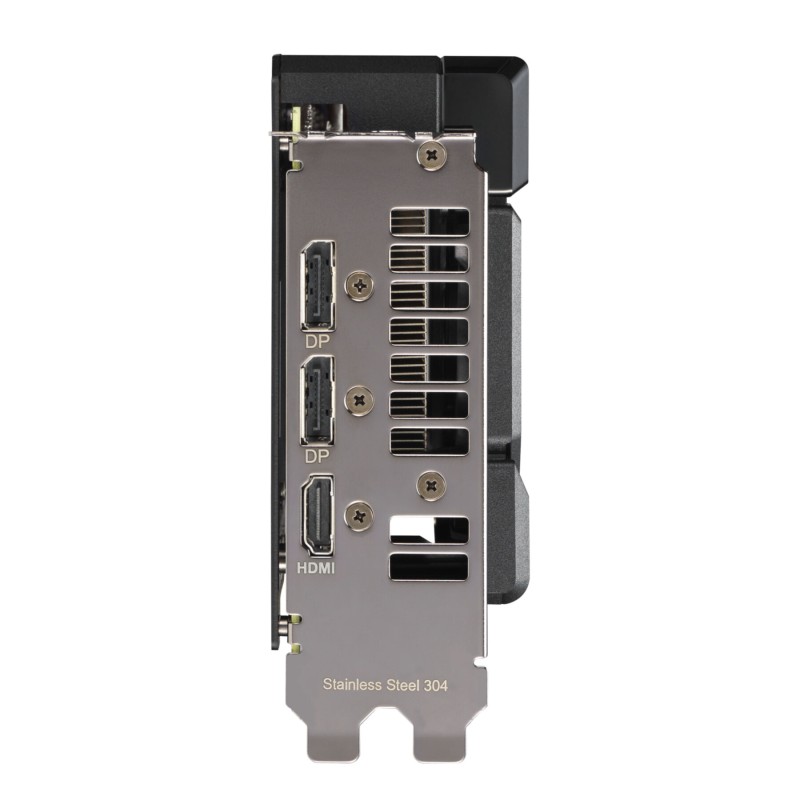

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.5 |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 601 g |
| Length | 202 mm |
| Depth | 49 mm |
| Height | 120 mm |
| Package width | 364 mm |
| Package depth | 219 mm |
| Package height | 66 mm |
| Package weight | 1.06 kg |
| Package type | Box |
| Manual | Yes |
