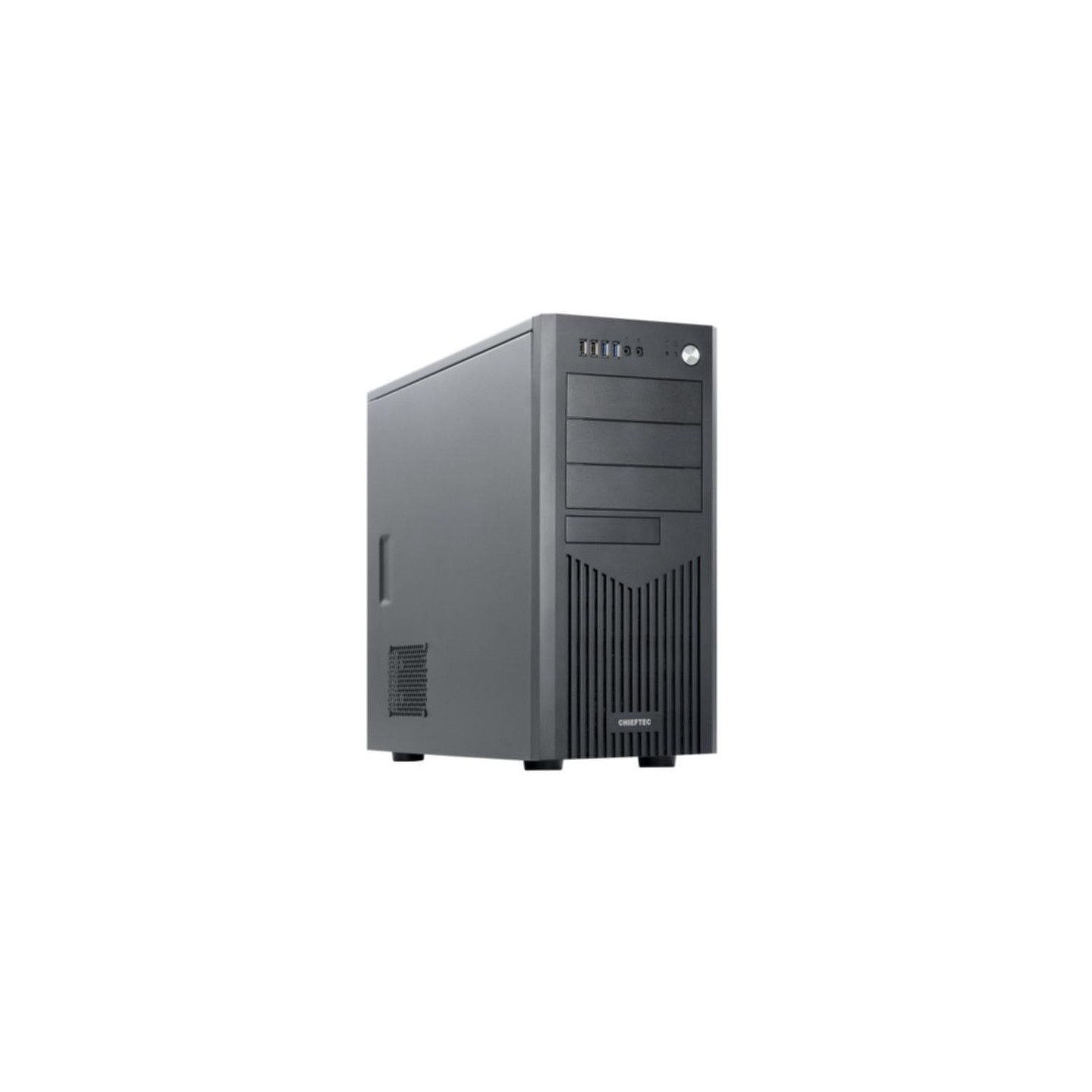

Chieftec BM-25B-OP PC Case - Black Mid-Tower, ATX/mATX/Mini-ITX, 280mm GPU, 165mm CPU Cooler (Boxed)
Chieftec BM-25B-OP black mid-tower ATX/mATX/Mini-ITX case. Supports 280mm GPU (400mm w/o HDD cage), 165mm CPU cooler. 3x5.25"+1x3.5" ext, 3x3.5"+1x2.5" int bays. 2xUSB3.0+2xUSB2.0+audio. 0.7mm SECC, 7.96kg boxed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | Up to 250 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm Up to 150 mm |
Chieftec BM-25B-OP
The Chieftec CLASSIC Series revives the proven UNI Series quality with a timeless front panel design and enhanced internal features. Constructed from sturdy 0.7mm SECC steel, it includes toolless installation kits for HDD, ODD, and PCI slots, ideal for system builders seeking durability and elegant design.

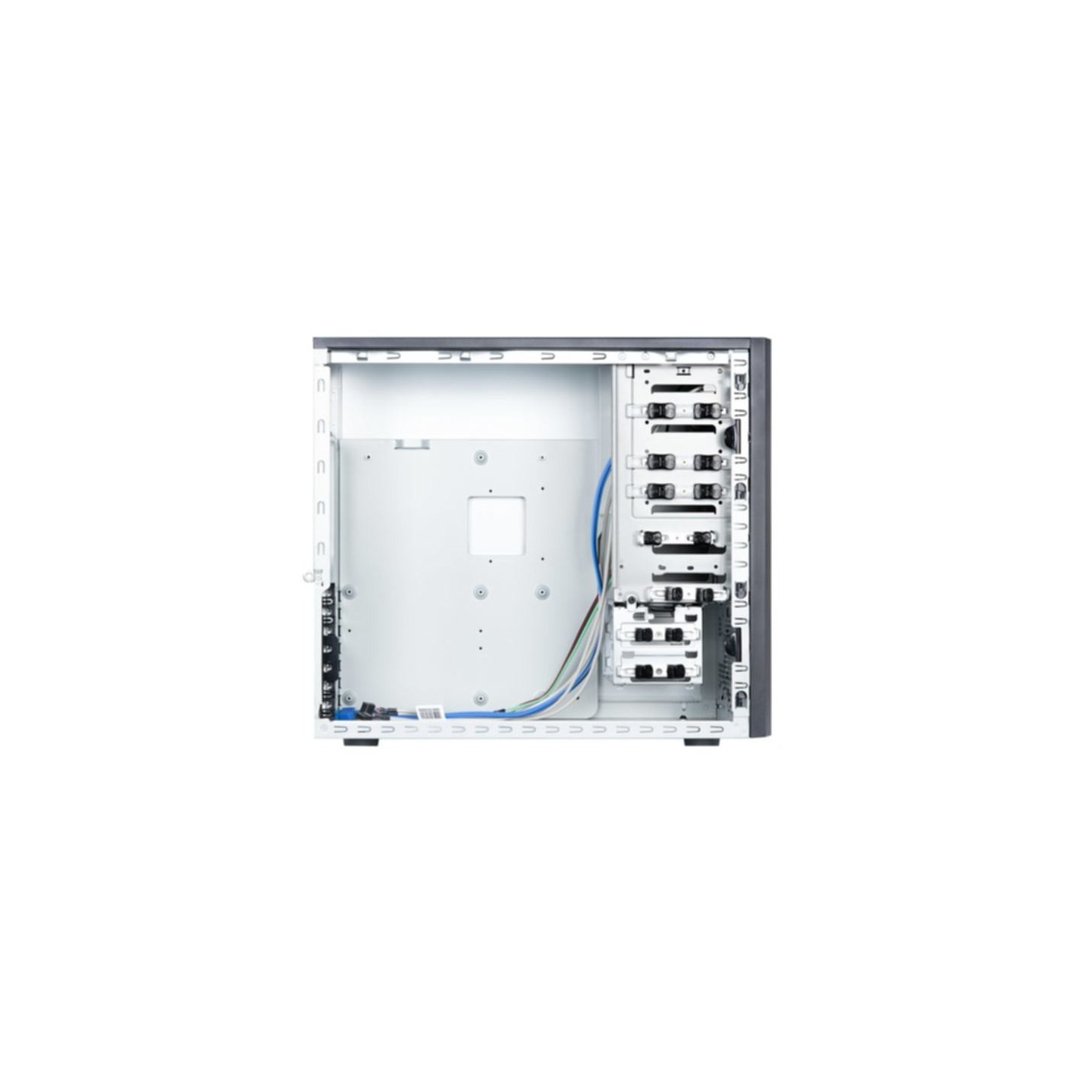

This mid-tower case supports ATX, mATX, and Mini-ITX motherboards with 7 expansion slots. It accommodates up to 280mm GPUs (extendable to 400mm by removing HDD cage) and 165mm CPU coolers. Drive bays include 3x external 5.25", 1x external 3.5", 3x internal 3.5", and 1x 2.5". Front I/O: 2x USB 3.0, 2x USB 2.0, HD audio in/out.
- ✅ Toolless drive and PCI installation
- ✅ Cooling: Front 1x90/120mm, Rear 1x80/90/120mm fan support
- ✅ ATX PSU compatible (optional)
- ✅ Dimensions: 491x198x437mm, Weight: 7.05kg (7.96kg packaged)
- ✅ 24-month warranty
| Material | 0.7mm SECC |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, mATX, Mini-ITX |
| Number of 5.25 external | 3 |
| Number of 3.5 external | 1 |
| Number of 3.5 internal | 3 |
| Number of 2.5 | 1 |
| Number of expansion slots | 7 |
| Side window | No |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 280 mm (400 mm without HDD cage) |
| Supported power supply form factors | ATX |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 90, 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80, 90, 120 mm |
| Width | 198 mm |
| Depth | 491 mm |
| Height | 437 mm |
| Weight | 7.05 kg |
| Weight (packaged) | 7.96 kg |
| Material thickness | 0.7 mm |
| Warranty | 24 Months |
