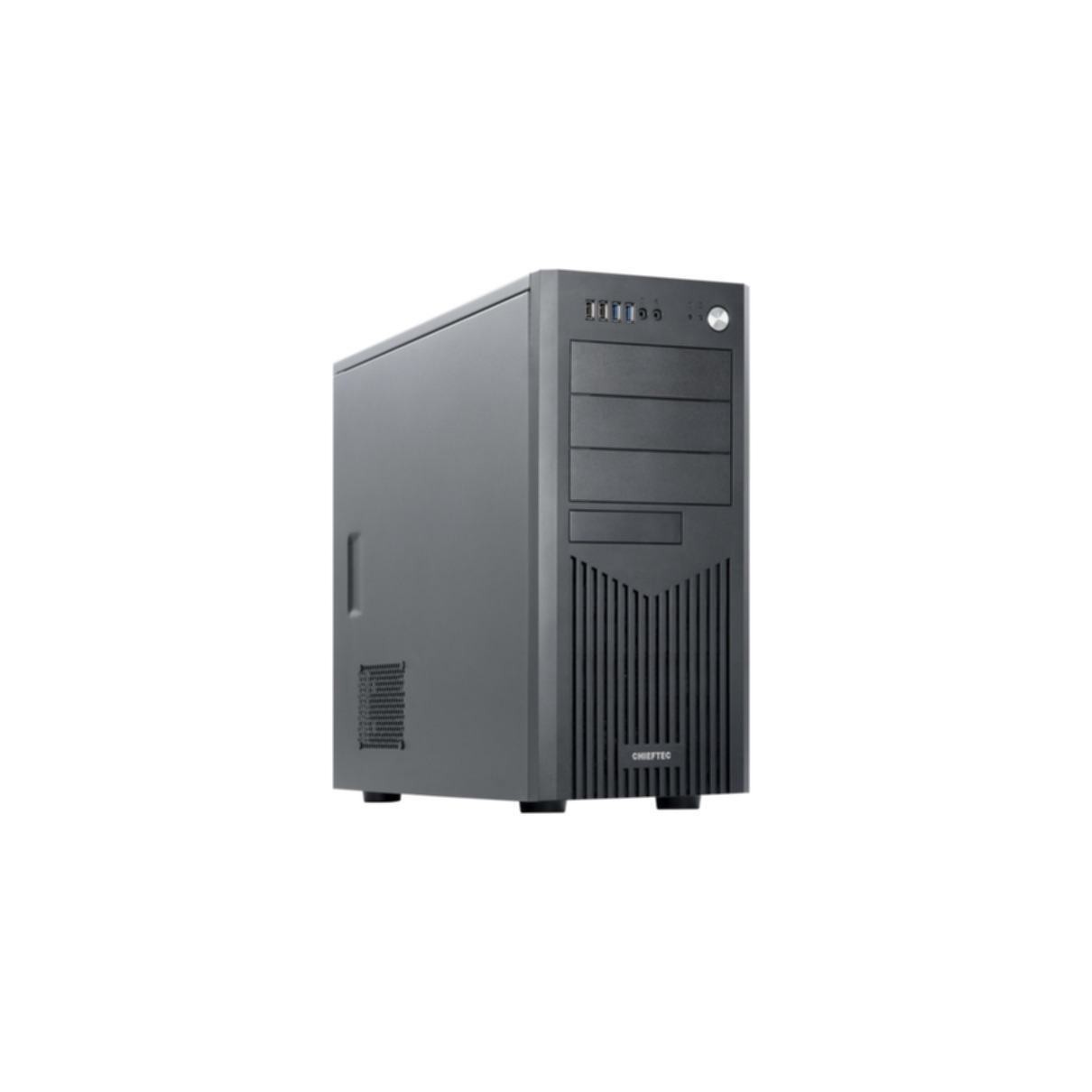

Chieftec BM-25B-OP PC Case - Black Mid-Tower, ATX/Mini-ITX Support, 250mm GPU, 140mm CPU Cooler Clearance
Black Chieftec BM-25B-OP mid-tower case — supports ATX/Mini-ATX/Mini-ITX; up to 250mm GPU and 140mm CPU cooler; 3x5.25-inch bays, multiple 3.5/2.5 bays; 2xUSB2 + 2xUSB3 Type-A, audio I/O.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PC Cases - Type | Mid Tower |
|---|---|
| PC Cases - Motherboard Support | ATX |
| PC Cases - Max GPU Length | less than or equal to300 mm |
| PC Cases - CPU Cooler Clearance | less than or equal to150 mm |
BM-25B-OP
The Chieftec CLASSIC Series brings new life to the proven quality and the decade-old success of the UNI Series with a refreshed front panel design on the outside, while upgrading the quality and features on the inside. Built from 0.7 mm sturdy SECC and including toolless drive installation kits, the CLASSIC series is perfect for system builders who value true quality and timeless design.
| Material | SECC |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, Mini-ATX, Mini-ITX |
| Number of 3.5" bays | 4 |
| Number of 5.25" bays | 3 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 3 |
| Number of external 5.25" bays | 3 |
| Number of expansion slots | 7 |
| Side window | No |
| On/off button | Yes |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 25 cm |
| Supported power supply form factors | ATX |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 90, 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80, 90, 120 mm |
| Supported HDD sizes | 2.5, 3.5, 5.25" |
| Width | 198 mm |
| Depth | 465 mm |
| Height | 425 mm |
| Weight | 8.2 kg |
| Material thickness | 0.7 mm |
| Package weight | 9.4 kg |
| Harmonized System (HS) code | 84733080 |
| Screws included | Yes |
