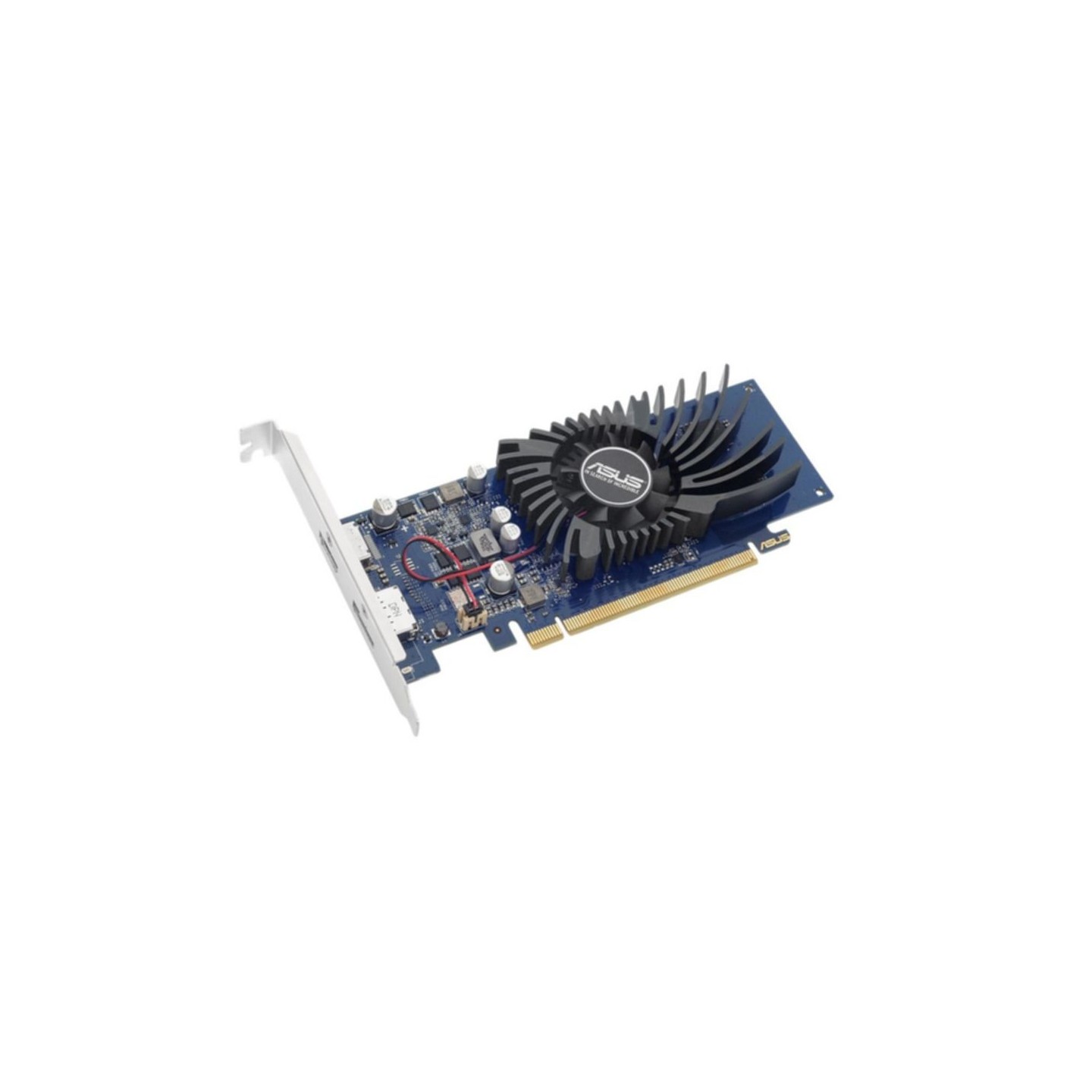

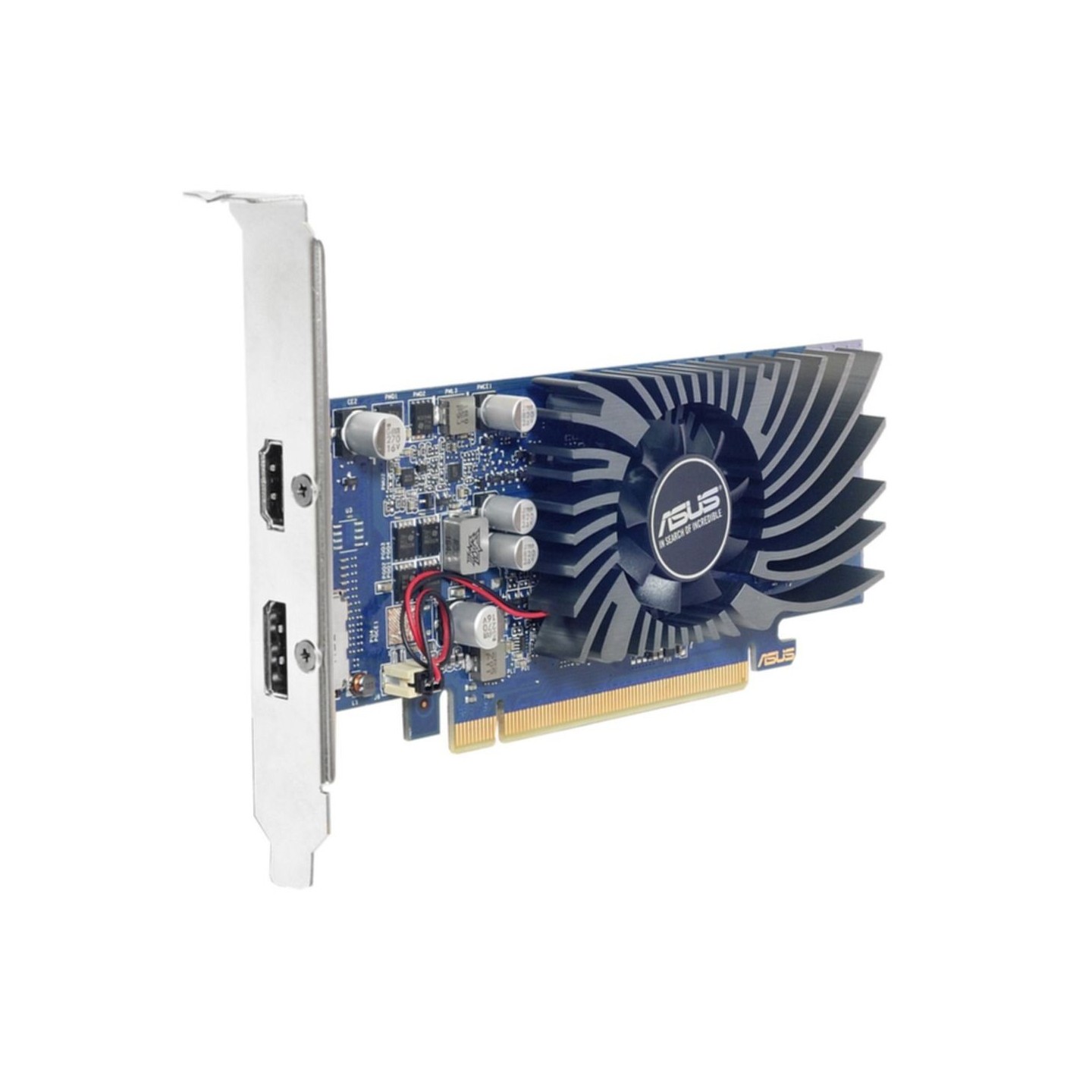

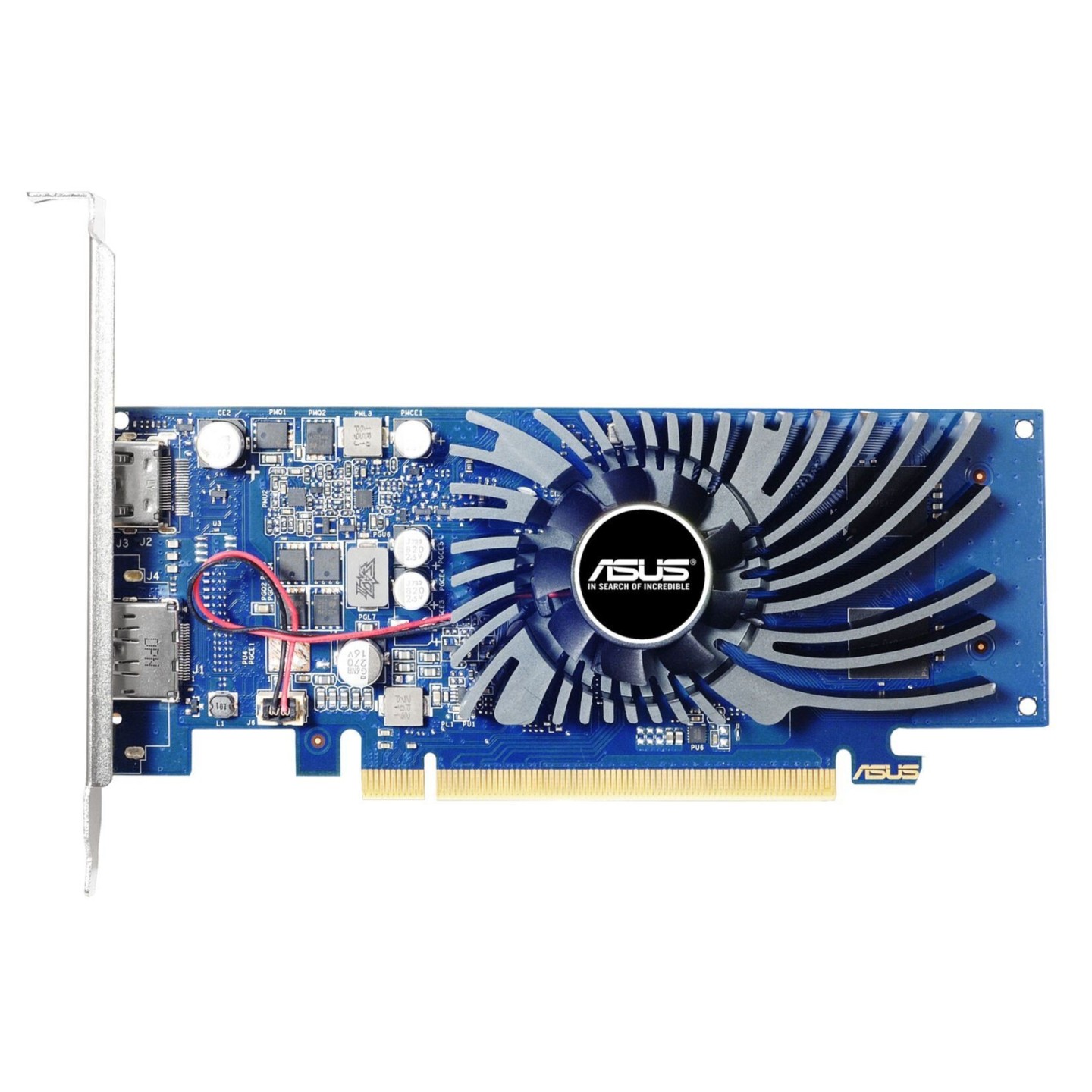

ASUS GeForce GT 1030 BRK - 2GB GDDR5, 1506 MHz Boost, Black/Blue, PCIe 3.0 (Boxed)
ASUS GeForce GT 1030 BRK: 2GB GDDR5, 1266/1506 MHz boost, 384 CUDA cores. HDMI+DP, PCIe 3.0 x4. Single-fan low-profile design for HTPCs. TDP 30W, no power connector. Supports 7680x4320.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce GT |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 1.0 x16 PCIe 3.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Single Fan |
| GPU (Graphics Cards) - Color | Black Other |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 2 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR5 |
| GPU (Graphics Cards) - Outputs | DisplayPort HDMI |
| GPU (Graphics Cards) - Power Connector | None |
| GPU (Graphics Cards) - Card Length | Low Profile (Under 170 mm) |
Graphics galore for everyone!
ASUS GeForce GT1030 BRK’s single-slot design doesn’t block neighboring PCIe slots, maximizing expansion flexibility, and the small size offers great compatibility with smaller chassis. Exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. It also has GPU Tweak II for intuitive performance tweaking.
Space-efficient single-slot design
The slimline cooling fan and single-slot design means that GT1030 BRK doesn’t block neighboring PCI Express slots, maximizing your ability to fit additional expansion cards. The small size also offers great compatibility with a wide variety of smaller chassis, so you can build in whatever form is best for your needs. Ideal for HTPC, office PCs, or budget upgrades. Perfect for light gaming, video playback, and everyday computing[1][2].
Premium Features
- 384 CUDA cores with boost up to 1506 MHz
- 2GB GDDR5 memory at 6008 MHz on 64-bit bus
- Supports up to 7680x4320 resolution

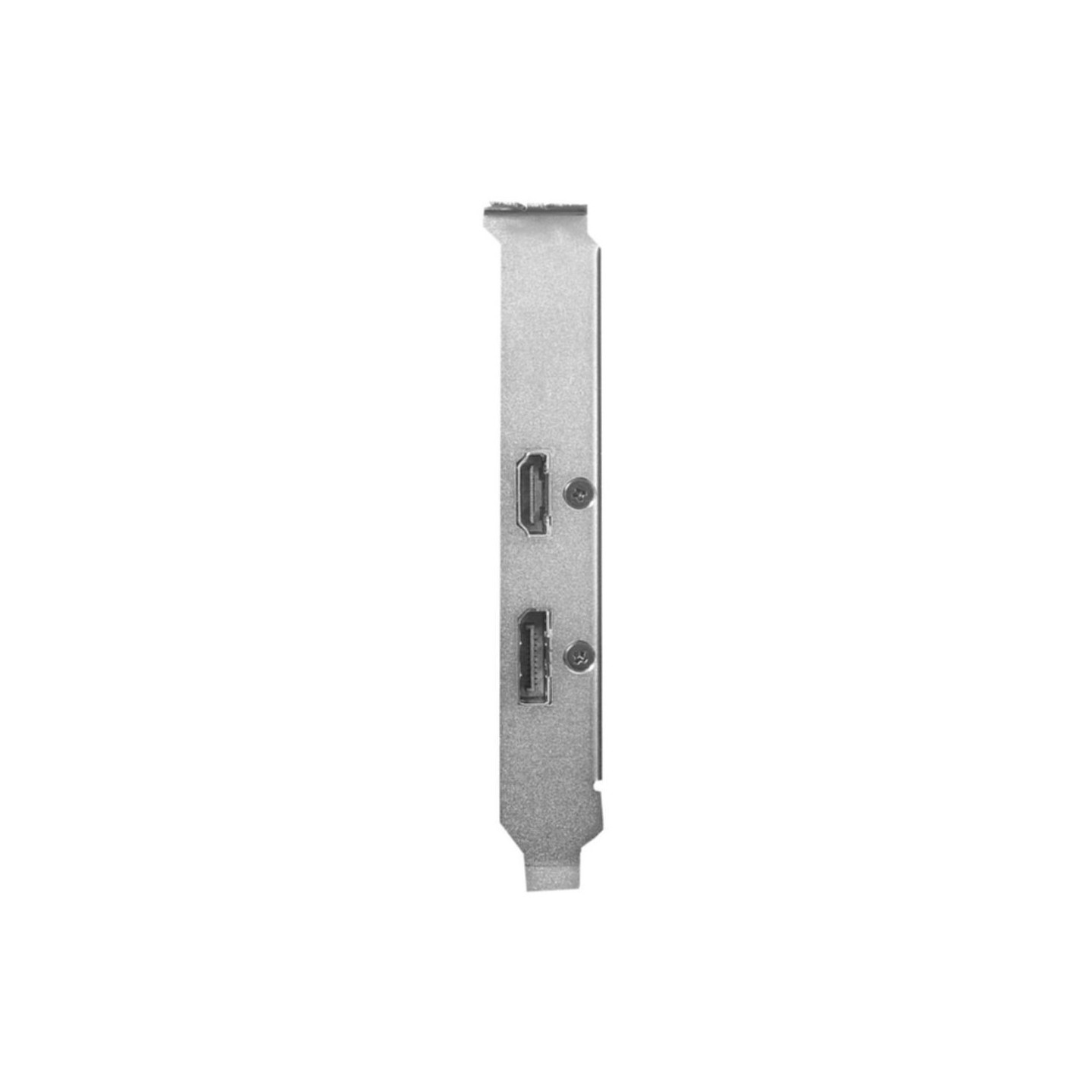

- HDMI + DisplayPort outputs
- Active cooling with 1 fan, TDP 30W - no external power needed
- PCIe 3.0 x4 interface, DirectX 12, OpenGL 4.5
| CUDA | Yes |
| CUDA cores | 384 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GT 1030 |
| Processor frequency | 1266 MHz |
| Processor boost clock speed | 1506 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| FireStream | No |
| Discrete graphics card memory | 2 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 64 bit |
| Memory clock speed | 6008 MHz |
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| Full HD | Yes |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Product colour | Black, Blue |
| Windows operating systems supported | Windows 10 |
| Length | 169 mm |
| Depth | 21 mm |
| Height | 69 mm |
| Power consumption (TDP) | 30 W |

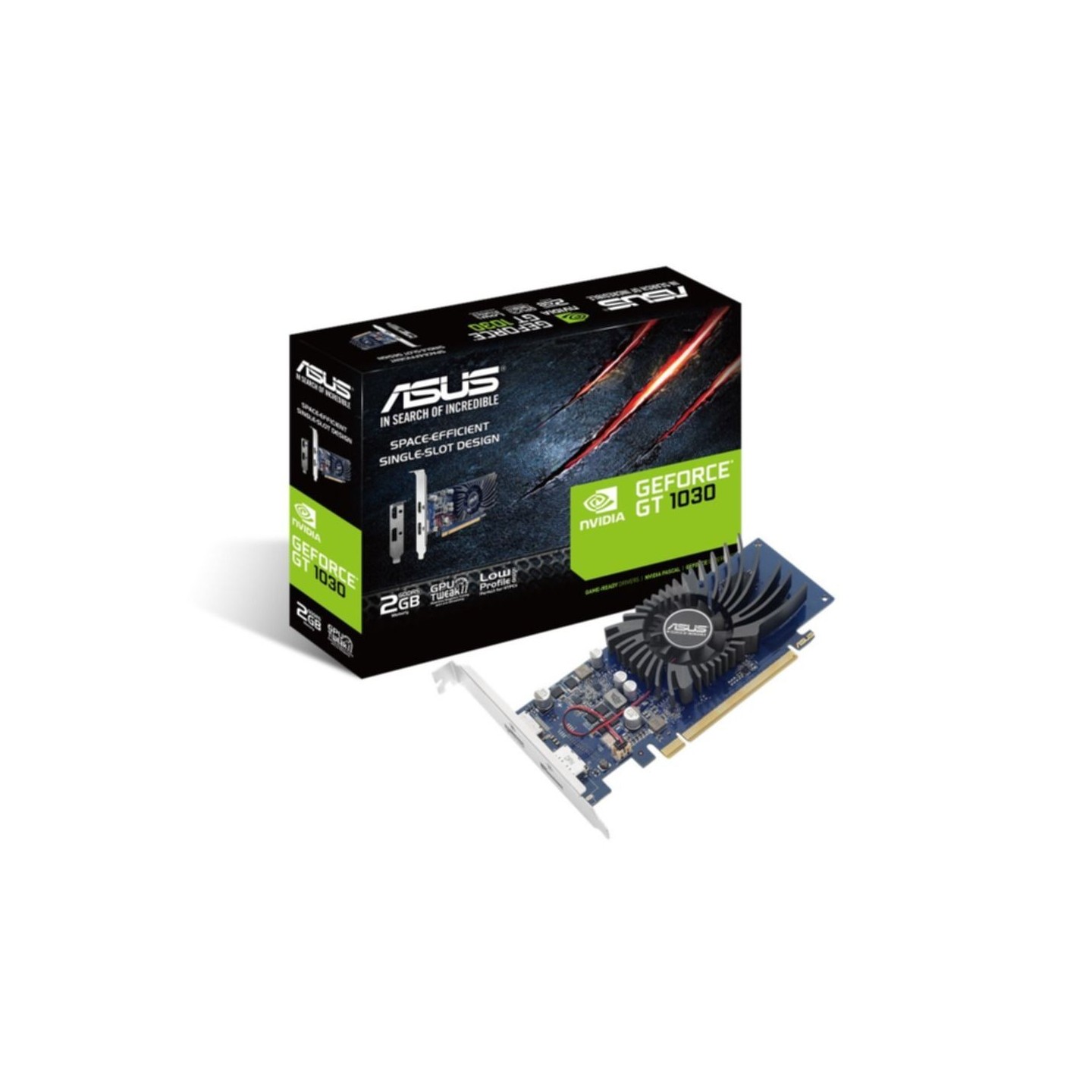

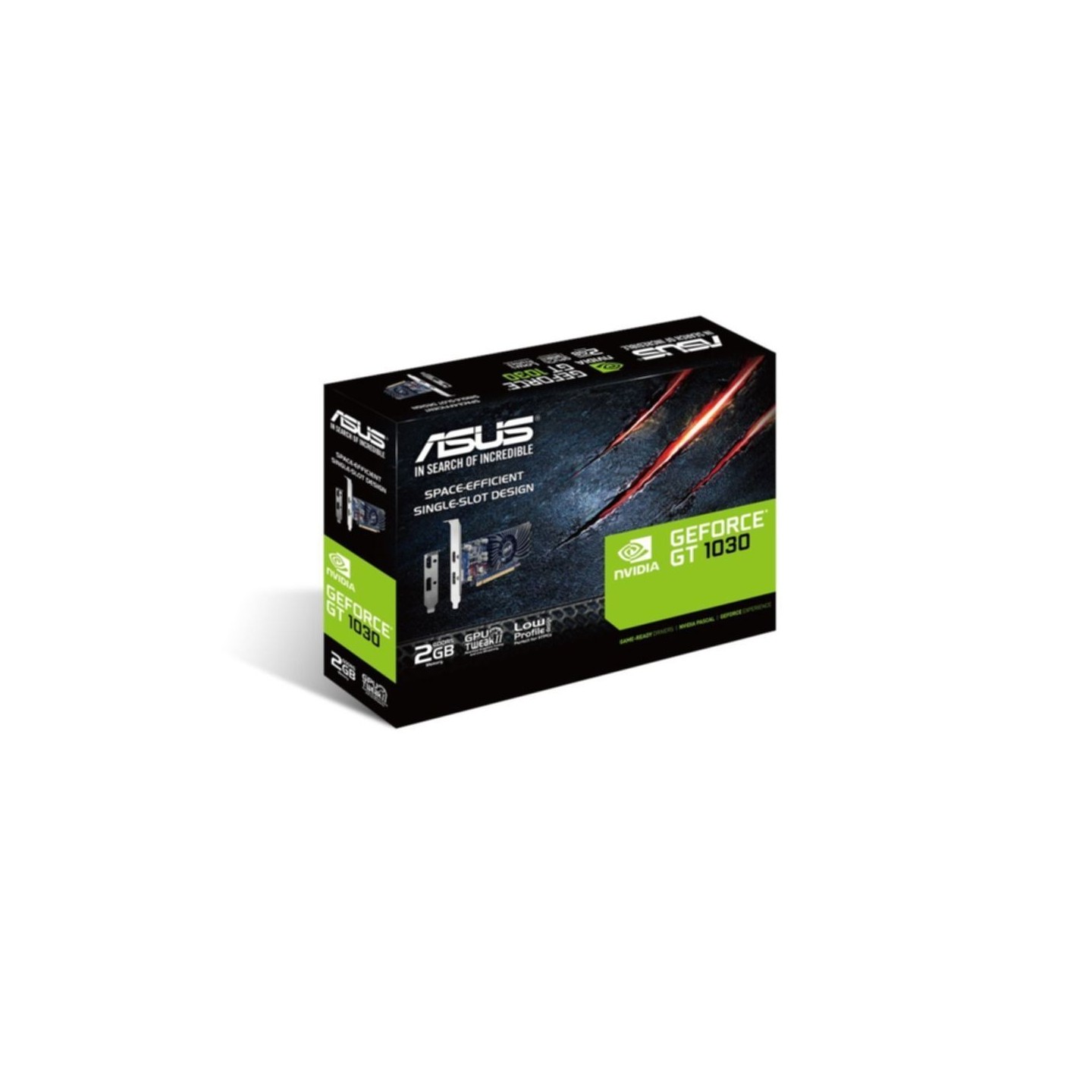

| Package type | Box |
| User guide | Yes |
| Drivers included | Yes |
| Bundled software | ASUS GPU Tweak |
| Harmonized System (HS) code | 84733020 |
| Auxiliary power connector | None |
