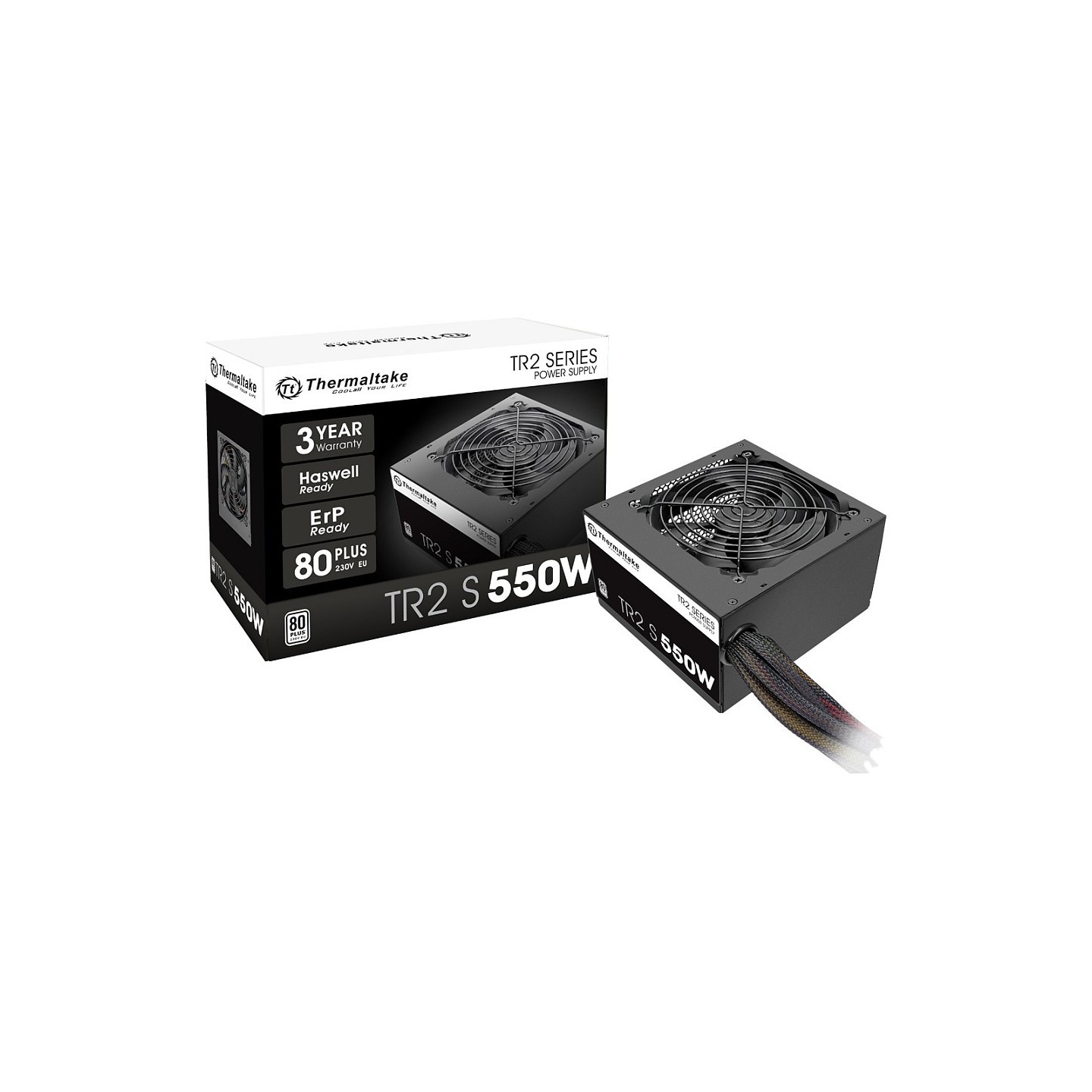

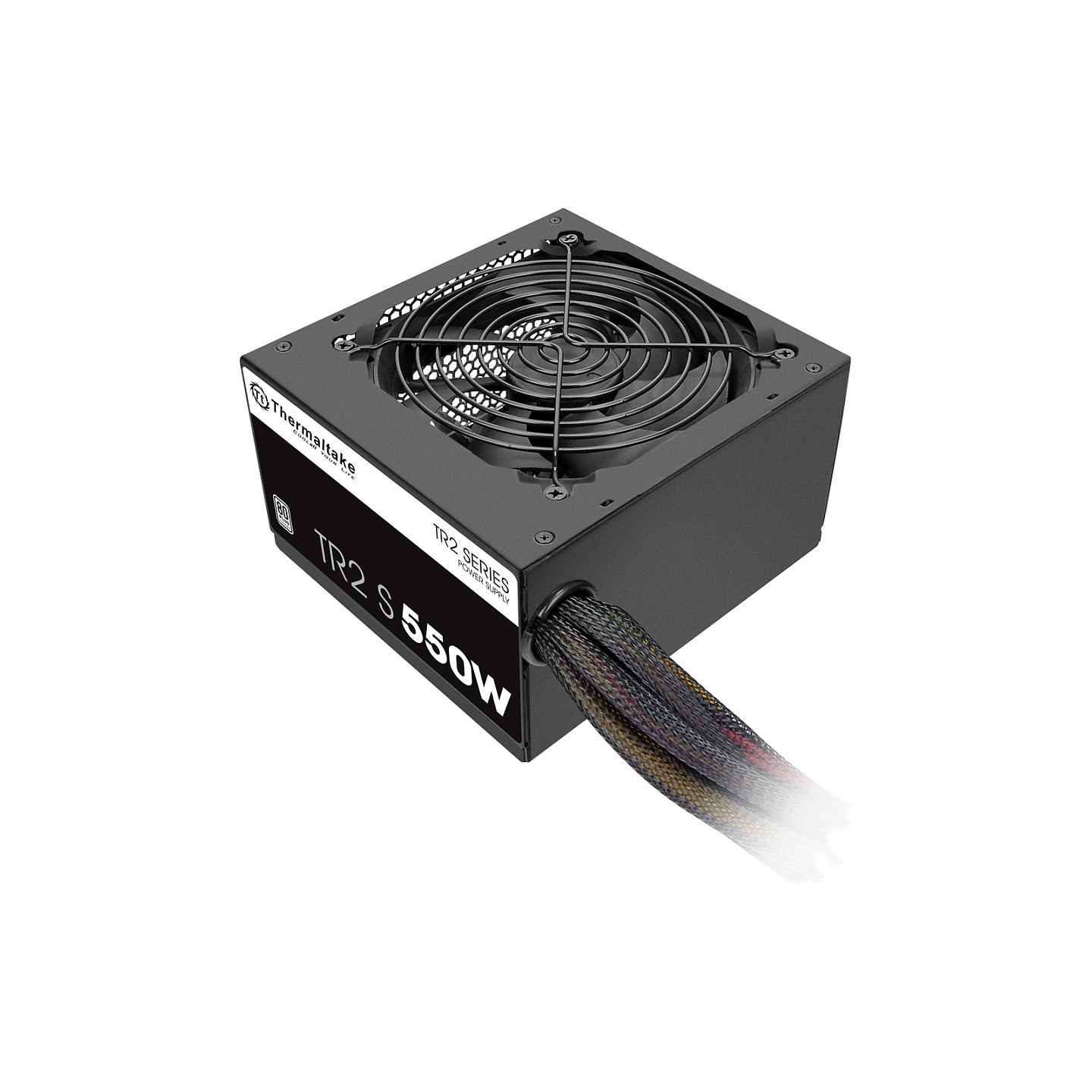

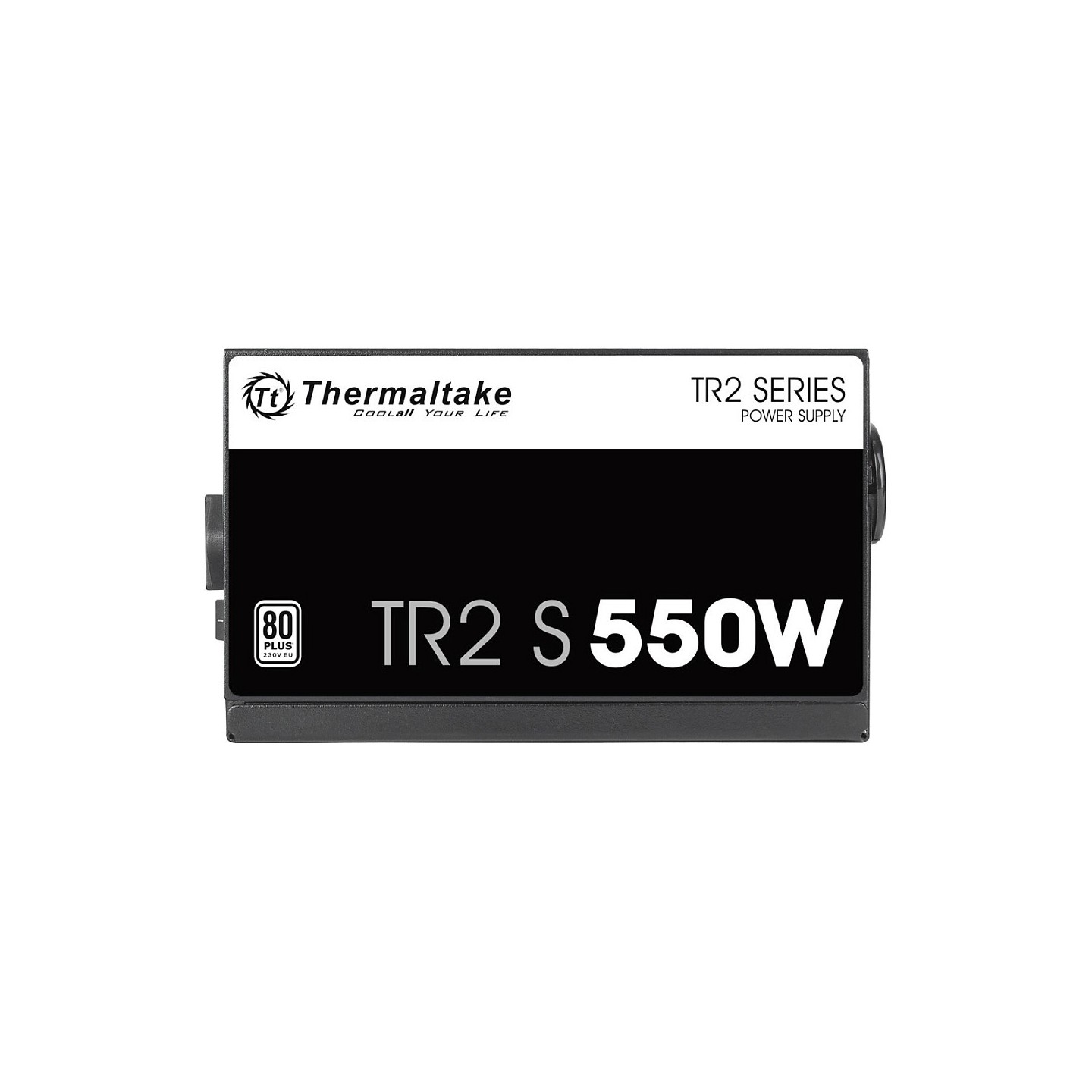

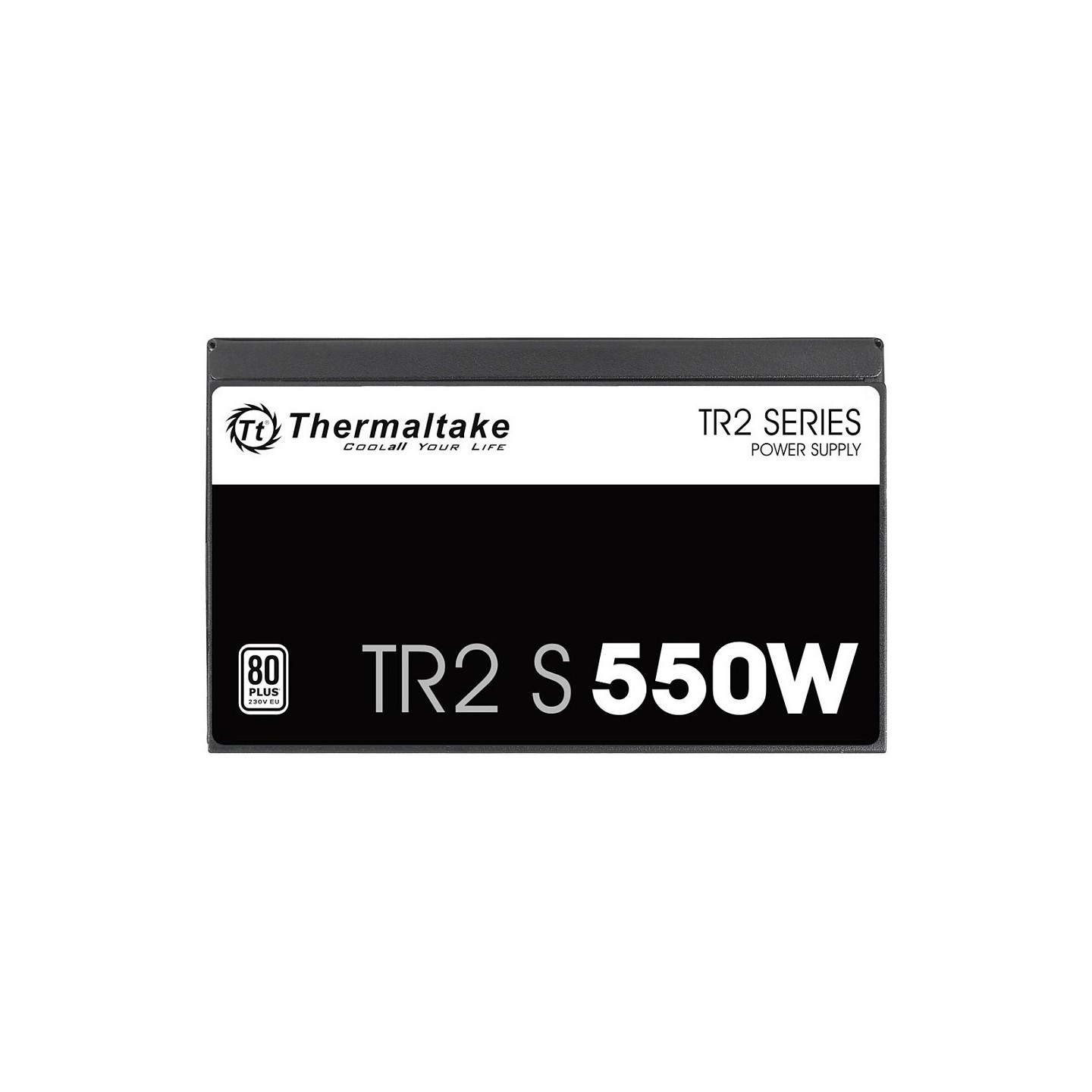

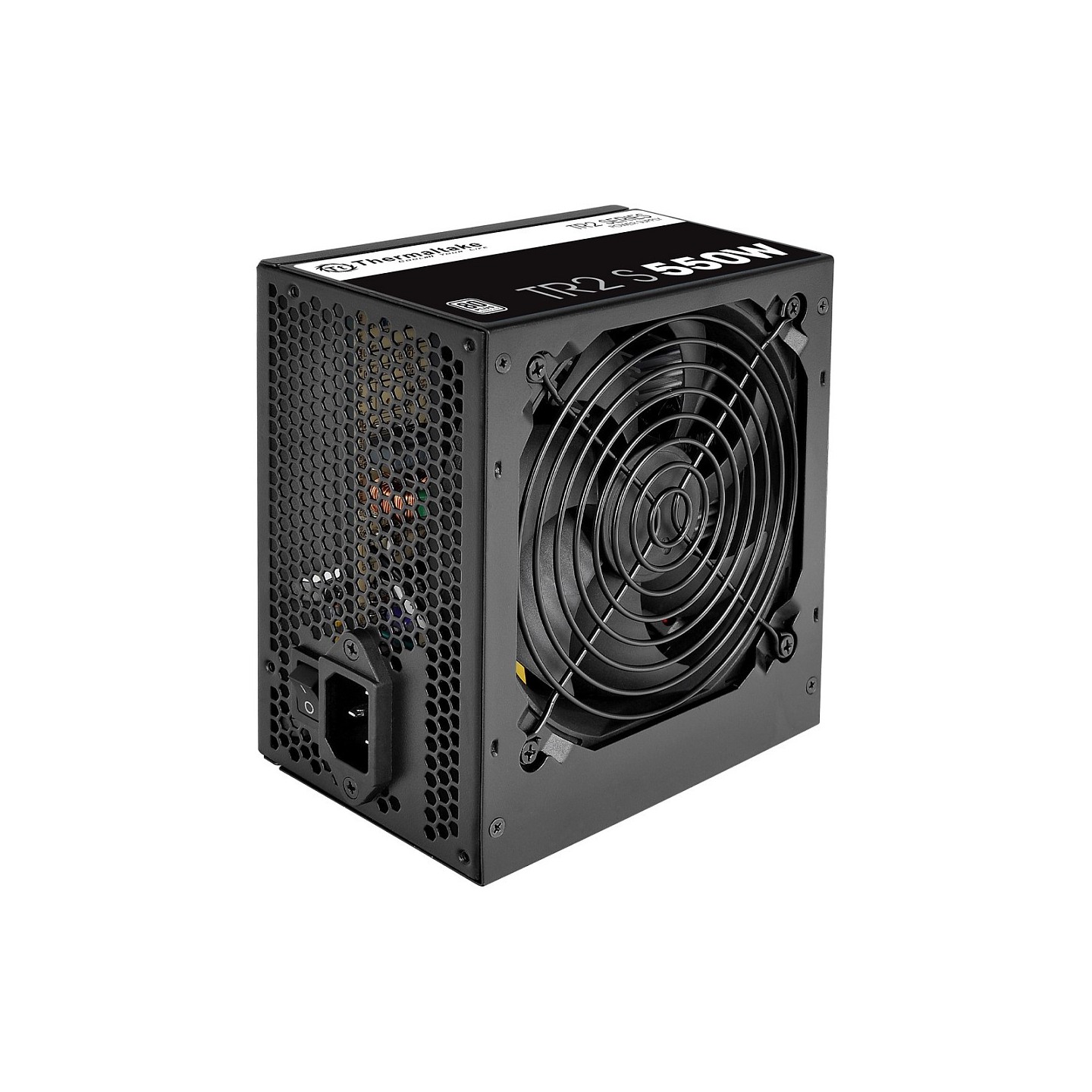

Thermaltake TR2 S 550W ATX PSU 80 PLUS 230V (Boxed)
Thermaltake TR2 S 550W ATX PSU with 80 PLUS certification, active PFC, 200-240V input. Non-modular design with 20+4pin ATX, 4x SATA, 4x Molex, 2x 6+2pin PCIe connectors. 120mm fan, protections incl. OVP/UVP/OCP/OLP/SCP/UVP. Black, for PC/Server.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
Das Thermaltake TR2 S 550W ist ein zuverlässiges ATX-Netzteil für PC und Server mit 80 PLUS Zertifizierung für effiziente Stromnutzung. Es bietet aktive PFC, stabile Leistung auf der +12V-Schiene (bis 45.8A) und unterstüzt anspruchsvolle Systeme mit 2x PCI Express 6+2pin Anschlüssen für GPUs.
Mit nicht-modularen Kabeln (ATX 60cm, CPU 65cm, SATA/PCIe 50cm) ist die Installation einfach. Der 120mm Lüfter sorgt für aktive Kühlung, Lagertyp hydraulisch, MTBF 100.000h. Betriebstemperatur 5-40°C, Zertifizierungen FCC/ICES/CB/cTUVus.
- Gesamtleistung: 550W
- Eingang: 200-240V, 50Hz, 8A
- Anschlüsse: 1x 20+4pin ATX, 4x SATA, 4x 4pin Molex, 2x 6+2pin PCIe
- Schutz: Überstrom, Überlastung, Überspannung, Kurzschluss, Unterspannung
- Abmessungen: 150x140x86mm, Schwarz

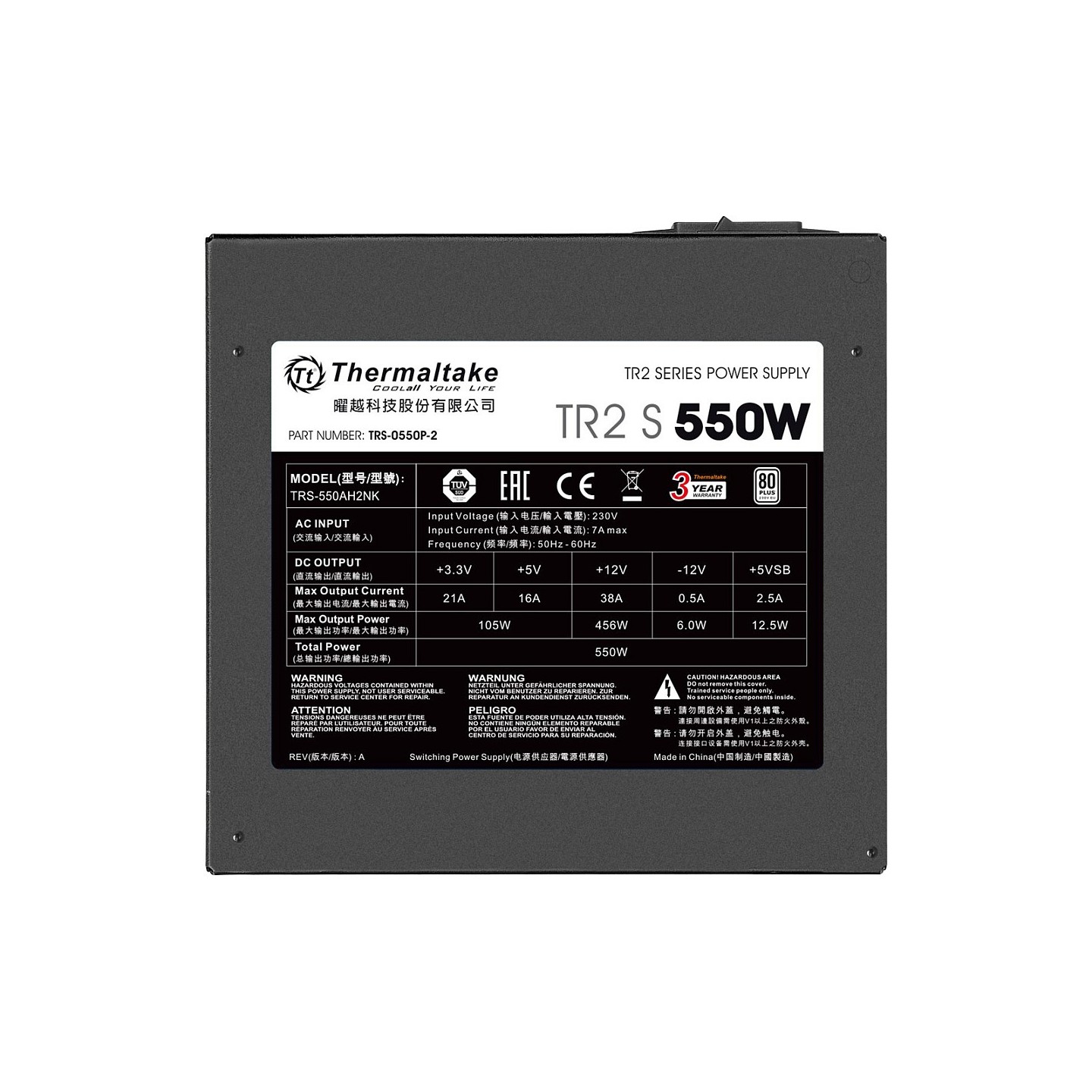

| Total Power | 550 W |
| AC Input Voltage | 200 - 240 V |
| AC Input Frequency | 50 Hz |
| Input Current | 8 A |
| Power Factor Correction (PFC) | Active |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+12V) | 550 W |
| Combined Power (+5V) | 100 W |
| Combined Power (-12V) | 3.6 W |
| Combined Power (+5Vsb) | 12.5 W |
| Max Output Current (+3.3V) | 18 A |
| Max Output Current (+12V) | 45.8 A |
| Max Output Current (+5V) | 18 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 2.5 A |
| Hold-up Time | 17 ms |
| Protections | Over Current, Over Load, Over Voltage, Over Temperature?, Short Circuit, Under Voltage |
| Motherboard Connector | 20+4 pin ATX |
| Motherboard Cable Length | 60 cm |
| Number of SATA Power Connectors | 4 |
| SATA Cable Length | 500 mm |
| Number of Molex 4pin Connectors | 4 |
| Peripheral (Molex) Cable Length | 500 mm |
| Number of PCI Express 6+2pin Connectors | 2 |
| PCI Express Cable Length | 50 cm |
| CPU Power Cable Length | 65 cm |
| Cable Type | Non-modular |

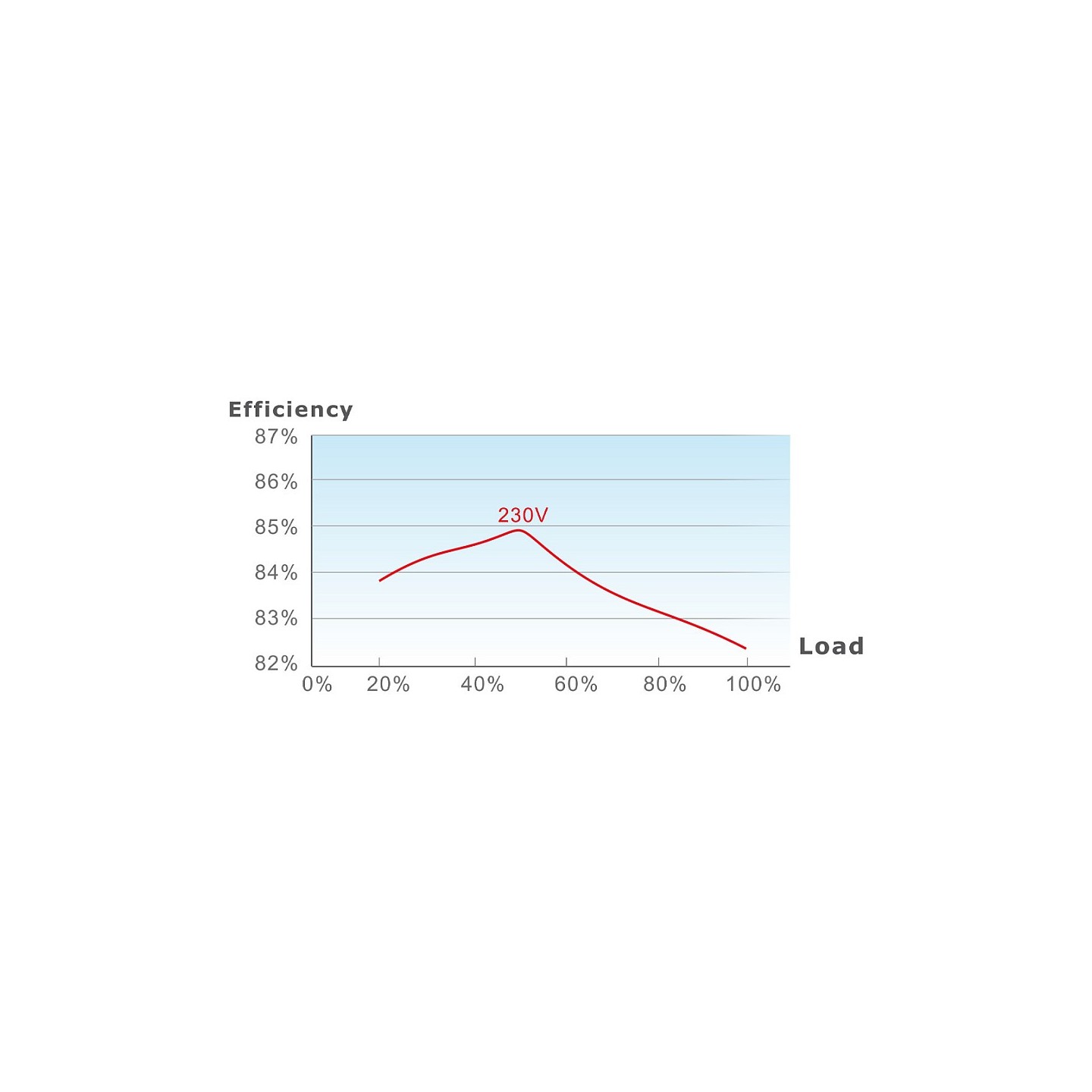

| 80 Plus Certification | 80 PLUS |
| Purpose | PC / Server |
| PSU Form Factor | ATX |
| Bearing Type | Hydraulic |
| MTBF | 100000 h |
| Product Color | Black |
| Cooling | Active |
| Fan Diameter | 12 cm |
| Number of Fans | 1 Fan |
| Operating Temperature | 5 - 40 °C |
| Storage Temperature | -40 - 55 °C |
| Operating Relative Humidity | 20 - 85% |
| Storage Humidity | 10 - 95% |
| Certifications | FCC/ICES/CB/cTUVus |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging Type | Box |
