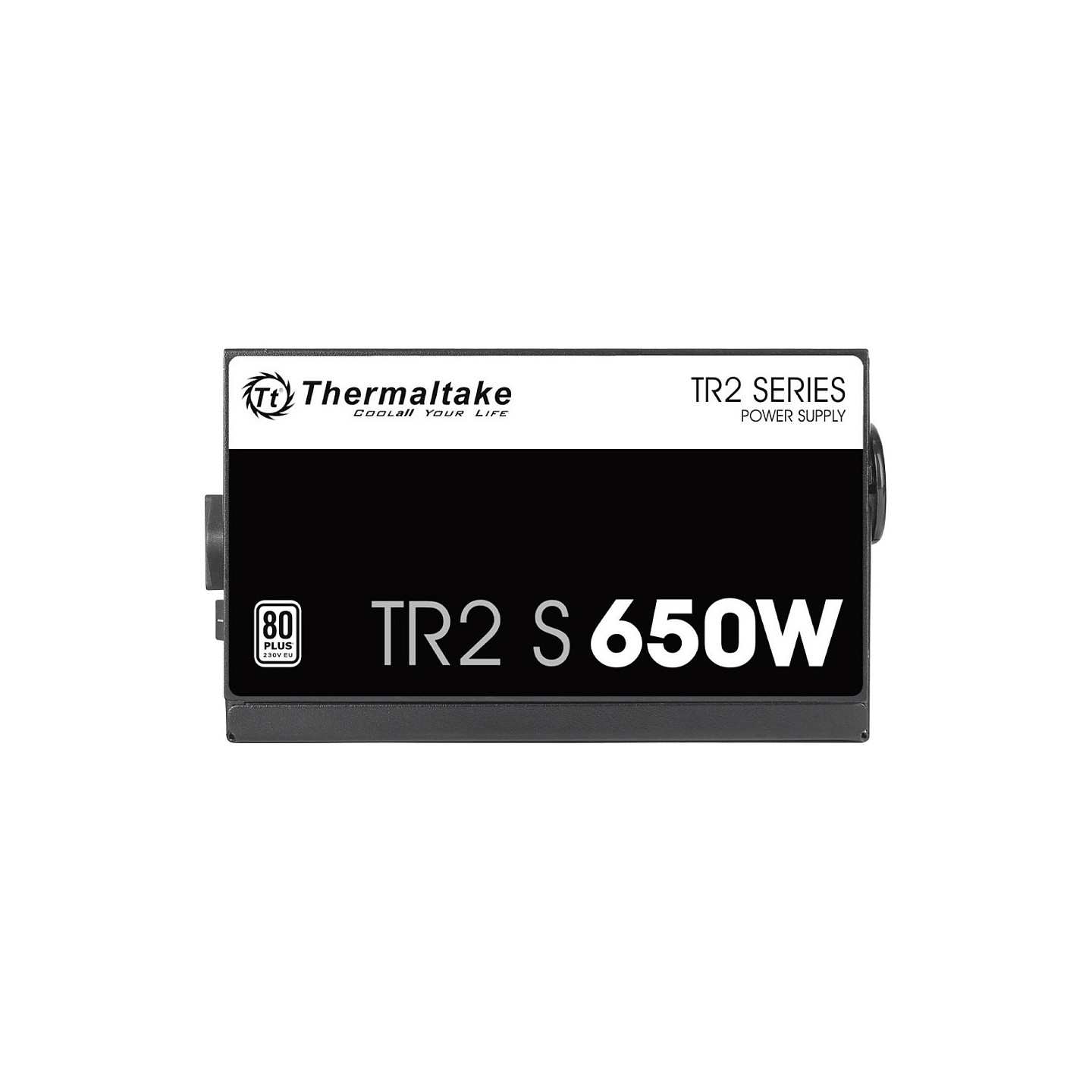

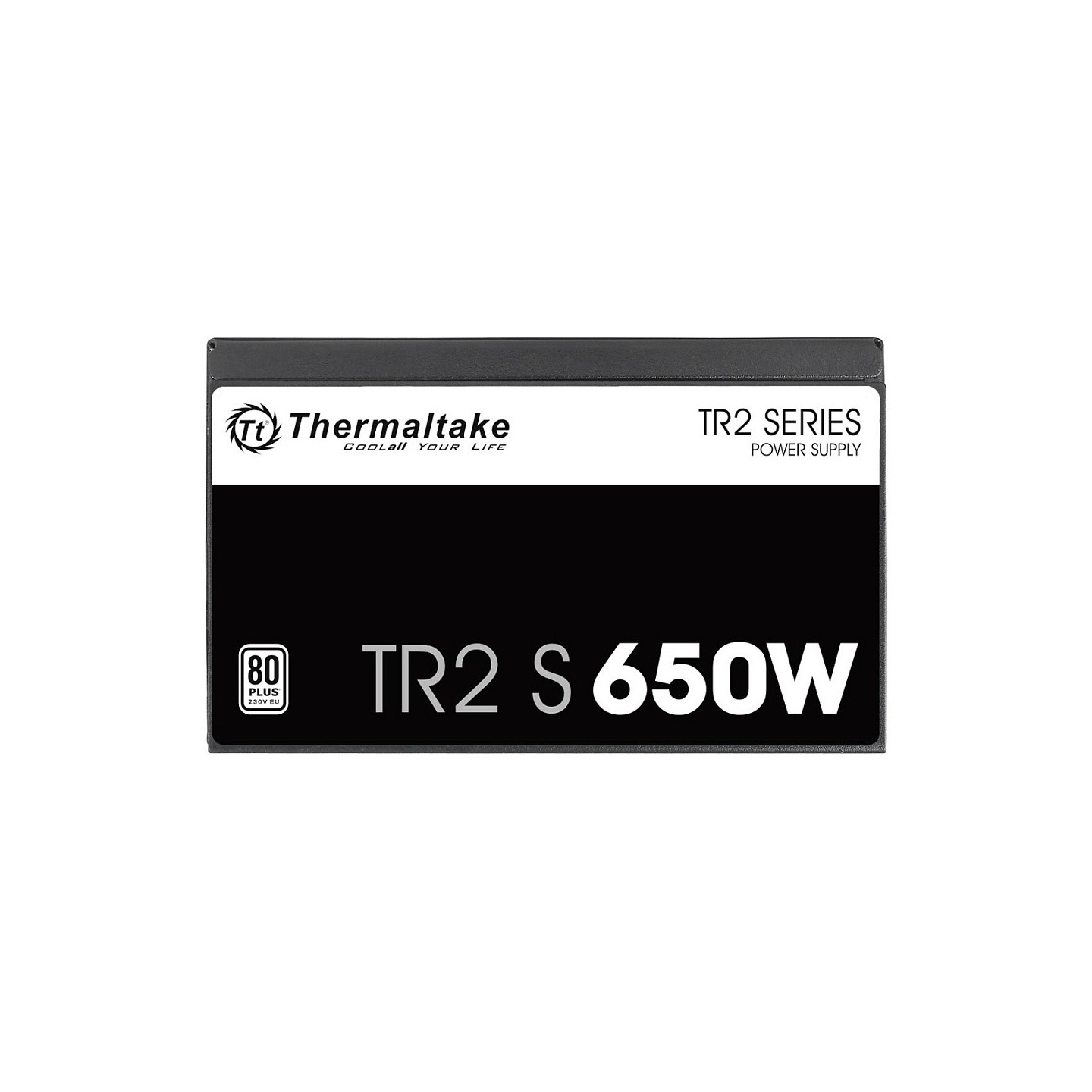

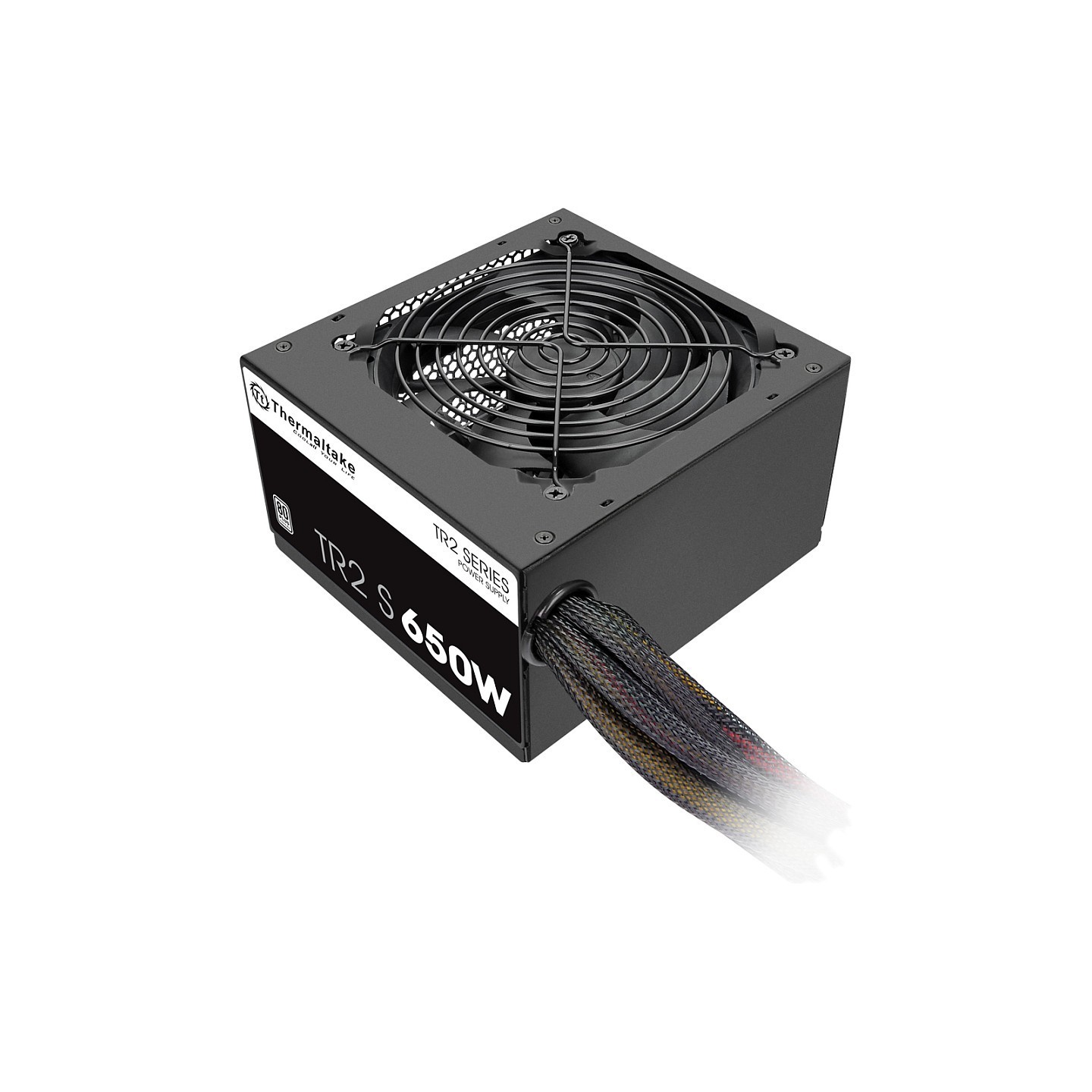

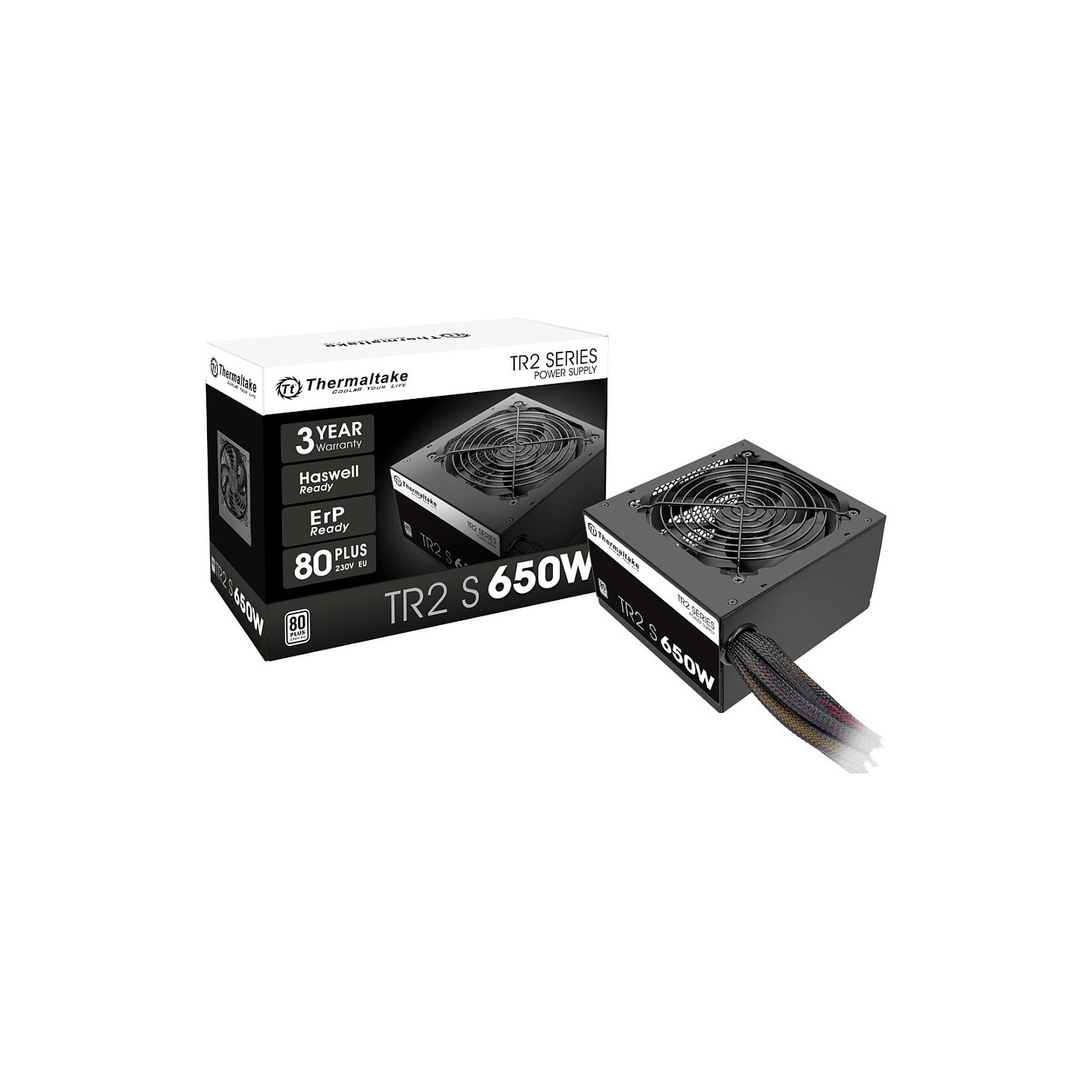

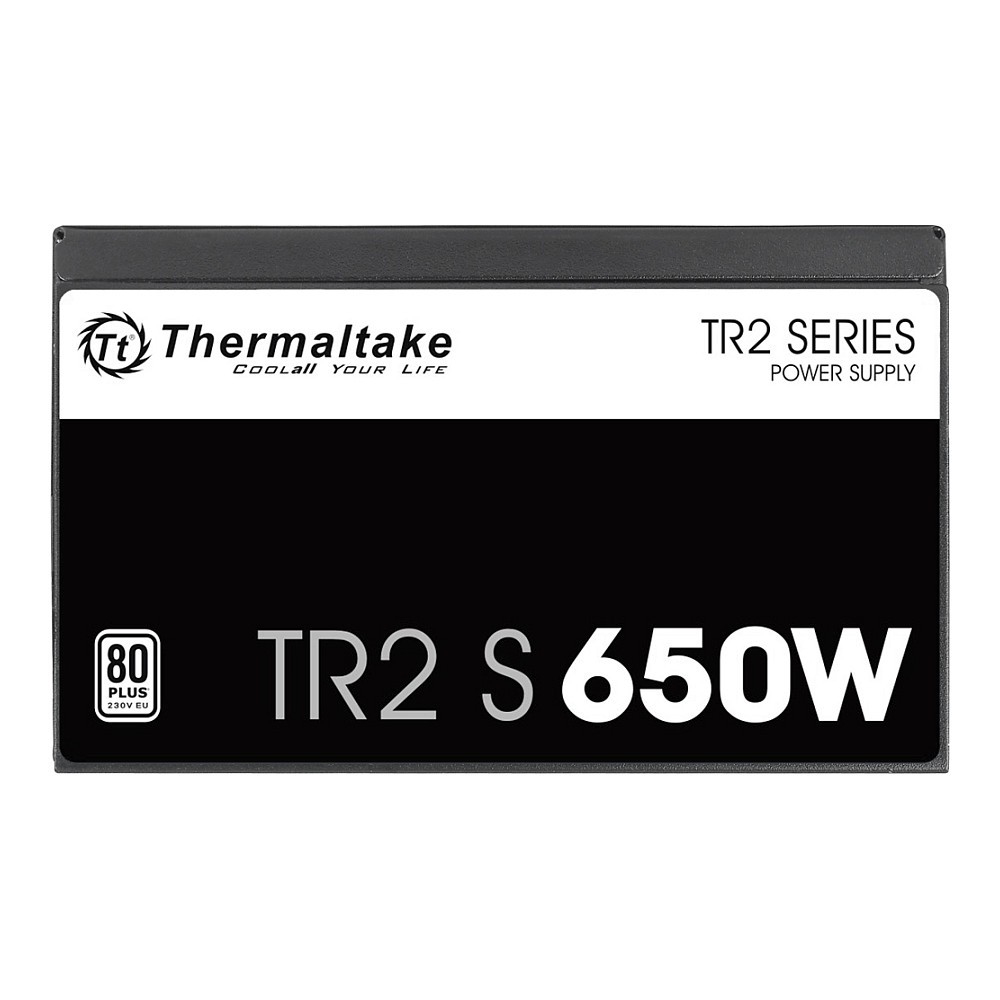

Thermaltake TR2 S 650W 80+ White Non-Modular ATX PSU (Boxed)
Thermaltake TR2 S 650W power supply delivers reliable performance with 82-86% efficiency and 80 PLUS White certification. Features non-modular design, single 120mm cooling fan, and dual 6+2pin PCIe connectors for mainstream PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus White |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Thermaltake TR2 S 650W is a dependable ATX power supply designed for mainstream PC builds and demanding computing requirements. With a maximum output capacity of 650W and 82-86% efficiency across 20-100% load, this unit is 80 PLUS White certified and optimized for energy savings. The single +12V rail design ensures stable and reliable performance for non-stop usage without voltage fluctuations.

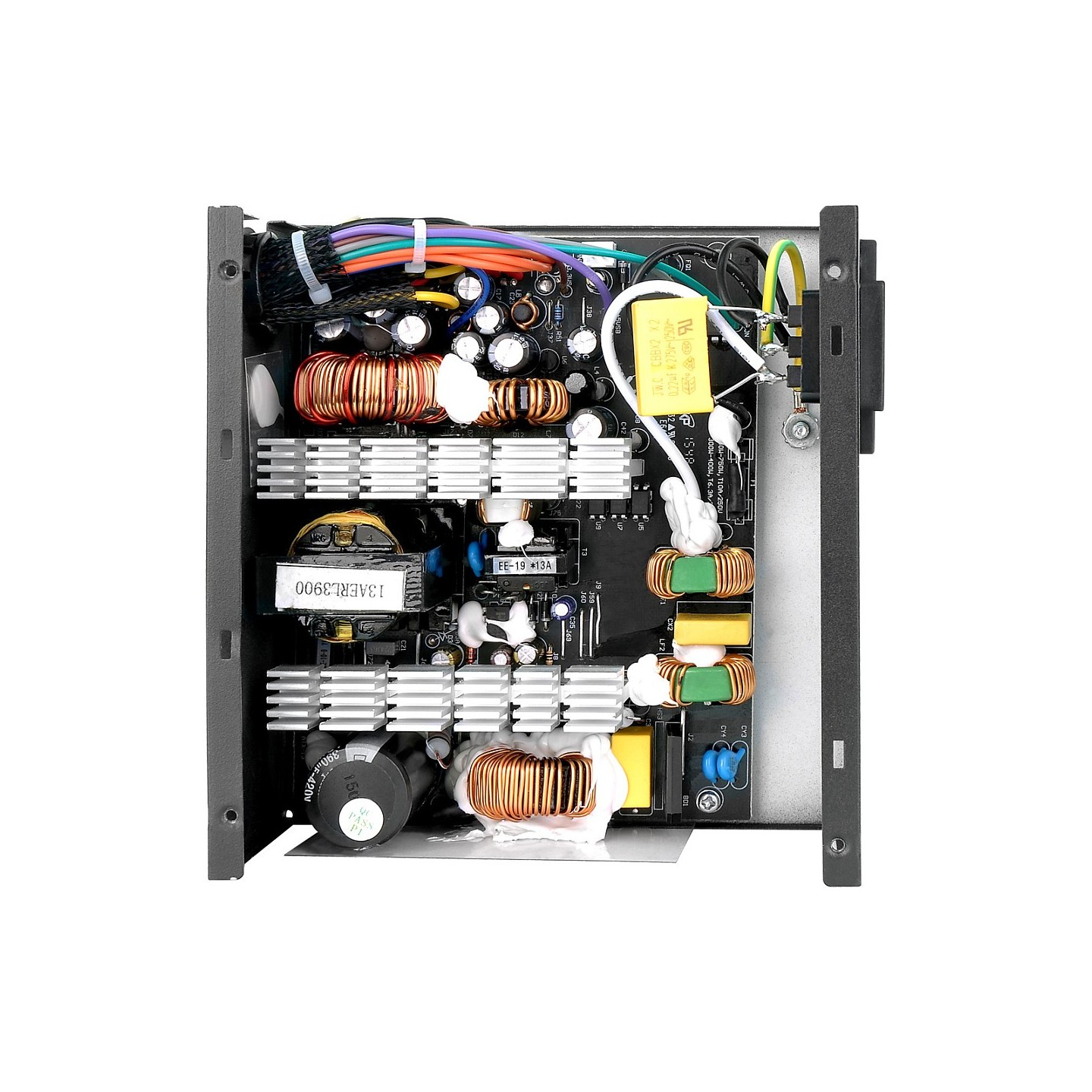

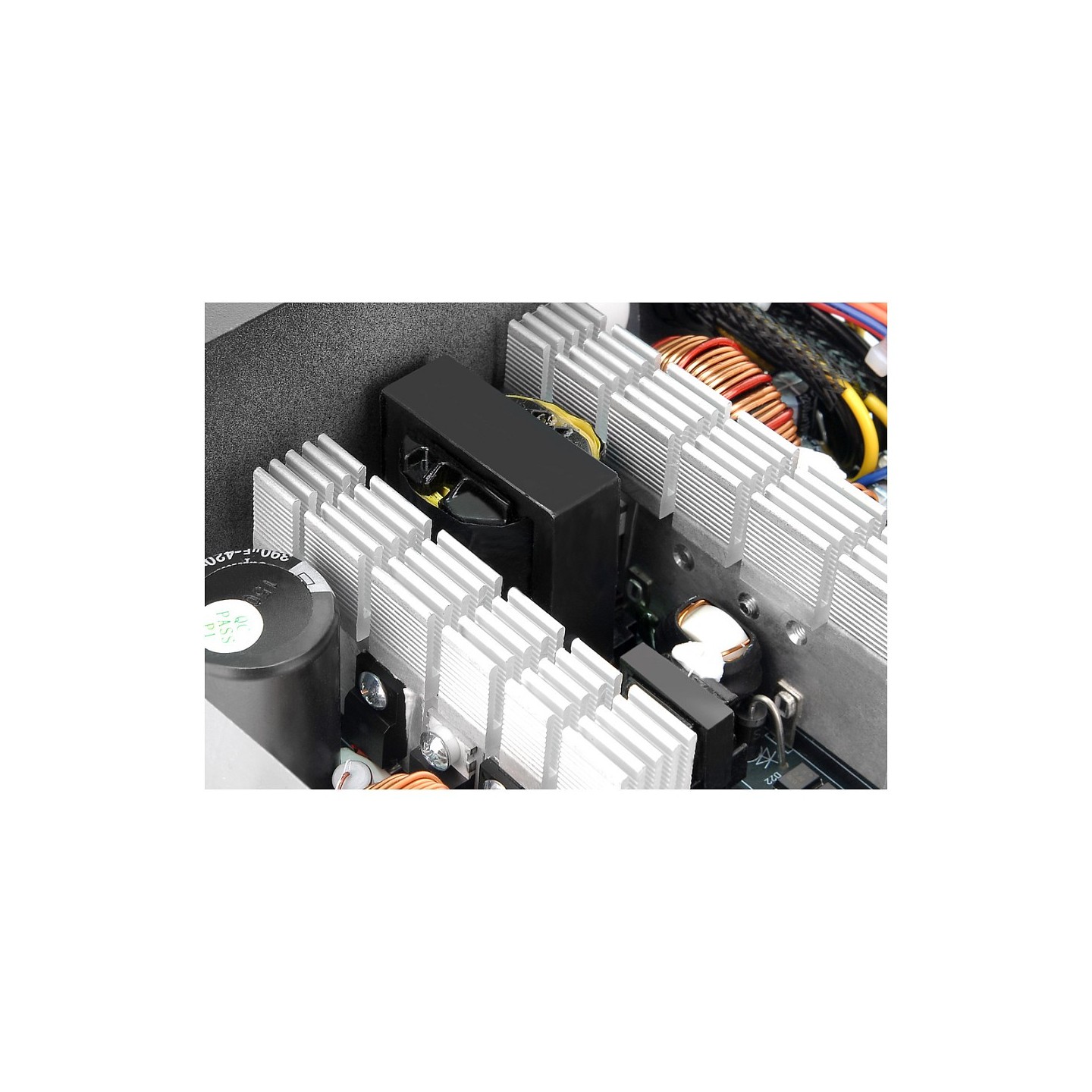

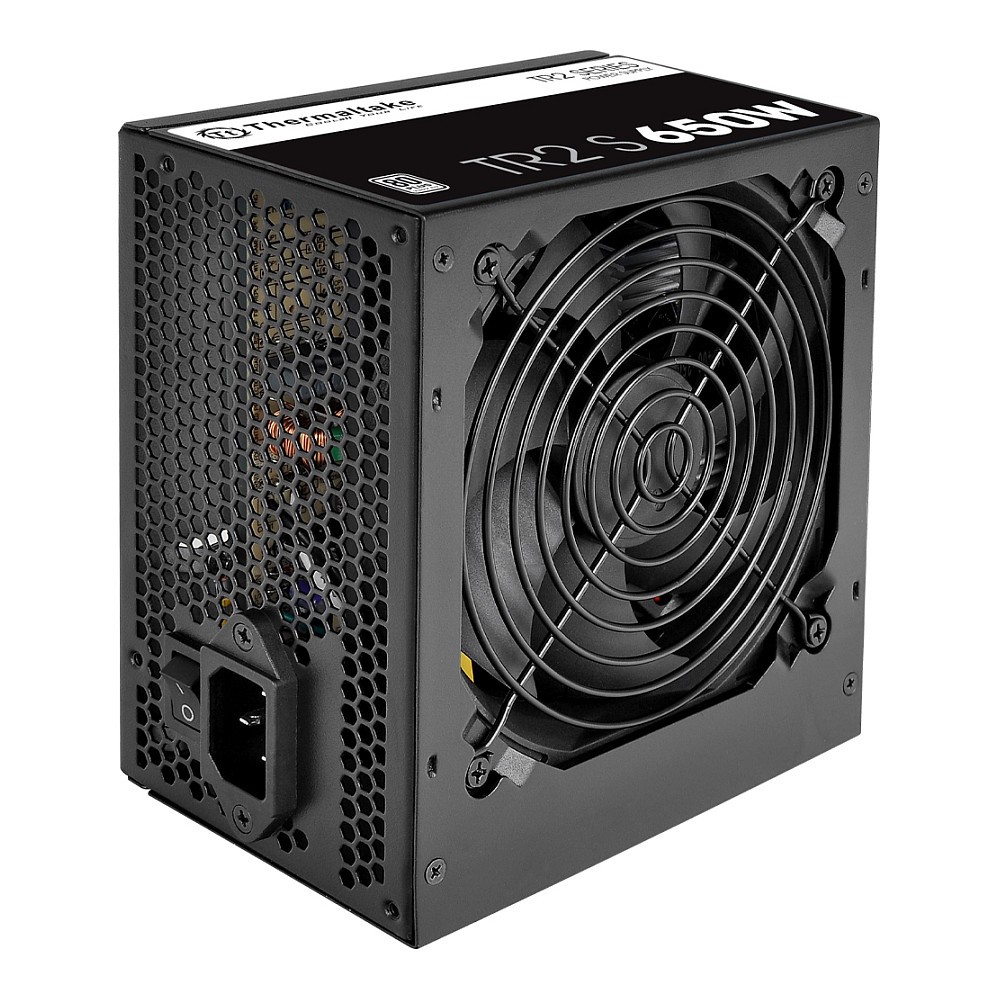

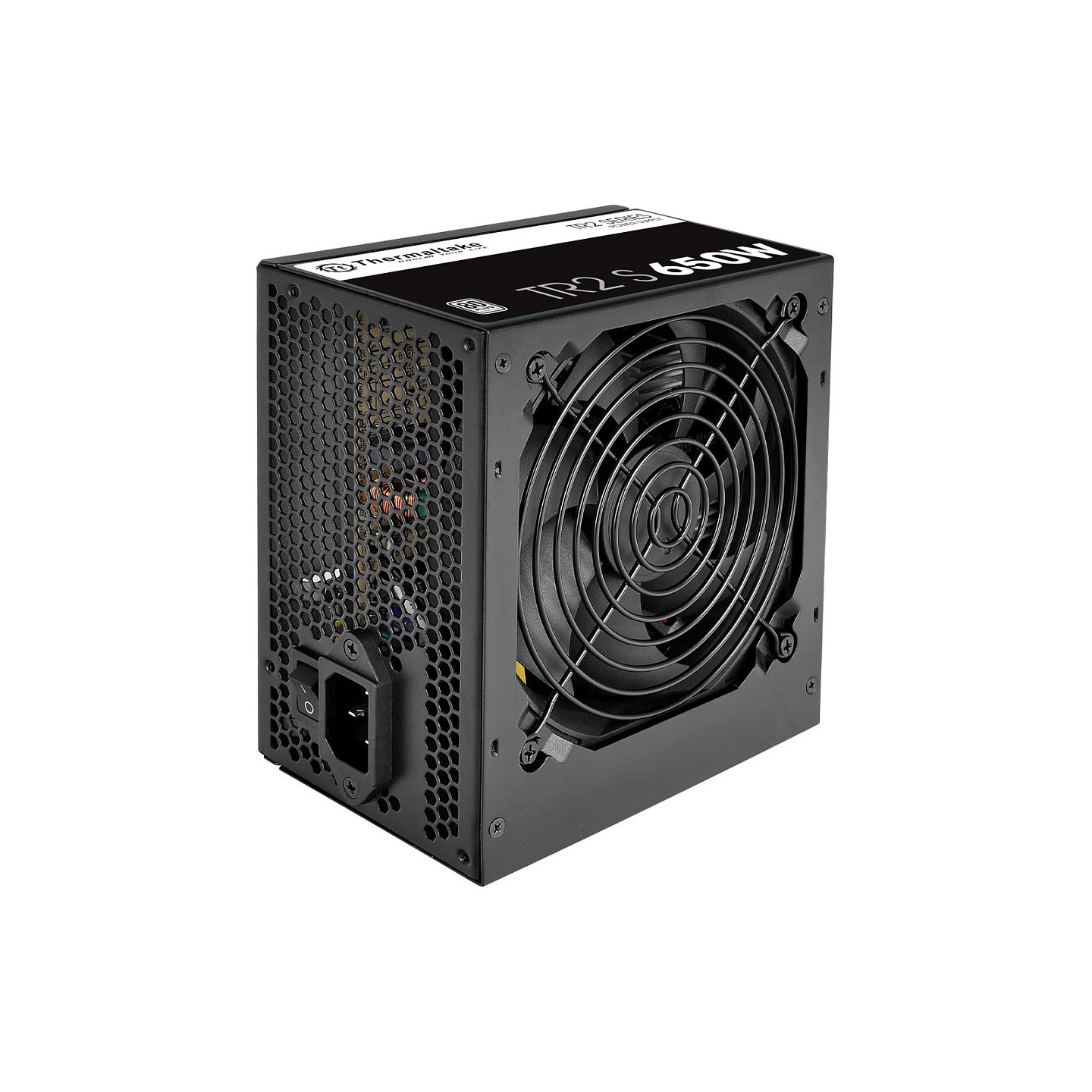

This non-modular PSU features an intelligent 120mm cooling fan operating at 1800 RPM (±10%) that delivers excellent airflow while maintaining exceptionally low noise levels. The unit incorporates Active Power Factor Correction (PFC) and high-quality components to prevent capacitor degradation and leakage. With a minimum MTBF of 100,000 hours and comprehensive safety certifications (CE/CB/TUV), the TR2 S 650W provides robust protection against overcurrent, overload, overvoltage, overheat, short circuit, and undervoltage conditions.
Key connectivity includes a 20+4pin ATX motherboard connector, dual 6+2pin PCIe GPU power connectors, 4x SATA power connectors, and 4x Molex 4-pin peripheral connectors. The unit operates reliably across input voltages of 200-240V AC at 50-60Hz and maintains stable performance in operating temperatures from 5°C to 40°C with 20-85% humidity.
- 650W maximum output capacity with Single +12V rail design
- 82-86% efficiency rating (80 PLUS White certified)
- Non-modular cable design for cost-effectiveness
- Dual 6+2pin PCIe connectors for GPU power
- Active PFC and comprehensive protection features
- 100,000 hours MTBF minimum reliability rating
- 3-year manufacturer warranty included
| Type | Intel ATX 12V 2.3 |

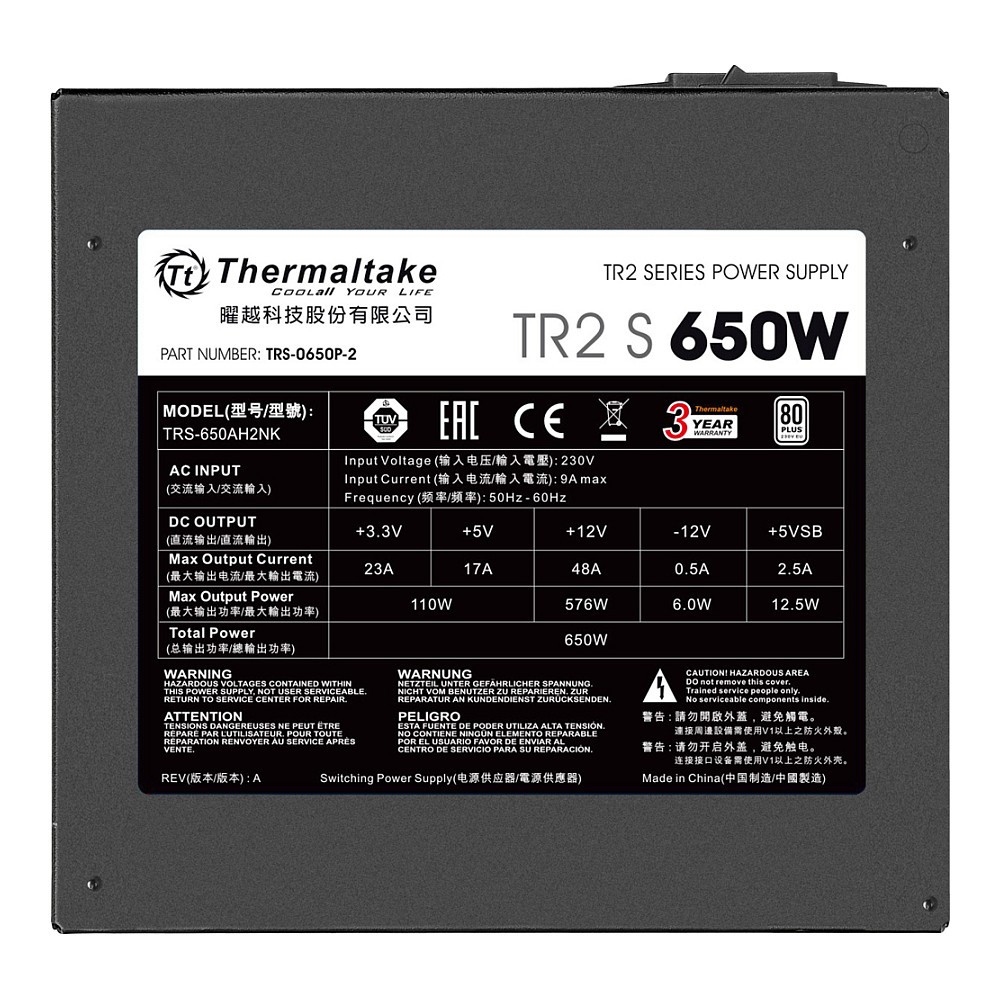

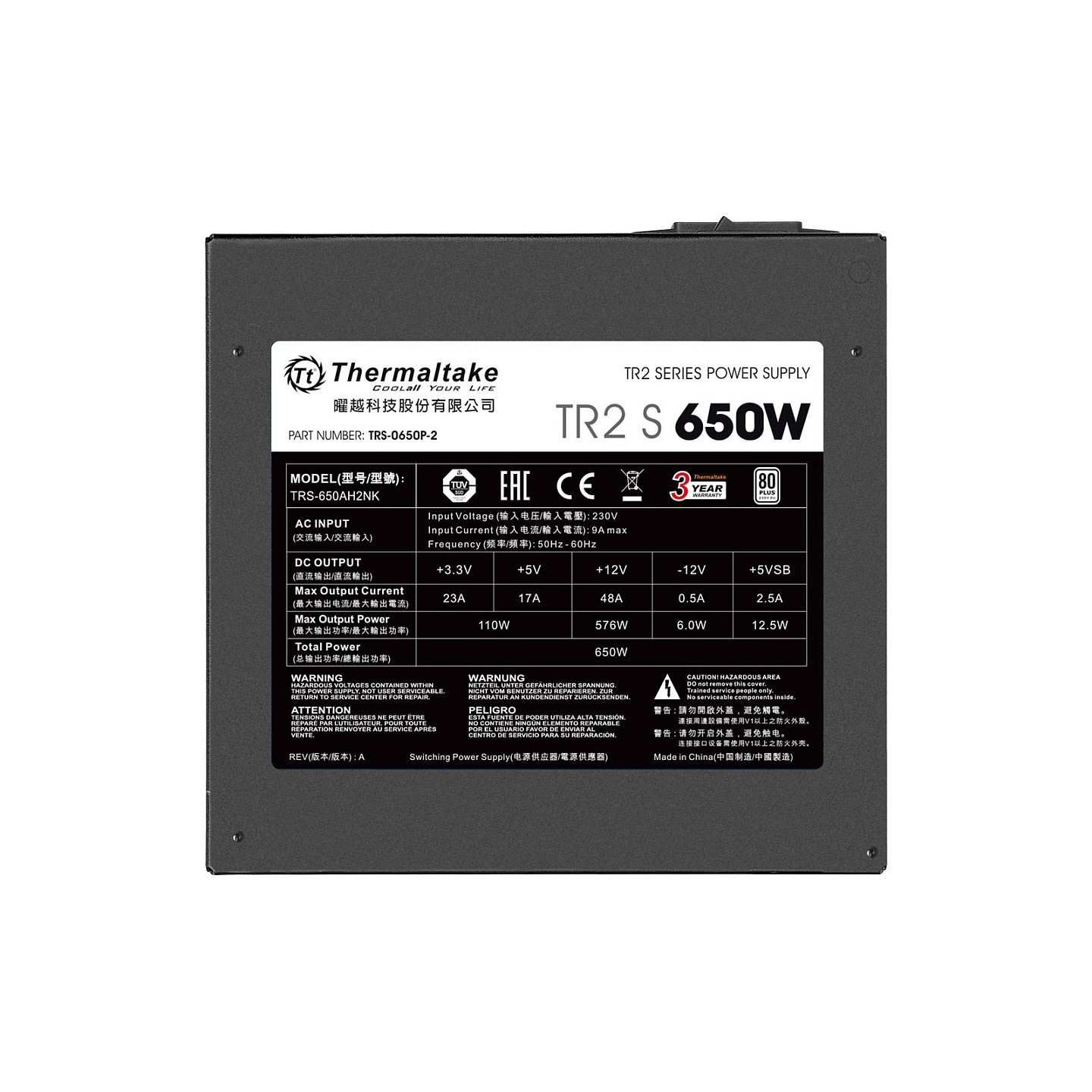

| Maximum Output Capacity | 650W |

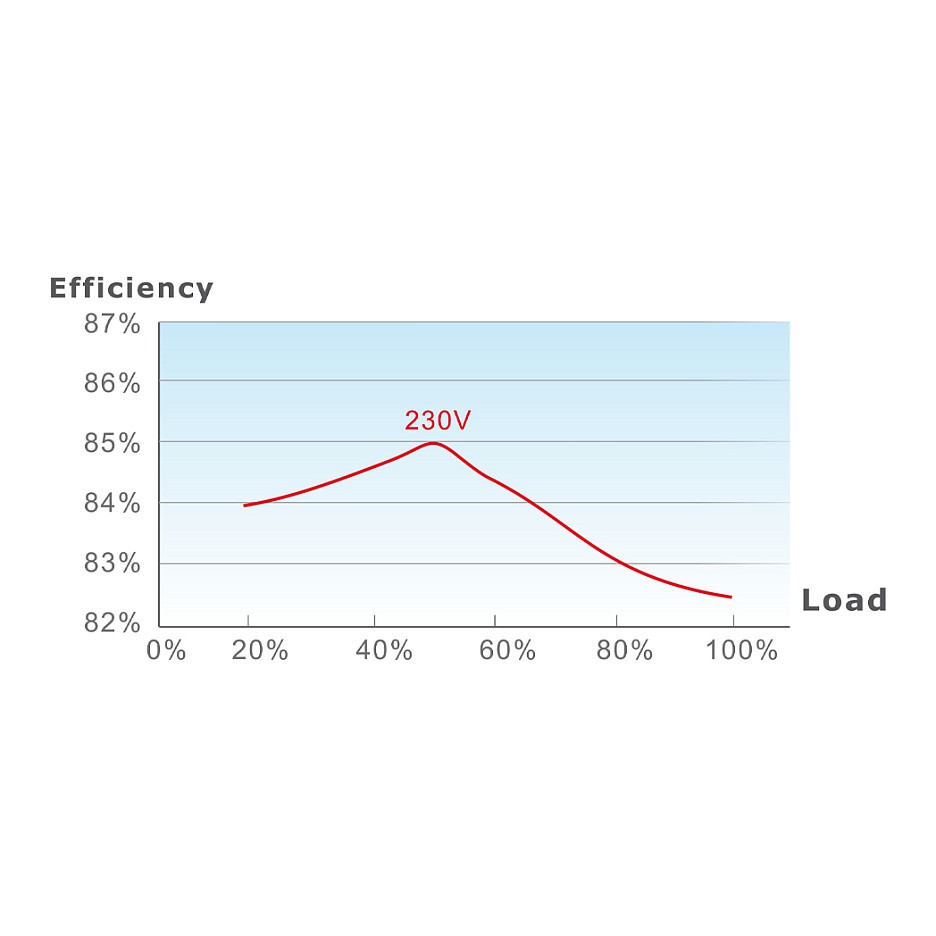

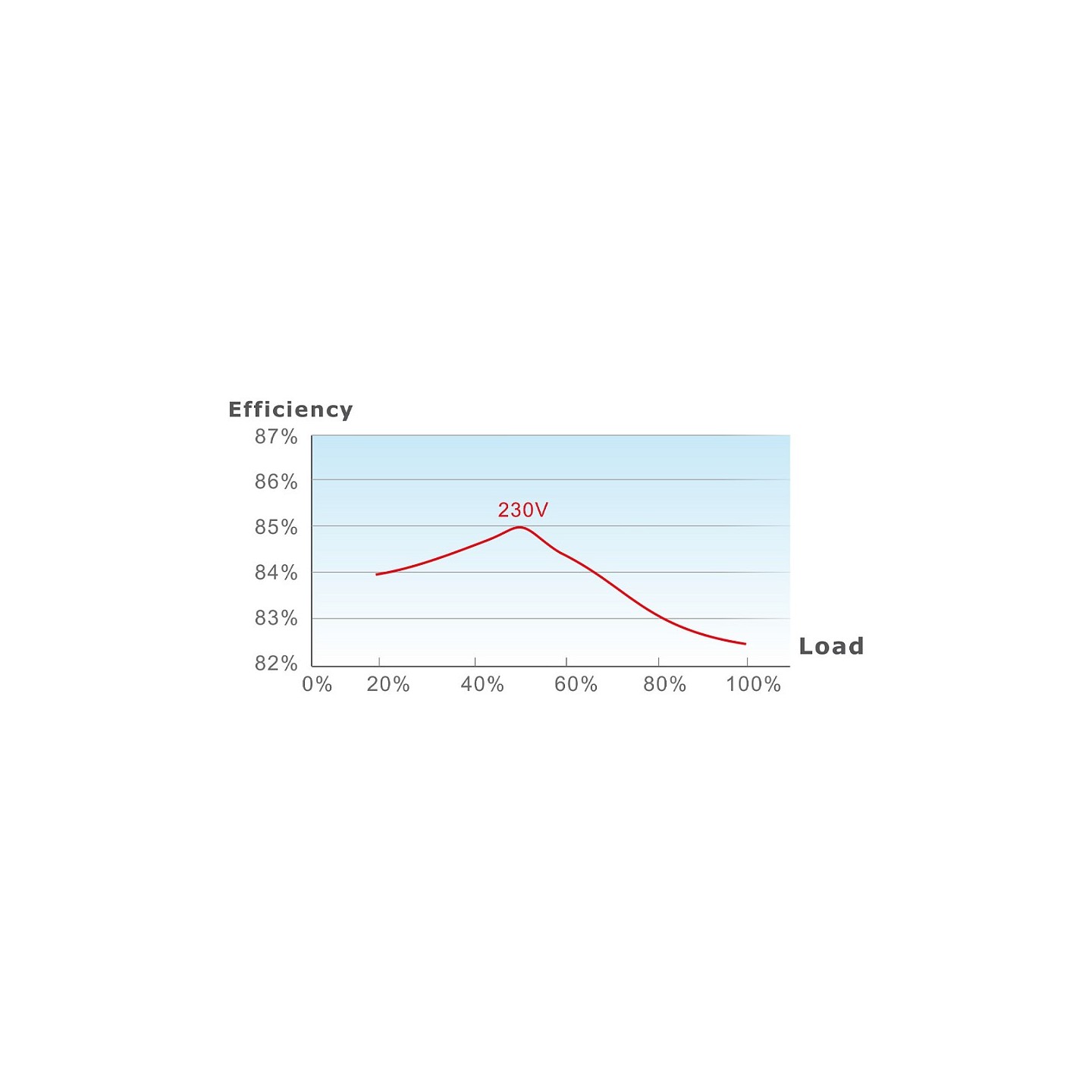

| Efficiency | 82-86% @ 20-100% load |
| Certification | 80 PLUS 230V Standard (80 PLUS White) |
| Power Factor Correction | Active PFC |
| Input Voltage | 200-240V AC |
| Input Frequency | 50-60 Hz |
| Input Current | 9A max |
| Cooling System | 1x 120mm fan @ 1800 RPM (±10%) |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 20-85% non-condensing |
| Storage Temperature | -40°C to 55°C |
| Storage Humidity | 10-95% non-condensing |
| MTBF | 100,000 hours minimum |
| Hold Up Time | 16ms minimum @ 60% load |
| Power Good Signal | 100-500 msec |
| Motherboard Connector | 20+4pin ATX |
| CPU Power Connector | 1x 4+4pin EPS/ATX12V |
| PCIe GPU Connectors | 2x 6+2pin |
| SATA Power Connectors | 4x SATA |
| Molex Connectors | 4x 4-pin |
| Cable Type | Non-modular |
| Motherboard Cable Length | 60cm |
| CPU Cable Length | 65cm |
| PCIe Cable Length | 50cm |
| SATA Cable Length | 500mm |
| Peripheral Cable Length | 500mm |
| Unit Dimensions | 150mm (W) x 140mm (D) x 86mm (H) |
| Unit Weight | ~1kg |
| Color | Black |
| Safety Approvals | CE/CB/TUV |
| Warranty | 3 years |
| Protection Features | Overcurrent, Overload, Overvoltage, Overheat, Short Circuit, Undervoltage |
