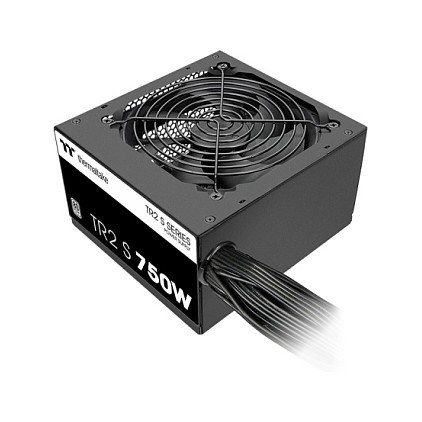

Thermaltake TR2 S 750W ATX 80 Plus (Boxed)
Thermaltake TR2 S 750W ATX PSU with 80 PLUS 230V EU certification, single +12V rail (62.5A), DC-to-DC design for stable power. Active PFC, 12cm hydraulic fan, non-modular cables: 2x PCIe 6+2pin, 4x SATA, 4x Molex. protections: OVP/OPP/SCP/UVP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Thermaltake TR2 S 750W is a reliable ATX power supply unit designed for mainstream PC and server builds. Certified 80 PLUS 230V EU for up to 80% efficiency at 230V, it features a single powerful +12V rail delivering 62.5A (750W max) via DC-to-DC design for superior voltage stability and performance under heavy loads. Equipped with Active PFC, it supports 200-240Vac input ideal for EU markets.
Cooling is handled by a quiet 120mm hydraulic bearing fan with low noise operation. The non-modular design includes essential cables: 20+4pin ATX (60cm), CPU 4+4pin (65cm), 2x PCIe 6+2pin (50cm), 4x SATA (500mm), 4x 4pin Molex (500mm). Comprehensive protections include OVP, OPP, SCP, UVP, OTP. Dimensions: 150x86x140mm, MTBF 100,000 hours.
- Key Connectors: 1x 20+4pin ATX, 1x 4+4pin EPS12V, 2x 6+2pin PCIe, 4x SATA, 4x Molex
- Efficiency & Design: 80 PLUS EU, Single +12V rail, DC-to-DC
- Protections: Over Voltage, Over Power, Short Circuit, Under Voltage
- Cooling: 120mm Hydraulic Bearing Fan, Active cooling
| Total Power | 750 W |
| AC Input Voltage | 200-240 V |
| AC Input Frequency | 50 Hz |
| Input Current | 8 A Max |
| Power Factor Correction (PFC) | Active PFC |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+5V) | 100 W |
| Combined Power (+12V) | 750 W |
| Combined Power (-12V) | 3.6 W |
| Combined Power (+5Vsb) | 12.5 W |
| Max Output Current (+3.3V) | 18 A |
| Max Output Current (+5V) | 18 A |
| Max Output Current (+12V) | 62.5 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 2.5 A |
| Hold-up Time | >17 ms at 80% load |
| Protections | OVP/OPP/SCP/UVP/OTP |
| Motherboard Connector | 20+4 pin ATX |
| Motherboard Cable Length | 60 cm |
| CPU Connector | 1x 4+4 pin EPS/ATX12V |
| CPU Cable Length | 65 cm |
| PCIe 6+2pin Connectors | 2 |
| PCIe Cable Length | 50 cm |
| SATA Connectors | 4 |
| SATA Cable Length | 500 mm |
| 4pin Molex Connectors | 4 |
| Molex Cable Length | 500 mm |
| Modularity | Non-modular |
| 80 Plus Certification | 80 PLUS 230V EU |
| PSU Form Factor | ATX |
| Bearing Type | Hydraulic |
| MTBF | 100,000 hours |
| Color | Black |
| Cooling Type | Active |
| Fan Diameter | 12 cm |
| Number of Fans | 1 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Operating Temperature | 5 - 40 °C |
