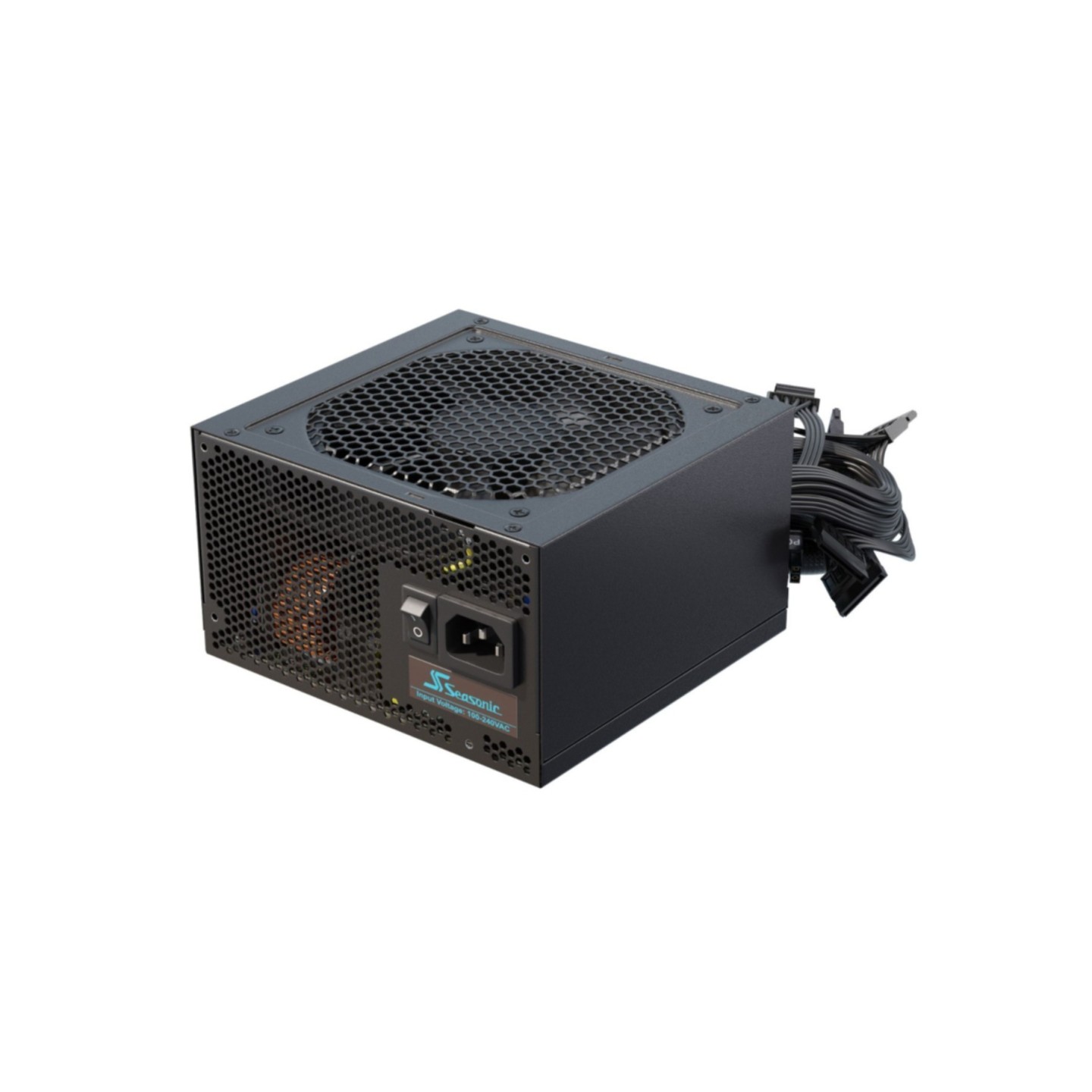

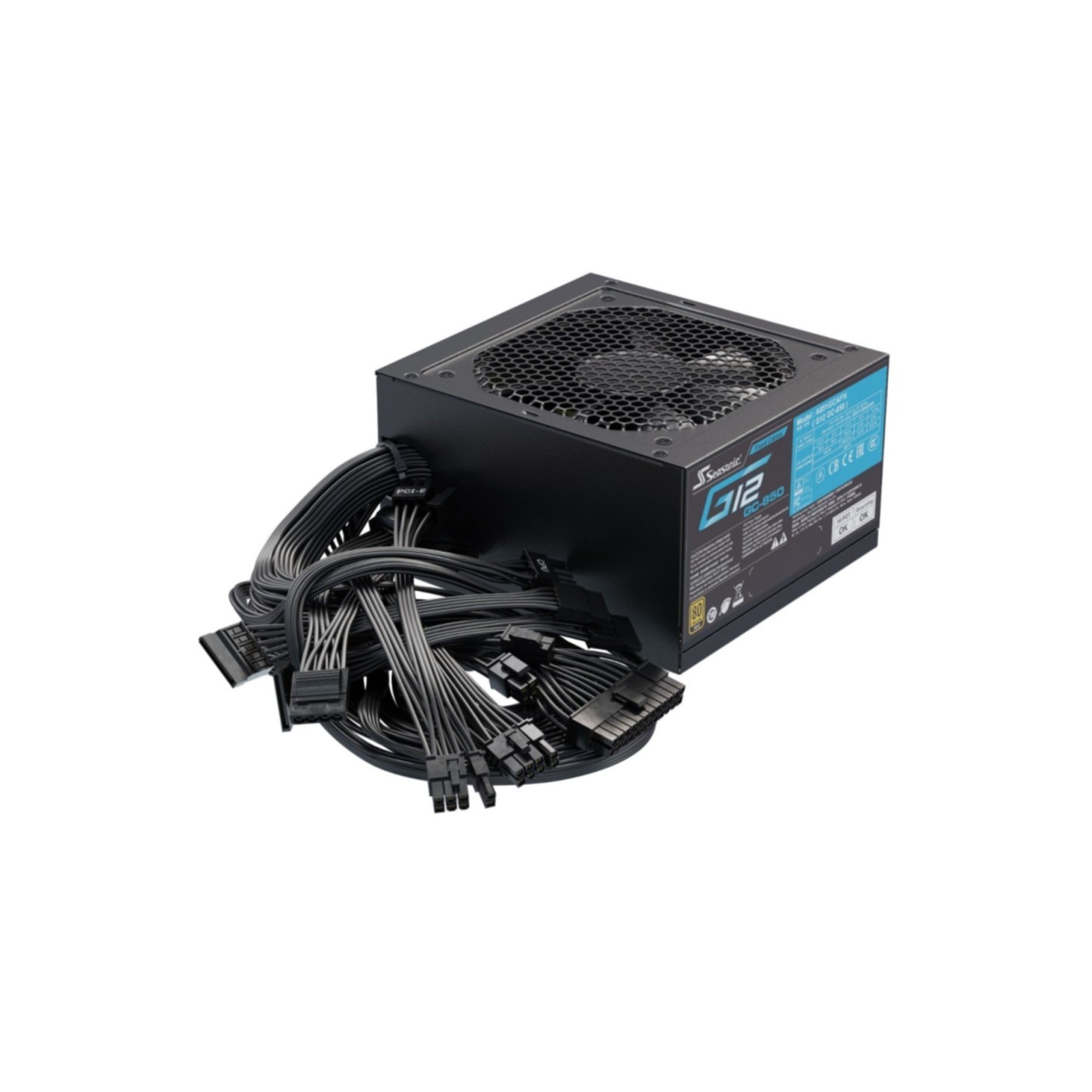

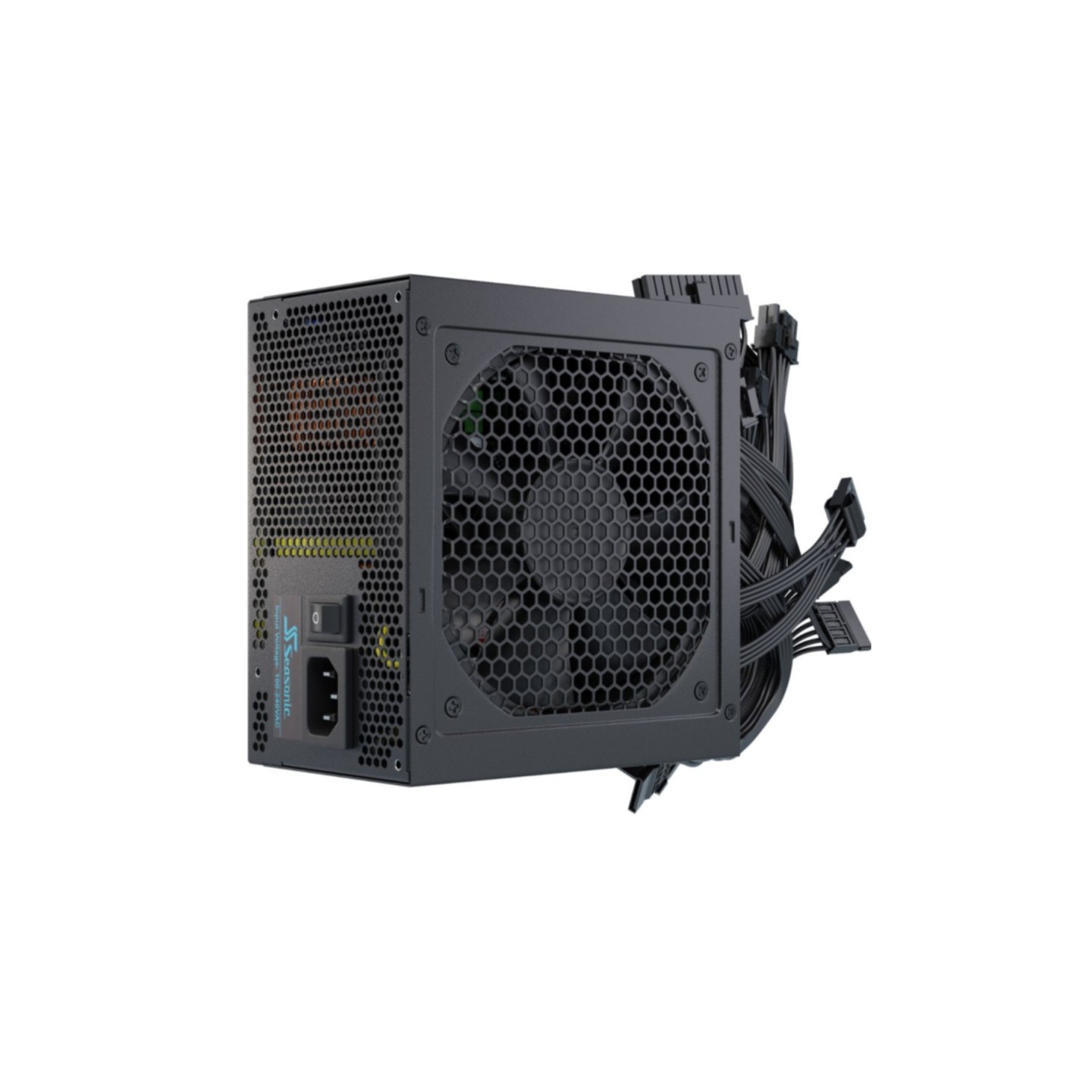

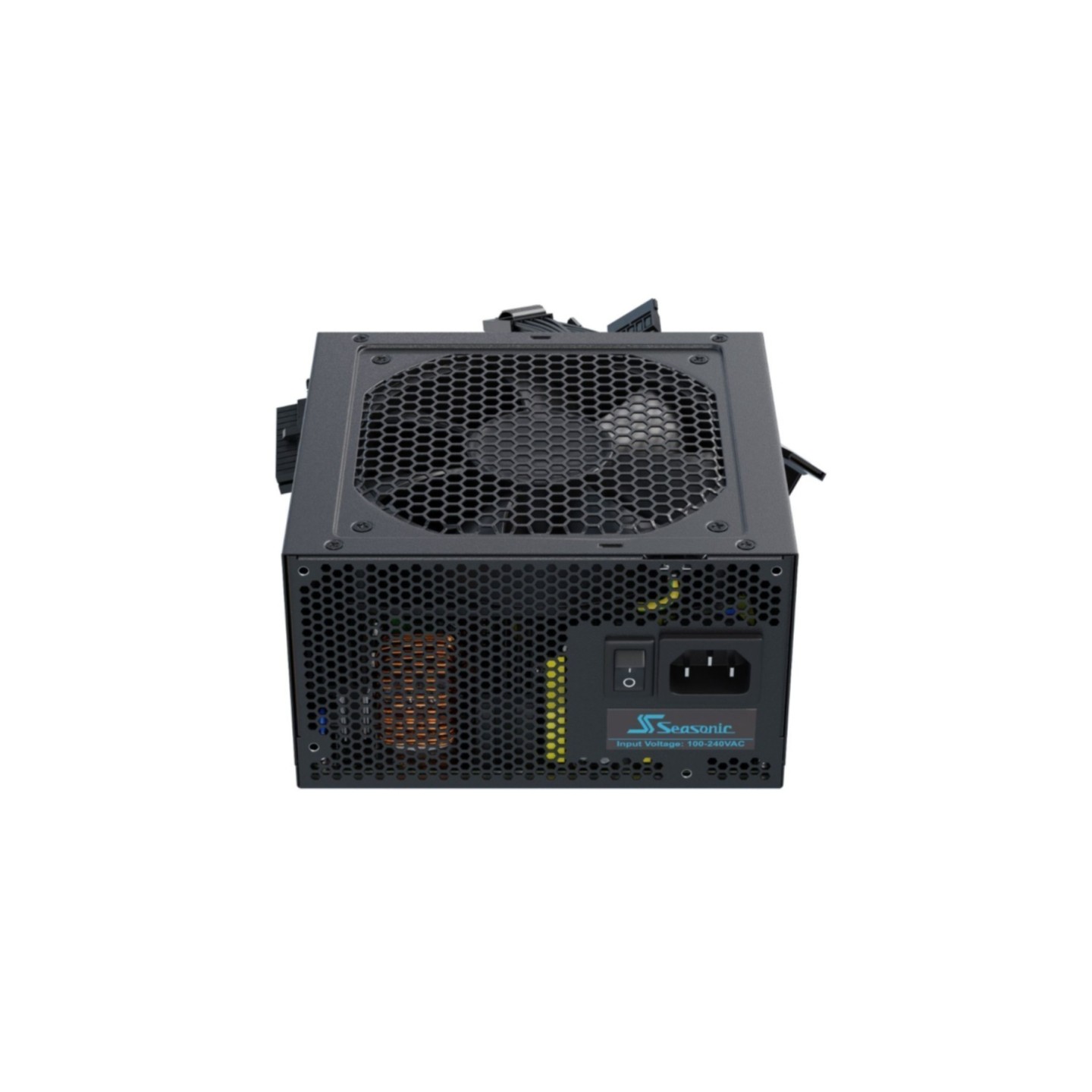

Seasonic G12 GC-750 - 750W 80+ Gold ATX PSU, Smart & Silent Fan Control (Boxed)
Seasonic G12 GC-750 delivers 750W with 80 PLUS Gold efficiency, Active PFC, LLC design & S2FC for silent operation. Non-modular ATX PSU with tight voltage regulation for reliable PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Seasonic G12 GC-750 is a 750W ATX power supply certified 80 PLUS Gold, achieving at least 87/90/87% efficiency at 20/50/100% loads. It features Active PFC, LLC resonant converter platform, and Seasonic's Smart & Silent Fan Control (S2FC) for optimal cooling with minimal noise.
This non-modular PSU provides stable power with exceptional voltage regulation (0.3% on 12V rail) and includes essential connectors: 20+4 pin ATX, 2x 4+4 pin EPS12V, 2x 6-pin PCIe, 2x 8-pin PCIe, 6x SATA, 3x Molex. Built for reliability up to 50°C ambient, it suits gaming and mainstream PCs.
- 80 PLUS Gold certified efficiency
- S2FC smart fan control
- Protections: OVP, UVP, OPP, SCP, OTP
- 120mm sleeve bearing fan
- 5-year warranty
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connectors | 2x 4+4 pin EPS/ATX12V |
| Number of SATA power connectors | 6 |
| SATA power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 690 mm |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (8-pin) | 2 |
| PCI Express power cable length | 70 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Silent mode | Yes |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Operating temperature (T-T) | 0 - 50 °C |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Protections | OVP, UVP, OPP, SCP, OTP |
| Warranty | 5 years |
| Harmonized System (HS) code | 84733020 |
