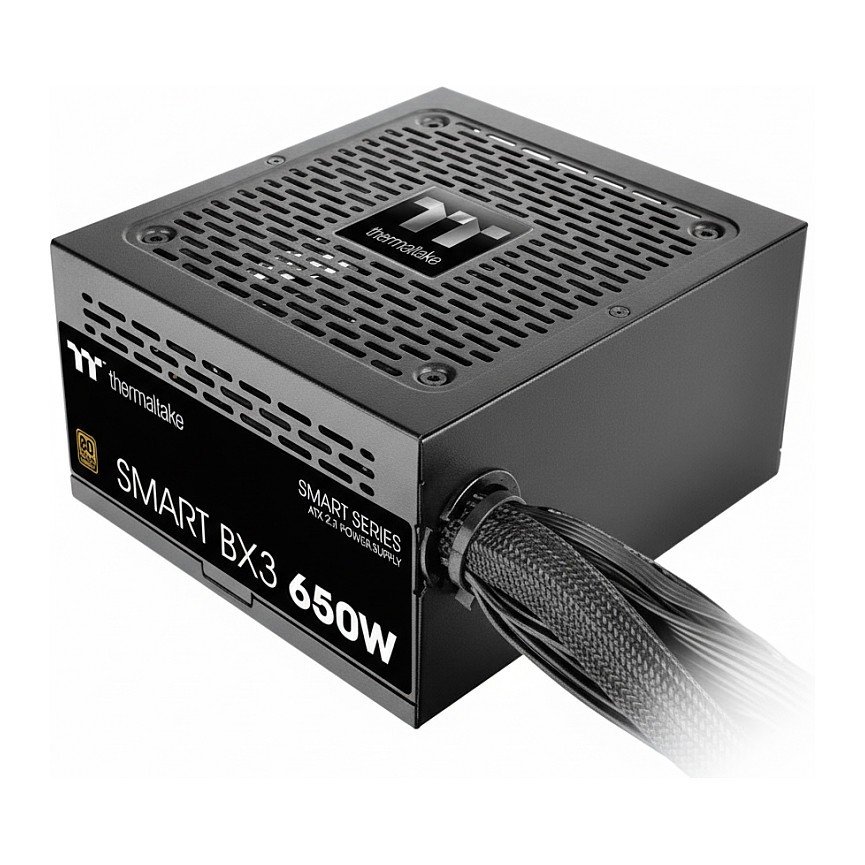

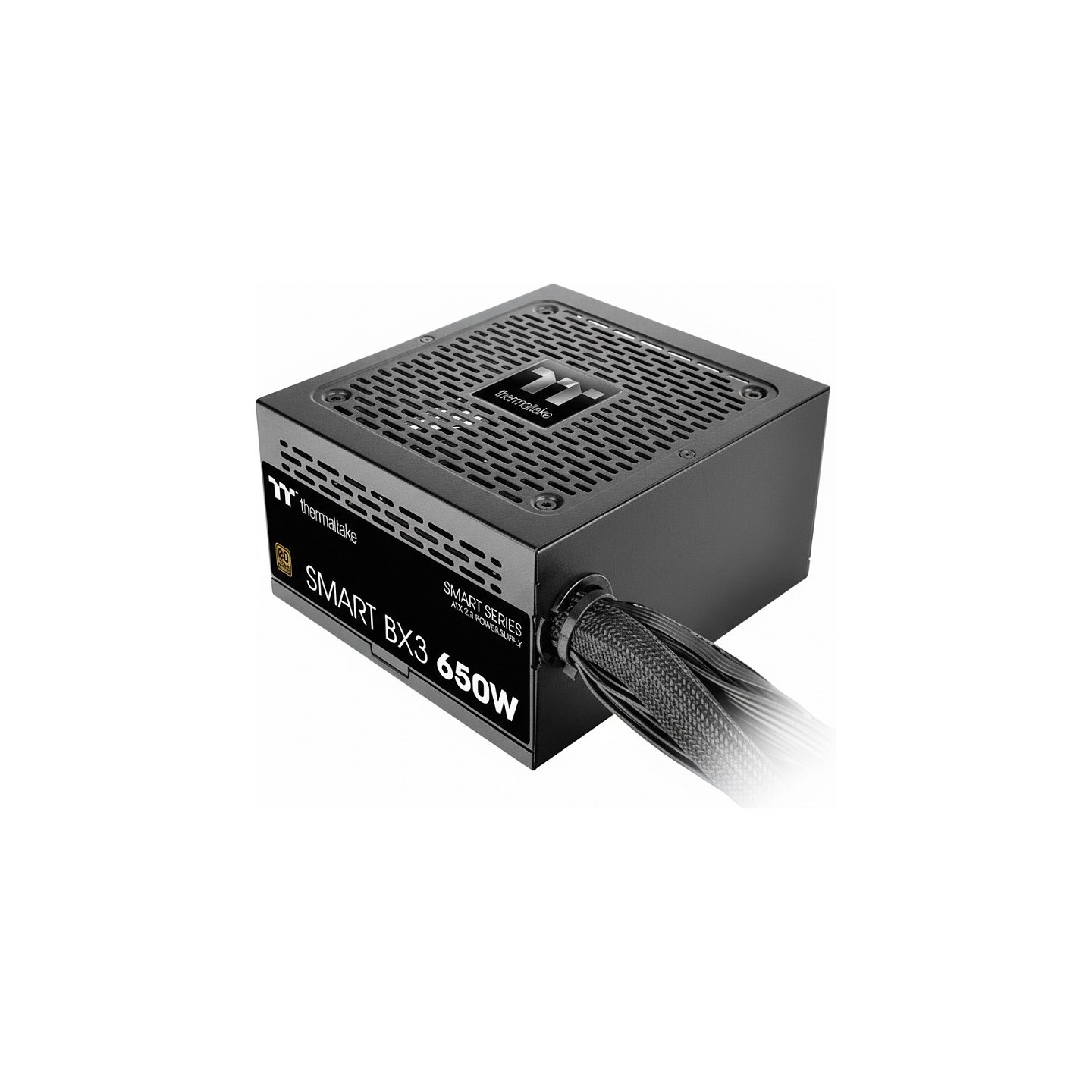

650W Thermaltake Smart BX3 Pro SE - 80+ Bronze ATX 3.1 (Boxed)
Thermaltake Smart BX3 Pro SE 650W is an 80 PLUS Bronze certified ATX 3.1 PSU with 2x PCIe 6+2pin connectors, single +12V rail, 120mm FDB fan, and Active PFC. Ideal for mid-range gaming PCs with stable power delivery and low noise.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Thermaltake Smart BX3 Pro SE 650W is a reliable non-modular power supply fully compliant with Intel ATX 3.1 standards, featuring support for C6/C7 low power states and ErP readiness. It delivers precise power through a single +12V rail with DC-to-DC design and a high-quality 105°C main capacitor for enhanced durability.
Equipped with a quiet 120mm Fluid Dynamic Bearing (FDB) fan and low-profile flat black cables, this black PSU measures 150x86x140mm. It includes essential protections: OCP, OVP, OPP, OTP, UVP, SCP, making it suitable for mid-range systems with GPUs requiring up to 2x 6+2pin PCIe connectors and dual EPS for CPUs.
- 80 PLUS Bronze efficiency (230V EU)
- 2x PCI-E 6+2pin connectors
- 2x 4+4pin EPS/ATX12V connectors
- 120mm FDB fan with Smart Zero mode
- Active PFC, MTBF 100,000 hours
- Operating temp: 5°C to 45°C
| Model | PS-SPD-0650NNSABx-7 |
| Wattage | 650W |
| Efficiency | 80 PLUS Bronze (230V EU) |
| Color | Black |
| Modularity | Non-modular |
| Dimensions (WxHxD) | 150 x 86 x 140 mm |
| Fan | 120mm Fluid Dynamic Bearing (FDB) |
| PFC | Active PFC |
| PCIe Connectors | 2x 6+2pin |
| EPS Connectors | 2x 4+4pin EPS/ATX12V |
| ATX Main Connector | 1x 24-pin |
| SATA Connectors | Typically 6-8x (standard for model) |
| Peripheral 4-pin | 2-3x (standard) |
| Input Voltage | 200-240Vac |
| Protections | OCP/OVP/OPP/OTP/UVP/SCP |
| MTBF | 100,000 hours |
| Warranty | 5 Years (typical Thermaltake) |
