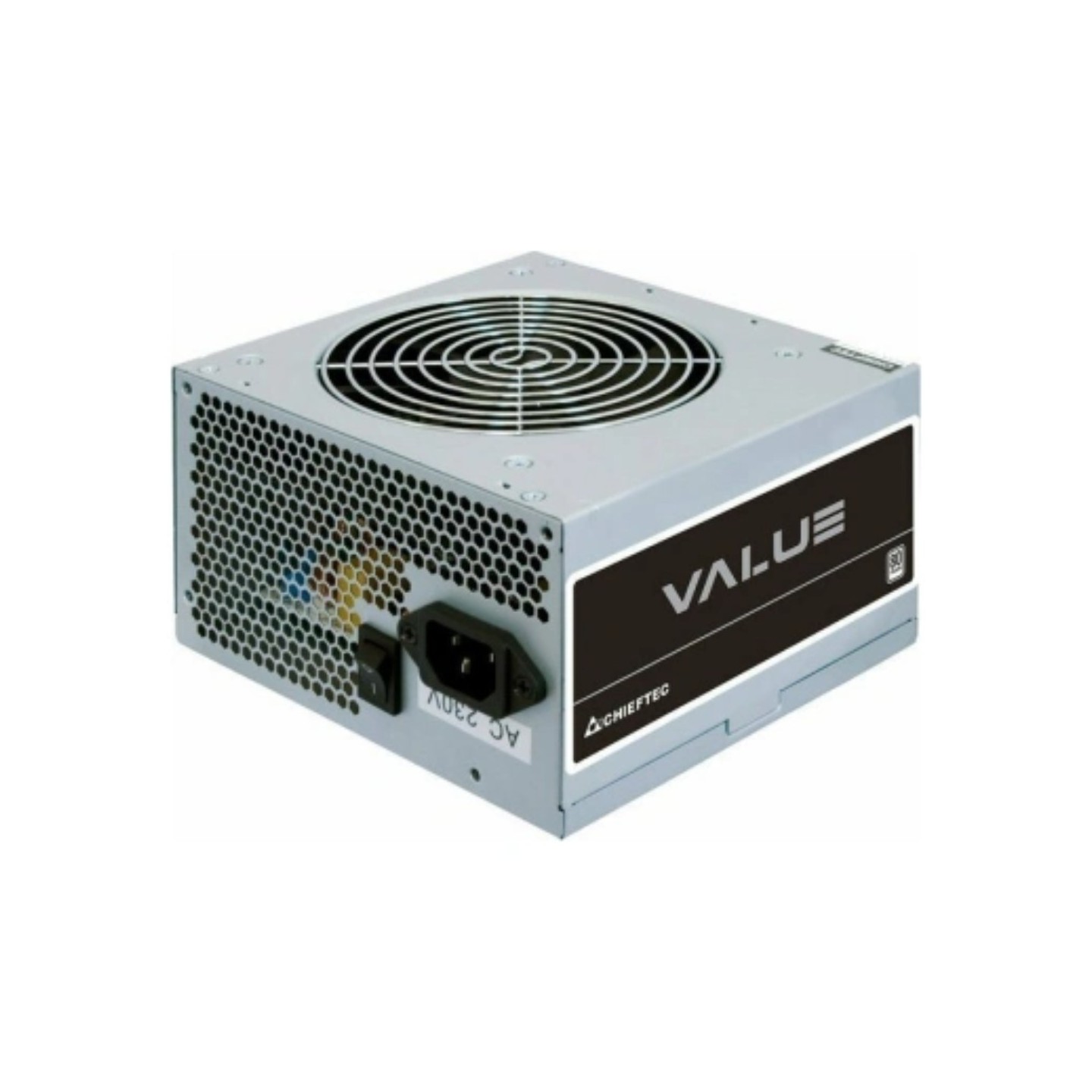

Chieftec Value Series APB-400B8 - 400W Non-Modular ATX PSU, 80 PLUS White, Silver (Boxed)
Chieftec APB-400B8 400W non-modular ATX PSU with 80 PLUS 230V EU (White) efficiency. Features 1x 6+2 PCIe, 1x 4+4 CPU, 3x SATA; 120mm fan, active PFC. Reliable budget choice with full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 400 - 499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus White |
| PSU (Power Supplies) - Color | Silver |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Chieftec APB-400B8 from the VALUE SERIES delivers 400W of real power with 80 PLUS® 230V EU (White) efficiency at competitive pricing. Equipped with essential connectors including long native cables and a silent 120mm fan with thermal control, it runs quietly even under full load.
Certified with CE, CB, EAC, TÜV and more, this non-modular ATX PSU includes active PFC (>0.9), ATX 2.3 compliance, and comprehensive protections: OVP, OPP, SCP, UVP, SIP. Ideal for budget PC builds needing stable power on +12V rail (360W combined).
- 1x 20+4 pin ATX (35cm)
- 1x 4+4 pin CPU (35cm)
- 1x 6+2 pin PCIe (35cm)
- 3x SATA (150/350mm)
- 2x 4-pin Molex (150/350mm)
- 1x Floppy
- Dimensions: 140x150x87mm
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power factor | >0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 17 A |
| Max output current (+12V) | 30 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage, Surge & Inrush |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150, 350 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 350 mm |
| EPS power connector (4+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 35 cm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 35 cm |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS White (230V EU) |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
| Harmonized System (HS) code | 84733020 |
