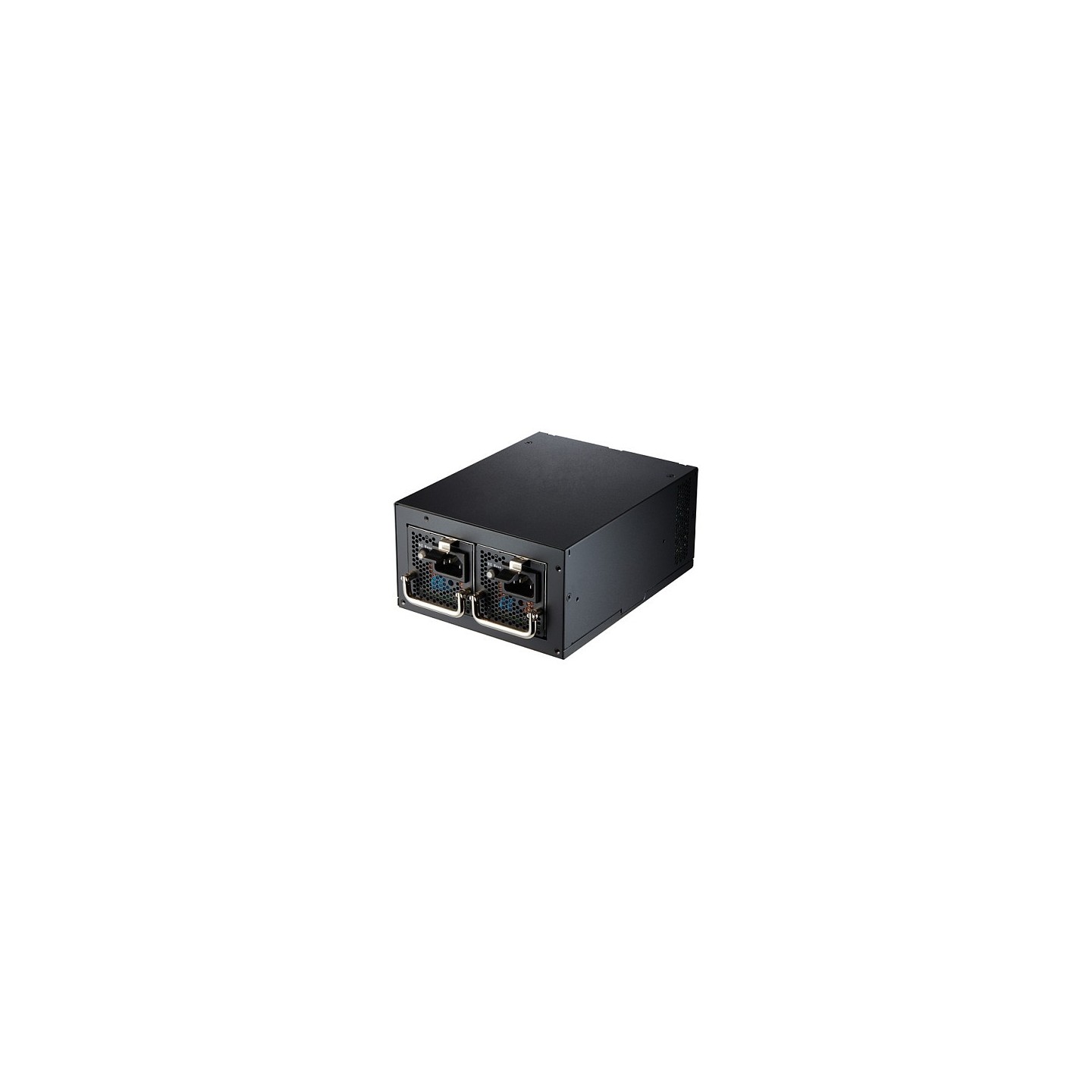

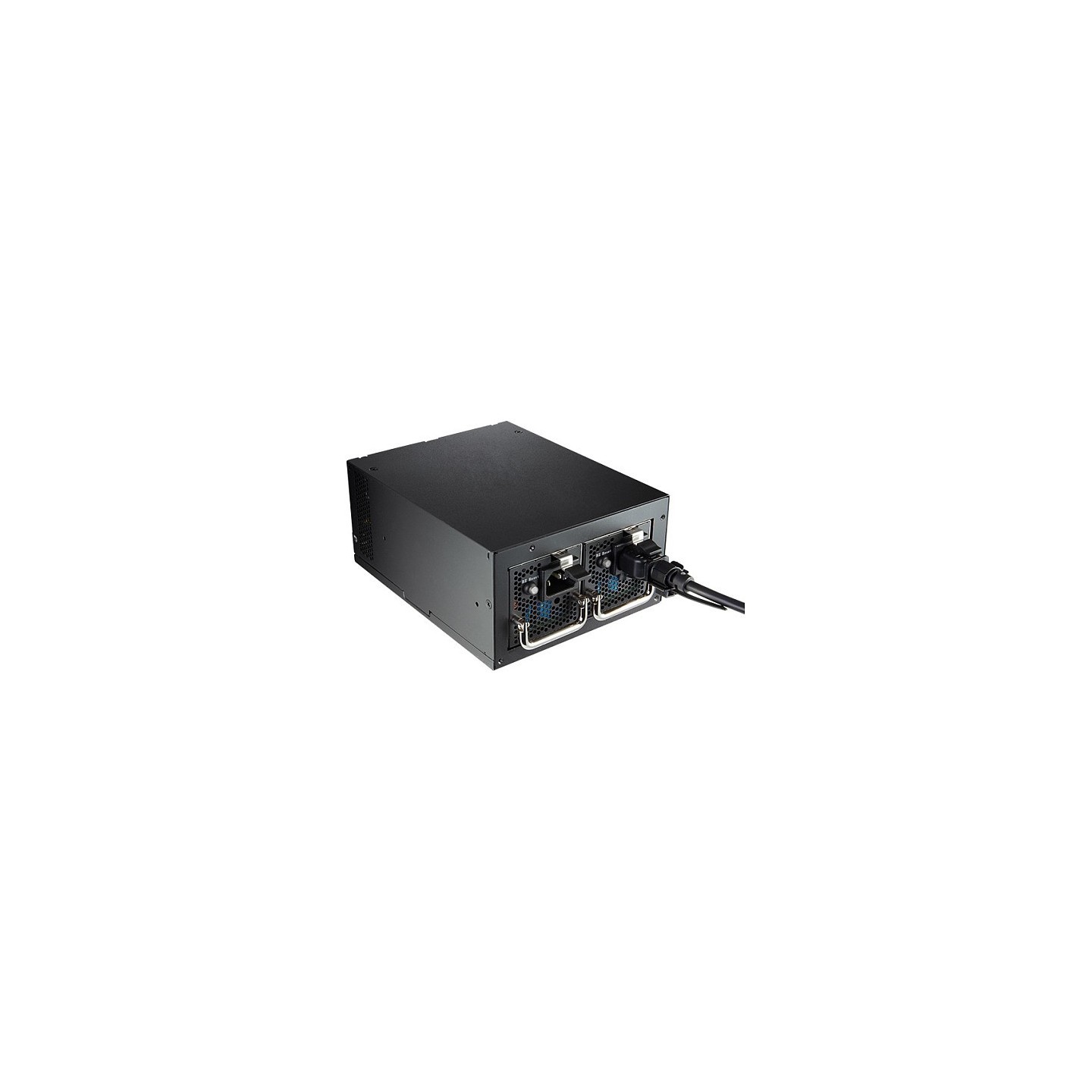

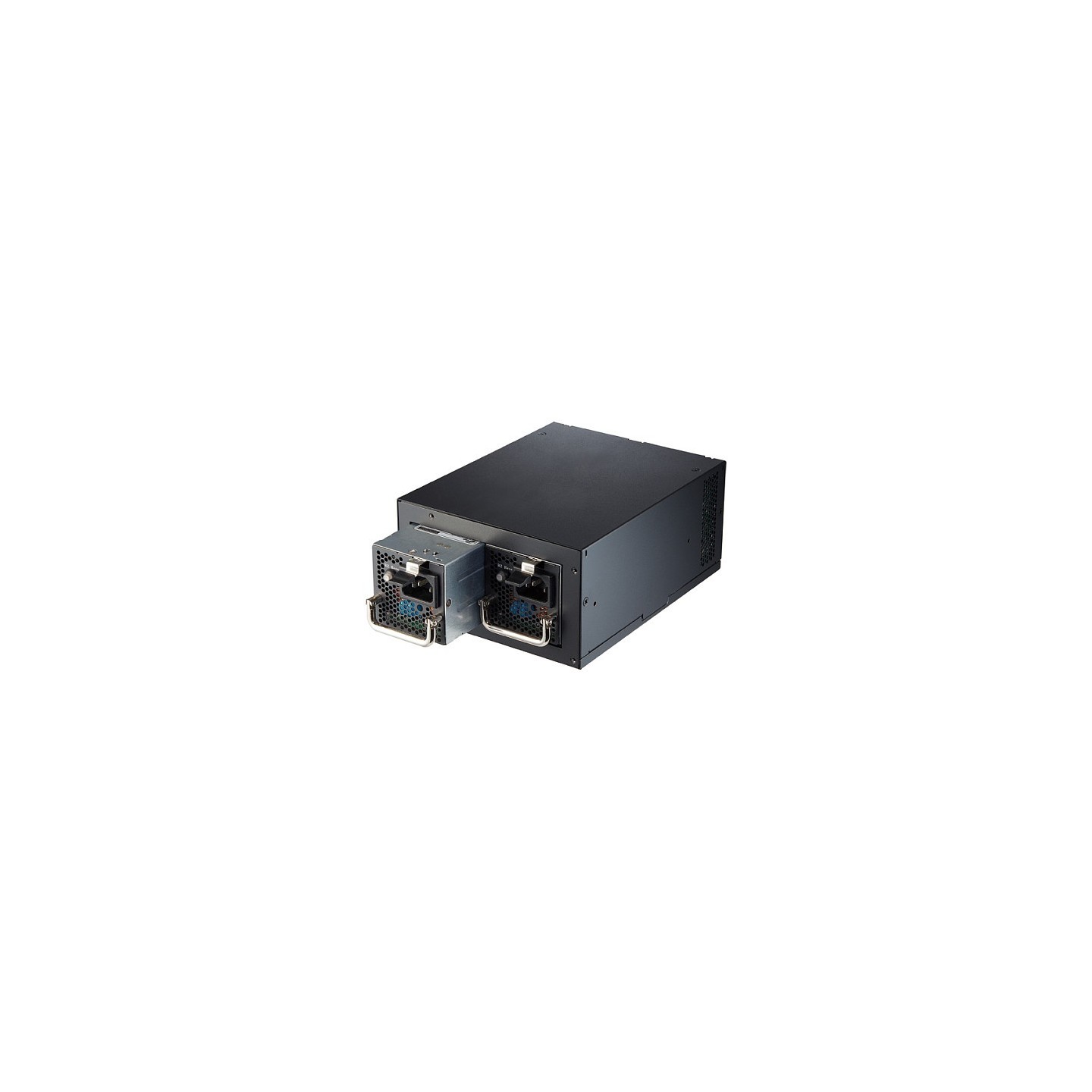

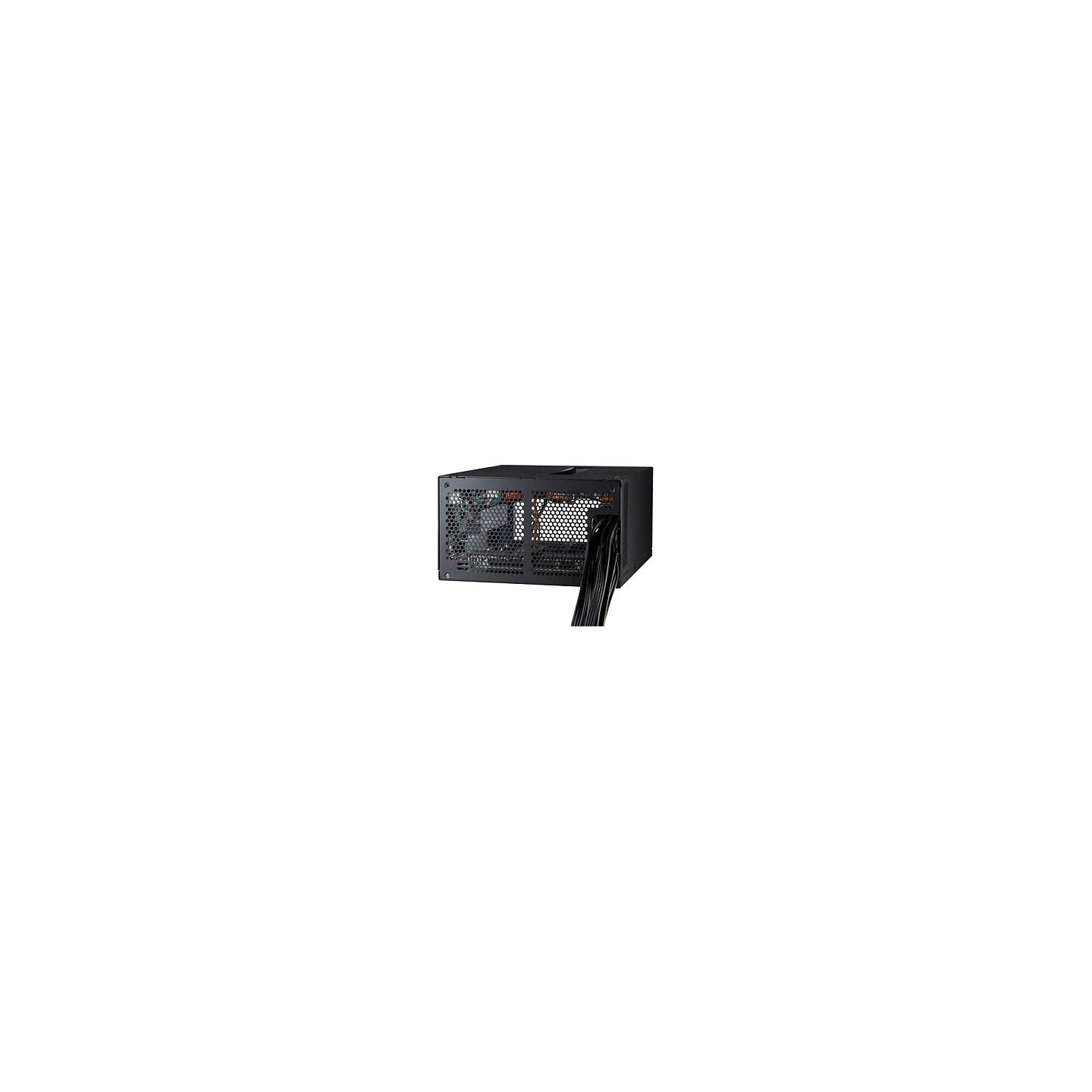

FSP Twins Pro 930W Redundant ATX PS2 Module FSP930-20REB (Boxed)
FSP930-20REB is a 930W 80 PLUS Gold ATX PS2 redundant power module for Twins PRO systems. Hot-swappable design ensures uninterrupted server operation. Features 77.5A +12V rail, 2x EPS CPU, 4x PCIe 8-pin connectors. Active 40mm cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 900 - 999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The FSP FSP930-20REB is a high-performance 930W power supply module designed specifically as a replacement or individual unit for the FSP Twins PRO 900W redundant ATX PS2 1+1 power system. This hot-swappable module complies with ATX12V and EPS12V standards, making it ideal for servers, workstations, and critical PC builds requiring maximum uptime. In normal operation, twin modules share the load evenly; if one fails, the remaining module takes over seamlessly[3][4].
Key features include a powerful single +12V rail delivering up to 77.5A (930W), 80 PLUS Gold efficiency (up to 90-92% at 230V), and robust protection against overcurrent, overload, overvoltage, overtemperature, short-circuit, and undervoltage. The non-modular design includes essential cables: 20+4 pin ATX, 2x 4+4 pin EPS/CPU, 4x 6+2 pin PCIe, 6x SATA, Molex peripherals, and 1x Floppy. Active cooling via a 40mm ball-bearing fan ensures reliability under heavy loads[1][3][4].
- ✅ 930W total power with 77.5A on +12V rail
- ✅ Hot-swappable redundant design for zero downtime
- ✅ 80 PLUS Gold certified efficiency
- ✅ 2x EPS 8-pin CPU + 4x PCIe 8/6-pin GPU connectors
- ✅ Compact ATX PS2 form factor: 190x86x150mm
- ✅ Black finish, active 40mm fan cooling
| Total Power | 930 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 10-6 A |
| Max Output Current (+12V) | 77.5 A |
| Max Output Current (+5Vsb) | 3 A |
| Efficiency | 80 PLUS Gold (90%) |
| Protections | Over Current, Over Load, Over Voltage, Over Temperature, Short Circuit, Under Voltage |
| Motherboard Connector | 20+4 pin ATX |
| EPS/CPU Connectors | 2x 4+4 pin EPS/ATX12V |
| PCIe Connectors | 4x 6+2 pin PCIe |
| SATA Connectors | 6 |
| Peripheral (Molex) | Included |
| Floppy Connector | 1 |
| Modularity | Non-modular |
| Form Factor | ATX PS2 |
| Fan Diameter | 40 mm |
| Bearing Type | Ball Bearing |
| Color | Black |
| Cooling | Active |
| Width | 86 mm |
| Depth | 150 mm |
| Height | 190 mm |
| Redundancy | Hot-swappable module for Twins PRO 1+1 |
