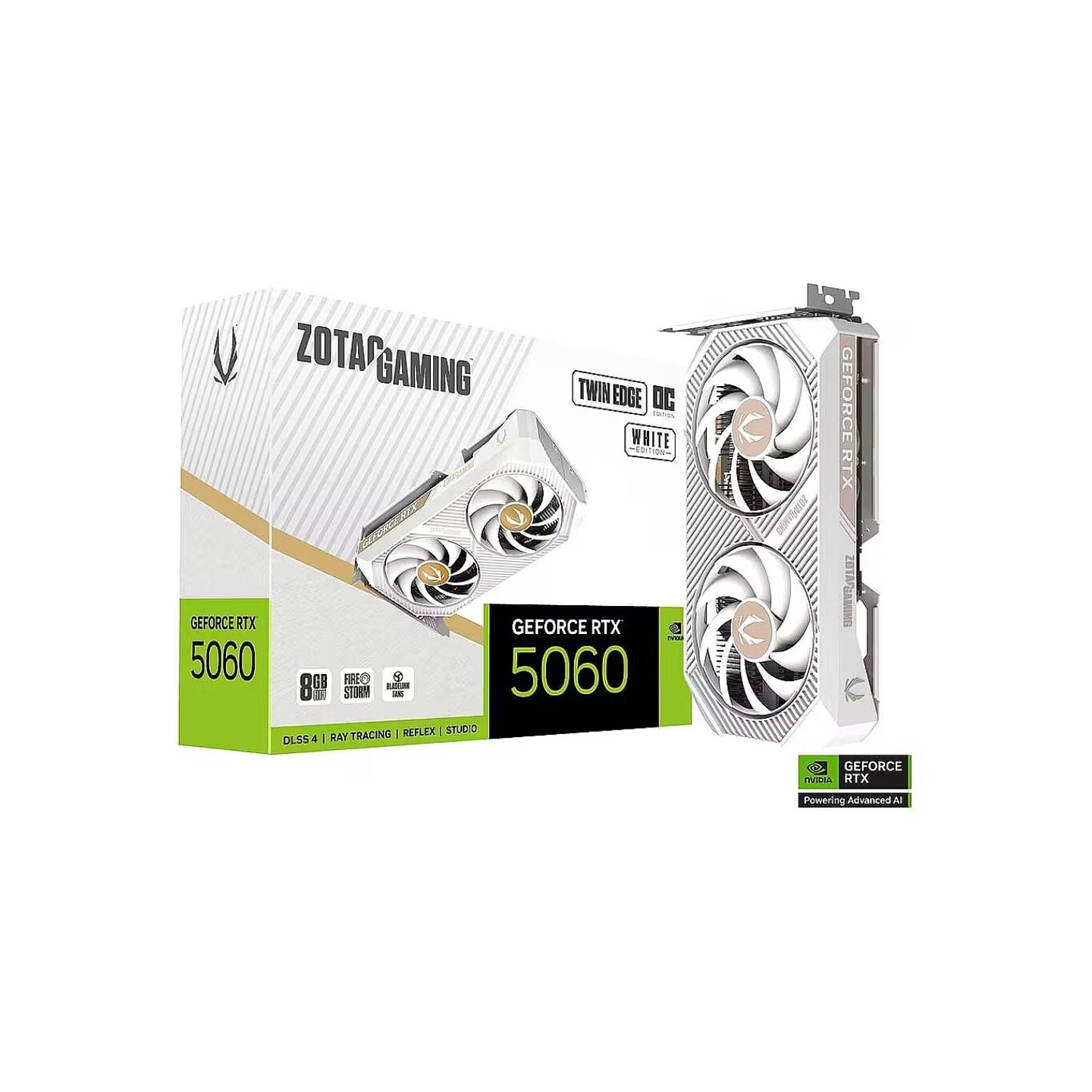

ZOTAC GeForce RTX 5060 Twin Edge OC White 8GB GDDR7 2497MHz PCIe 5.0 (Boxed)
Compact ZOTAC RTX 5060 Twin Edge OC White Edition: NVIDIA Blackwell, 8GB GDDR7, 2497MHz boost, DLSS4, PCIe 5.0 x8, SFF-ready. Dual BladeLink fans, metal backplate, 3xDP 2.1b + HDMI 2.1b support 4 displays, VR-ready, 145W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition delivers exceptional performance in a compact, SFF-ready design. Powered by NVIDIA's Blackwell architecture with DLSS 4 for AI-enhanced frame generation and 8GB GDDR7 memory at 28Gbps, it handles modern games and ray tracing effortlessly. Factory-overclocked to 2497MHz boost, it ensures smooth framerates in the latest titles.
Featuring dual axial BladeLink fans for optimal cooling, a sturdy metal backplate, and 2-slot design (220.5 x 120.2 x 41.6 mm), this white edition fits small builds while maintaining low noise and temperatures. Connect up to 4 displays via 3x DisplayPort 2.1b and 1x HDMI 2.1b. Requires 550W PSU and 1x 8-pin connector; VR-ready with G-SYNC support.
- Key Features: Blackwell GPU, DLSS4, 3840 CUDA cores, PCIe 5.0 x8

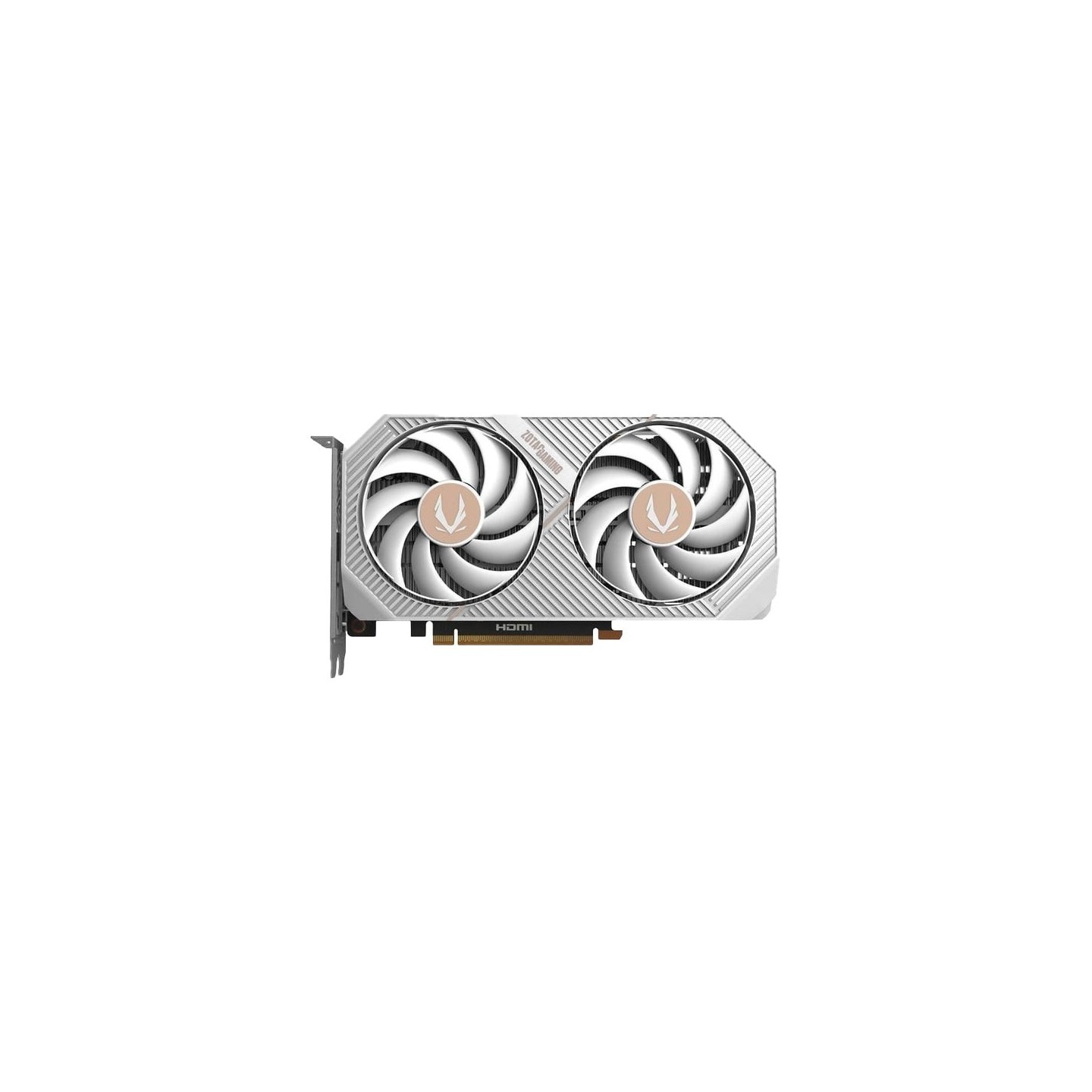

- Cooling: Active dual fans, metal backplate

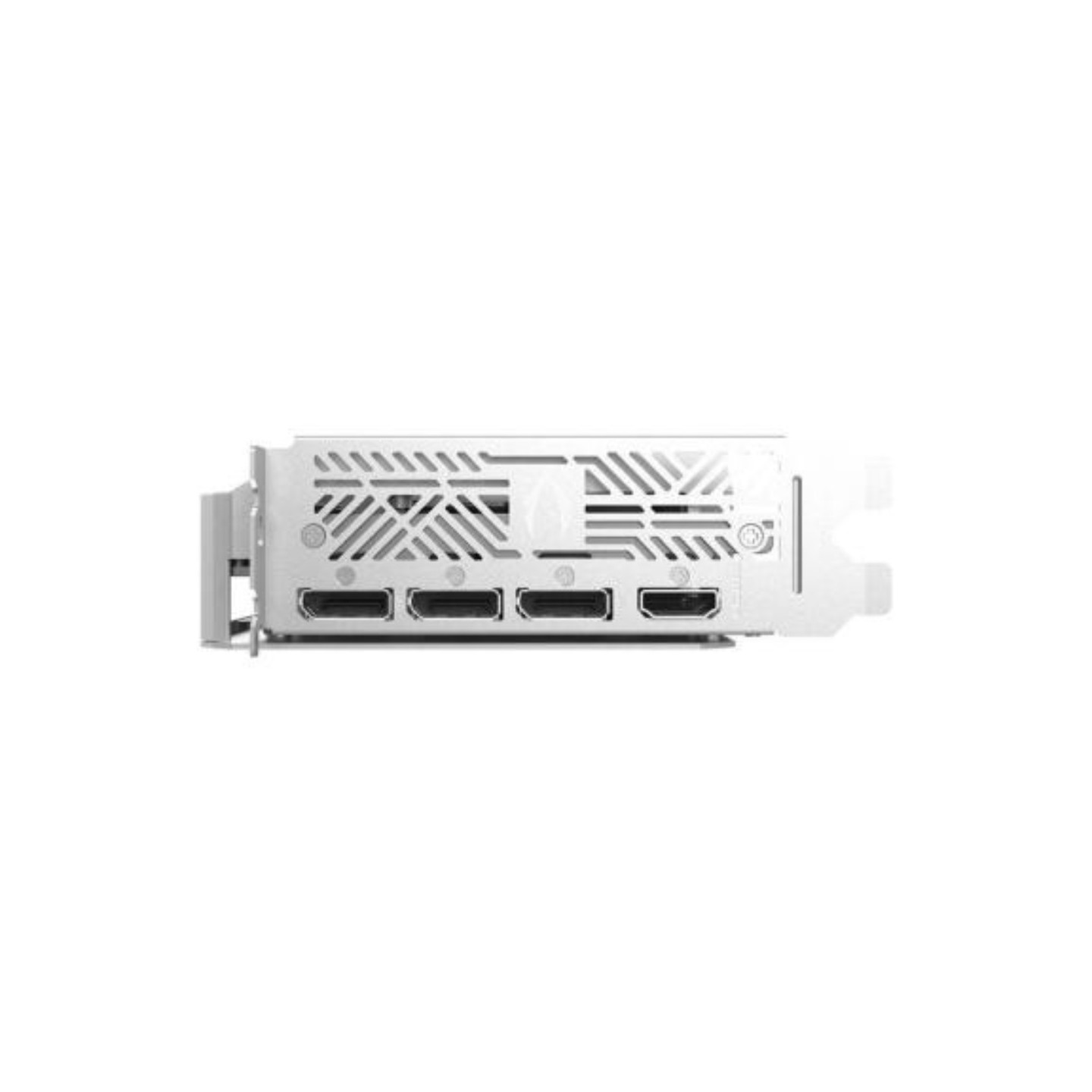

- Outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Power: 145W max, 1x 8-pin
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor boost clock speed | 2497 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| SFF ready | Yes |
| Product colour | White |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 145 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Length | 220.5 mm |
| Depth | 41.6 mm |
| Height | 120.2 mm |
| Package width | 218 mm |
| Package depth | 83 mm |
| Package height | 283 mm |
| Package type | Box |
| Architecture | Blackwell |

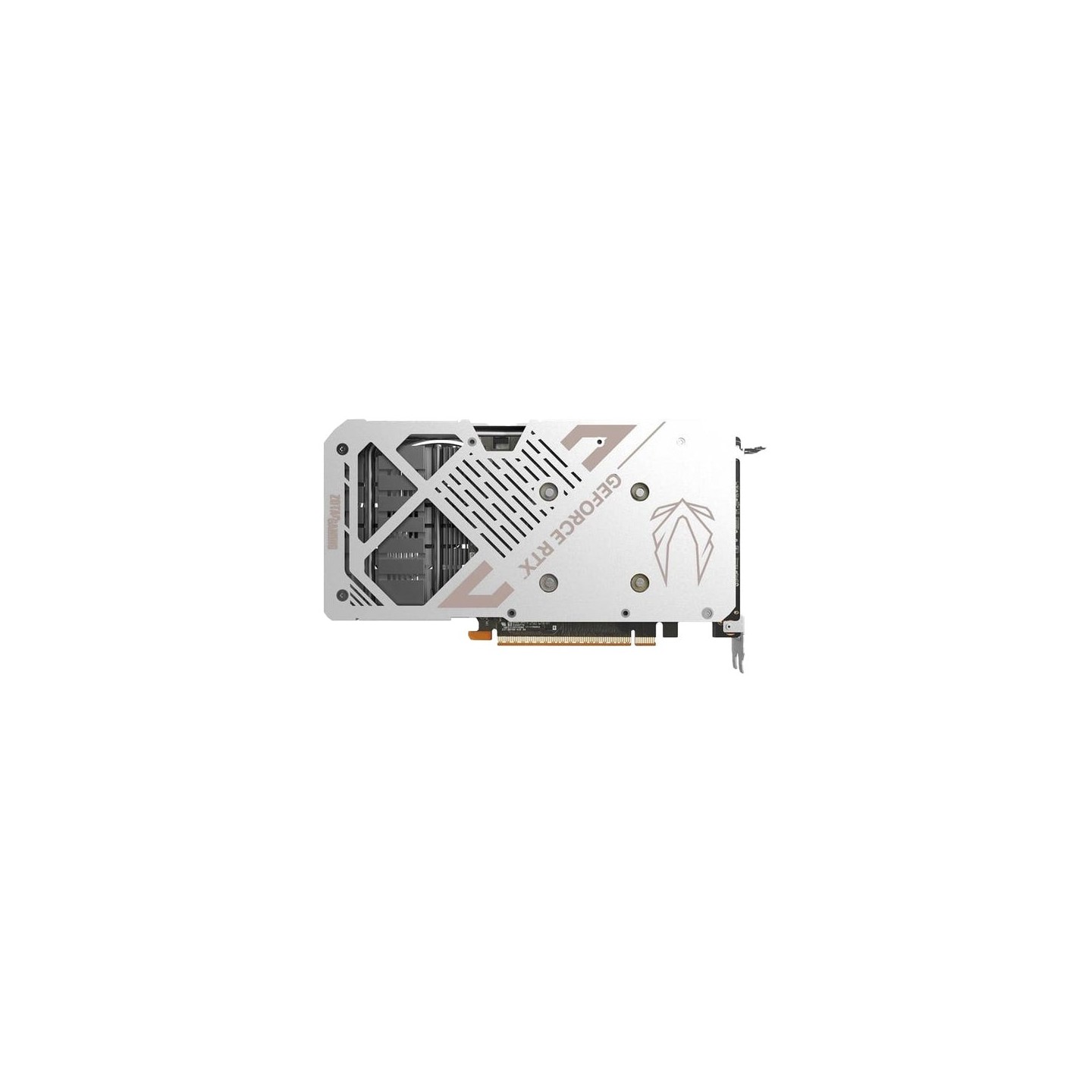

| Backplate material | Metal |
| Fan technology | BladeLink Fans |
