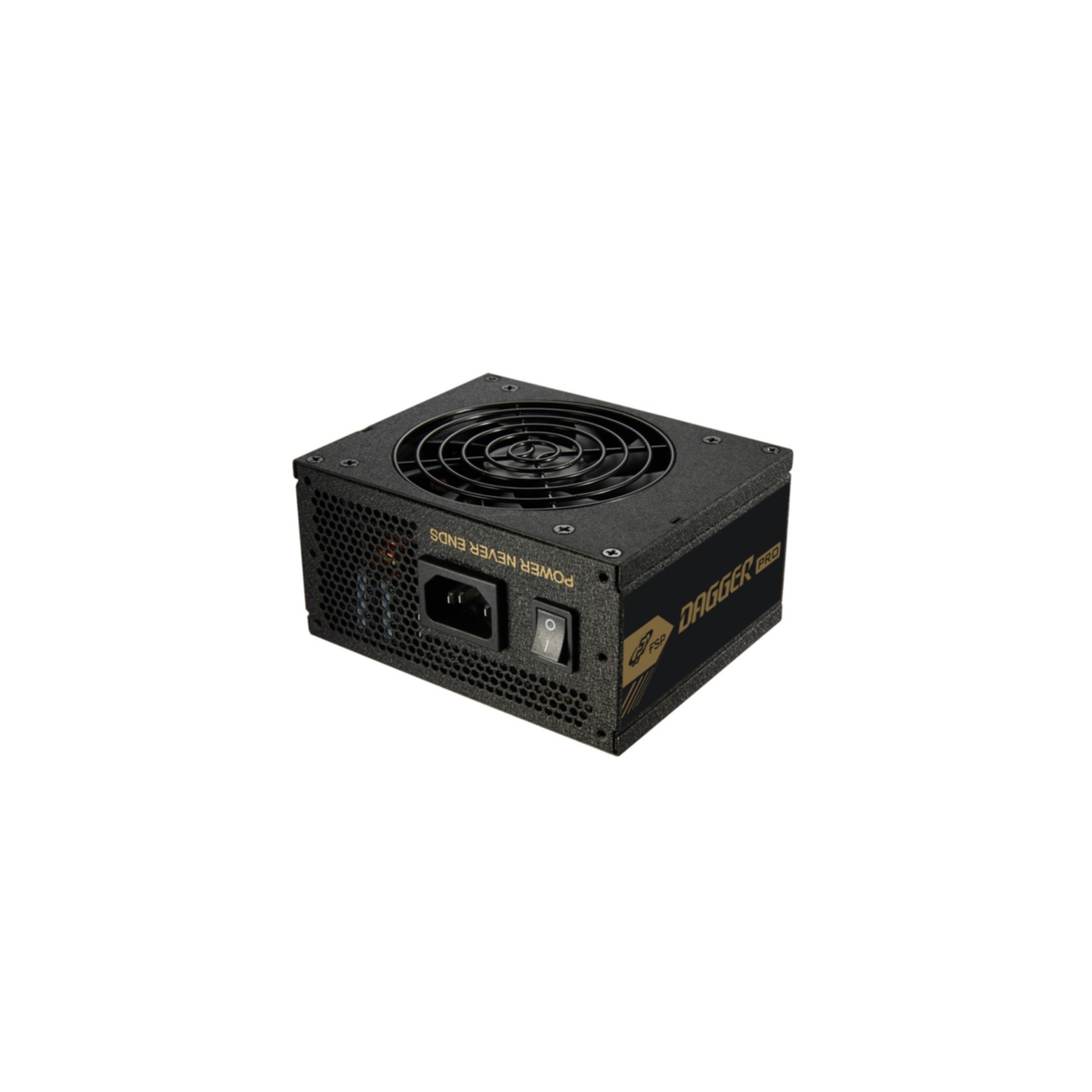

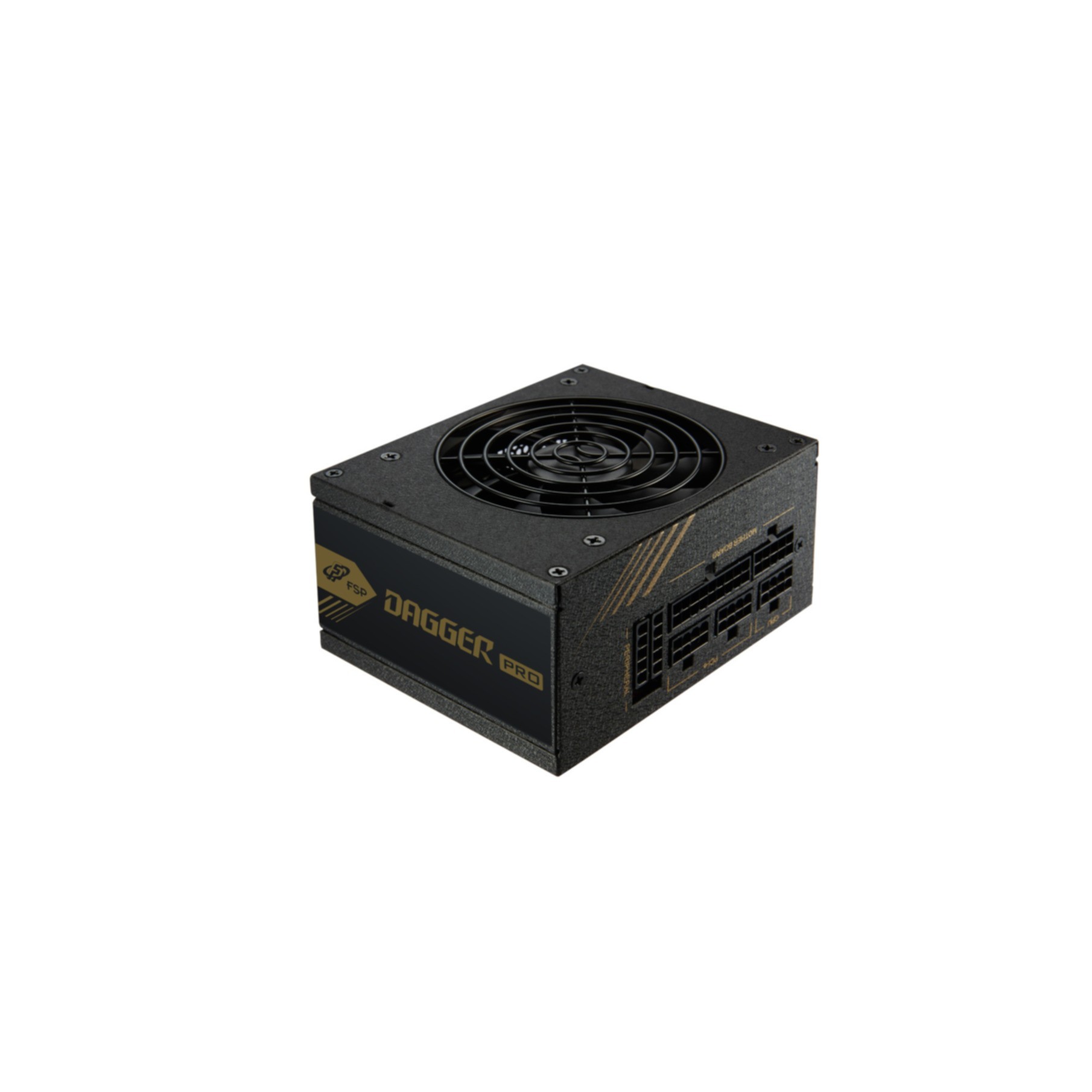

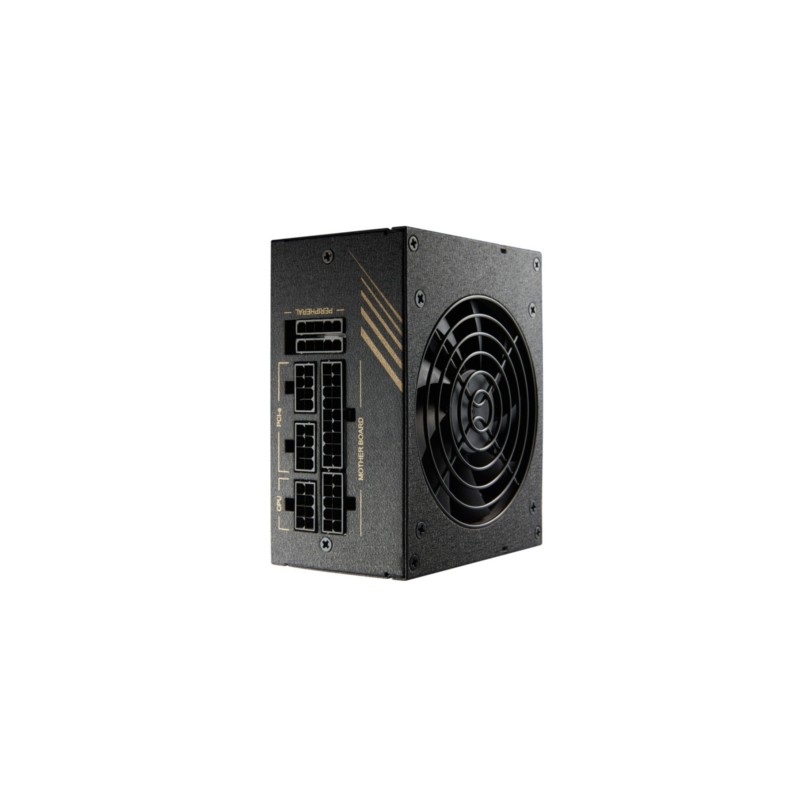

Fortron Dagger PRO 650W SFX Power Supply - Fully-Modular, 80 PLUS Gold, Black
650W SFX fully-modular power supply with 80 PLUS Gold efficiency, single +12V rail, flat black cables, 92mm semi-fanless cooling and ATX adapter bracket.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Fan Size | 92 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
The FSP DAGGER PRO features with standard SFX size and included ATX adapter bracket to help users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis. With this compact size but comes with powerful output, especially the +12V single-rail offers VGA cards full power individually and to avoid any overloading conditions. Besides, the fully modular and all black cable design save your system an optimal airflow space and easy to make a cable management for a polished look.
The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

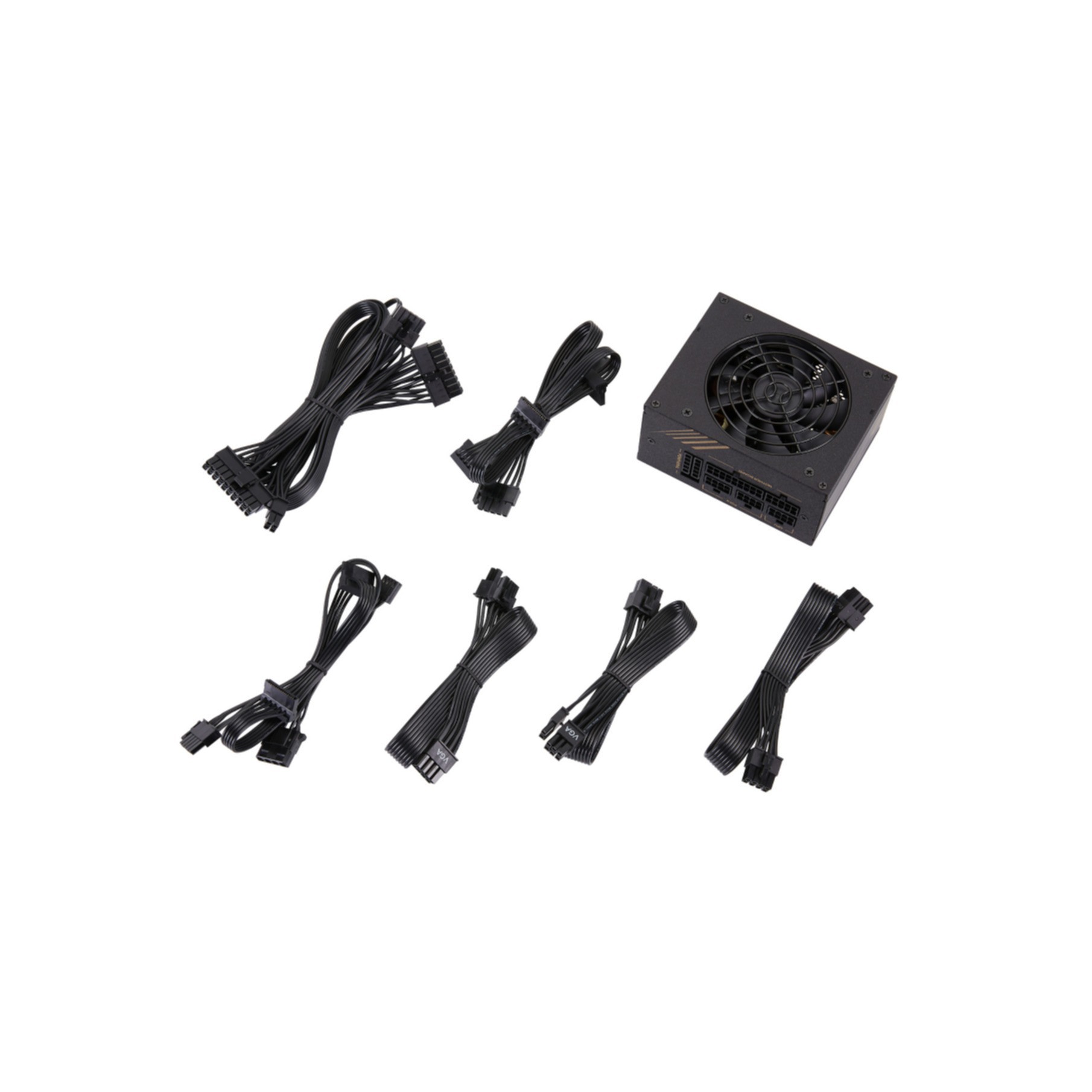

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

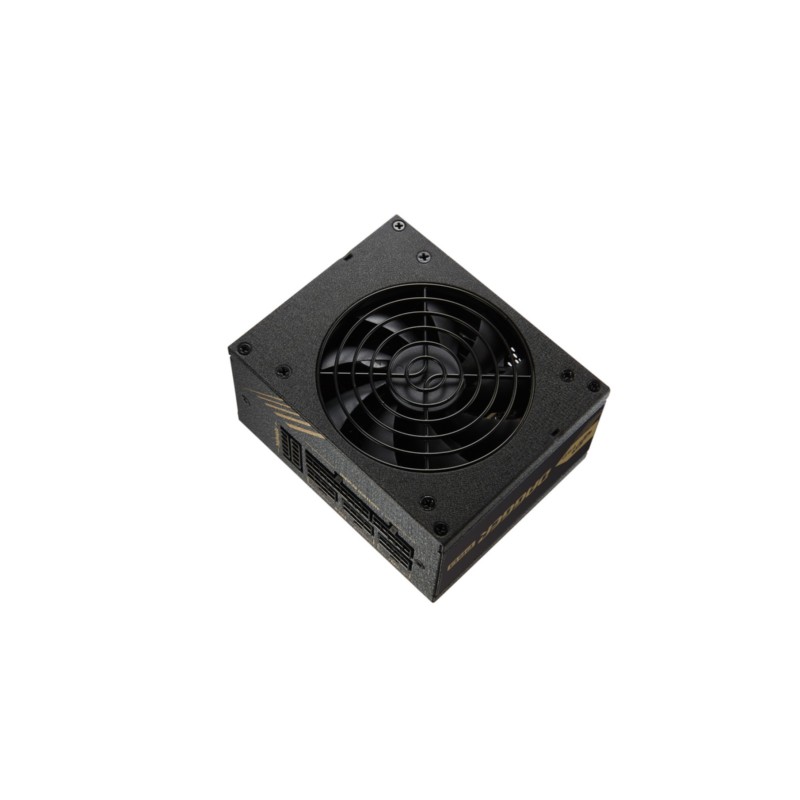

92mm Fan Optimized for Low-Noise Operation
DAGGER PRO features an advanced semi-fanless design to keep your system silent within 20% loading and reduce noise level under maximum operation. Its silent mode offers 0dBA when the loading is less than 20%.
80 Plus® Gold Certification
Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and reduces electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which requires stable power. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and avoids any overloading conditions.
Supports High-end Motherboard
For gaming enthusiast, the DAGGER PRO 650W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.

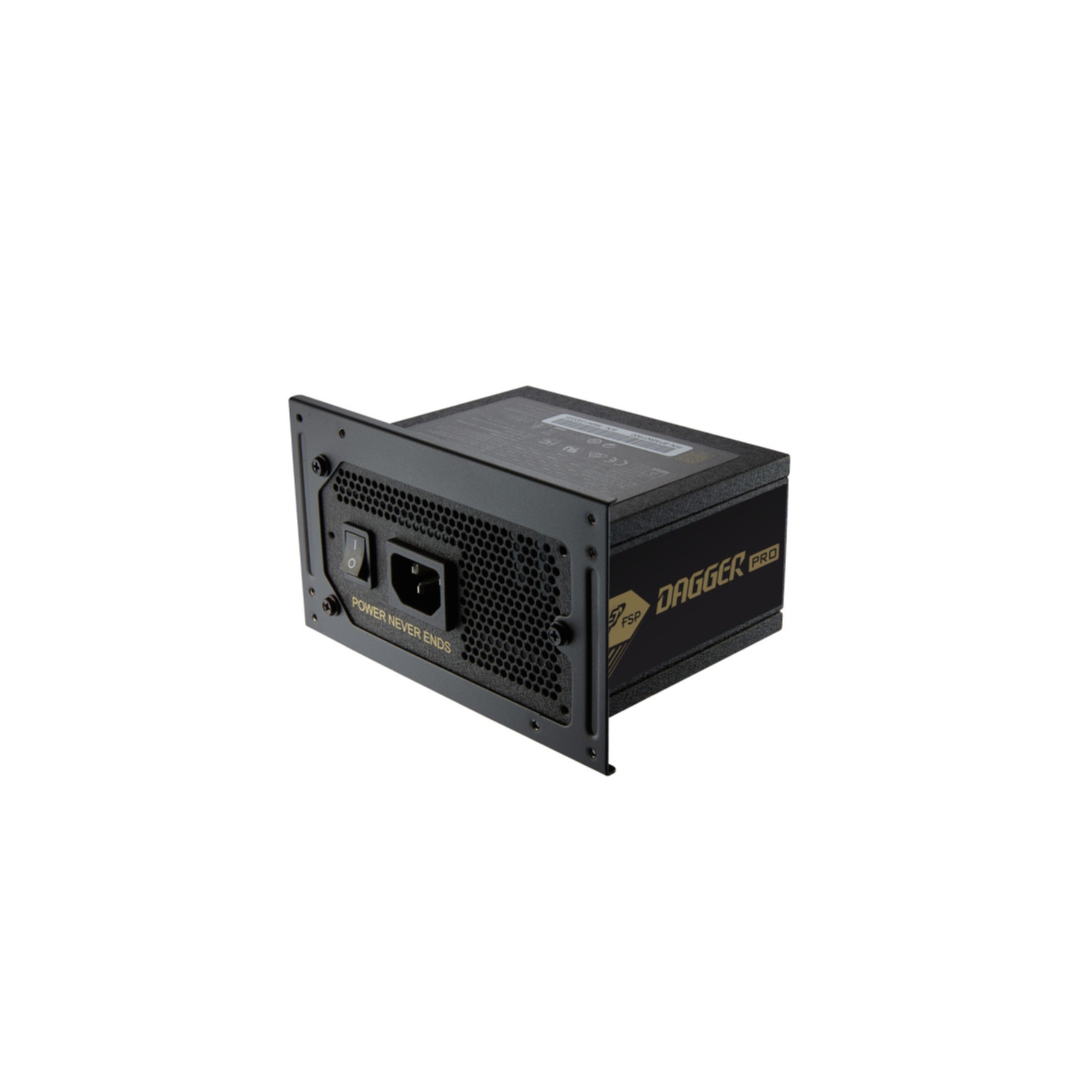

Compatible to PS2 case
Not only does it fit into cases with the SFX form factor, but it can also be installed simply into regular ATX, Micro-ATX or Mini-ITX cases.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 85 cm |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| Silent mode | Yes |
| Noise level | 40 dB |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 200000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Harmonized System (HS) code | 84733020 |
