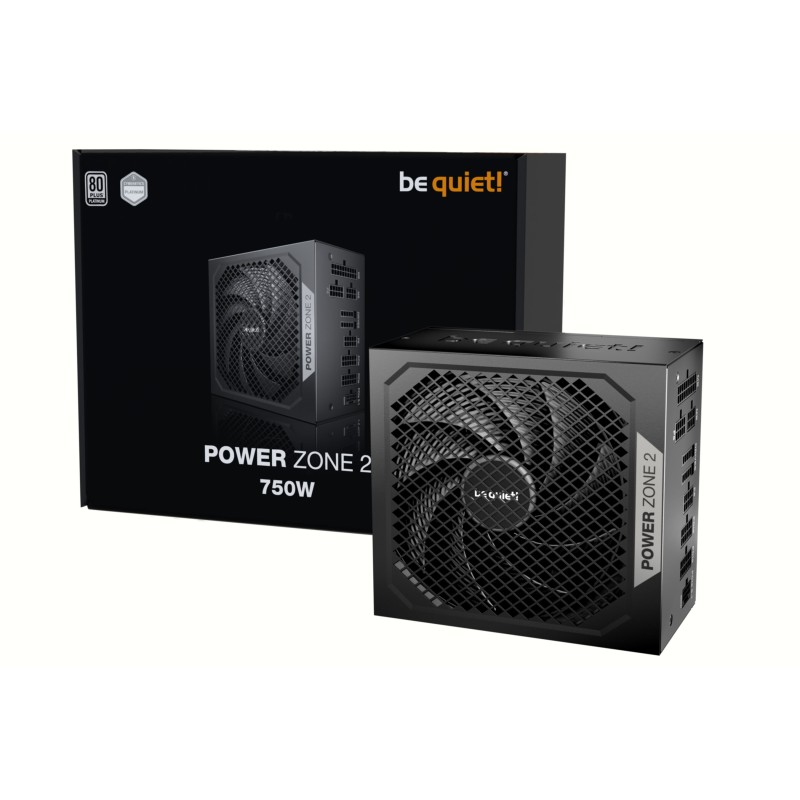

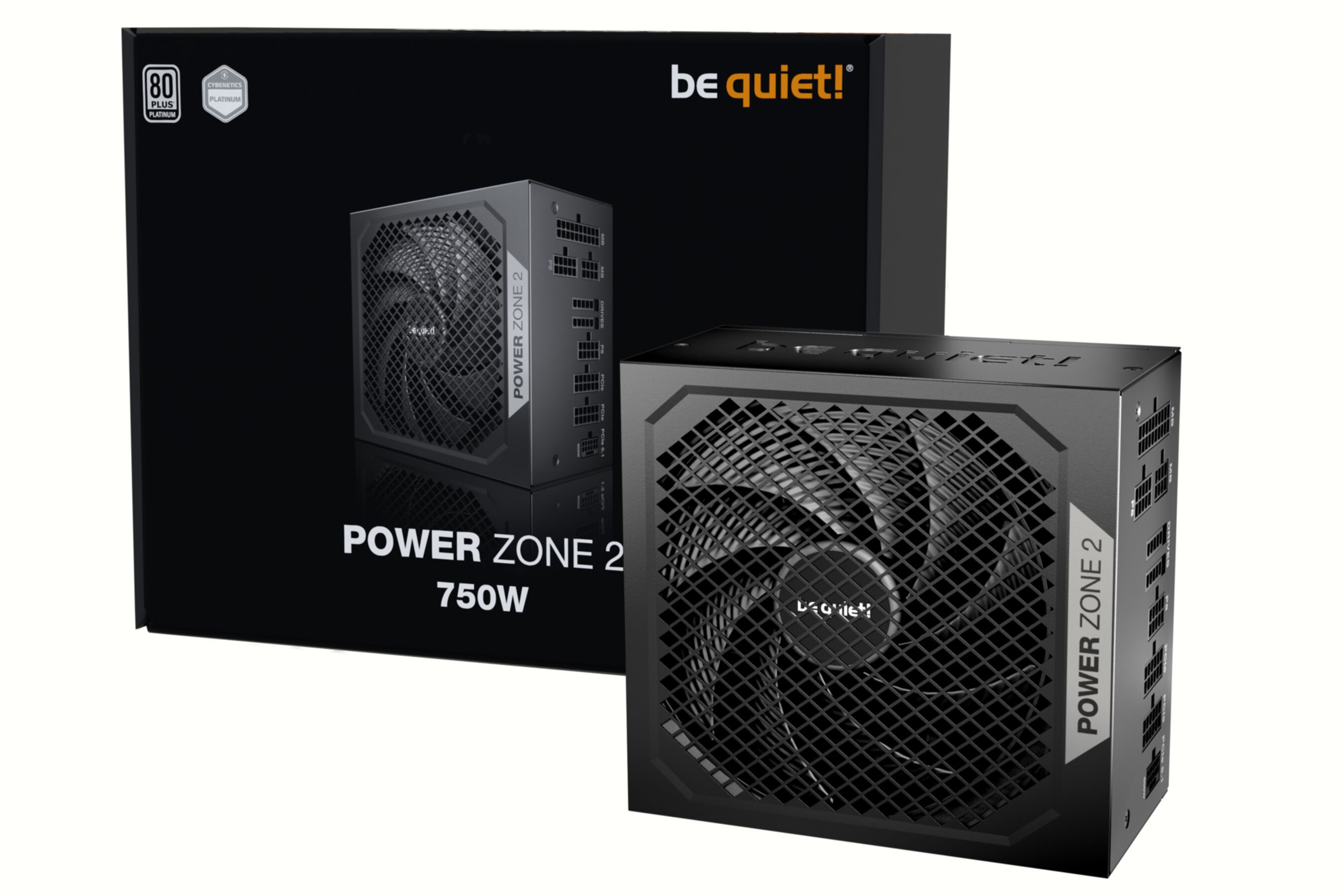

Be Quiet Power Zone 2 - BP006EU - 750W 80 PLUS Platinum Fully-Modular ATX 3.1 PSU, Black

SKU 6639 Brand be quiet! EAN13 4260052191361
750W (820W peak) ATX 3.1 PSU, 80 PLUS Platinum, fully-modular cables, single +12V rail (62.5A), 140mm fan, low noise (15.8 dB), multiple PCIe connectors including 16-pin.
PSU (Power Supplies) - Wattage 750 W
PSU (Power Supplies) - Efficiency Rating 80+ Platinum
PSU (Power Supplies) - ATX Standard ATX 3.1
PSU (Power Supplies) - Modularity Fully modular
PSU (Power Supplies) - PCIe GPU Connectors 3x8-pin
PSU (Power Supplies) - EPS CPU Connectors 1x8-pin
PSU (Power Supplies) - Fan Size 140 mm
PSU (Power Supplies) - Length 141-160 mm

Exceptional efficiency for Gamers
Power Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation

Power Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence

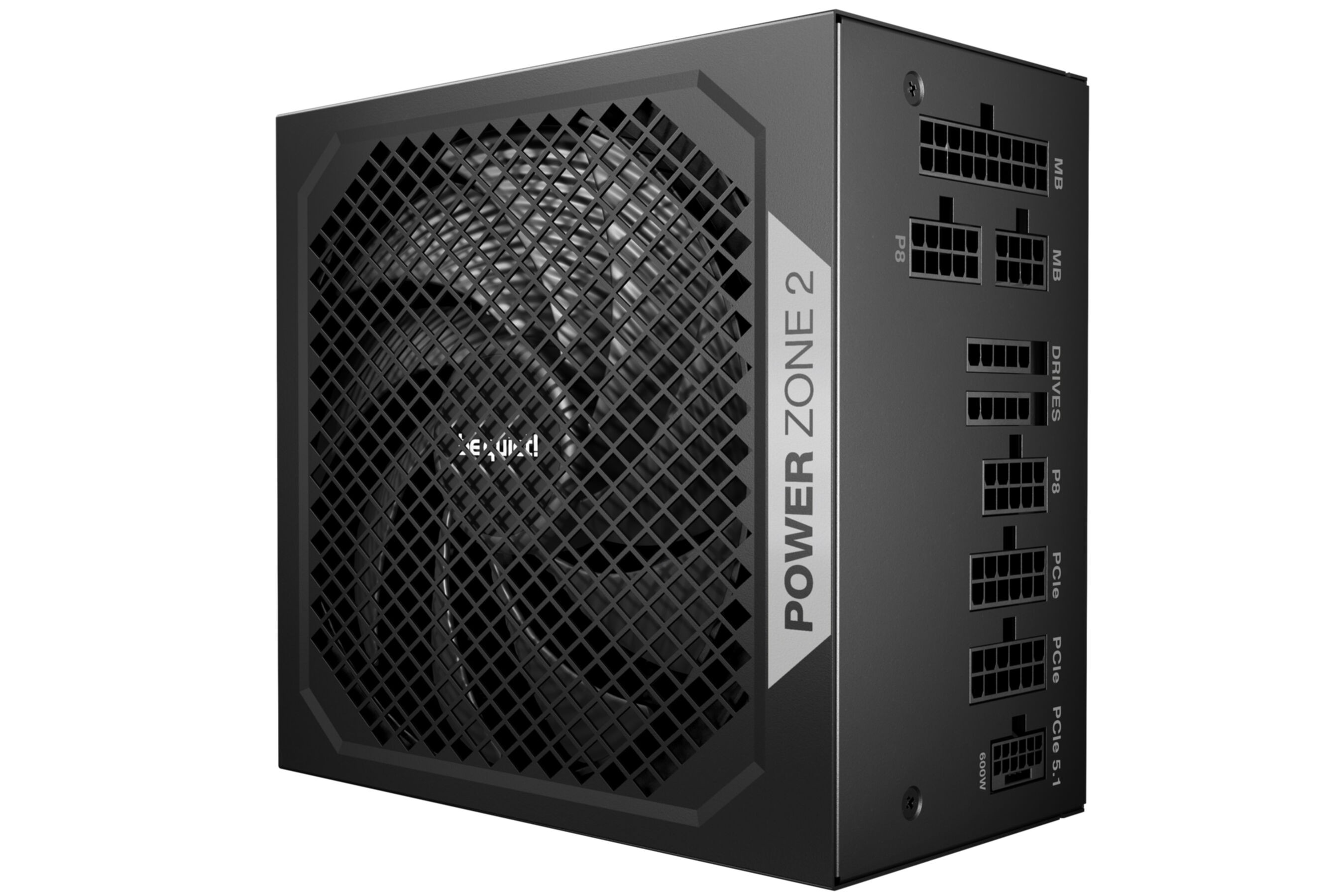

A large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2

No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery

Power Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Power Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

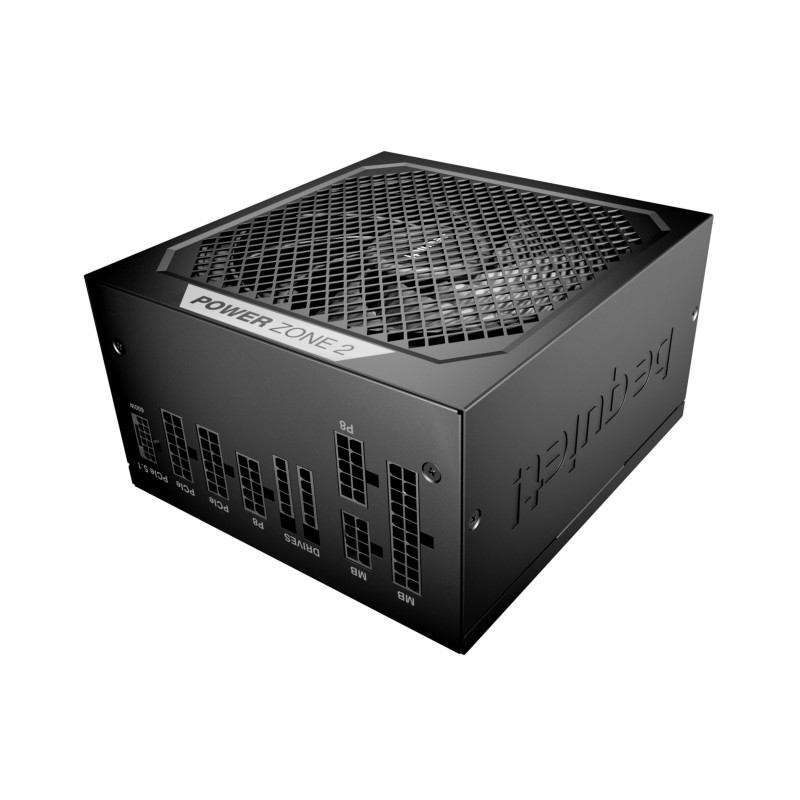

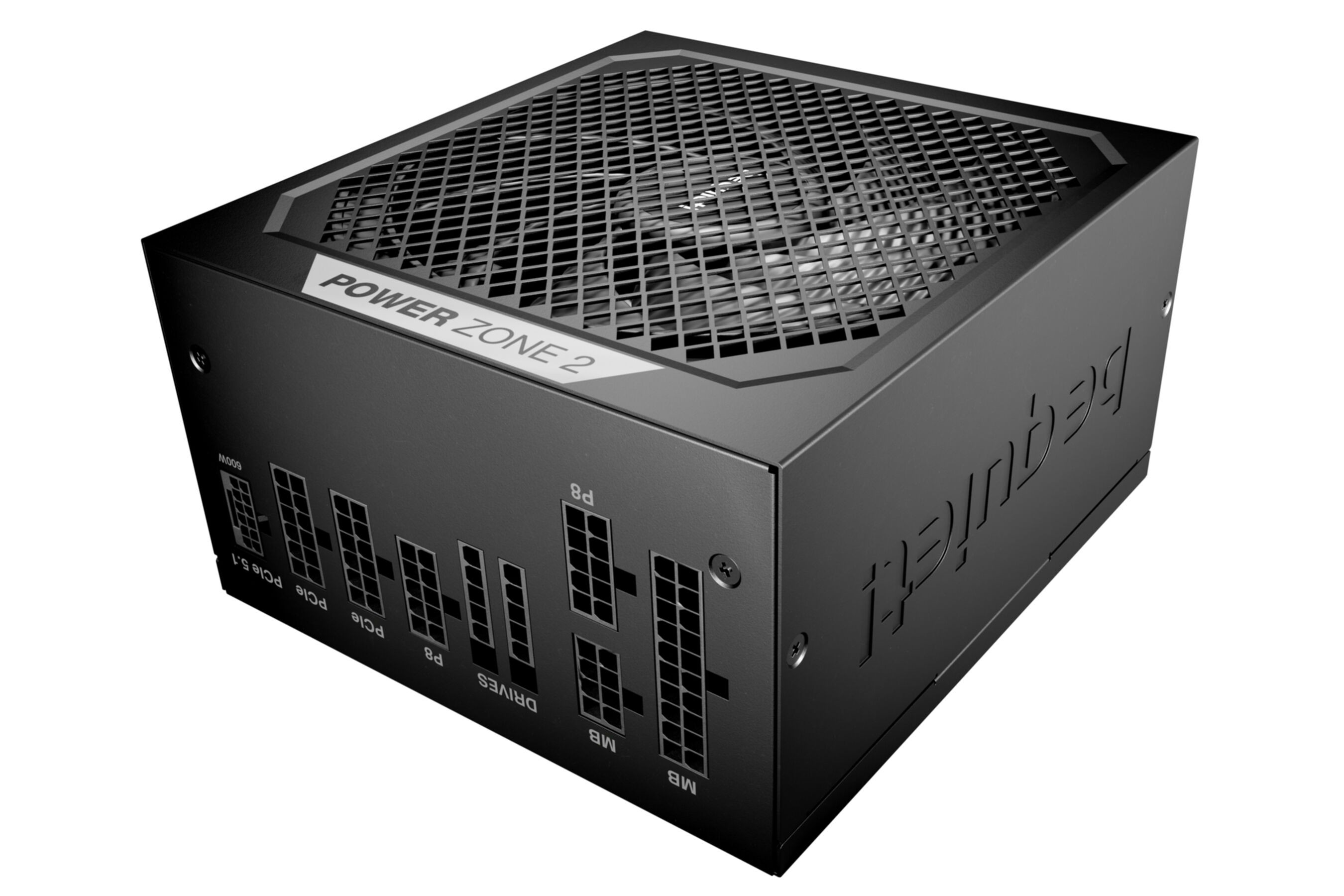

With its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.


Total power750 W
Peak power820 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Maximum input current (@110V)10 A
Maximum input current (@220V)5 A
Power factor0.98
Number of +12V rail(s)1
Combined power (+3.3V)120 W
Combined power (+12V)750 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)62.5 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Hold time24.5 ms
Efficiency92.5%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

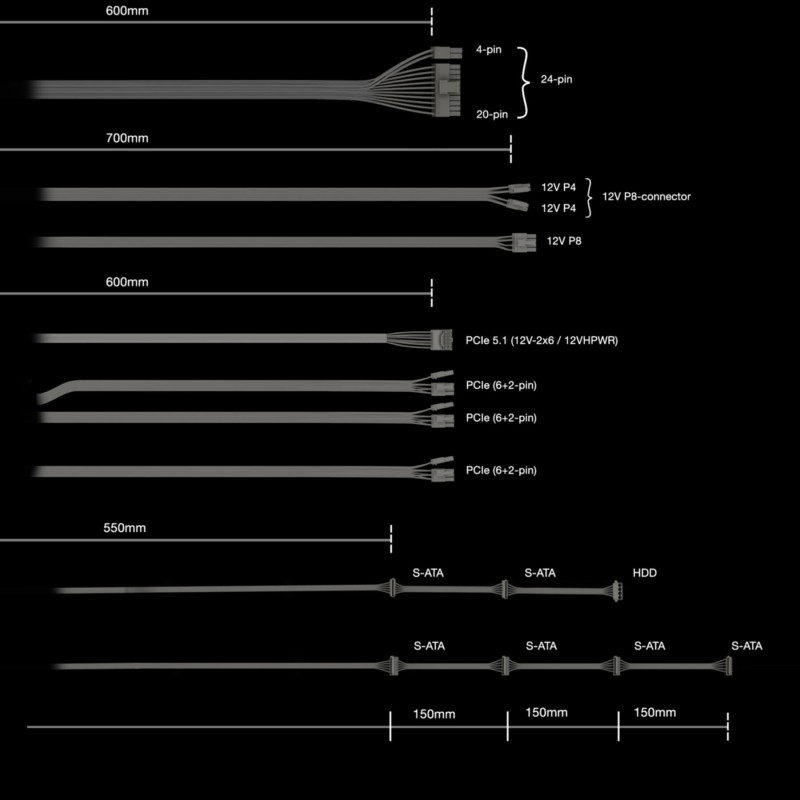

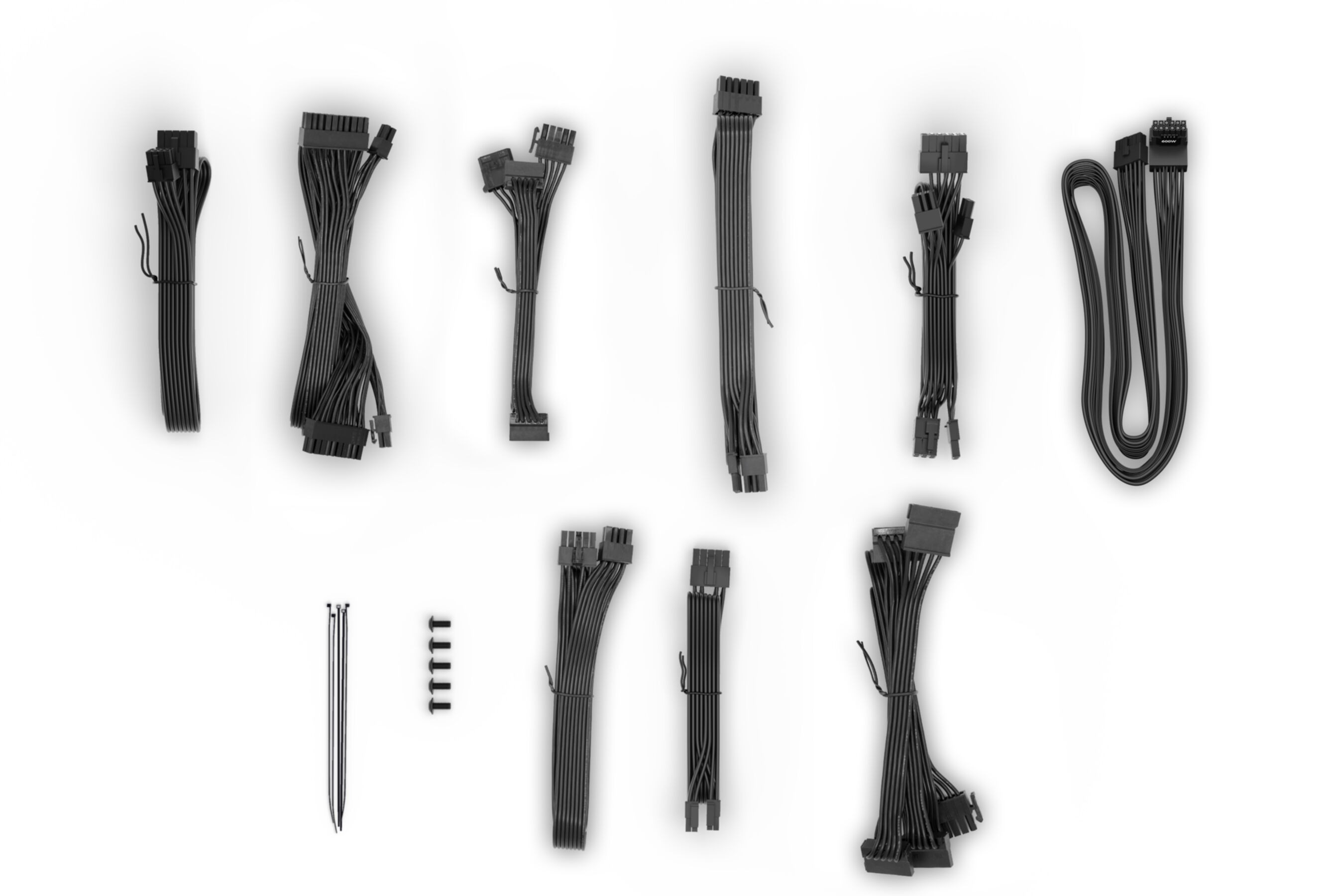

Motherboard power connector20+4 pin ATX
Motherboard power cable length60 cm
Number of SATA power connectors6
SATA power cable length550, 700, 850, 1000 mm
Peripheral (Molex) power connectors (4-pin)1
Peripheral (Molex) power cable length850 mm
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)3
PCI Express power connectors (16-pin)1
PCI Express power cable length60 cm
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
CPU power cable length70 cm

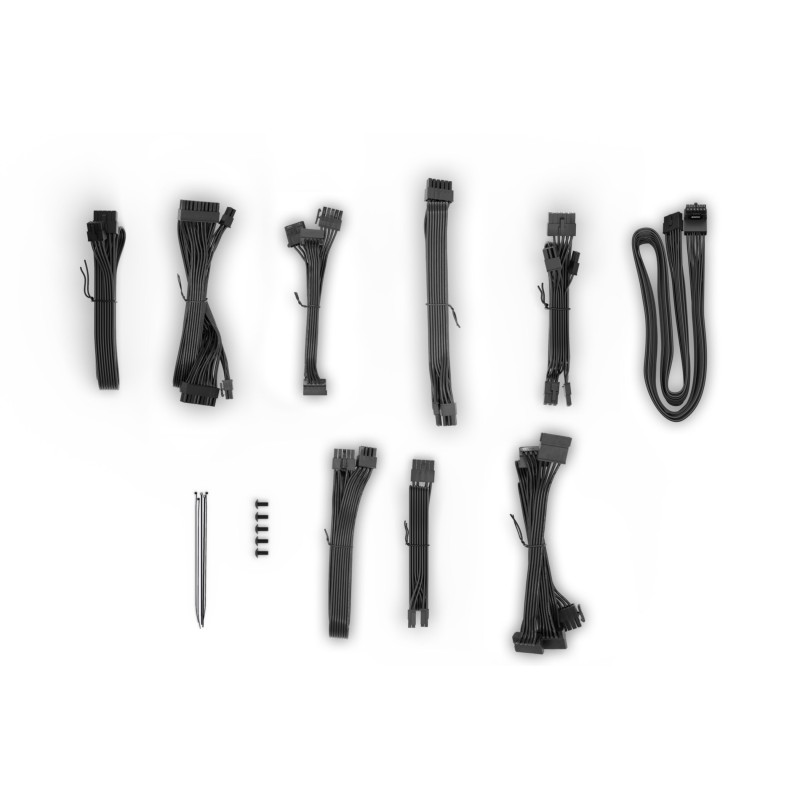

Cabling typeFully-Modular
80 PLUS certification80 PLUS Platinum
PurposePC
Power supply unit (PSU) form factorATX
ATX version3.1
EPS version2.92
Noise level15.8 dB
Bearing technologyRifle
Mean time between failures (MTBF)100000 h
Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)

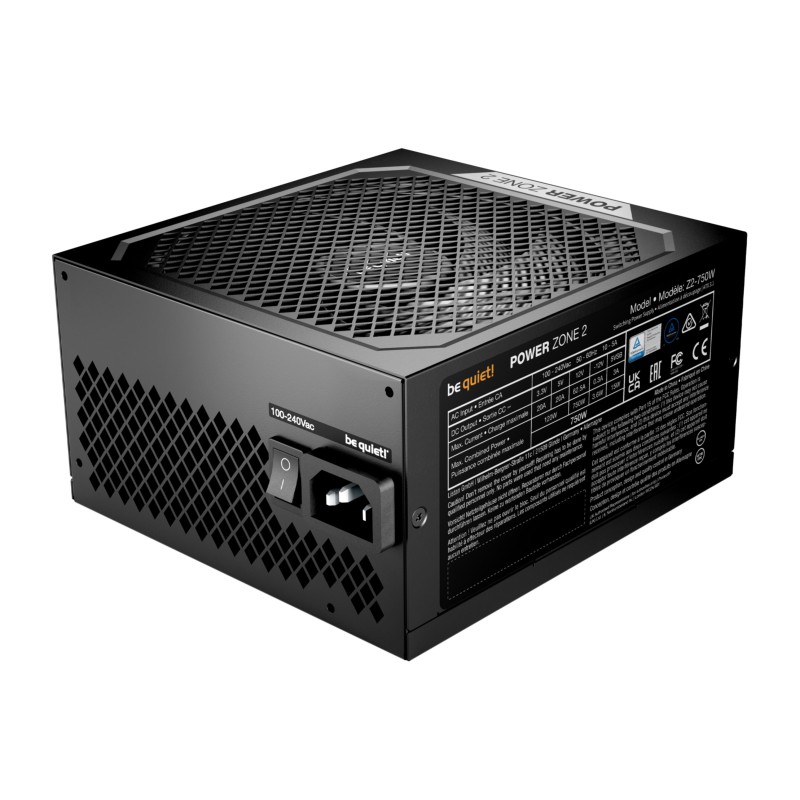

On/off switchYes
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 95%
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesBSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Width150 mm
Depth160 mm
Height86 mm
ManualYes
Manual languagesGerman, English, Spanish, French, Polish, Russian, Ukrainian
Package width248 mm
Package depth328 mm
Package height102 mm
Package weight3.21 kg
Package typeBox
Sustainability certificatesENERGY STAR, ErP, Triman
Shipping (inner) case length65.1 cm
Shipping (inner) case width28.2 cm
Shipping (inner) case height34.6 cm
Products per shipping (inner) case6 pc(s)
Shipping (inner) case gross weight19.3 kg
Screws includedYes
Cable ties includedYes
