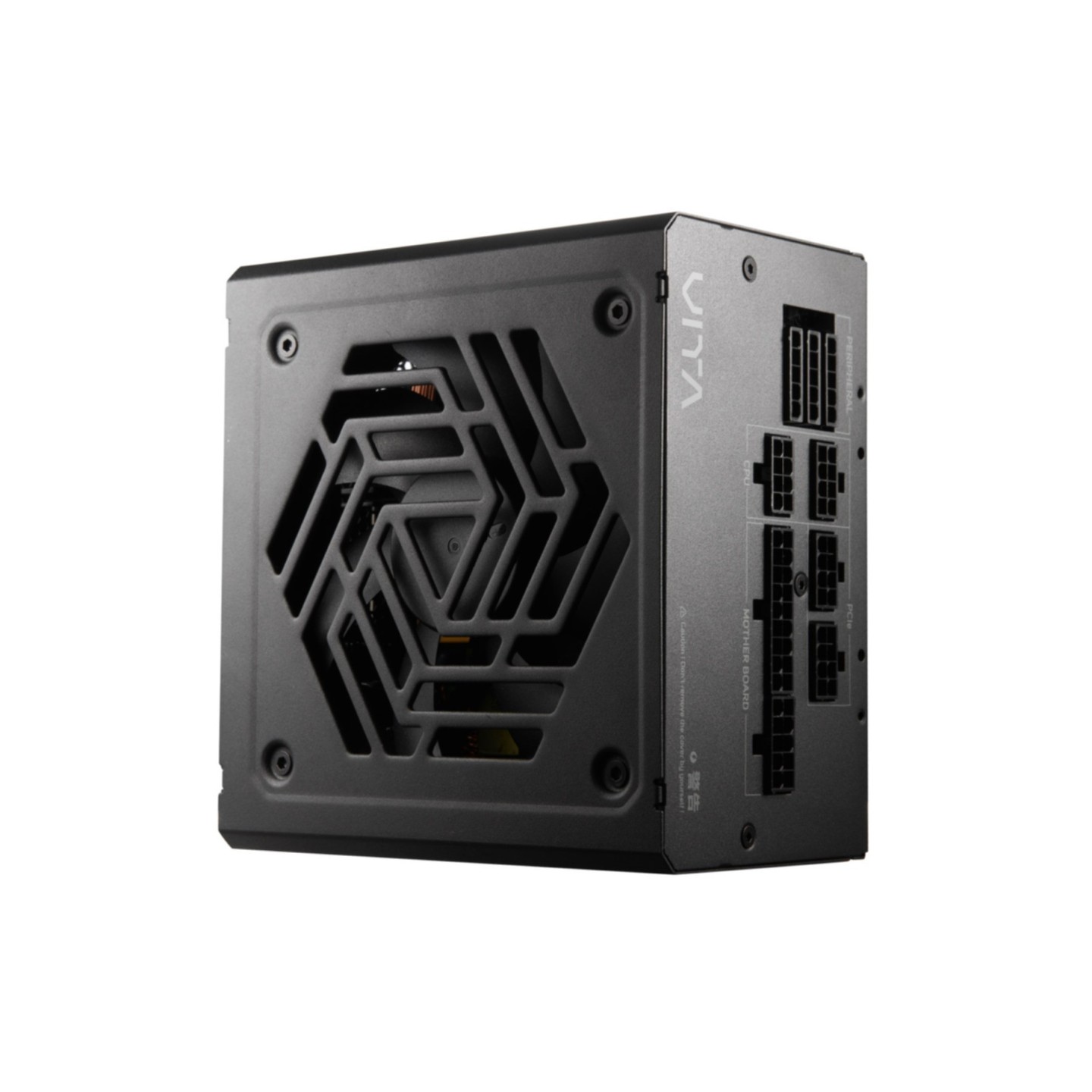

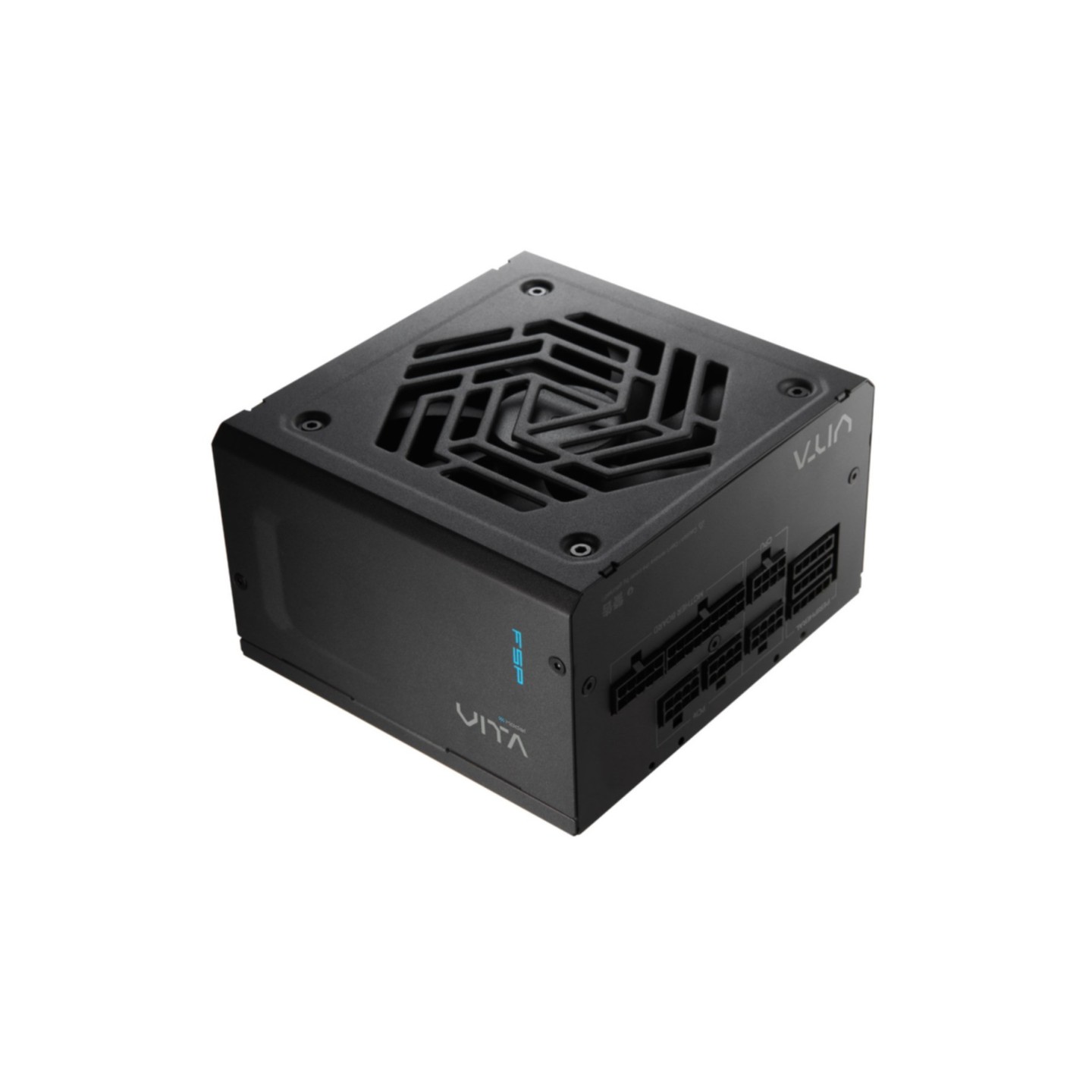

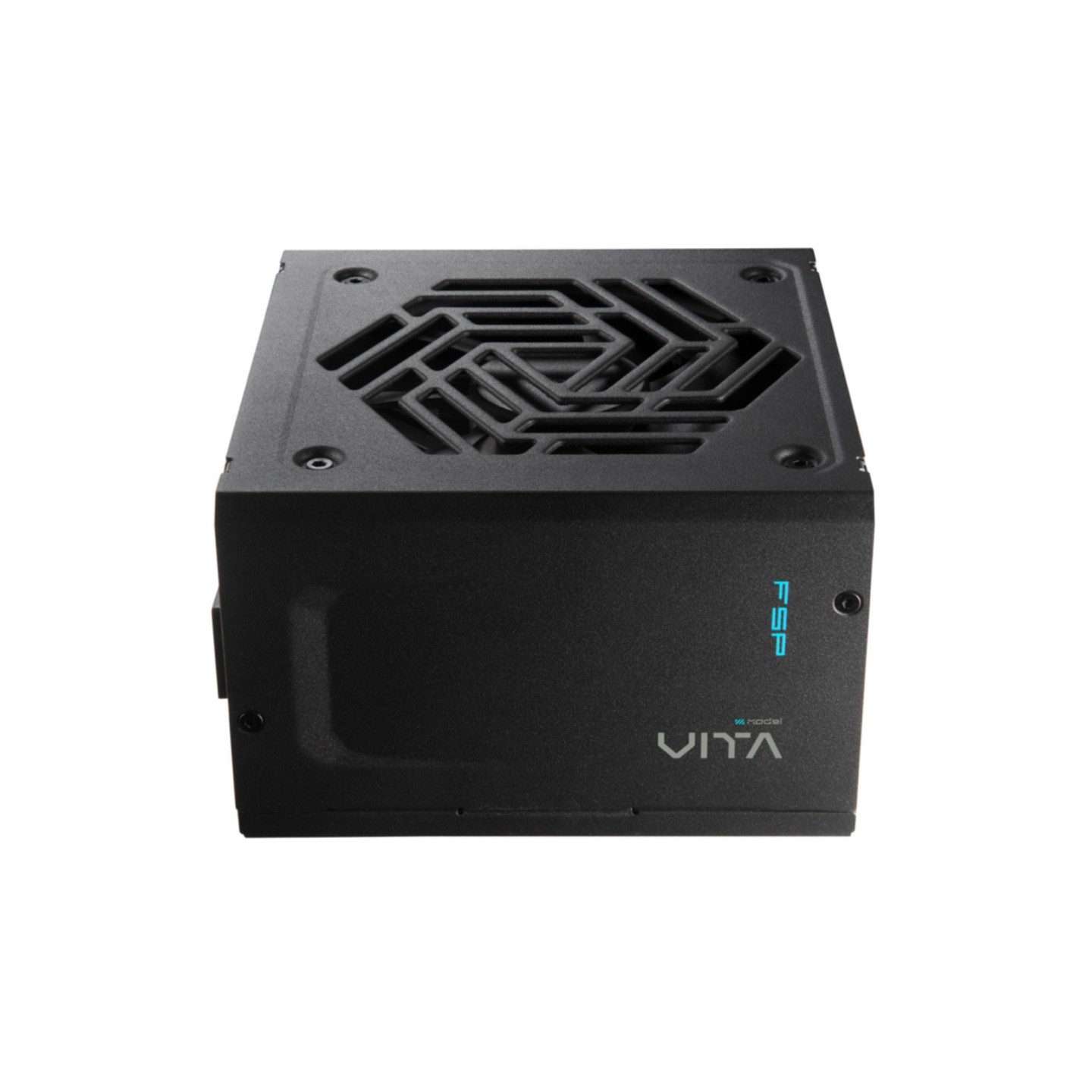

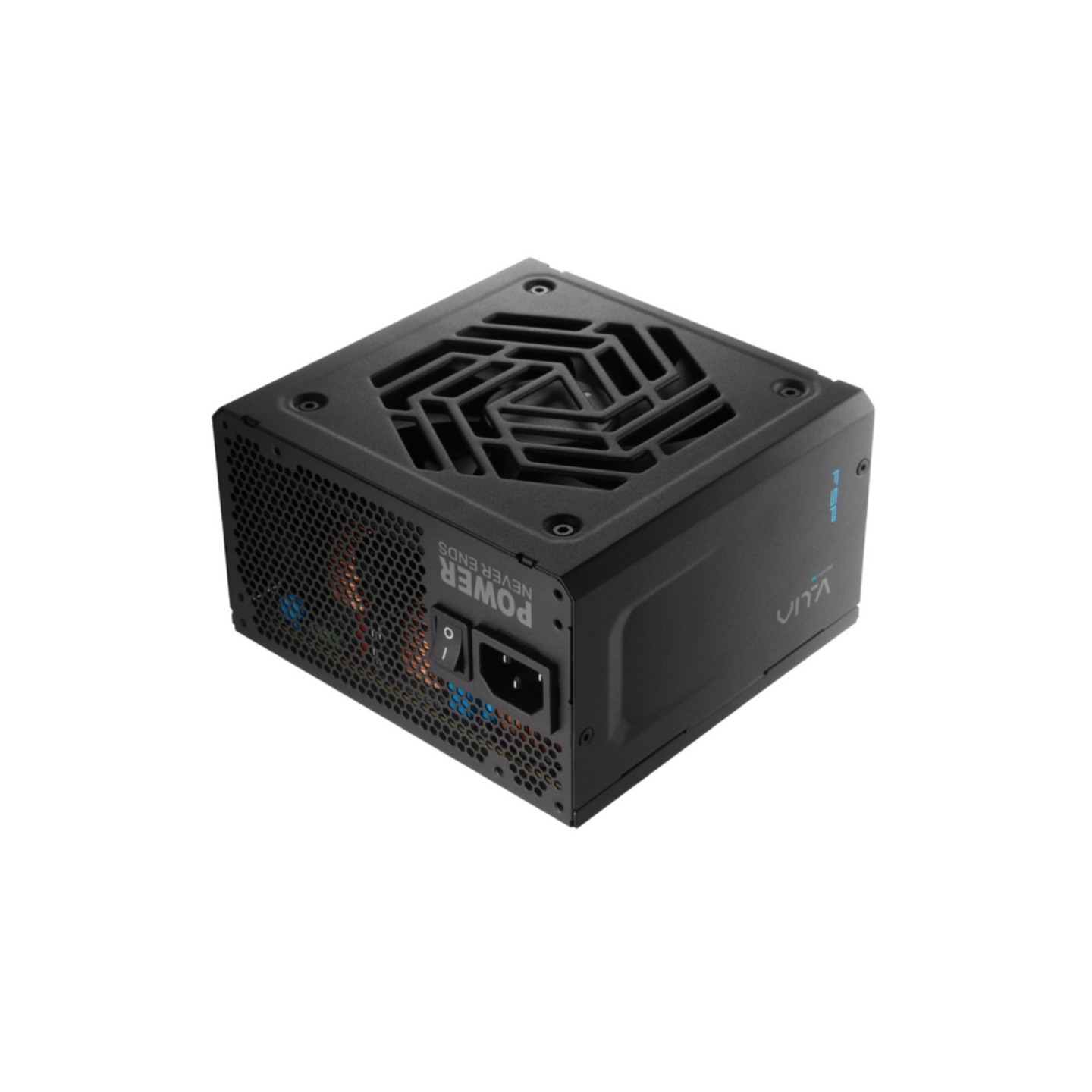

Fortron VITA GM 850W 80+ Gold Fully-Modular ATX 3.1 PSU (Boxed)
850W fully-modular Fortron VITA GM PSU with 80 Plus Gold certification, ATX 3.1 compliance, compact 140mm depth, 4x PCIe 6+2 connectors, and 10-year warranty for reliable PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Fortron VITA GM 850W is a compact, fully-modular power supply designed for modern PC builds requiring reliable and efficient power delivery. With an 80 Plus Gold certification and Cybenetics Gold/Platinum rating, this unit delivers approximately 90% efficiency across typical loads, making it an excellent choice for gaming and workstation systems. The PSU features a diminutive 140mm depth footprint, allowing it to fit into various chassis designs without compromising performance.
Technically, the VITA GM 850W excels in load regulation and voltage ripple suppression, with exceptional stability across all output rails. It includes comprehensive protection features (OCP, OVP, SCP, OPP, UVP, OTP) and is backed by a robust 10-year manufacturer warranty. The unit employs a 120mm hydraulic bearing fan for efficient cooling and includes fully-modular cabling with flexible, high-quality connectors that simplify cable management during system builds.

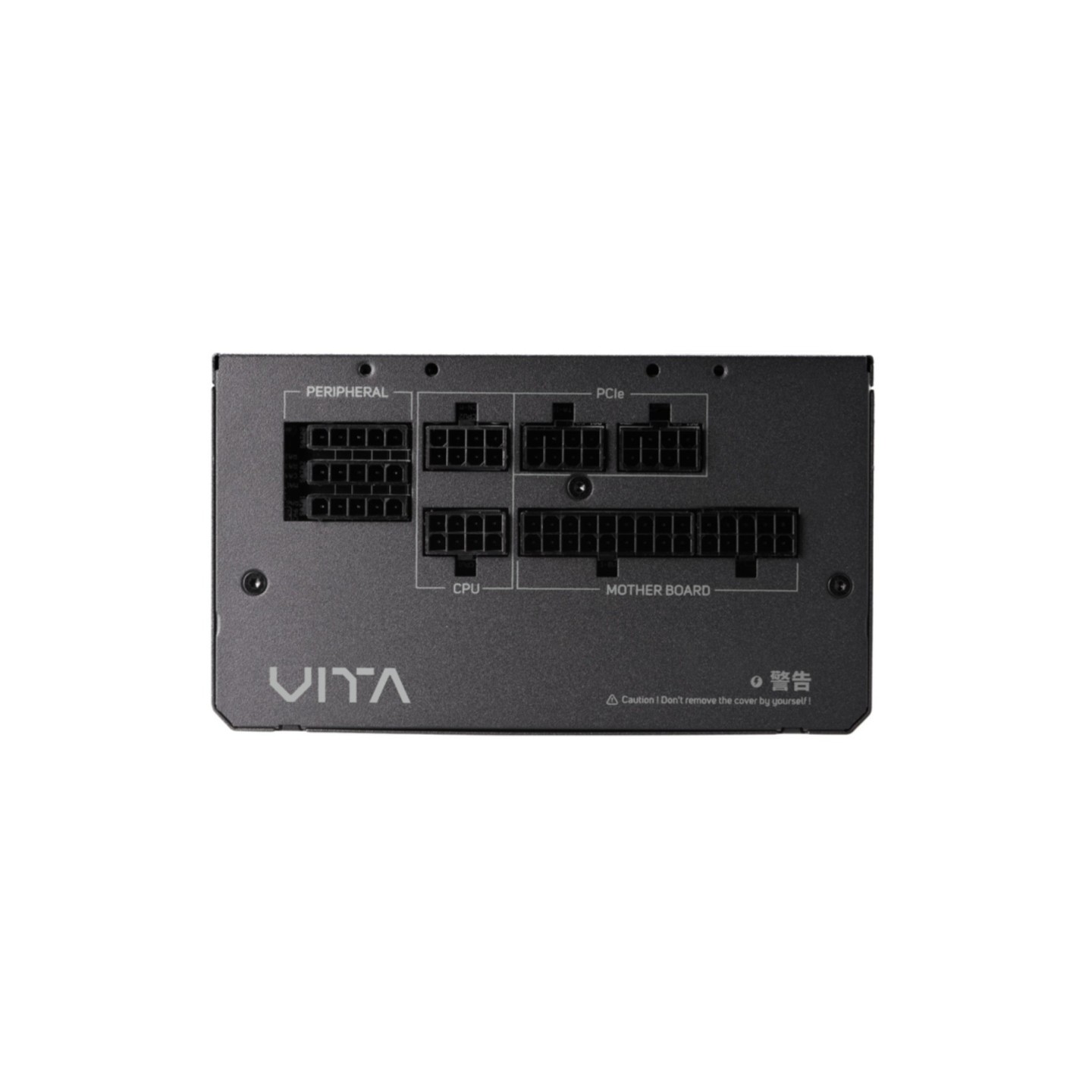

Key connectivity includes 4x PCIe 6+2 pin connectors for GPU power, 1x 4+4 pin EPS/ATX12V CPU connector, 8x SATA connectors, and standard 20+4 pin ATX motherboard connector. The PSU supports ATX v3.1 and EPS 2.92 specifications, with active power factor correction (PFC) for improved efficiency and compatibility with modern components.
- 80 Plus Gold certified with ~90% efficiency rating
- Fully-modular cabling design for easy cable management
- Compact 140mm depth fits most PC chassis
- 4x PCIe 6+2 pin connectors for high-end GPUs
- Complete protection suite: OCP, OVP, SCP, OPP, UVP, OTP
- 10-year manufacturer warranty
- 120mm hydraulic bearing fan for reliable cooling
- ATX v3.1 and EPS 2.92 compliant
| Total Power Output | 850 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 11-5.5 A |
| Power Factor Correction | Active PFC |
| Combined Power +12V | 850 W |
| Combined Power +5V | 100 W |
| Combined Power +3.3V | 100 W |
| Combined Power +5Vsb | 15 W |
| Combined Power -12V | 3.6 W |
| Max Output Current +12V | 70.83 A |
| Max Output Current +5V | 20 A |
| Max Output Current +3.3V | 20 A |
| Max Output Current +5Vsb | 3 A |
| Max Output Current -12V | 0.3 A |
| Efficiency Rating | 80 Plus Gold (~90% at typical load) |
| Cybenetics Certification | Cybenetics Gold (750W/850W/1000W); Cybenetics Platinum at 230V (91-93%) |
| Voltage Regulation 12V Rail | 0.9% deviation |
| Voltage Regulation 5V Rail | 1.8% deviation |
| Voltage Regulation 3.3V Rail | 1.7% deviation |
| Ripple Suppression 12V | 36 mV maximum |
| Ripple Suppression 5V | 24 mV maximum |
| Ripple Suppression 3.3V | 24 mV maximum |
| Protection Features | OCP (Over Current), OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power), UVP (Under Voltage), OTP (Over Temperature) |

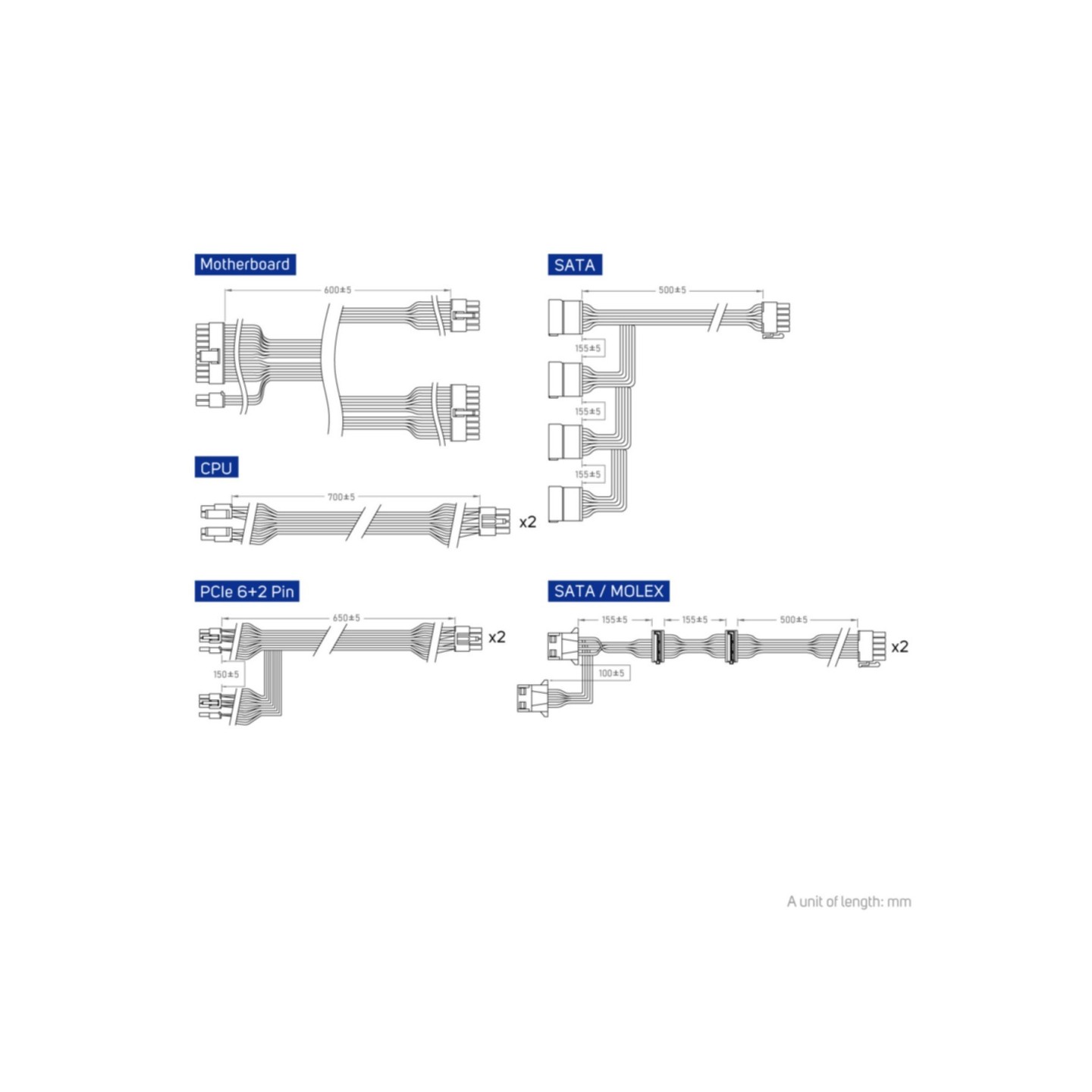

| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 60 cm |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| CPU Power Cable Length | 70 cm |
| PCIe GPU Power Connectors | 4x 6+2 pin (PCIe) |
| SATA Power Connectors | 8x SATA |
| SATA Power Cable Length | 500 mm |
| Peripheral Molex Connectors | 4x 4-pin |
| Cabling Type | Fully-Modular |
| ATX Specification | ATX 12V v3.1 |
| EPS Specification | EPS 12V v2.92 |
| Form Factor | ATX |
| Cooling Fan | 1x 120mm hydraulic bearing (HYB) fan |
| Fan Location | Top |
| Primary Capacitor | TK (Toshin Kogyo) 105°C 450V 680µF Japanese bulk capacitor |
| Dimensions (Unit Only) | 150mm (W) × 140mm (D) × 86mm (H) |
| Color | Black |
| Operating Temperature | 0 - 40°C continuous full load |
| Warranty | 10-year manufacturer warranty |
| Load Regulation Performance | Very good across full rated output range (850W) |
| Noise Level | Cybenetics A rating (20-25 dB[A]) |
