SAPPHIRE NITRO+ Radeon RX 9070 Gaming OC - Grey, 16GB GDDR6, Boost 2700 MHz, PCIe 5.0 - 11349-01-20G (Boxed)
High-performance Radeon RX 9070 GPU with 16GB GDDR6, Boost 2700 MHz (Gaming 2210 MHz), PCIe 5.0 x16, 2x DisplayPort 2.1a + 2x HDMI, Tri-X triple-fan cooling, ARGB lighting, 245W TDP, MPN 11349-01-20G.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Other |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12-pin |
| GPU (Graphics Cards) - Card Length | Ultra (321-340 mm) |
The SAPPHIRE NITRO+ Radeon RX 9070 Gaming OC delivers exceptional gaming performance with its AMD Radeon RX 9070 GPU, featuring 56 compute units, 3584 stream processors, 112 AI accelerators, and 16GB GDDR6 memory on a 256-bit bus at 20 Gbps. Boost clock reaches 2700 MHz with PCIe 5.0 support for future-proofing. Equipped with 2x DisplayPort 2.1a and 2x HDMI ports for up to 4 displays at 7680x4320 resolution.

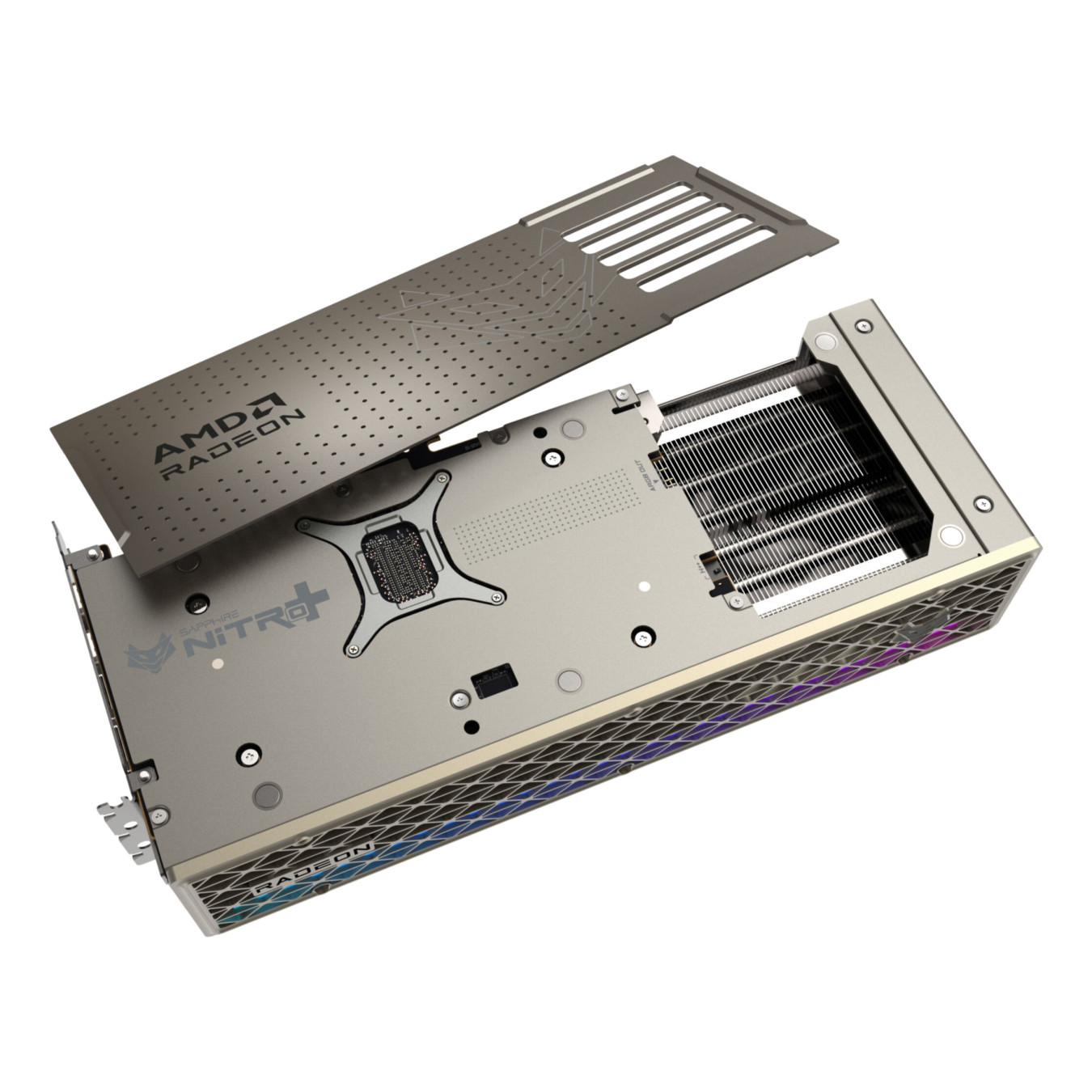

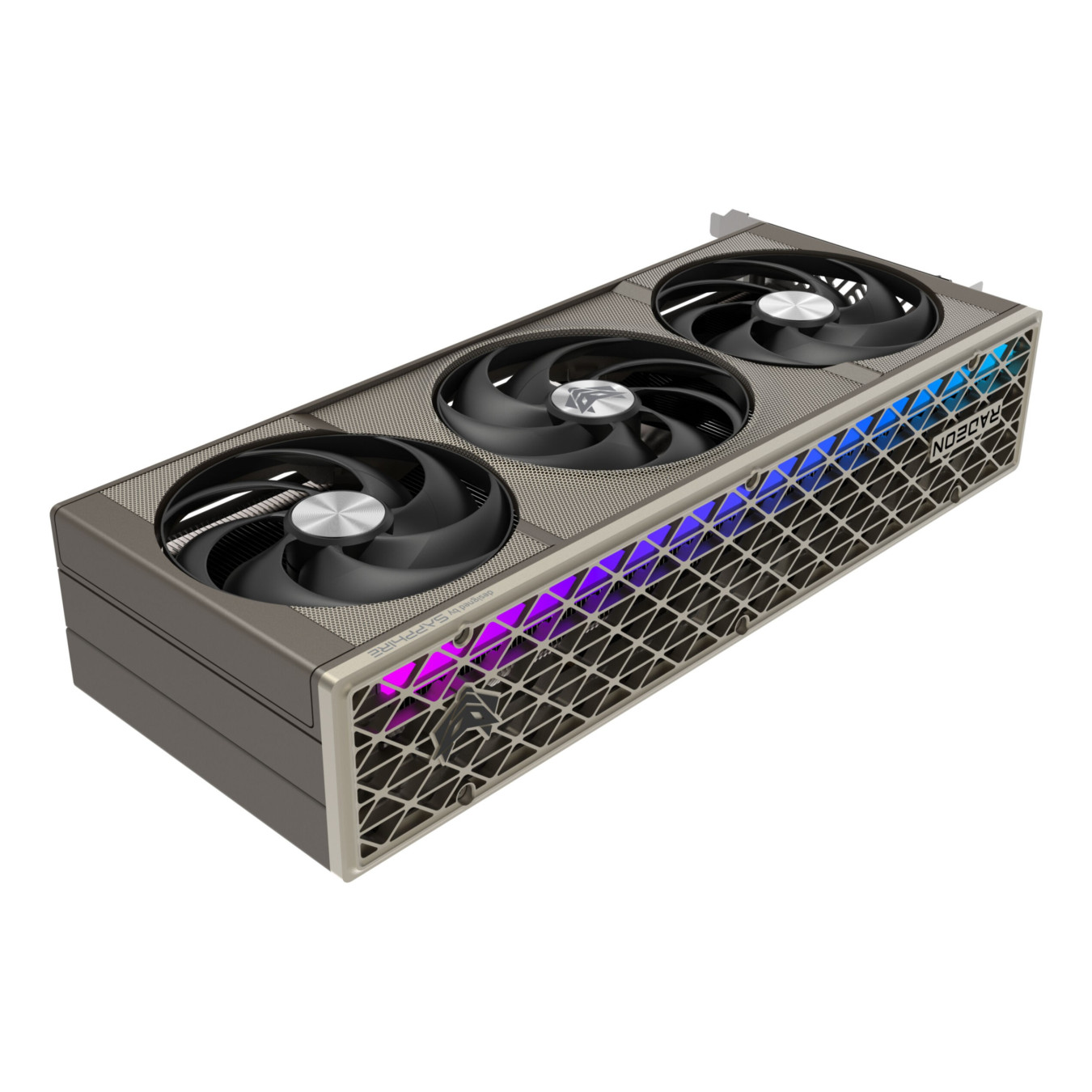

Advanced TRI-X Cooling uses three AeroCurve fans with dual-ball bearings, Honeywell PTM7950 TIM, optimized heatpipes, and Free Flow heatsink for quiet, efficient cooling under load. Features include ARGB lighting, Quick Connect fans, STEALTH hidden 12-pin power cable, Cold Rolled Steel Frame, FrameDefense, and L-Shape supporter for durability and easy maintenance. Backplate enhances rigidity and heat dissipation.
- ✅ 16GB GDDR6, 64MB Infinity Cache, DirectX 12 Ultimate
- ✅ AMD FreeSync, Ray Tracing support
- ✅ 3.2-slot design: 330.8 x 128.5 x 65.7 mm
- ✅ Requires 650W PSU, 1x 12-pin connector
- ✅ Windows 10/11 & Linux compatible
| CUDA | No |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 |
| Processor boost clock speed | 2700 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Cooling type | Active |
| Cooling technology | Sapphire Tri-X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 3.2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 12-pin |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Length | 330.8 mm |
| Depth | 65.7 mm |
| Height | 128.5 mm |
| Package type | Box |
