be quiet!

be quiet! Pure Base 501 - Mid Tower PC Case, Black, ATX/mATX/Mini-ITX, USB-C, 2x140mm Fans

SKU 6648 Brand be quiet! EAN13 4260052191798
Mid-tower PC case (Pure Base 501) — supports ATX/microATX/Mini-ITX, up to 178 mm CPU cooler, 1x USB-C + 2x USB-A, 2x included 140 mm fans, 7 expansion slots.
PC Cases - Type Mid Tower
PC Cases - CPU Cooler Clearance greater than170 mm
PC Cases - Radiator Support (Top) 240 mm
PC Cases - Included Fans 2
PC Cases - Front I/O 2xUSB-A + USB-C
PC Cases - GPU Orientation Horizontal

Comfortably compact
Pure Base 501 is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.

REDUCED TO THE MAX
Classic appearance

Without any distractions, Pure Base 501 is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.

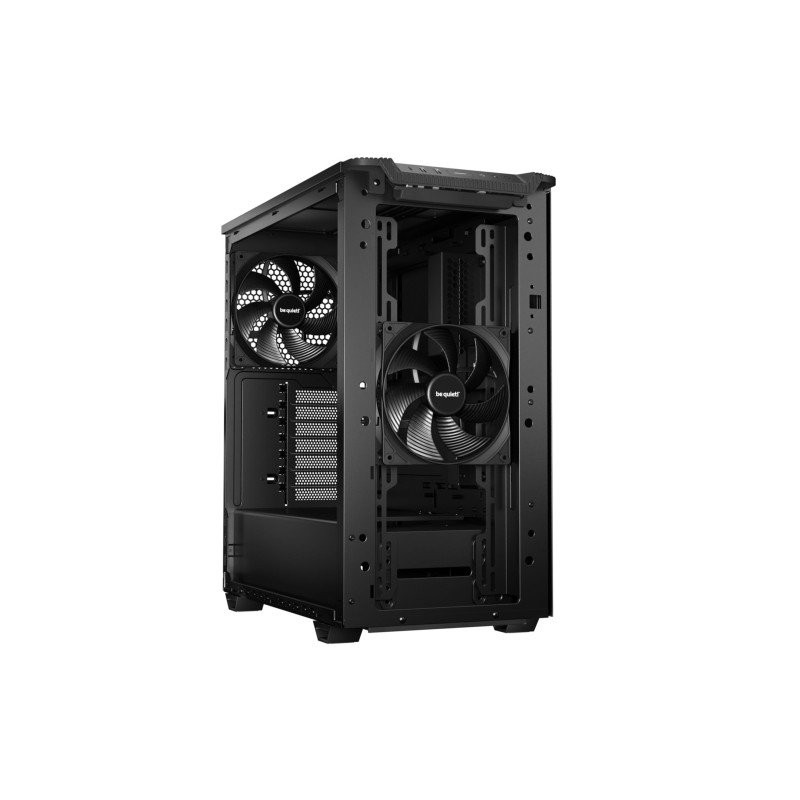

PERFECT CASE FAN
Fan blades optimized for high airflow

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.

MORE THAN MEETS THE EYE

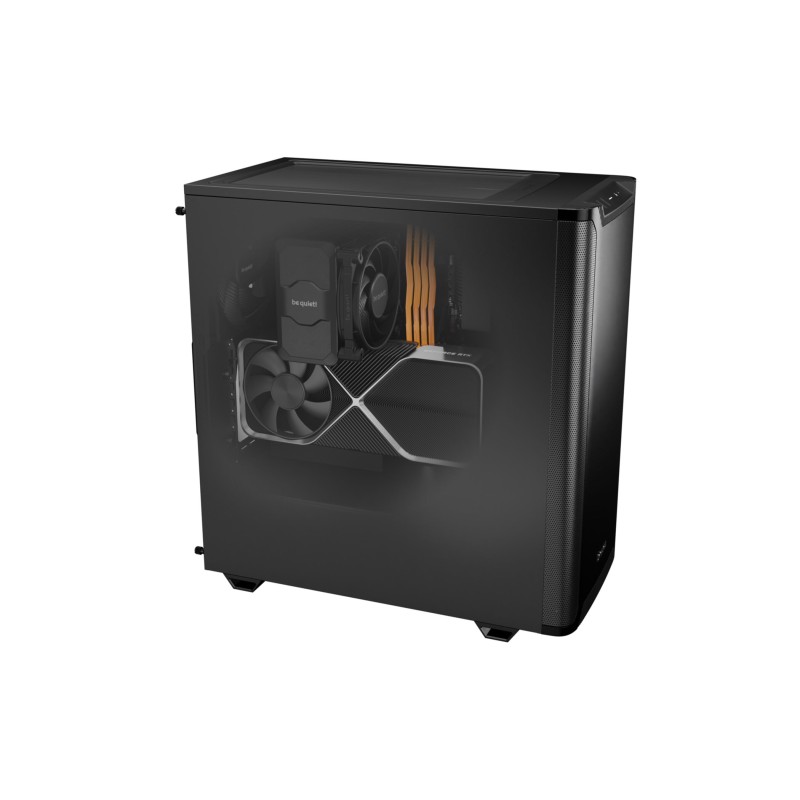

Generous space for high-end hardware

Despite its compact dimensions, Pure Base 501 offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.

WAY UP!
With rotatable PCIe slots

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.

INVENTORY MANAGEMENT
With smart cable routing options

As a compact PC case, Pure Base 501 optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.

CONNECT WITH ME
State-of-the-art technology for your system

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.


MaterialAcrylonitrile butadiene styrene (ABS), Steel
Form factorMidi Tower
TypePC
Product colourBlack
Supported motherboard form factorsATX, micro ATX, Mini-ITX
Number of 3.5" bays2
Number of 2.5" bays5
Number of expansion slots7
Reset buttonYes
On/off buttonYes
Maximum CPU cooler height17.8 cm
Maximum PSU length18 cm
Power supply includedNo
Supported power supply form factorsATX, PS2
Audio inputYes
Audio outputYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Front fans installed1x 140 mm
Number of front fans supported (max)2
Front fans diameters supported120, 140 mm
Rear fans installed1x 140 mm
Number of rear fans supported (max)1
Rear fans diameters supported120, 140 mm
Number of top fans supported (max)2
Top fans diameters supported120, 140 mm
Maximum airflow57.4 cfm
Maximum air pressure0.96 mmH2O
Front radiator sizes supported120, 140, 240, 280, 360 mm
Rear radiator sizes supported120, 140 mm
Top radiator sizes supported120, 240 mm
Supported HDD sizes2.5, 3.5"
Compliance certificatesCE, REACH, RoHS
Width231 mm
Depth450 mm
Height463 mm
Weight6.7 kg
Package width292 mm
Package depth518 mm
Package height503 mm
Package weight7.8 kg
