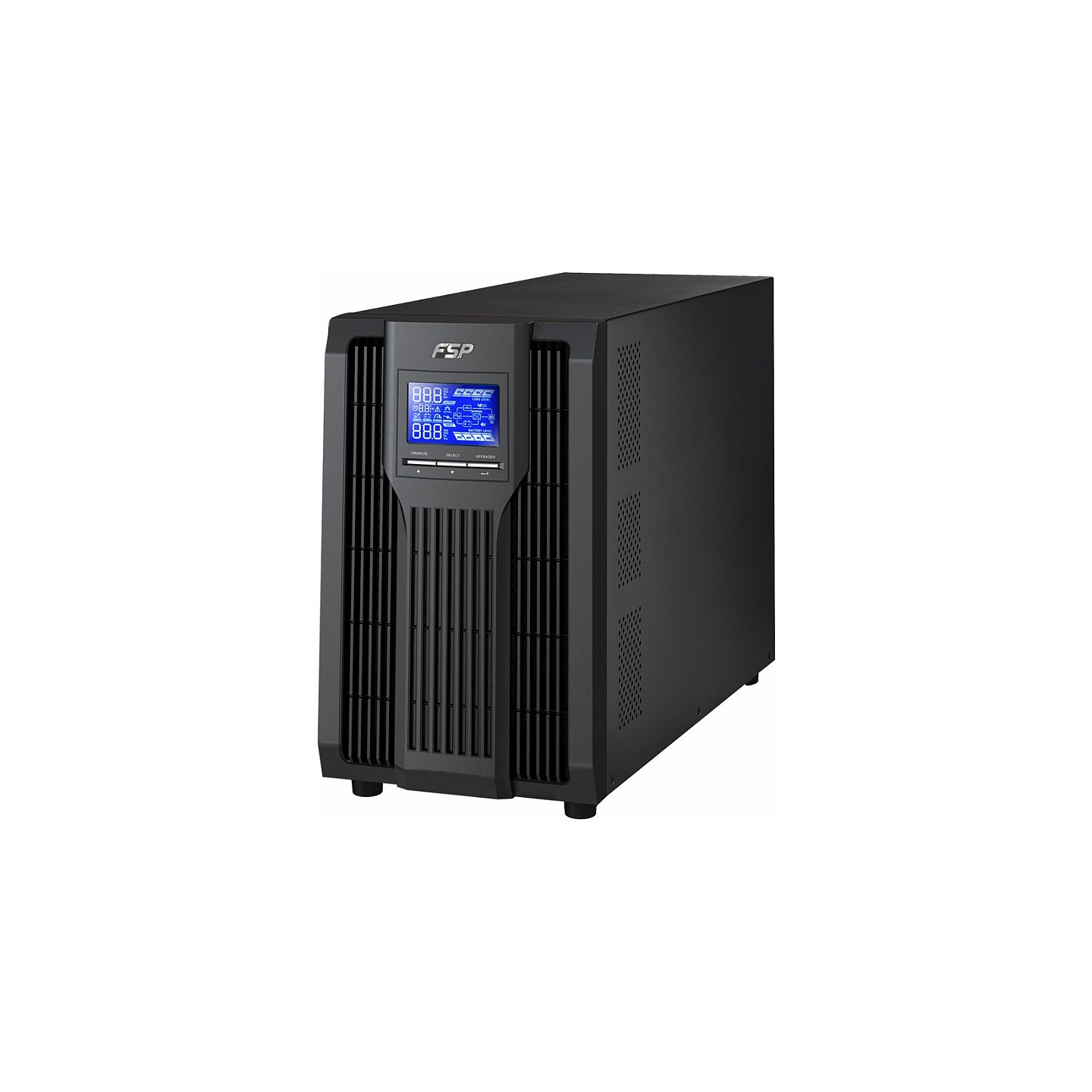

FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xIEC (Boxed)
FSP Champ 3K Tower Online UPS (double-conversion) delivers 3000VA/2700W pure sine wave output. Features wide 120-300V input, 0ms transfer, LCD display, USB/RS-232. 4x IEC C13 outlets, 3.5min full/9.8min half backup. Ideal for servers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 3000 - 4999 VA |
| UPS & Power Backup - Power Output (Watts) | 2000 to 2999 W |
| UPS & Power Backup - Topology | Online (Double Conversion) |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | LCD Display Pure Sine Wave Output |
The FSP Champ 3K Tower is a true online double-conversion UPS providing 3000VA/2700W capacity with pure sine wave output, perfect for servers, workstations, and critical IT equipment. It features microprocessor control, wide input voltage range of 120-300V, and 0ms transfer time for uninterrupted power.
Equipped with 4x IEC C13 outlets, USB Type-B, RS-232 ports, and LCD display for comprehensive monitoring. ECO mode saves energy, generator compatibility, and high power factor (0.99 input, 0.9 output). Batteries: 6x 12V/9Ah, backup 3.5min full load, 9.8min half load, 4h recharge.
- Topology: Online Double Conversion
- Output: 2700W Pure Sine Wave, ±1% regulation
- Backup Times: 3.5min full, 9.8min half load
- Interfaces: USB, RS-232, LCD display
- Dimensions: Tower form factor, 27.6kg net weight
| UPS Topology | Double Conversion (Online) |
| Output Capacity | 3000 VA |
| Output Power | 2700 W |
| Waveform | Pure Sine Wave |
| Input Voltage Range | 120-300 V |
| Input Frequency | 40-70 Hz |
| Output Voltage | 200-240 V |
| Output Frequency | 47/63 Hz |
| Voltage Regulation | ±1% |
| Transfer Time | 0 ms |
| Power Factor | 0.99 (input) |
| THD Linear Load | 3% |
| Noise Level | 50 dB |
| AC Outlet Types | 4x IEC C13 |
| USB Ports | 1x USB Type-B |
| Serial Interface | 1x RS-232 |
| Battery Capacity | 9 Ah |
| Battery Voltage | 12 V (6 cells) |
| Backup Time Full Load | 3.5 min |
| Backup Time Half Load | 9.8 min |
| Recharge Time | 4 hours (to 90%) |
| Form Factor | Tower |
| Color | Black |
| Display Type | LCD |
| Width | 190 mm |
| Depth | 421 mm |
| Height | 318 mm |
| Weight | 27.6 kg (net) |
| MPN | PPF24A1807 |
