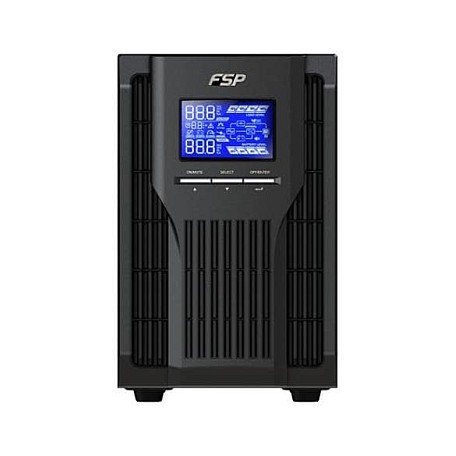

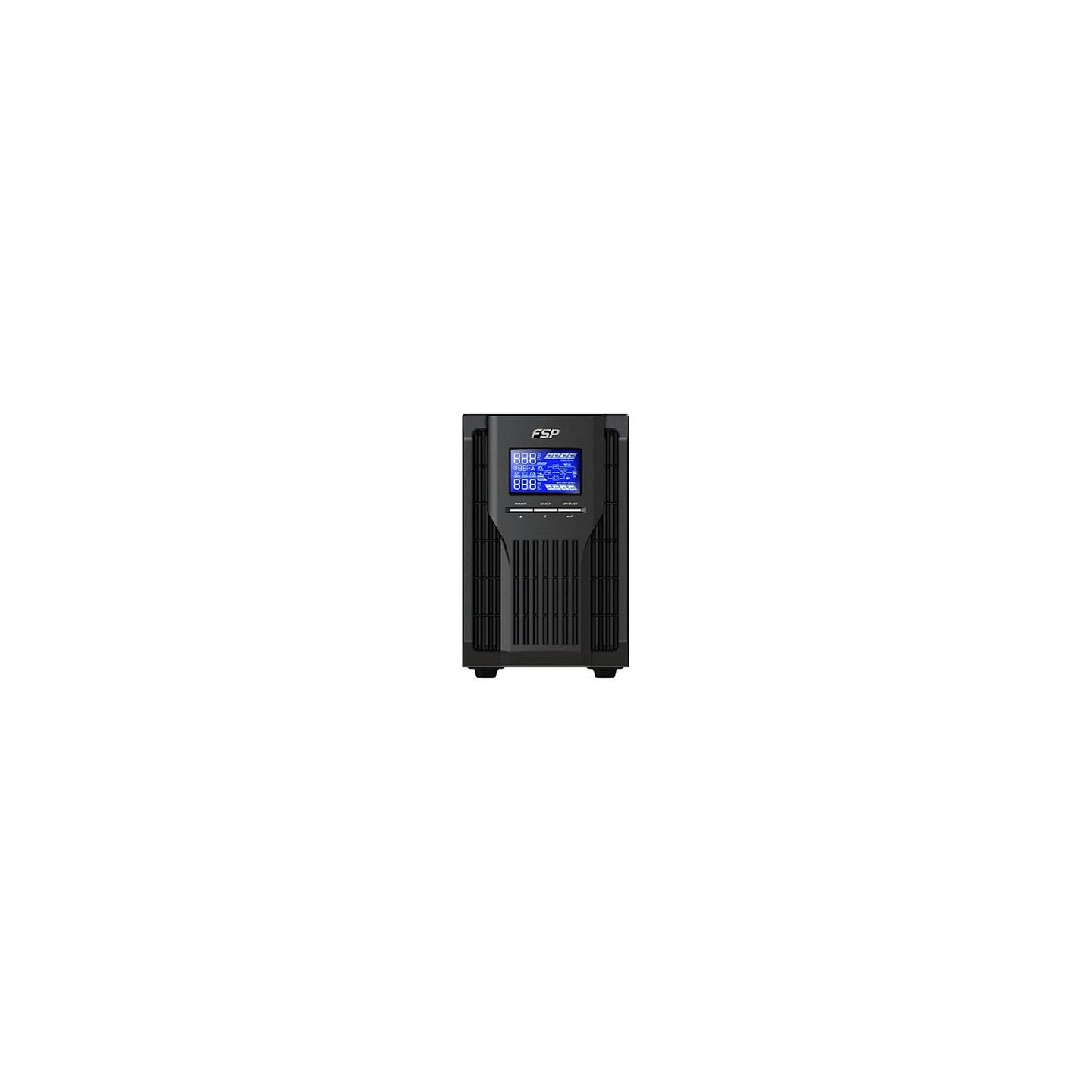

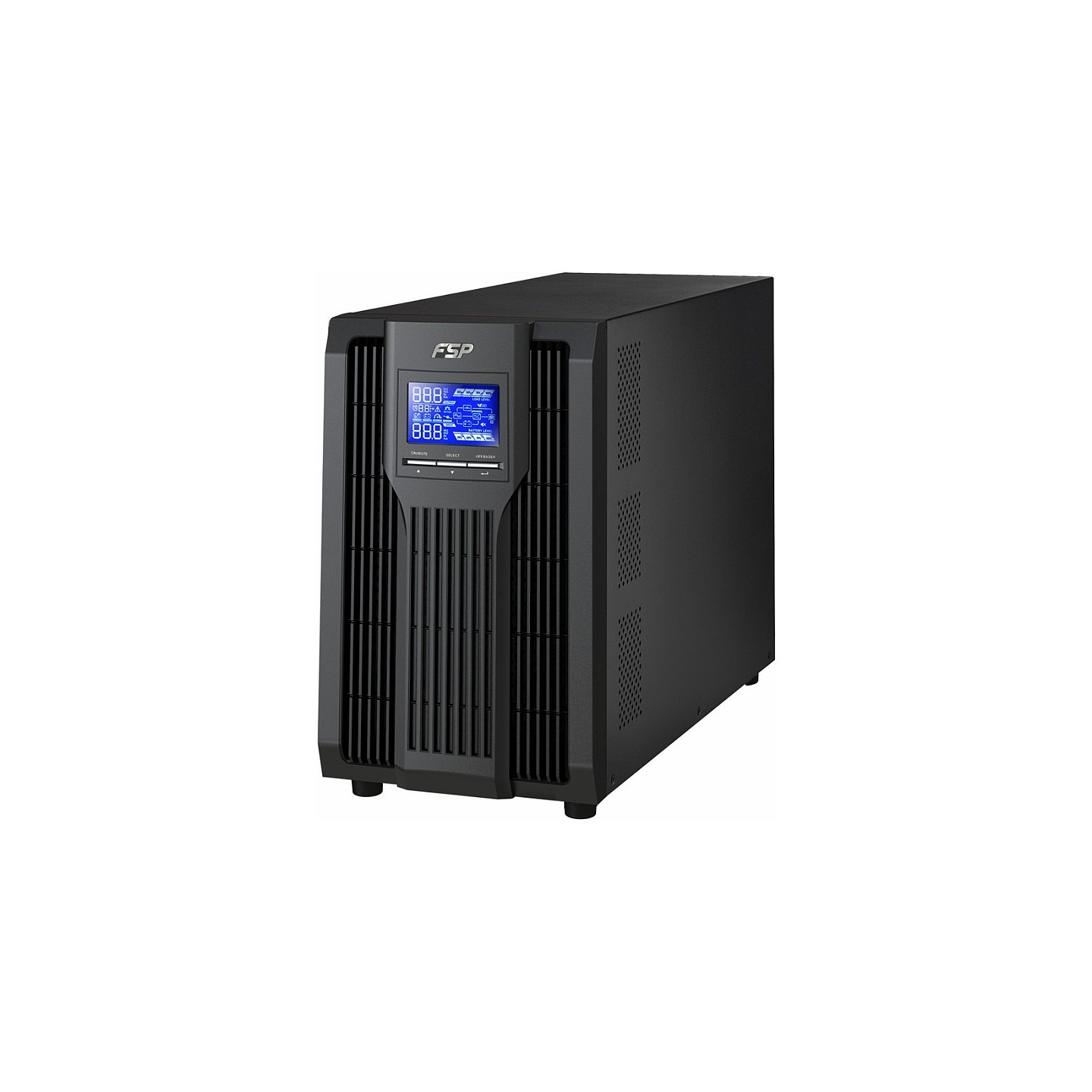

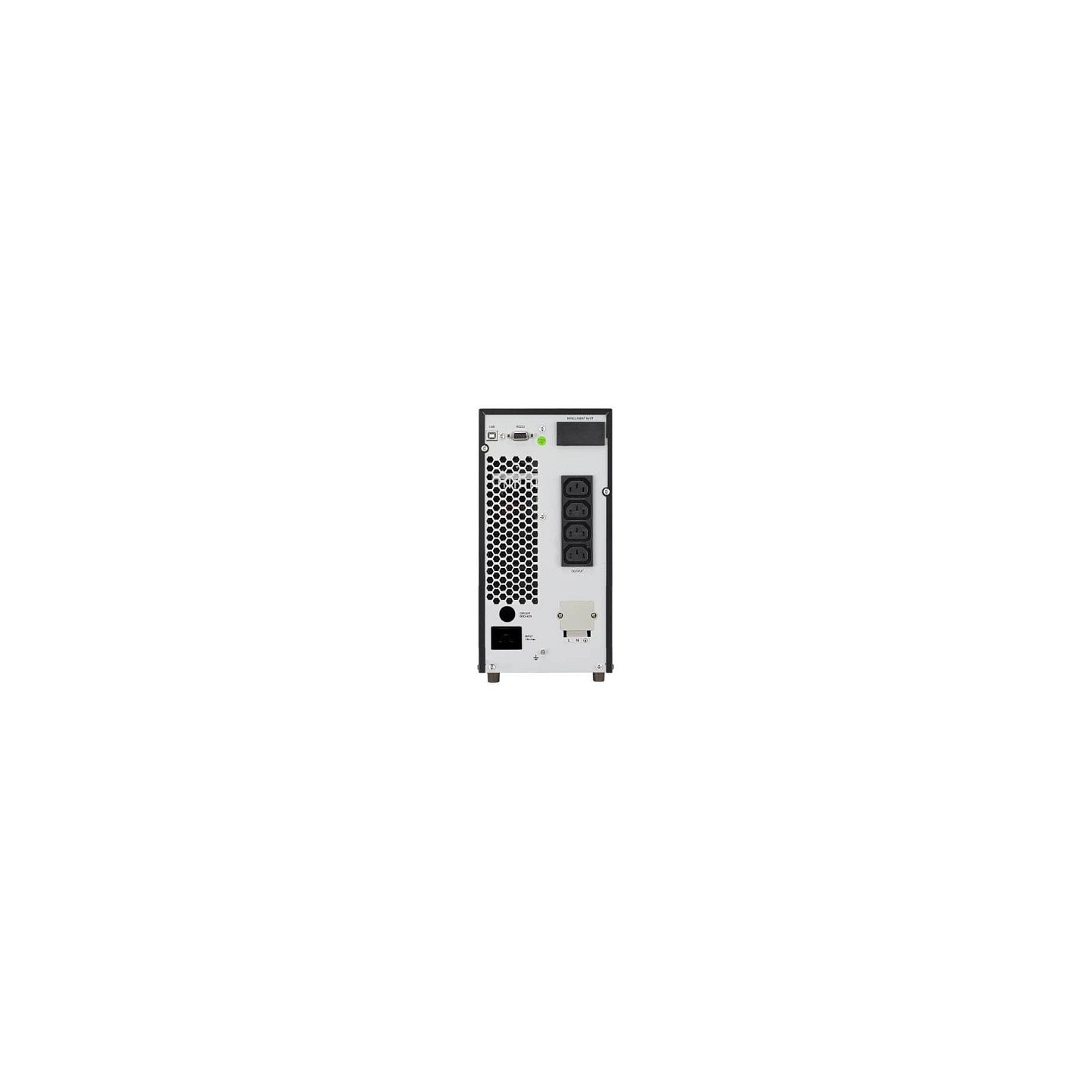

FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xIEC
FSP Champ Tower 3K. Doppelwandler (Online). 3 kVA. 2700 W. Sine. 120 V. 300 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
FSP Champ Tower 3K. USV-Topologie: Doppelwandler (Online). Ausgangskapazität: 3 kVA. Ausgangsleistung: 2700 W. AC-Steckertypen: C13-Koppler. USB-Port-Typ: USB Typ-B. Serielle Schnittstelle: RS-232. Batteriekapazität: 9 Ah. Akku-/Batteriespannung: 12 V. Typische Backup-Zeit bei voller Belastung: 3.5 min. Formfaktor: Tower. Produktfarbe: Schwarz. Steuerung: Tasten. Mitgelieferte Kabel: Eingangskabel. USB-Kabel
| USV-Topologie | Doppelwandler (Online) |
| Ausgangskapazität | 3 kVA |
| Ausgangsleistung | 2700 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 120 V |
| Eingangs-Betriebsspannung (max) | 300 V |
| Eingangsfrequenz | 40 - 70 Hz |
| Ausgangs-Betriebsspannung (min) | 200 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 47/63 Hz |
| Regulierung der Ausgangsspannung | 1% |
| Reaktionszeit | 0 ms |
| Leistungsfaktor | 0.99 |
| Crest-Faktor | 3:1 |
| Gesamtverzerrungsfaktor THD (lineare Last) | 3% |
| Gesamtverzerrungsfaktor THD (nichtlineare Last) | 6% |
| Geräuschpegel | 50 dB |
| Feature | Software-CD |
| Akustische Alarm-Modi | Alarm bei Batteriebetrieb. Störung. Warnung bei geringer Batterie. Überlastungsalarm |
| AC-Steckertypen | C13-Koppler |
| Anzahl der Output IEC Jumper | 4 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB-Port-Typ | USB Typ-B |
| Serielle Schnittstelle | RS-232 |
| RS-232 port | 1 |
| Batteriekapazität | 9 Ah |
| Akku-/Batteriespannung | 12 V |
| Anzahl Batteriezellen | 6 |
| Typische Backup-Zeit bei voller Belastung | 3.5 min |
| Typische Backup-Zeit bei halber Belastung | 9.8 min |
| Akku-Ladezeit (90 %) | 4 h |
| Formfaktor | Tower |
| Produktfarbe | Schwarz |
| Steuerung | Tasten |
| Display-Typ | LCD |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Mitgelieferte Kabel | Eingangskabel. USB-Kabel |
| Breite | 190 mm |
| Tiefe | 421 mm |
| Höhe | 318 mm |
| Gewicht | 27.6 kg |
| Warentarifnummer (HS) | 85078000 |
