be quiet! SFX Power 3 - 450W BN321 - SFX, 80 PLUS Bronze, Non-Modular, Compact Quiet PSU
450W SFX PSU (BN321), 80 PLUS Bronze, non-modular cables. Compact, quiet and reliable power for mini/HTPC systems; supports PCIe graphics cards.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 450 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
SFX Power 3 450W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.
| Total power | 450 W |
| Peak power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6/2.5 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 2.5 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 85 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 37.5 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 21 ms |
| Efficiency | 85.9% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 300, 450, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 300, 450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 55 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 60 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 3.42 |
| EPS version | 2.92 |

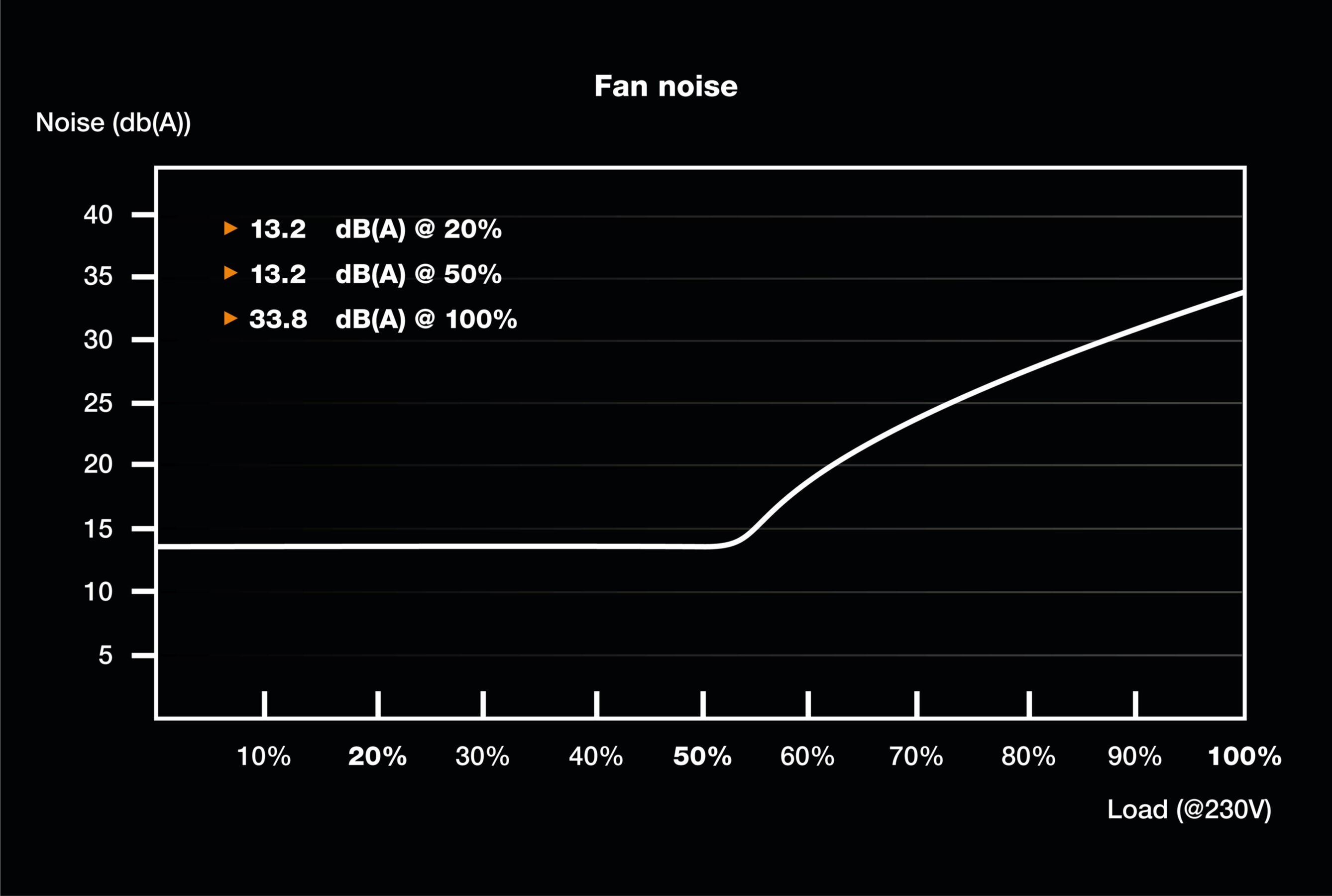

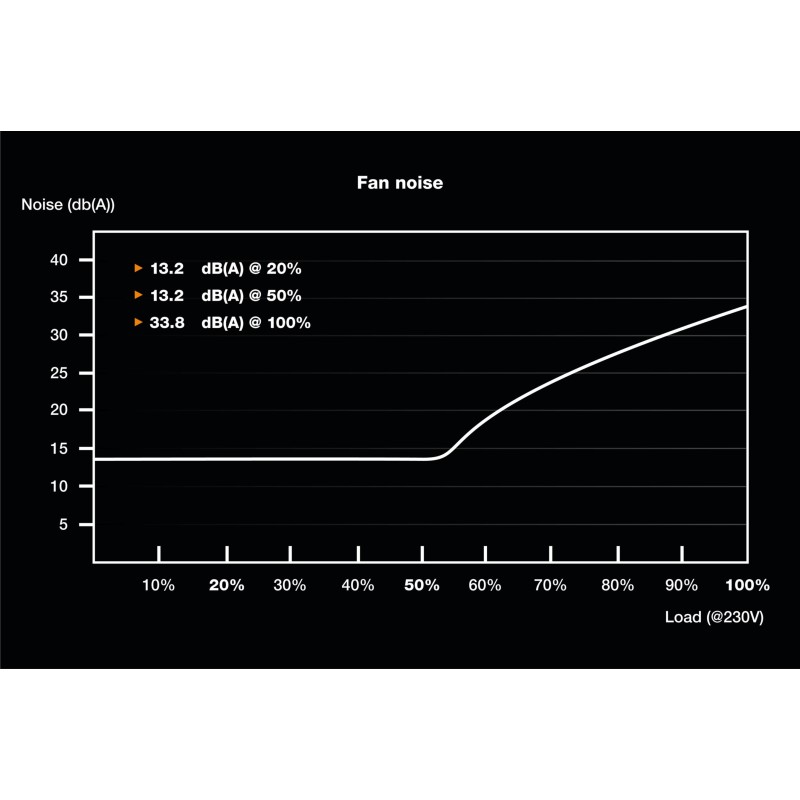

| Noise level | 33.8 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Compliance certificates | RoHS, WEEE |
| Safety | CE, CB, TÜV, CU |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 890 g |
| Package width | 197 mm |
| Package depth | 75 mm |
| Package height | 207 mm |
| Package weight | 1.24 kg |
| Package type | Box |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Shipping (inner) case length | 45.7 cm |
| Shipping (inner) case width | 26.5 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 8.19 kg |
| Harmonized System (HS) code | 84733020 |
