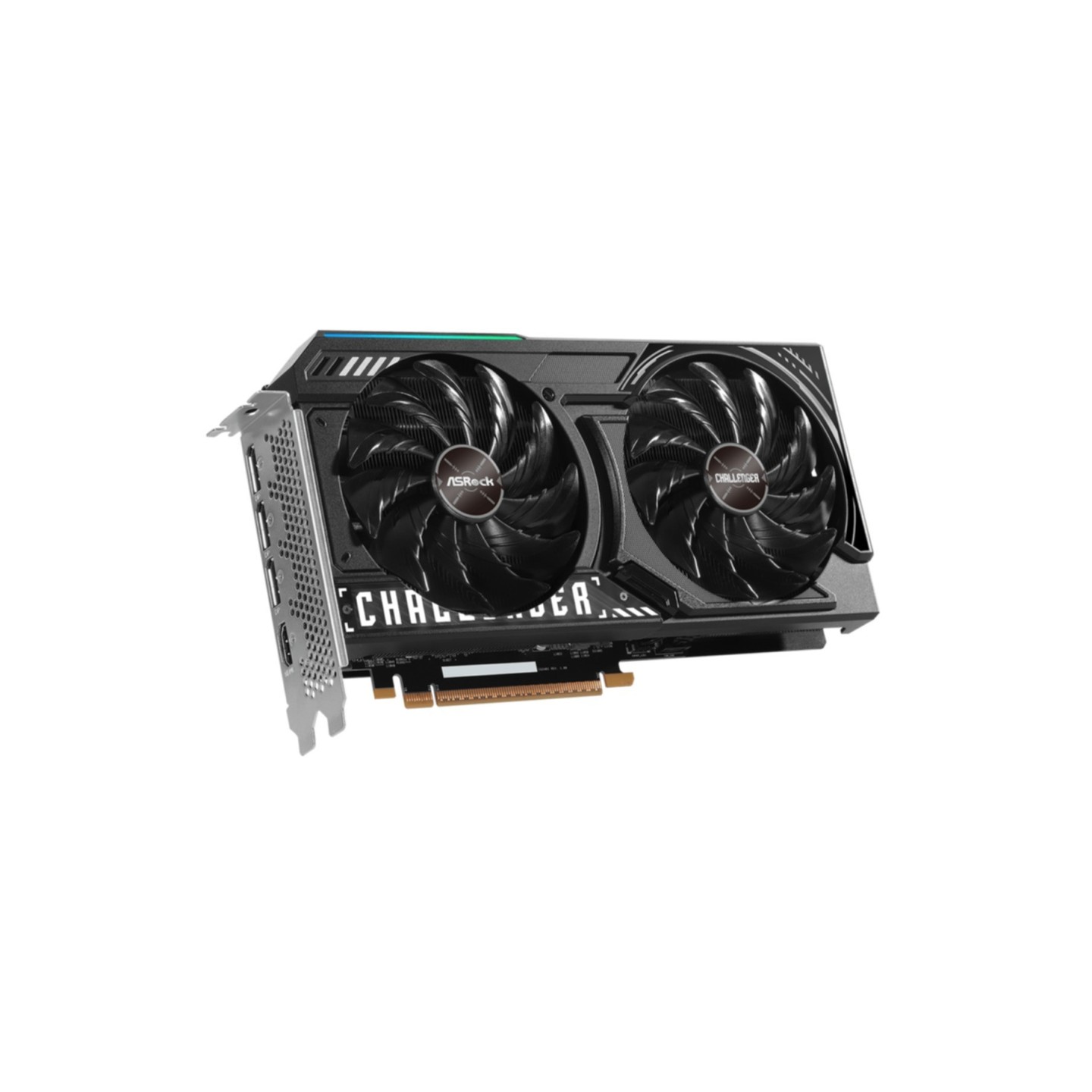

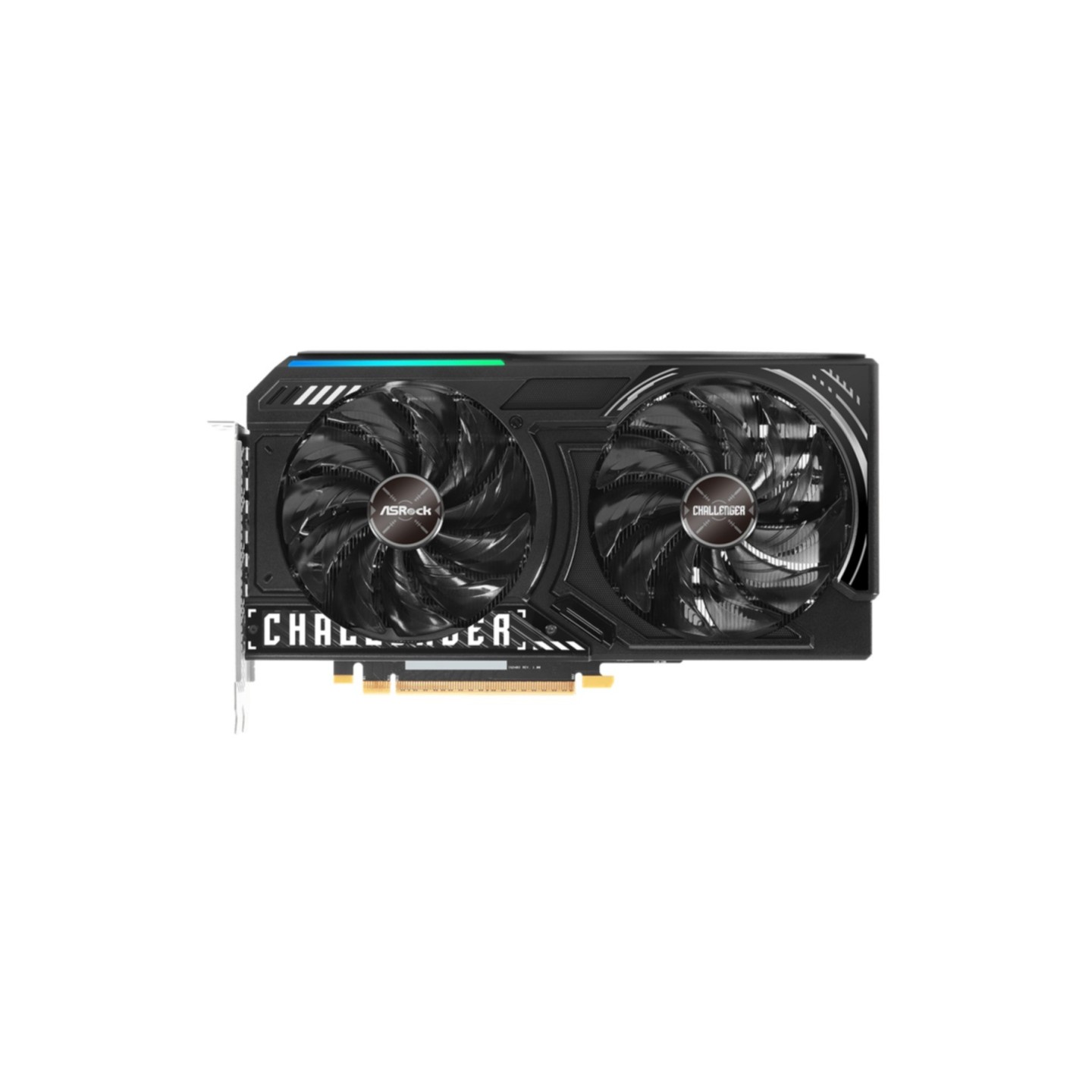

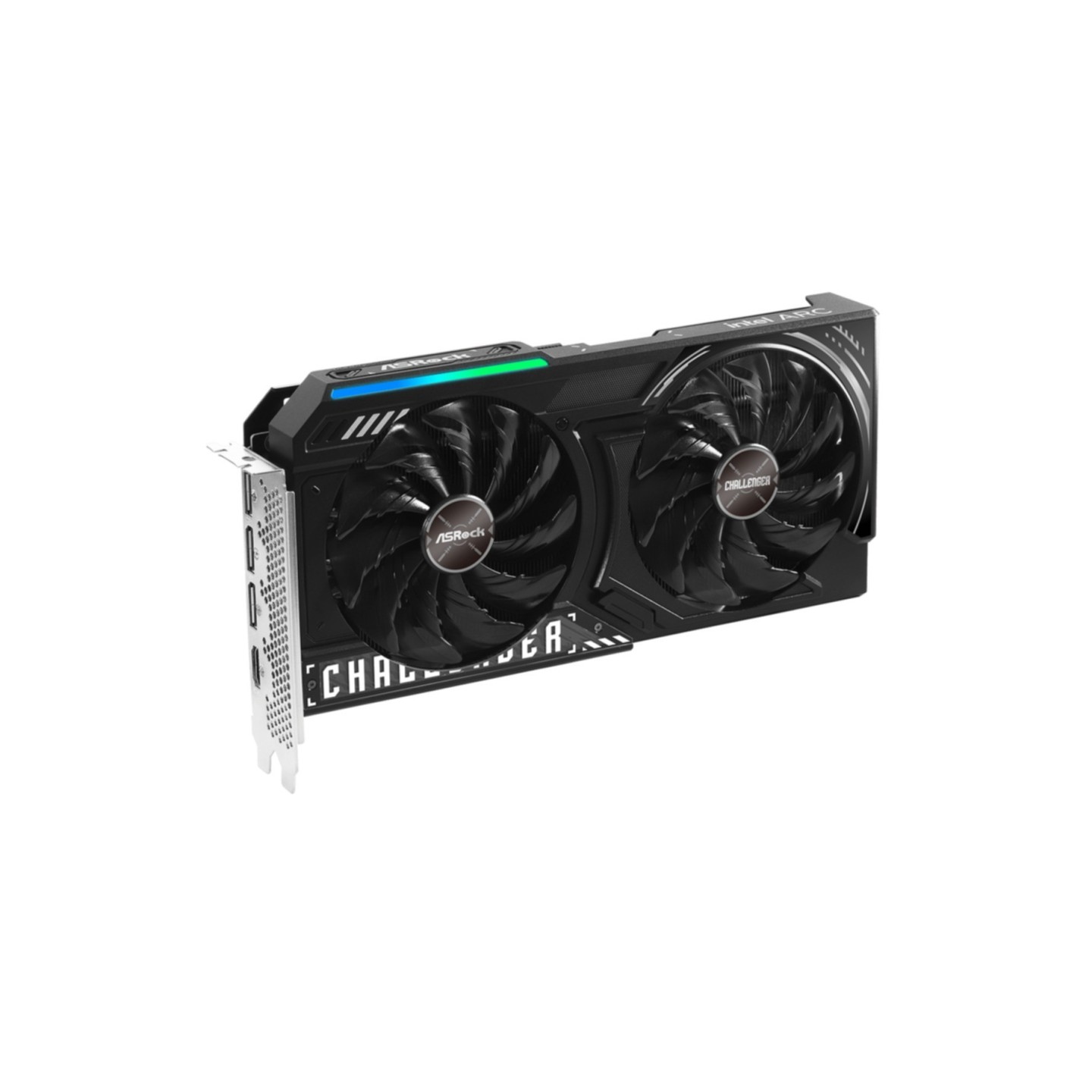

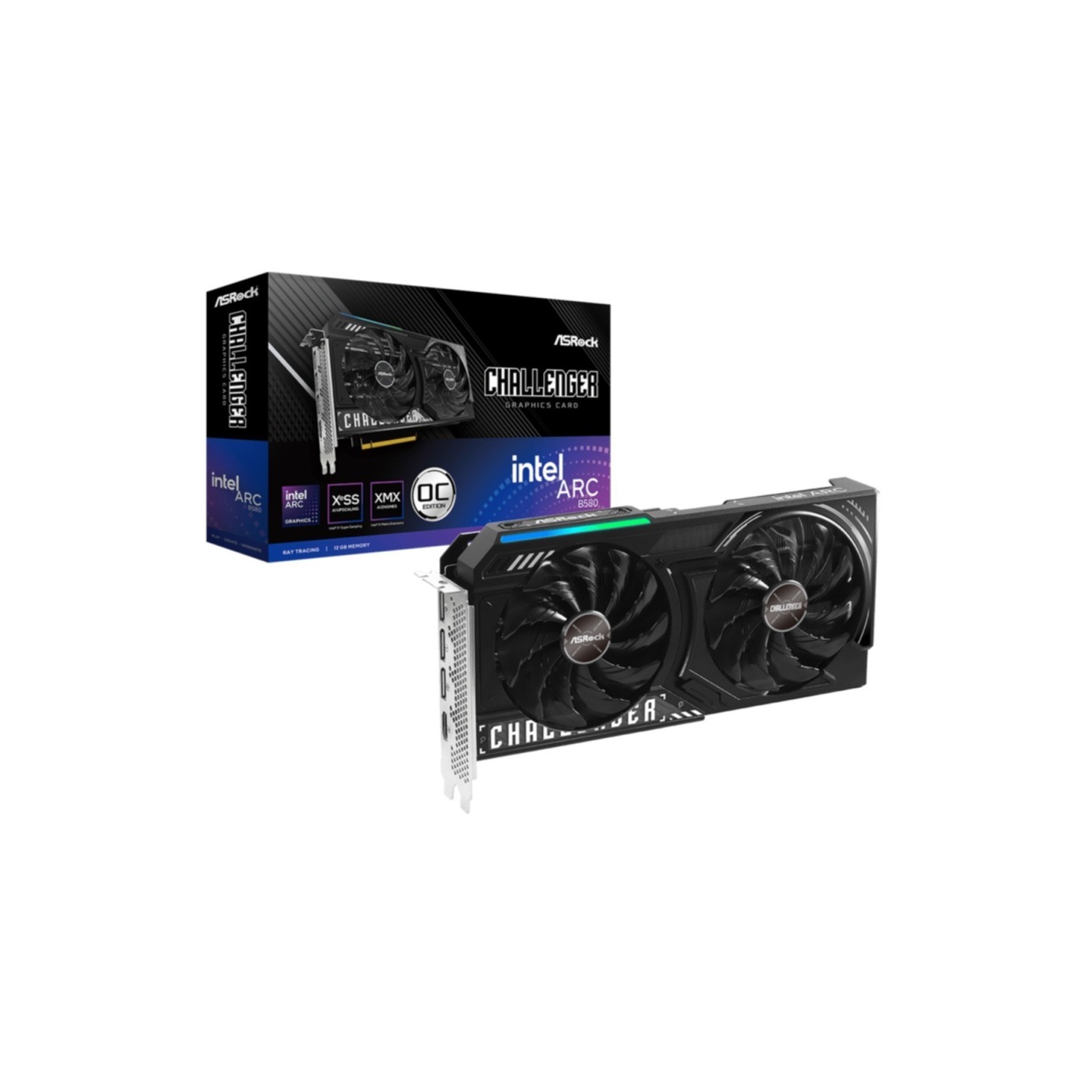

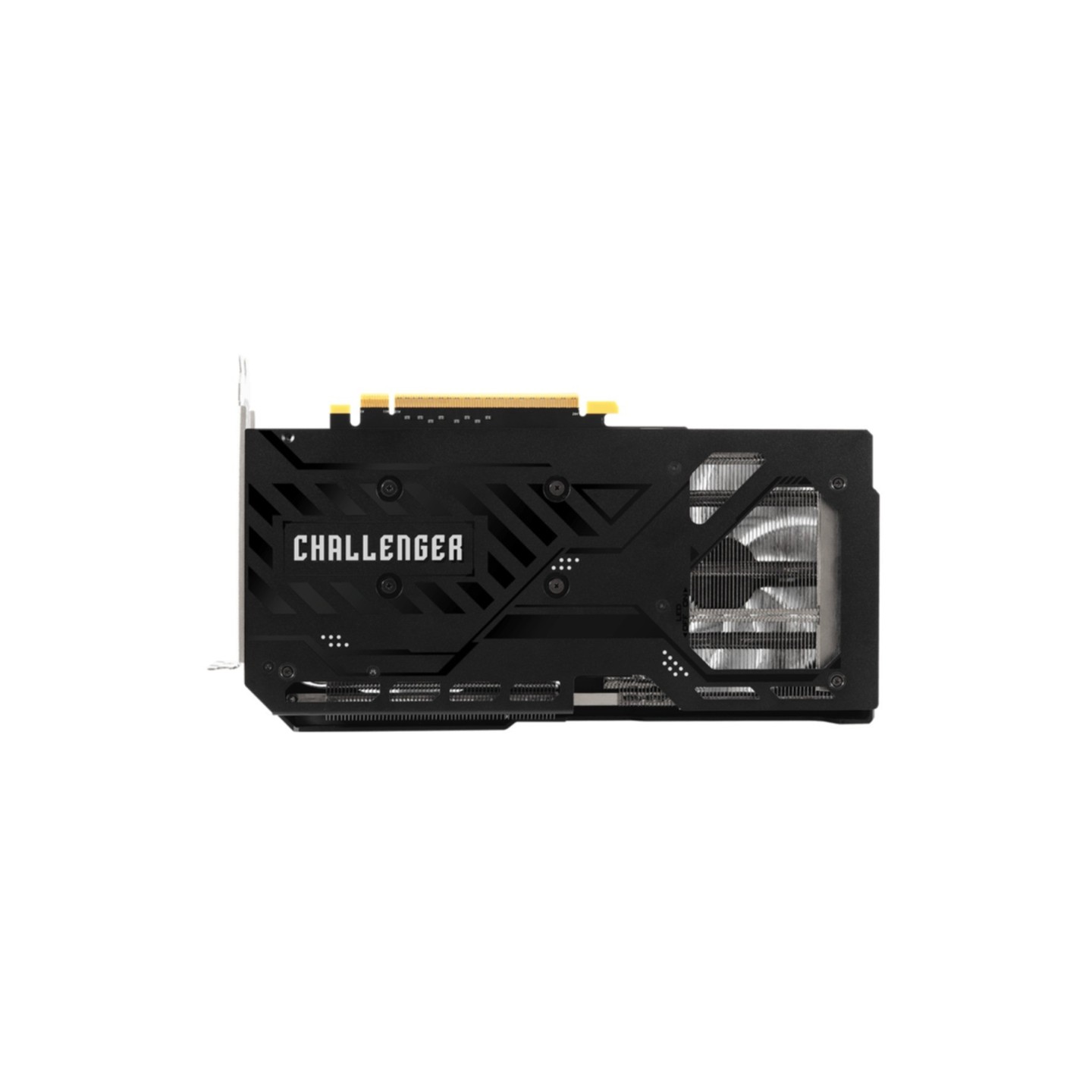

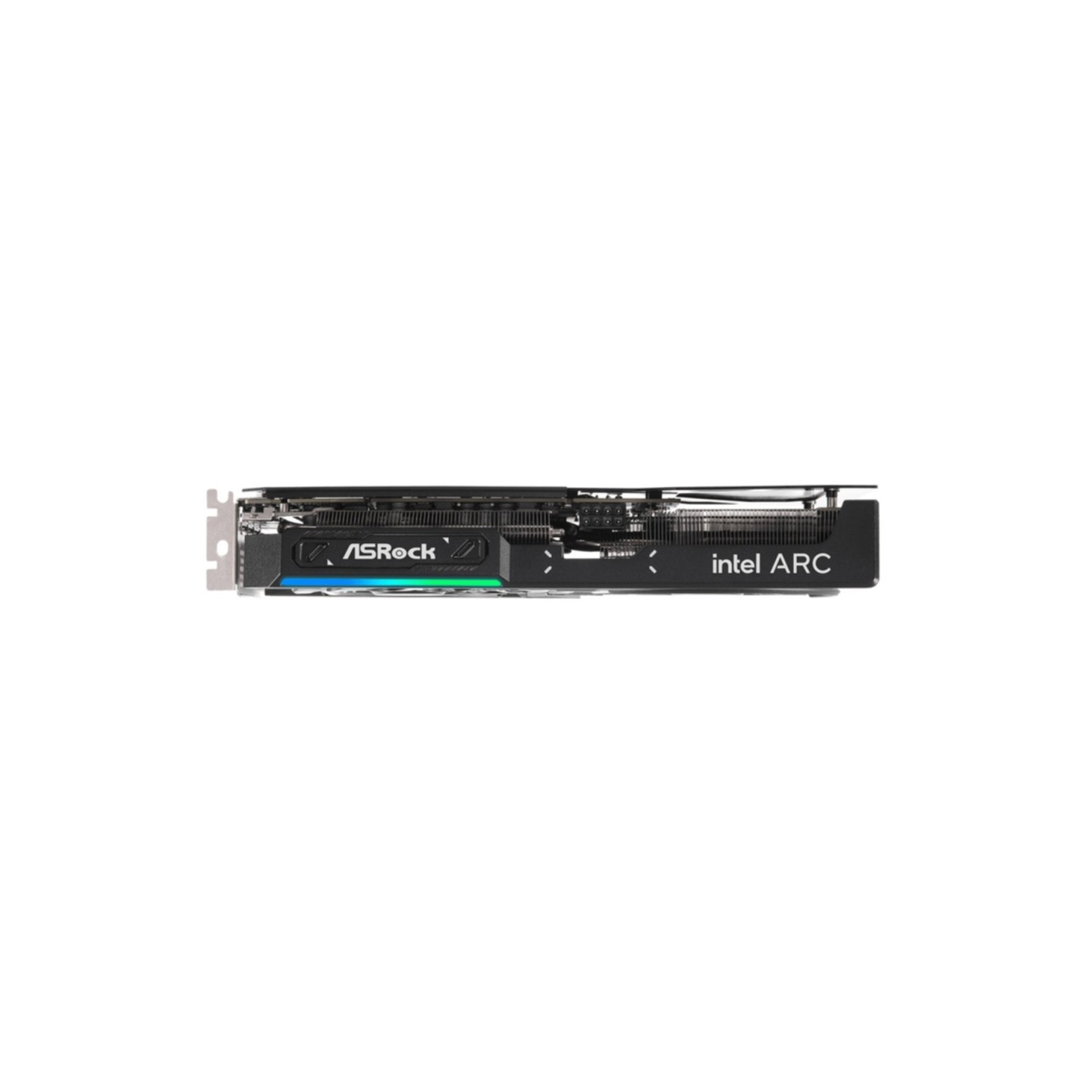

ASRock Challenger OC Intel Arc B580 12GB - Dual-Fan RGB A580B-12GOCL (Boxed)
ASRock Intel Arc B580 Challenger OC: 12GB GDDR6, 2740MHz boost, PCIe 4.0 x8. Dual striped axial fans, 0dB cooling, metal backplate, RGB LED. 1080p/1440p gaming with XeSS AI upscaling, ray tracing. 1x8-pin, 650W PSU req.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
ASRock Challenger OC Intel Arc B580 delivers mainstream gaming performance at 1080p and 1440p, outperforming RTX 4060 in many titles thanks to 12GB GDDR6 VRAM and Intel XeSS AI upscaling. Boost clock reaches 2740MHz with dual striped axial fans providing 0dB silent cooling and stylish metal backplate for durability.
Equipped with Xe Matrix Extensions (160 engines), 20 RT cores, and modern features like frame generation and low latency tech. Supports 4 displays up to 8K via 1x HDMI 2.1a + 3x DP 2.1. Ideal for gamers and creators with AV1 encoding and AI tools like text-to-image generation.
- ✅ 12GB GDDR6 192-bit 19Gbps memory
- ✅ Dual-fan 0dB cooling + RGB LED (switchable)
- ✅ Metal backplate + nano thermal paste
- ✅ 1x 8-pin power, 650W PSU recommended
- ✅ DirectX 12 Ultimate, OpenGL 4.6
- ✅ 2-slot design: 249x132x41mm, 720g
| Manufacturer Part Number | A580B-12GOCL |
| Graphics processor family | Intel |
| Graphics processor | Arc B580 |
| Processor boost frequency | 2740 MHz |
| Processor base frequency | 2670 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Data transfer rate | 19 Gbit/s |
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| Ray Tracing Units | 20 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Illumination colour | Blue, Green, Red |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 720 g |
| Length | 249 mm |
| Depth | 41 mm |
| Height | 132 mm |
| Package type | Box |
| TBP/TDP | 190 W |
