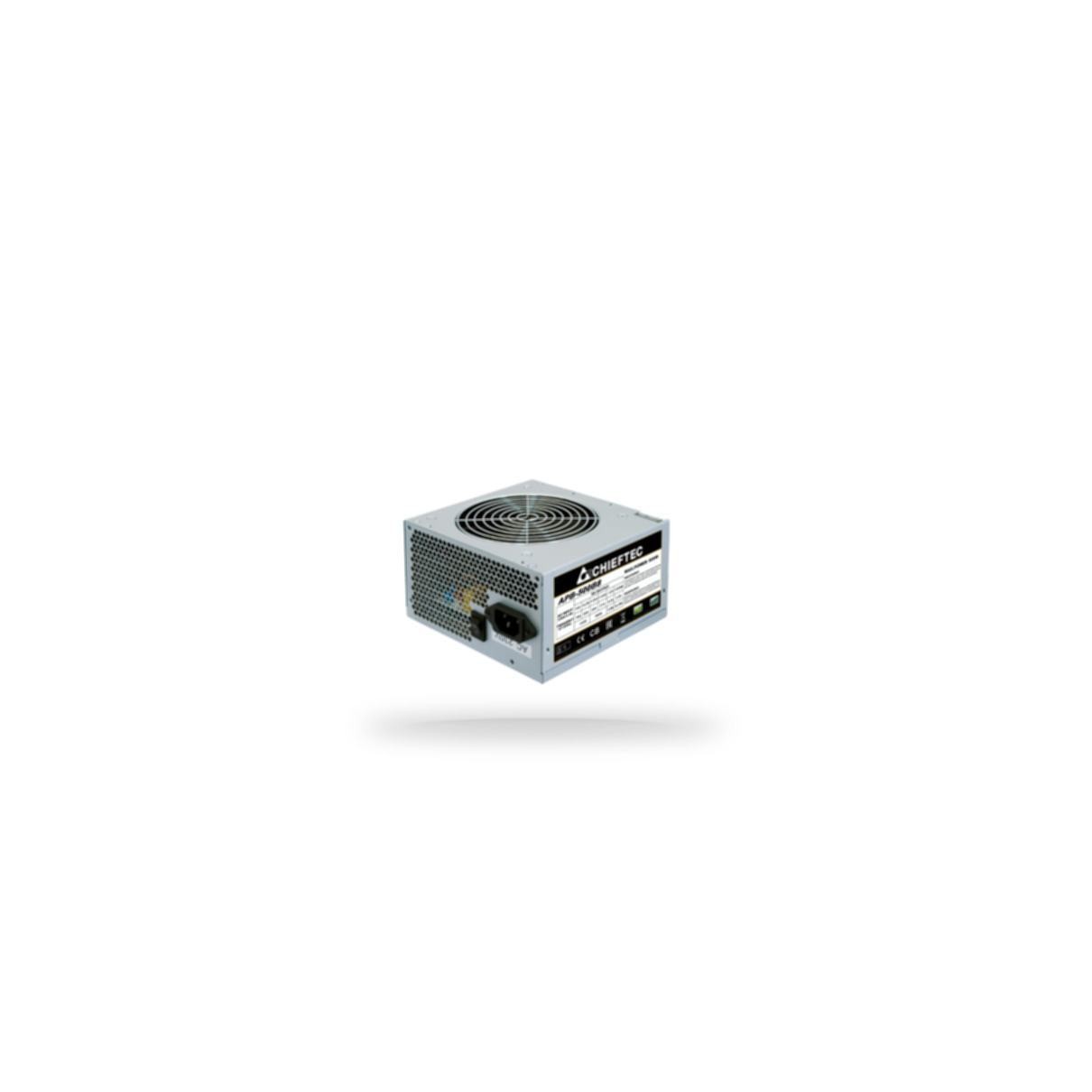

Chieftec Value Series APB-500B8 - 500W ATX 2.3 Non-Modular PSU, Silver, 80 PLUS
500W Chieftec APB-500B8 ATX 2.3 non-modular PSU, 80 PLUS (80% efficiency), 120mm fan, 20+4 ATX, 1x PCIe 6+2, 3x SATA connectors — Silver
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Compliance certificates | RoHS |
| Certification | CE, CB, TÜV, EAC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Harmonized System (HS) code | 84733020 |
