Chieftec CI-02B-OP PC Case - Cube Micro-ATX/Mini-ITX, Black, 320mm GPU, 160mm CPU Cooler Clearance
Chieftec CI-02B-OP Cube PC case in black supports Micro-ATX/Mini-ITX mobos, 320mm GPUs, 160mm CPU coolers, bottom ATX PSU up to 160mm. Offers 1x5.25", 2x3.5", 3x2.5" drives, 2xUSB 3.1 Gen1 + audio front I/O, flexible fan mounts. Compact 390x265x295mm design with dust filters.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Cube |
| PC Cases - Max GPU Length | 301–330 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |

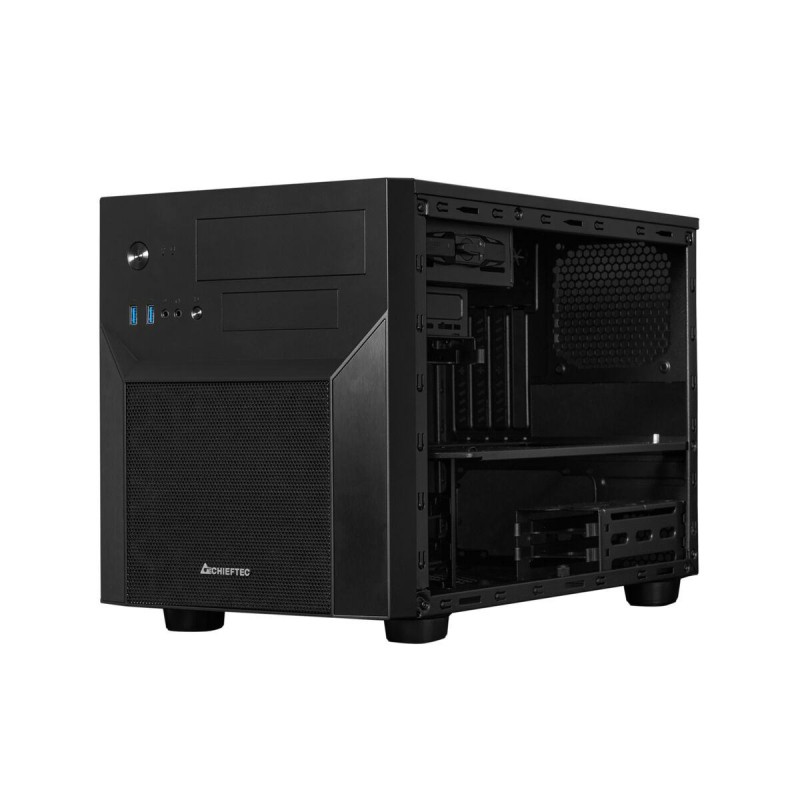

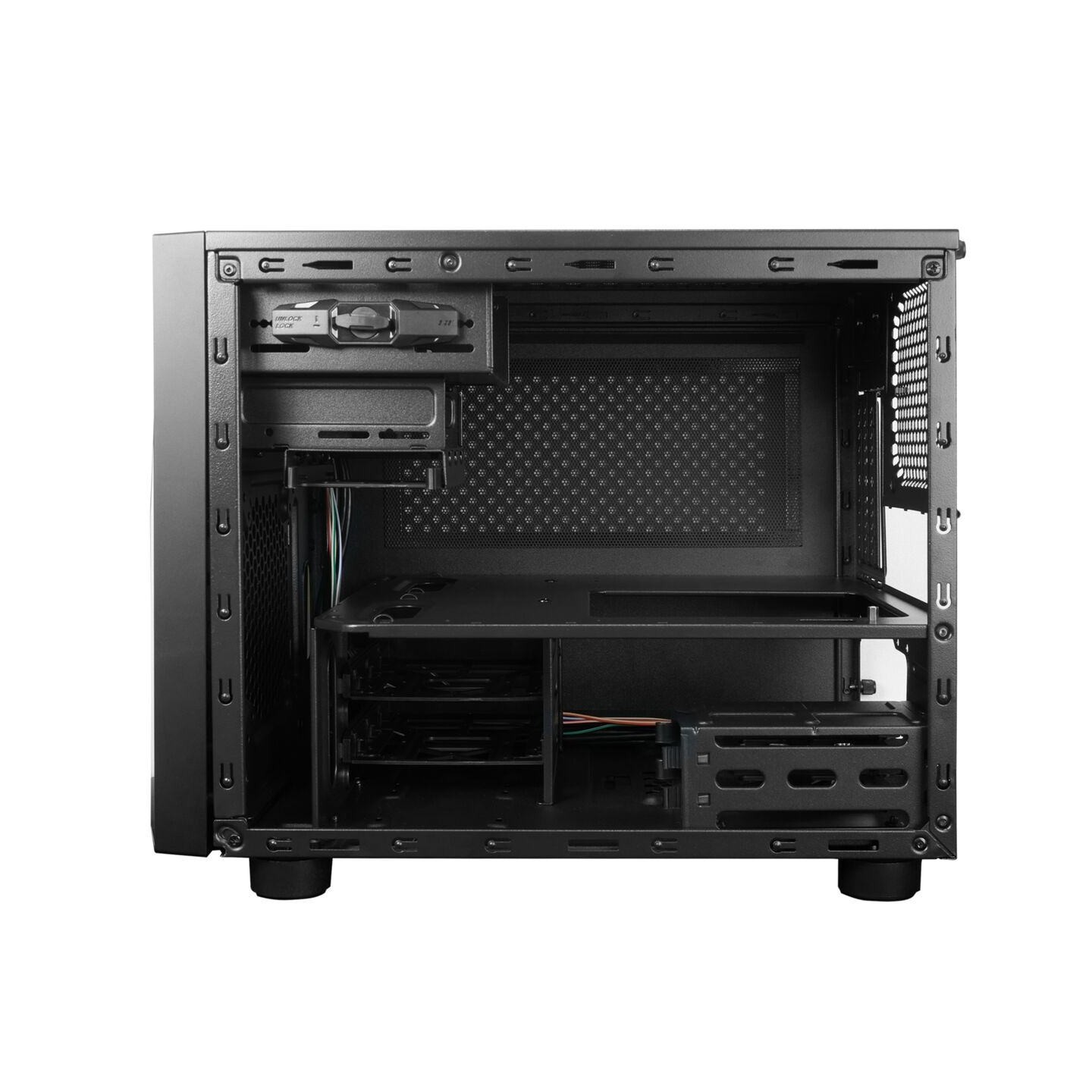

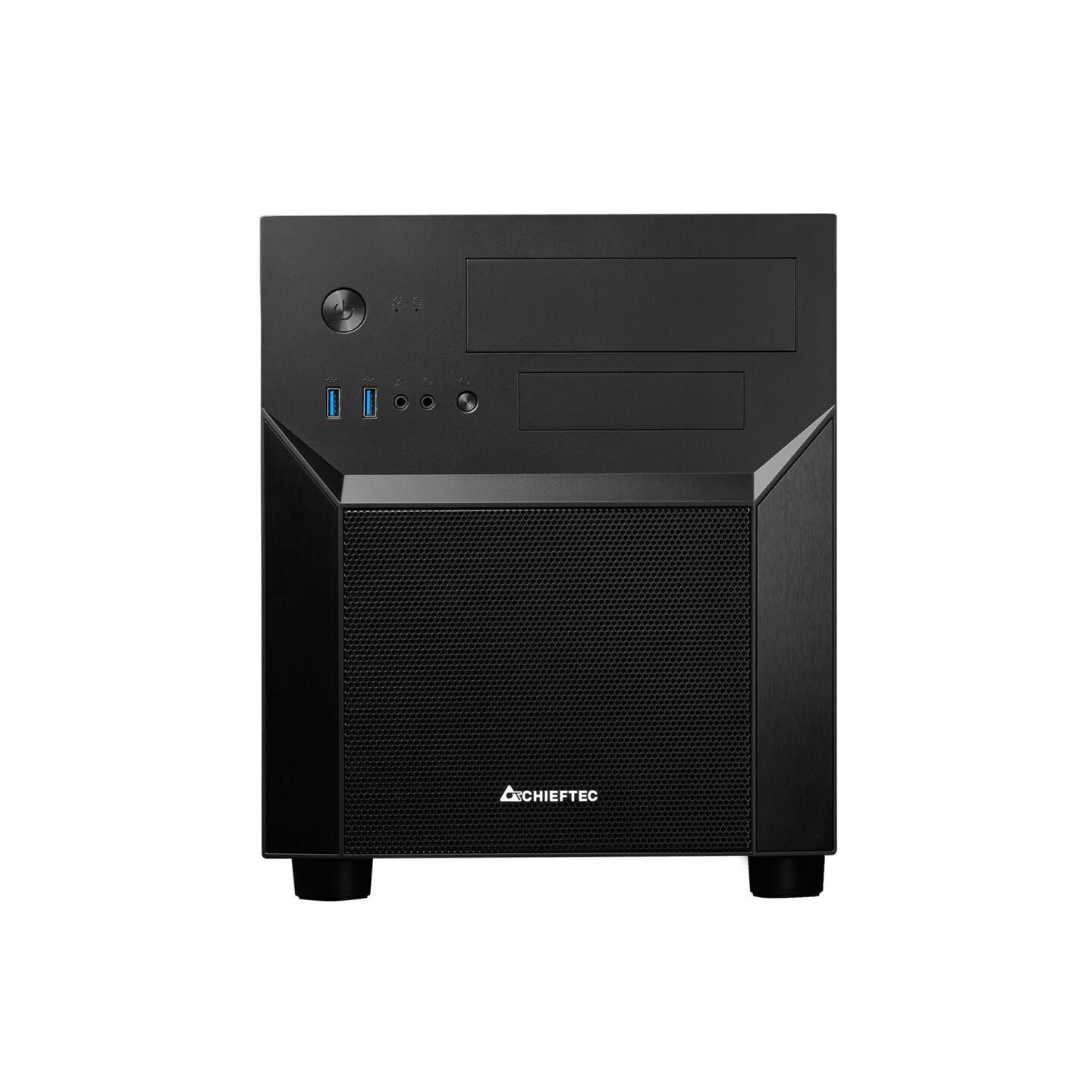

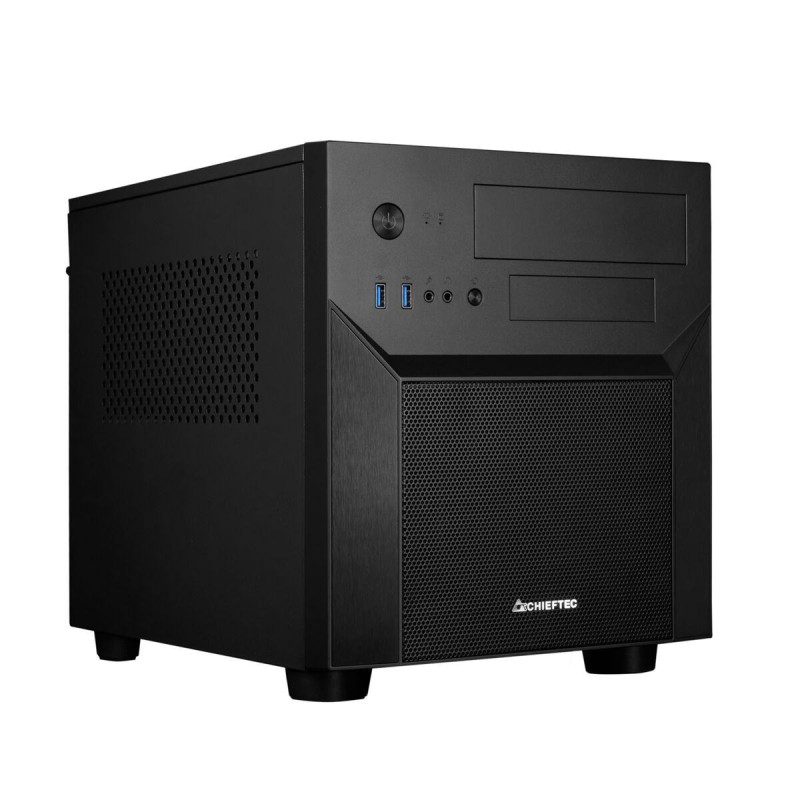

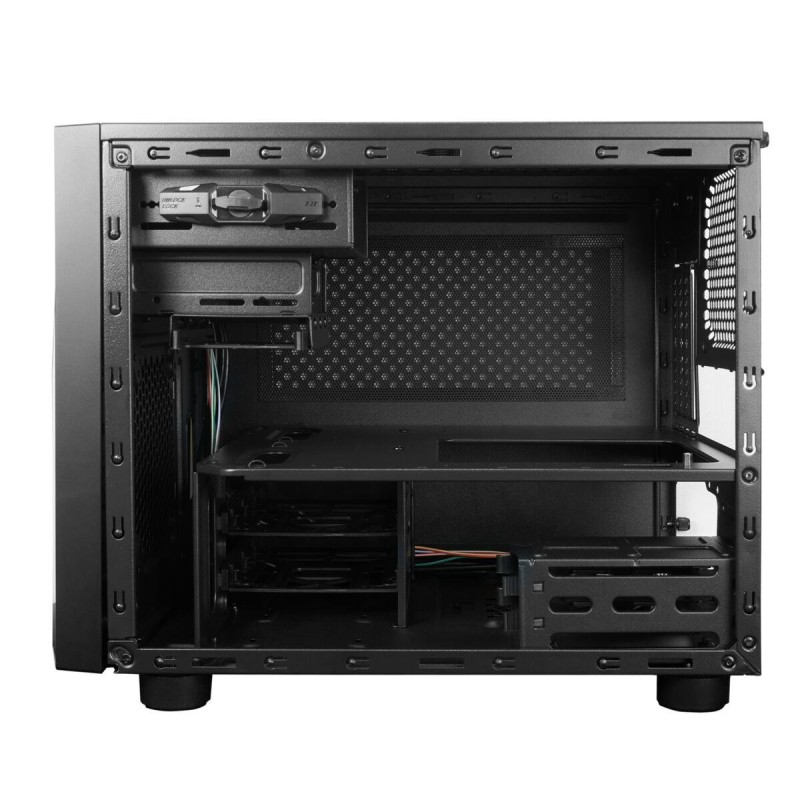

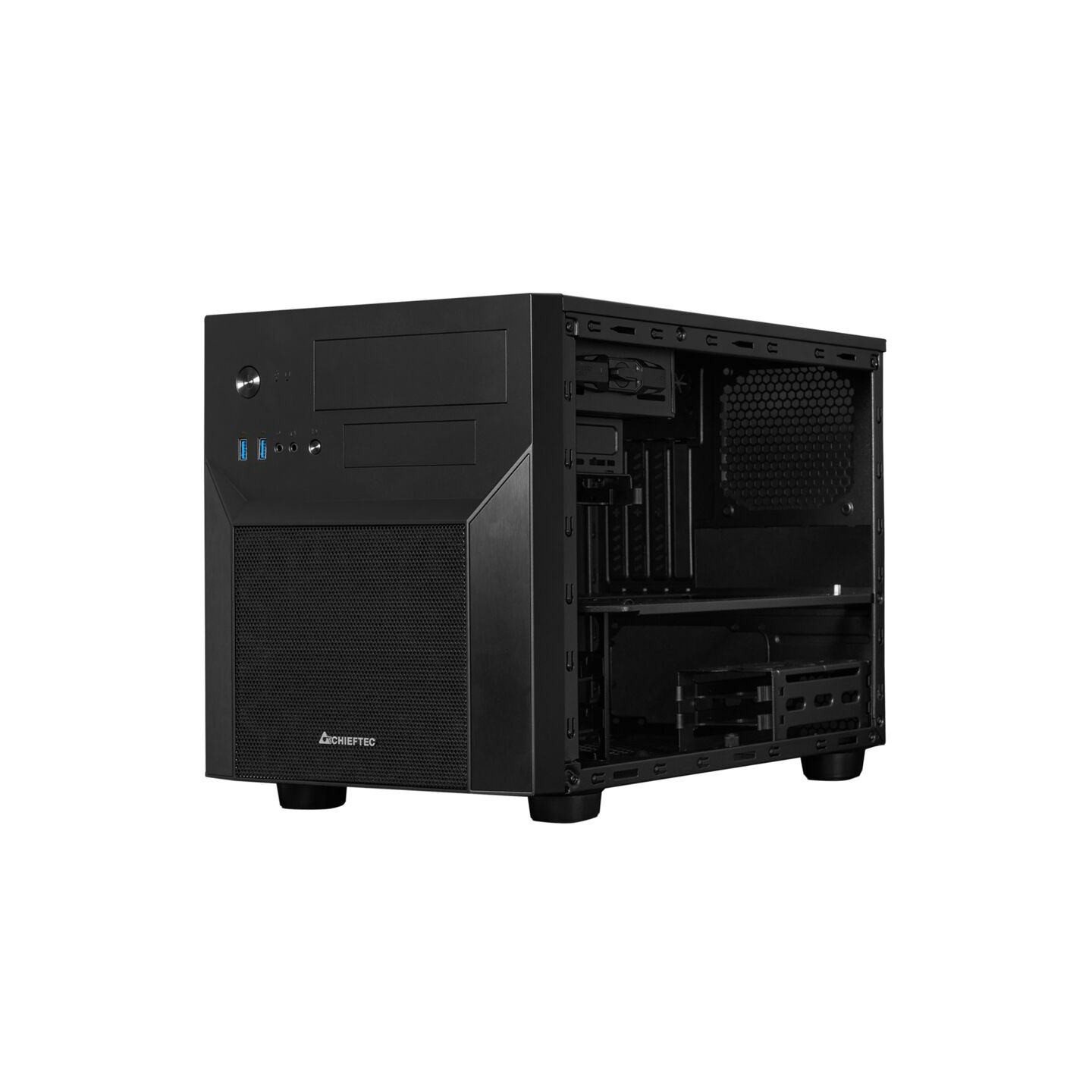

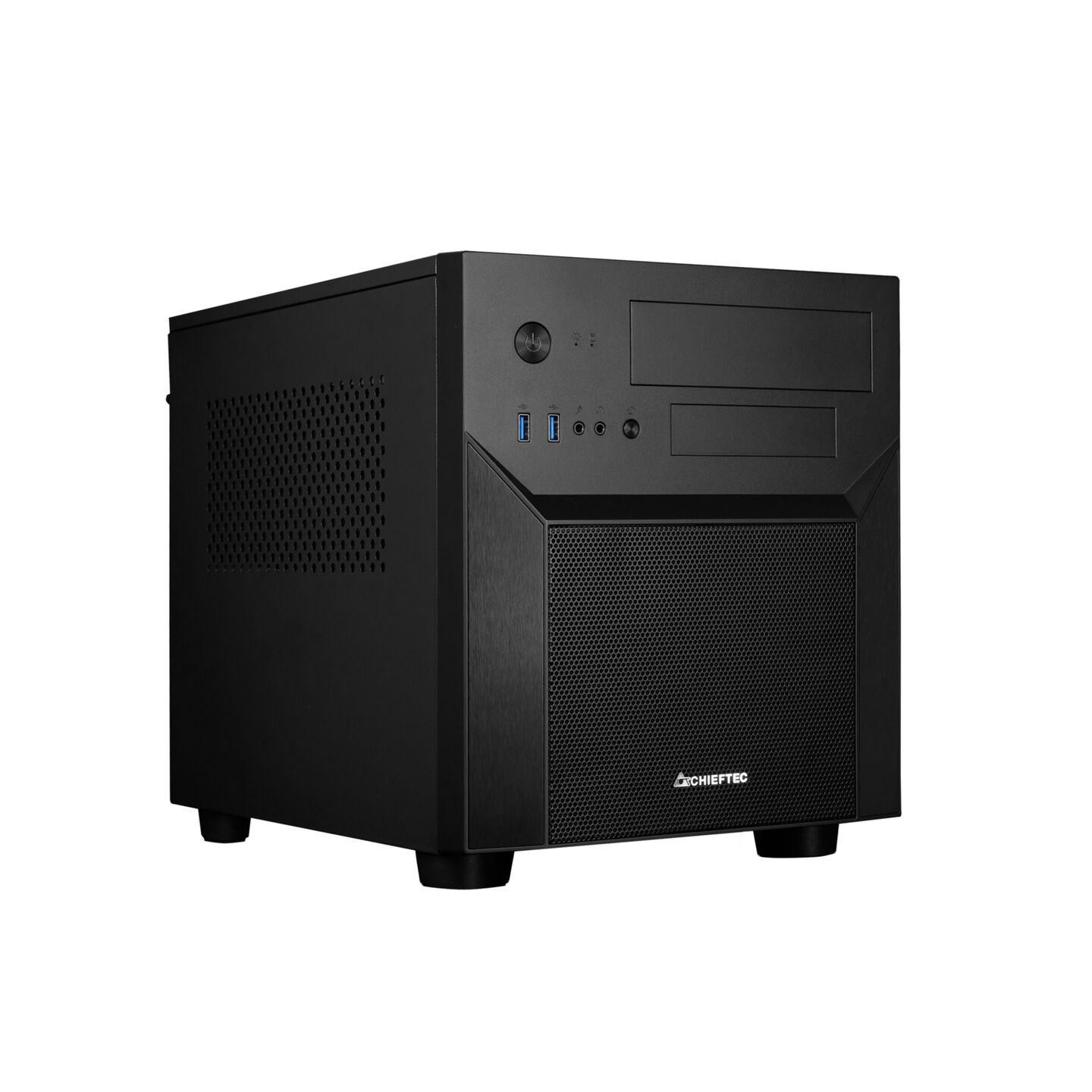

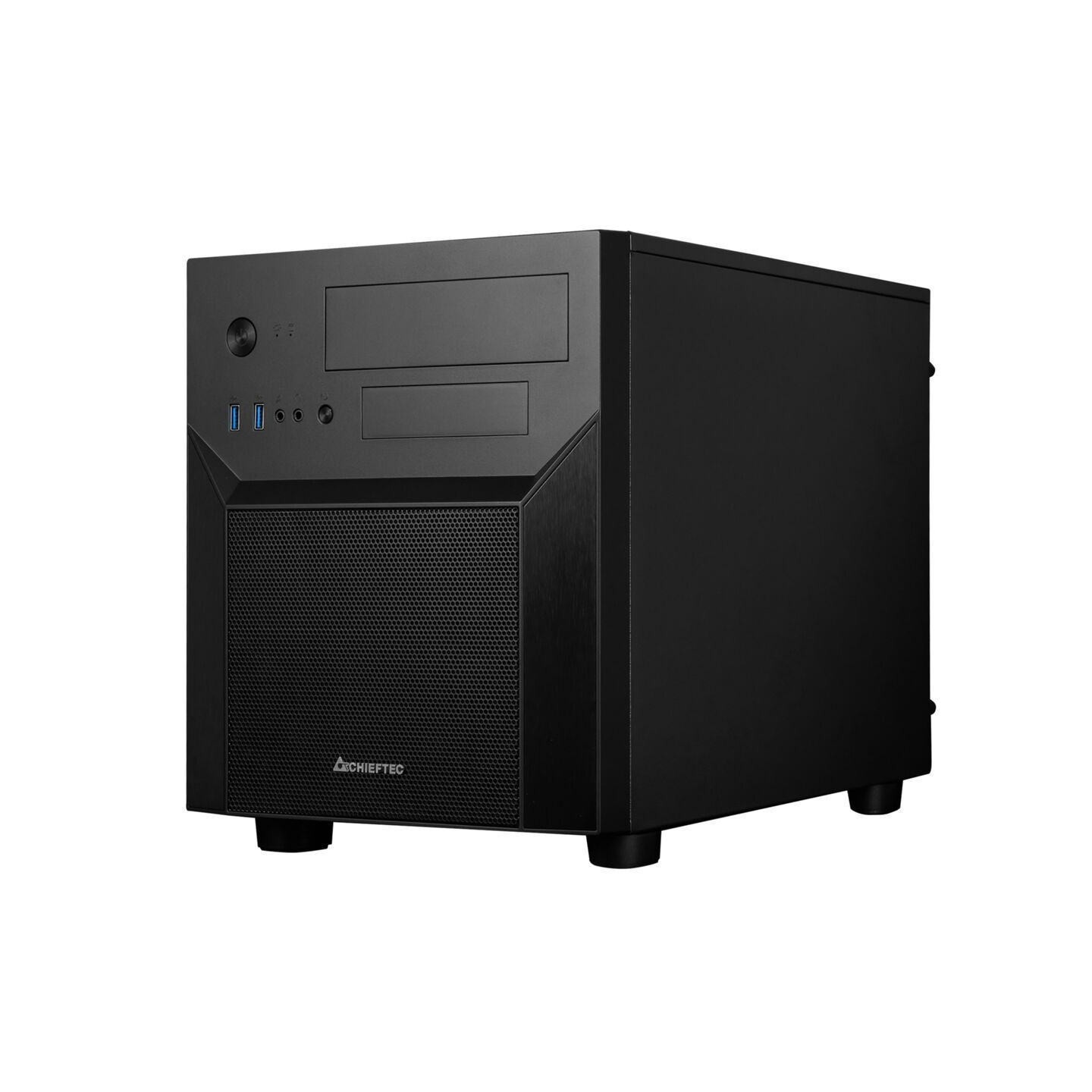

The Chieftec CI-02B-OP is a compact cube PC case from the Mesh Series, blending elegant brushed aluminum and airflow-friendly mesh panels. Despite its small footprint of 390 x 265 x 295 mm, it offers impressive hardware compatibility for home, office, or mini-server builds. It supports Micro-ATX and Mini-ITX motherboards, graphics cards up to 320 mm long, and CPU coolers up to 160 mm high.

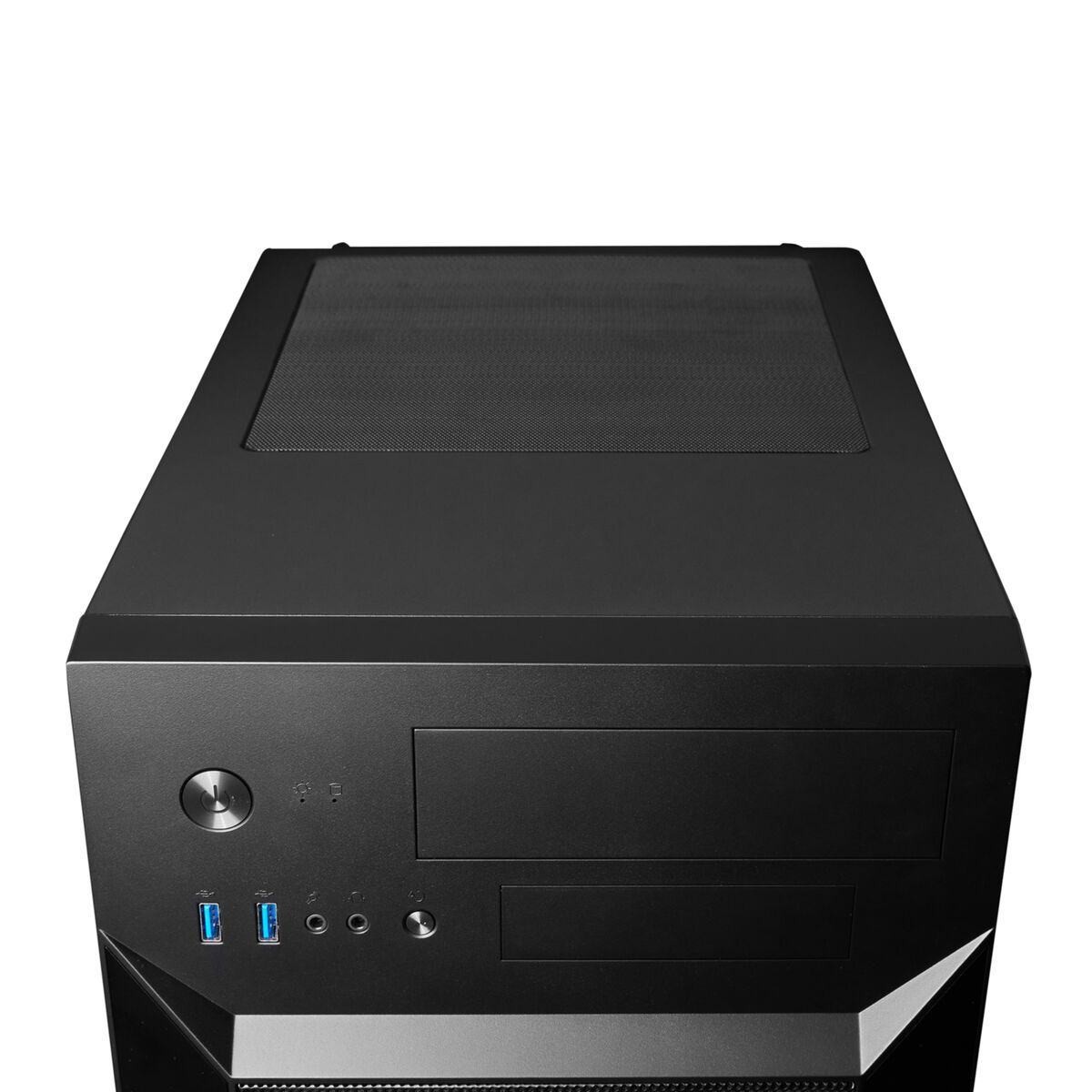

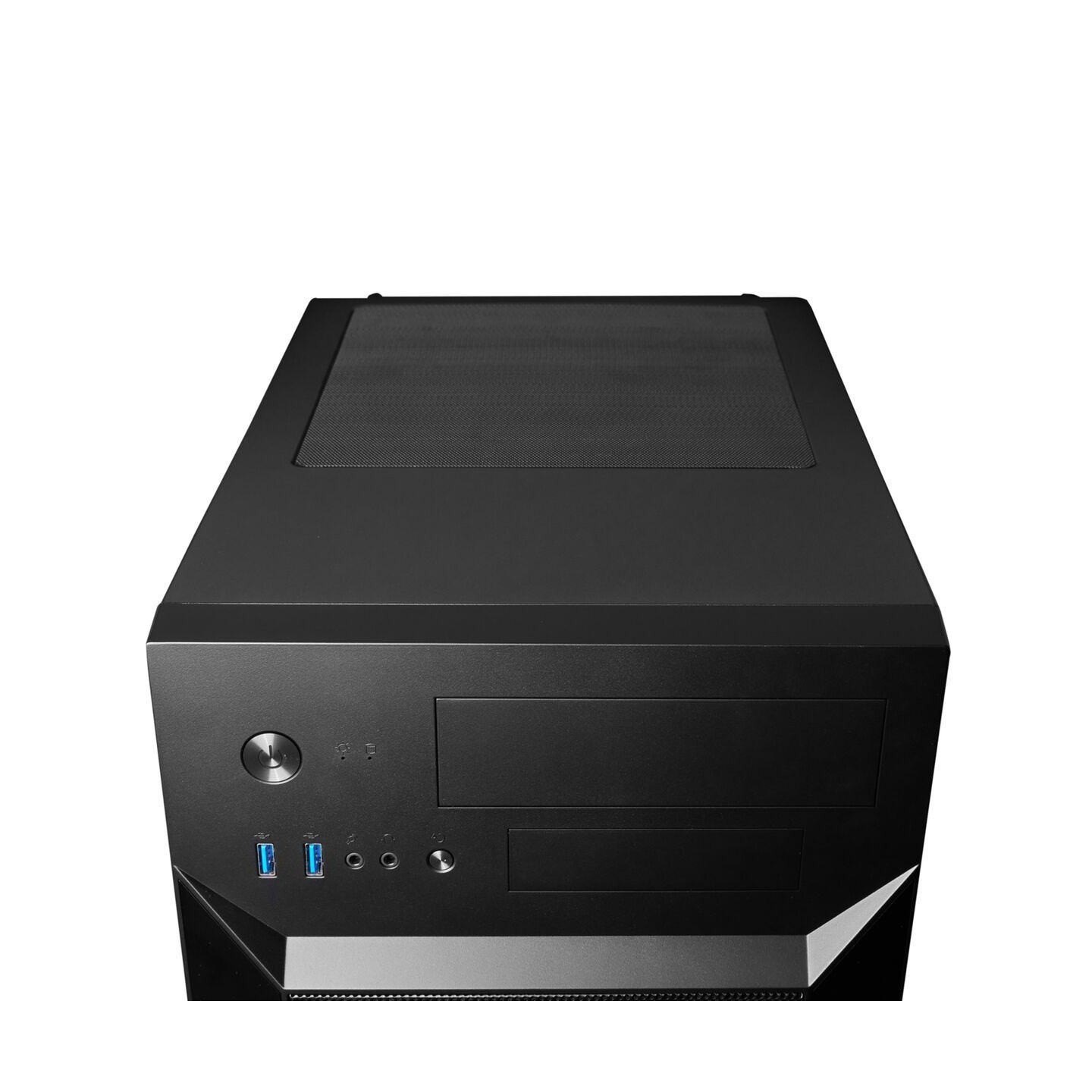

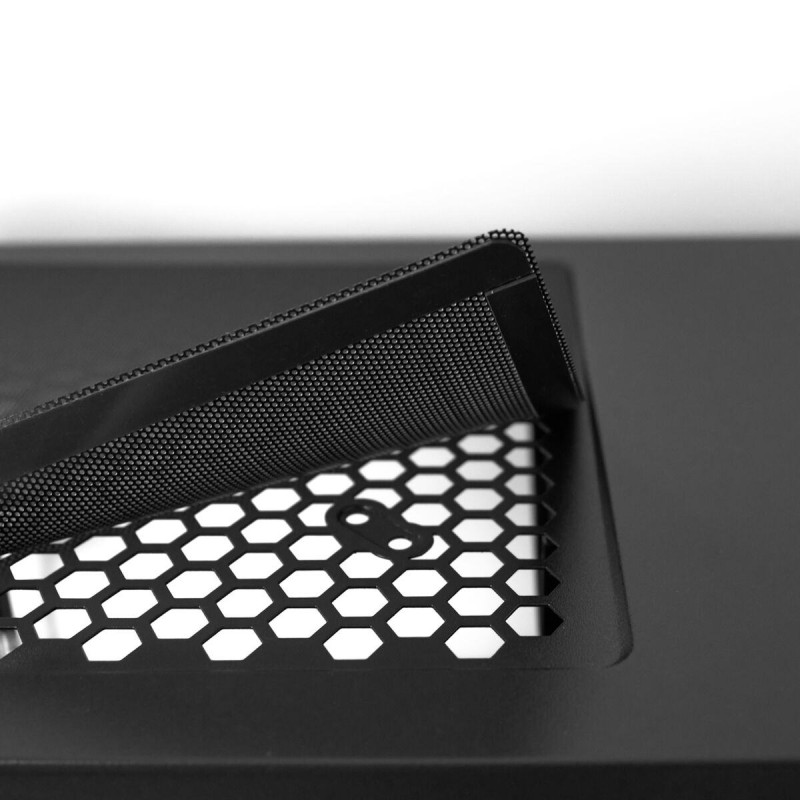

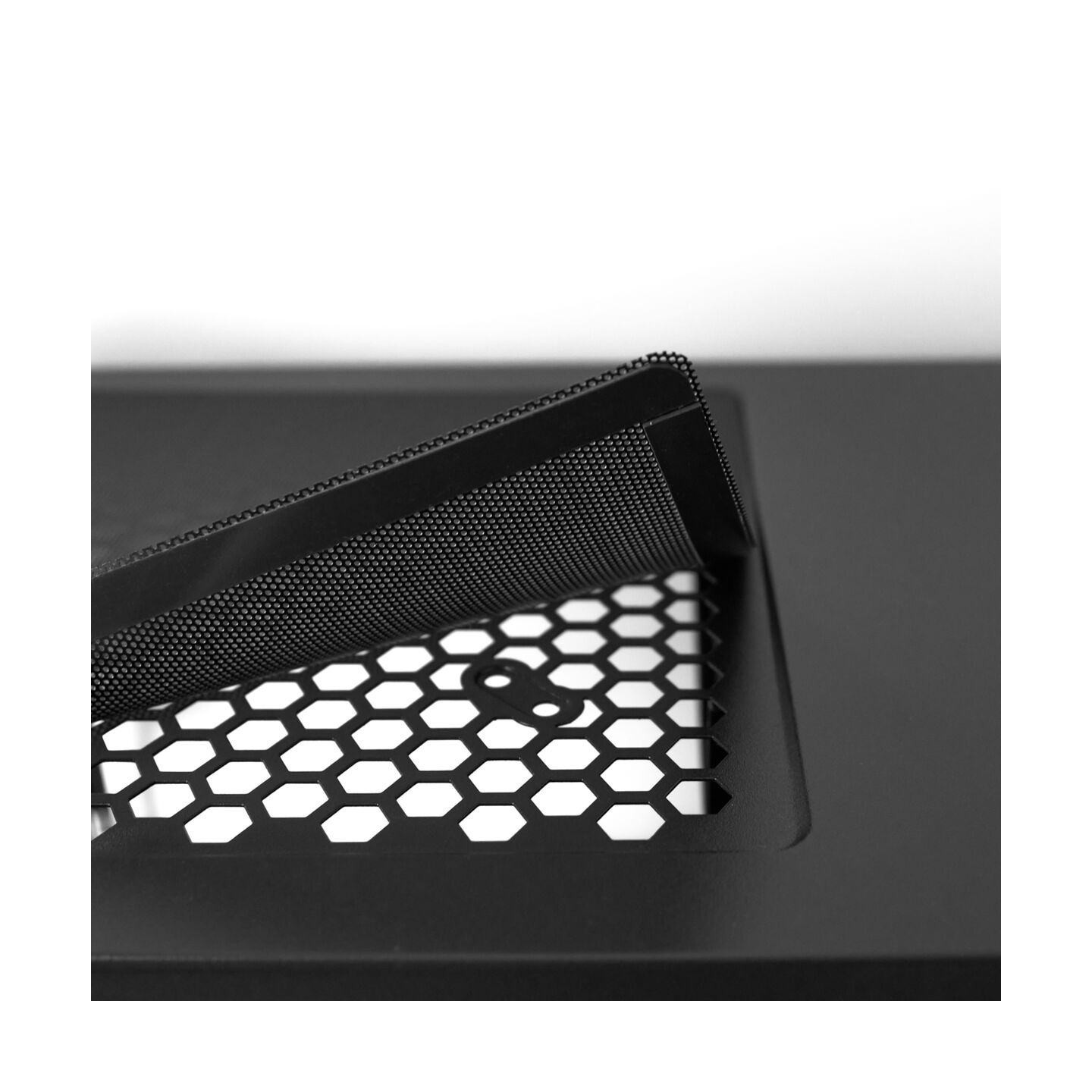

Storage flexibility is a highlight, accommodating 1x 5.25" optical drive, 2x 3.5" HDDs, and 3x 2.5" SSDs. Cooling options include front/top 120/140 mm fans or radiators, plus a rear 120 mm fan position. Front I/O features 2x USB 3.1 Gen 1 Type-A ports, audio output, and mic-in. The bottom-mounted ATX PSU supports units up to 160 mm. Innovative fold-open mechanism simplifies installation, with magnetic dust filters on top and removable bottom filter included.
- Motherboard: Micro-ATX, Mini-ITX
- Drives: 1x 5.25", 2x 3.5", 3x 2.5"
- Cooling: Front/Top: 120/140 mm, Rear: 120 mm (fans not included)
- I/O: 2x USB 3.1 Gen1, Audio
- Expansion: 4 slots
| Material | SPCC 0.6mm |
| Form factor | Cube |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | Micro-ATX, Mini-ITX |
| Number of 3.5 | 3 |
| Number of 5.25 | 1 |
| Number of 2.5 | 3 |
| Number of internal 3.5 | 2 |
| Number of external 5.25 | 1 |
| Number of expansion slots | 4 |
| Full-Height expansion slots | 4 |
| Maximum CPU cooler height | 160 mm |
| Maximum graphics card length | 320 mm |
| Maximum PSU length | 160 mm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Front I/O Audio | Audio-out (AZALIA/HD-Audio), Mic-In |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm, 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120 mm, 140 mm |
| Top radiator sizes supported | 120 mm, 140 mm |
| Supported HDD sizes | 3.5 |
| SSD form factor | 2.5 |
| Width | 265 mm |
| Depth | 390 mm |
| Height | 295 mm |
| Weight | 4.3 kg |
| Package weight | 5.2 kg |
| Manufacturer Part Number | CI-02B-OP |
| EAN13 | 0753263077349 |
