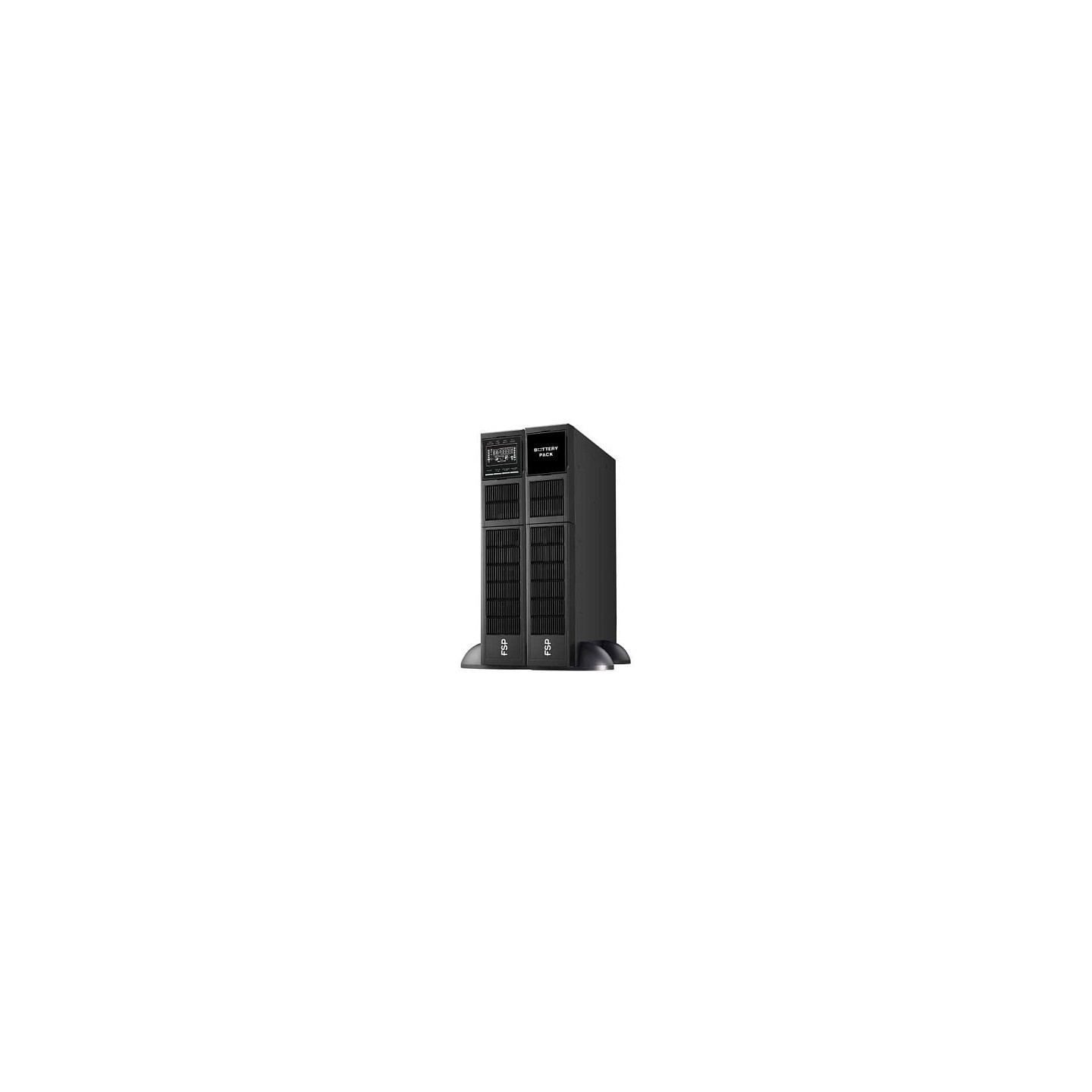

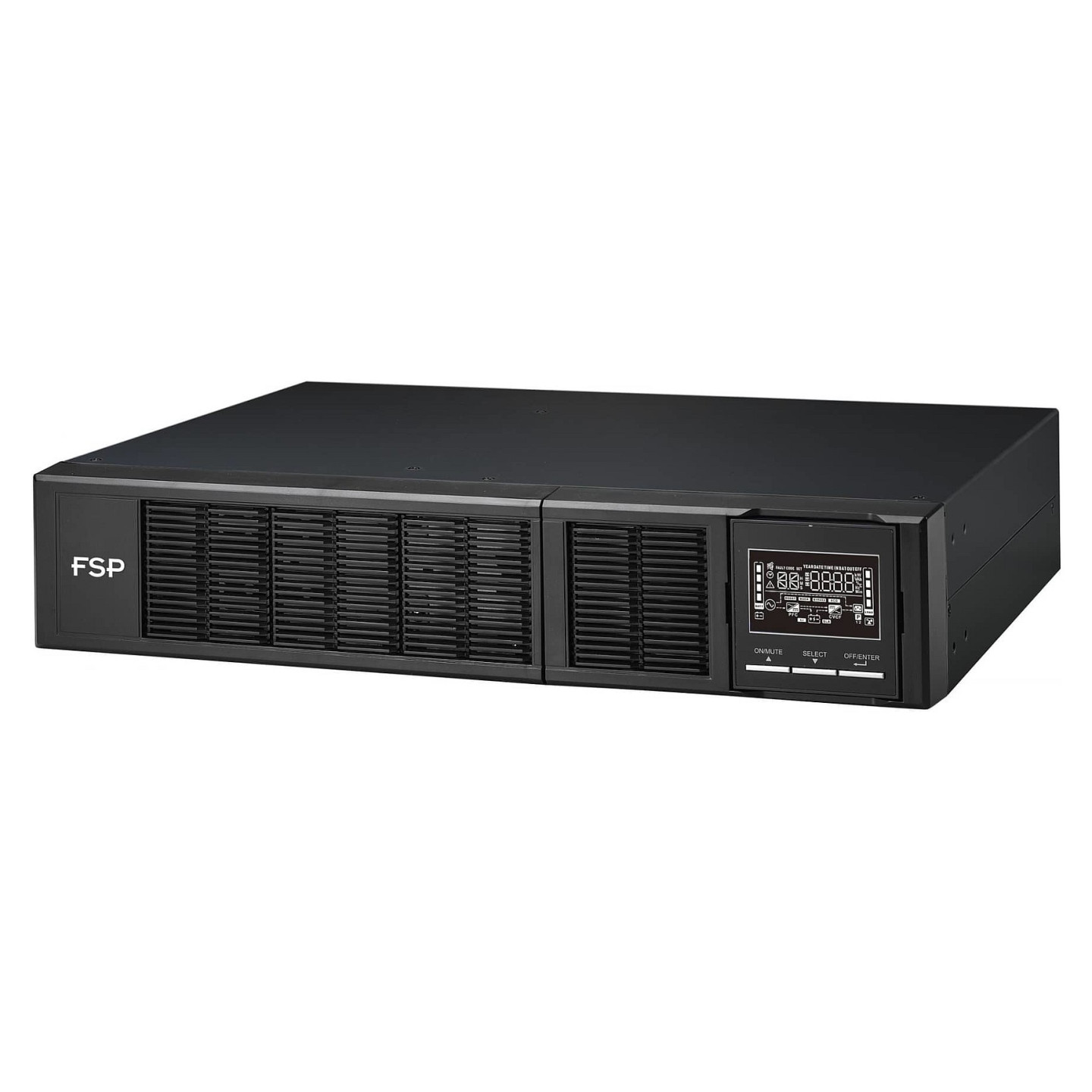

FSP Clippers RT 3K 3000VA/3000W Online UPS Rack/Tower USB RS-232 EPO (Boxed)
FSP Clippers RT 3K is a premium online double-conversion UPS (3kVA/3000W) in rack/tower form. Features pure sine wave, hot-swappable batteries, LCD display, USB/RS-232/EPO. Wide input 110-300V, 33min full load backup, 9x IEC C13 outlets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 3000 - 4999 VA |
| UPS & Power Backup - Power Output (Watts) | 3000 W |
| UPS & Power Backup - Topology | Online (Double Conversion) |
| UPS & Power Backup - Form Factor | Convertible (Rack / Tower) |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 12 |
| UPS & Power Backup - Special Features | Hot Swappable Battery LCD Display Pure Sine Wave Output |
The FSP Clippers RT 3K is a high-performance online double-conversion UPS designed for critical applications requiring uninterrupted power. With 3000VA/3000W capacity and pure sine wave output, it ensures stable power delivery even under demanding loads like servers, medical equipment, or laser printers. Its rack/tower convertible form factor (2U) offers flexible installation in data centers or offices.

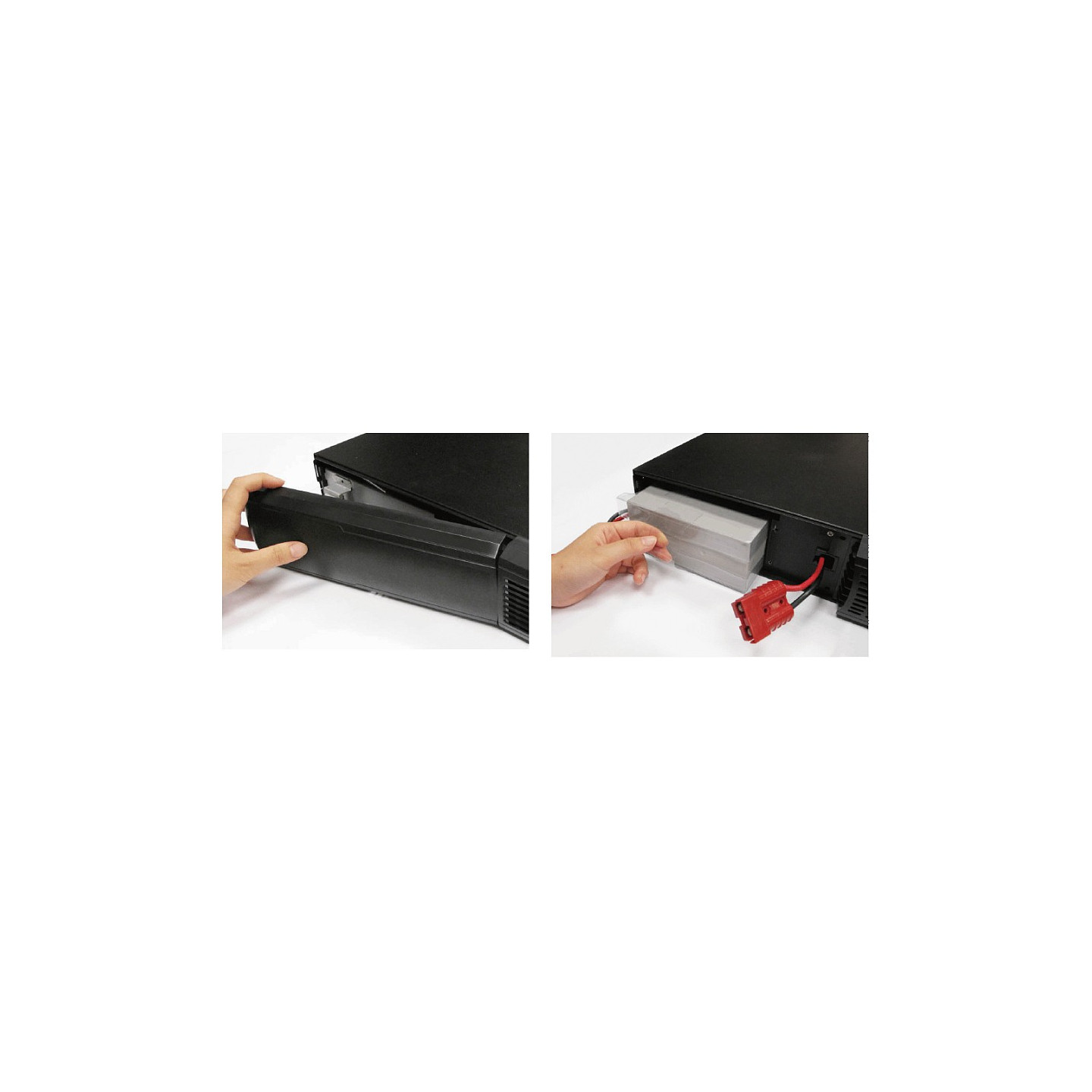

Key features include hot-swappable internal batteries (6x 12V/9Ah) for minimal downtime, wide input voltage range (110-300V), and advanced firmware supporting frequency conversion (40-70Hz), ECO mode, and programmable outlets. Connectivity options: USB Type-B, RS-232, EPO. Active cooling keeps noise at 50dB. Typical backup: 33min at full load, recharge in 3h.
- True online double-conversion topology with <1% voltage regulation
- 9x IEC C13 battery-backed outlets + EPO support
- Hot-swappable batteries and parallel capability (up to 3 units)
- Rotatable LCD display for easy monitoring
- CE certified, black chassis (438x630x88mm, 27.5kg net)
| MPN | PPF30A0600 |
| UPS Topology | Double-conversion (Online) |
| Output Power Capacity | 3 kVA |
| Output Power | 3000 W |
| Waveform | Sine |
| Input Operation Voltage (min) | 110 V |
| Input Operation Voltage (max) | 300 V |
| Input Frequency | 40/70 Hz |
| Output Operation Voltage (min) | 208 V |
| Output Operation Voltage (max) | 240 V |
| Output Frequency | 46/64 Hz |
| Output Voltage Regulation | 1% |
| Response Time | 4 ms |
| Power Factor | 0.99 |
| Crest Factor | 3:1 |
| THD (Linear Load) | 2% |
| THD (Non-linear Load) | 4% |
| Noise Level | 50 dB |
| AC Outlet Types | C13 coupler |
| Number of Outlets | 9 |
| USB 2.0 Ports Quantity | 1 |
| USB Port Type | USB Type-B |
| Serial Interface | RS-232 |
| Emergency Power Off (EPO) | Yes |
| Battery Capacity | 9 Ah |
| Battery Voltage | 12 V |
| Number of Batteries | 6 |
| Typical Backup Time at Full Load | 33 min |
| Battery Recharge Time | 3 h |
| Hot-swap Battery | Yes |
| Form Factor | Rackmount/Tower |
| Cooling | Active |
| Product Color | Black |
| Display Type | LCD |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 20 - 90% |
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 27.5 kg |
| Compliance Certificates | CE |
| Certification | EMC EN62040-2 C2 |
