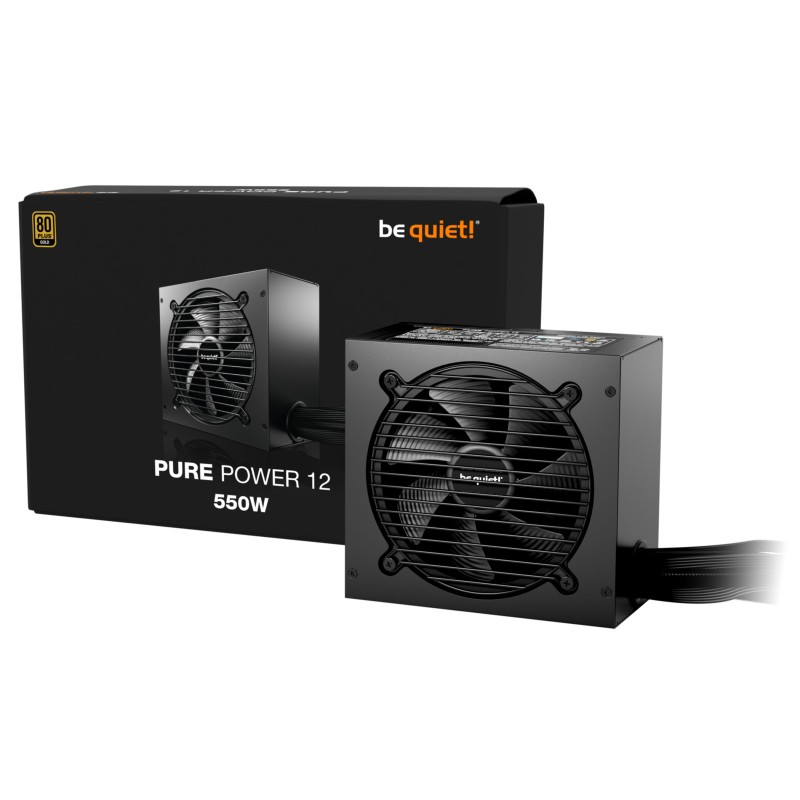

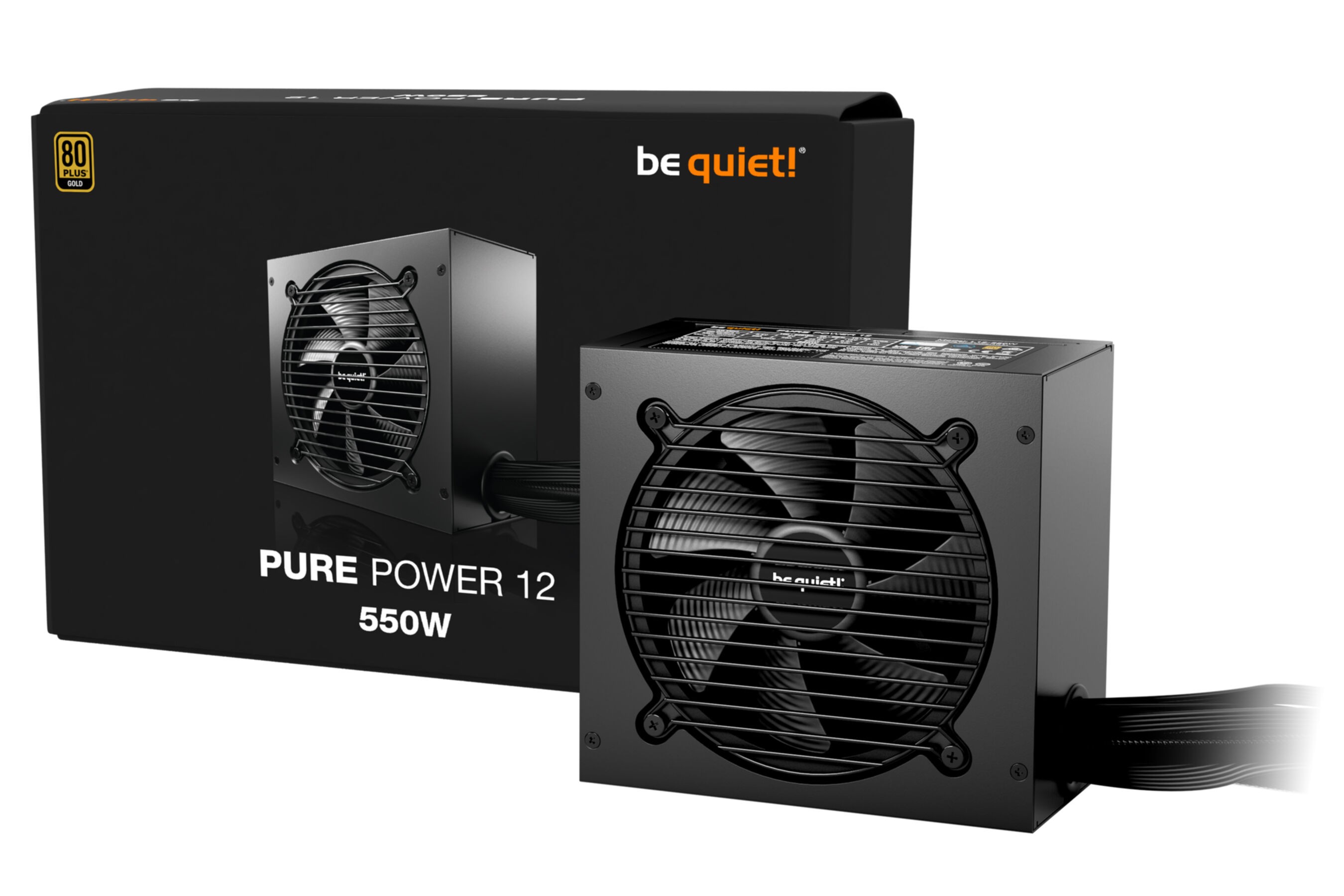

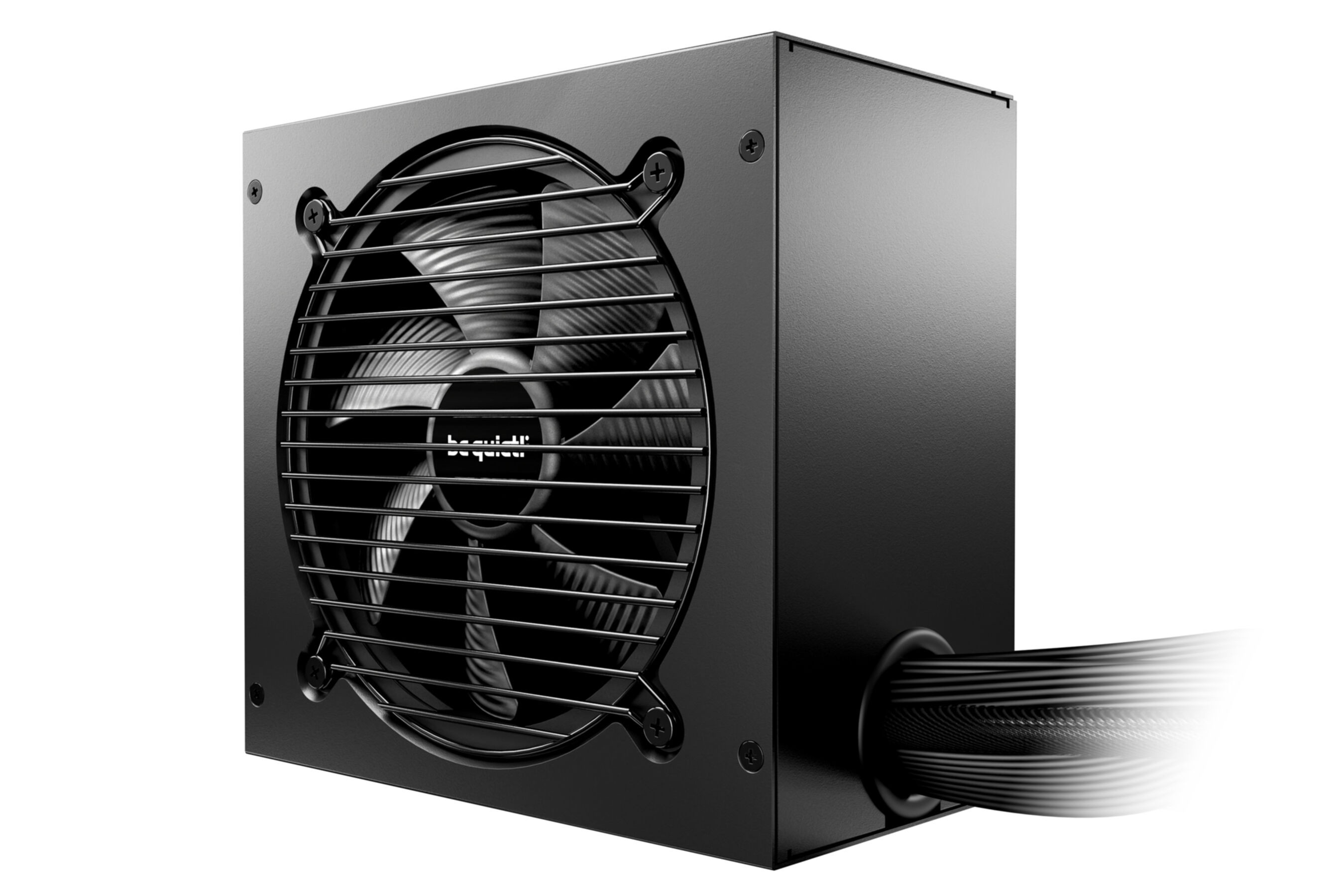

be quiet! Pure Power 12 - 550W ATX 3.1, 80 PLUS Gold, Non-Modular, PCIe 5.1 (12VHPWR)
Quiet 550W ATX 3.1 power supply with 80 PLUS Gold efficiency, non-modular cabling, includes PCIe 5.1 (12VHPWR) and 6+2 PCIe cables; peak 600W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 550 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
Exceptional quiet, superior features
Pure Power 12 550W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
| Total power | 550 W |
| Peak power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16.64 ms |
| Efficiency | 91.2% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |

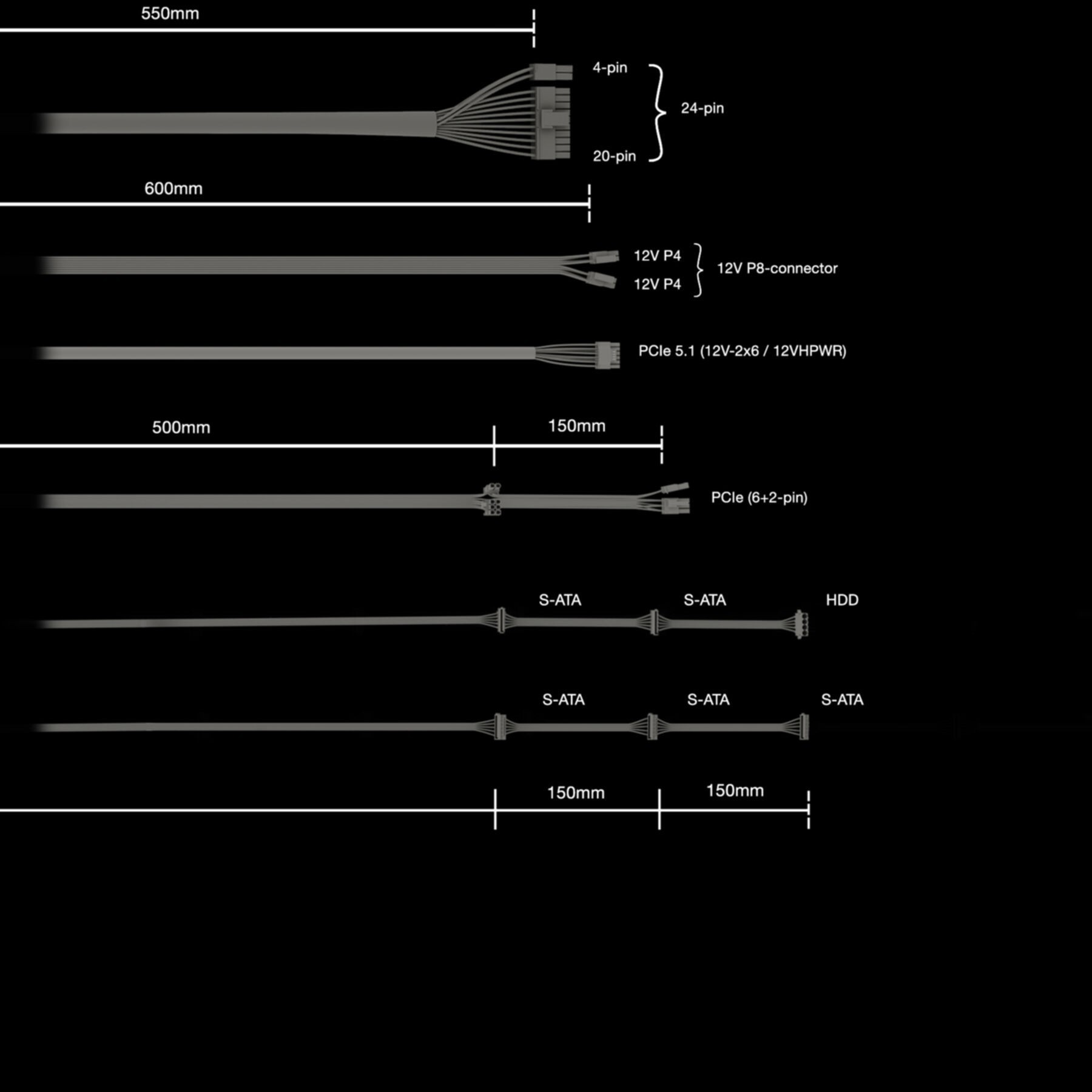

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500, 650, 800 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 800 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 14.6 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |

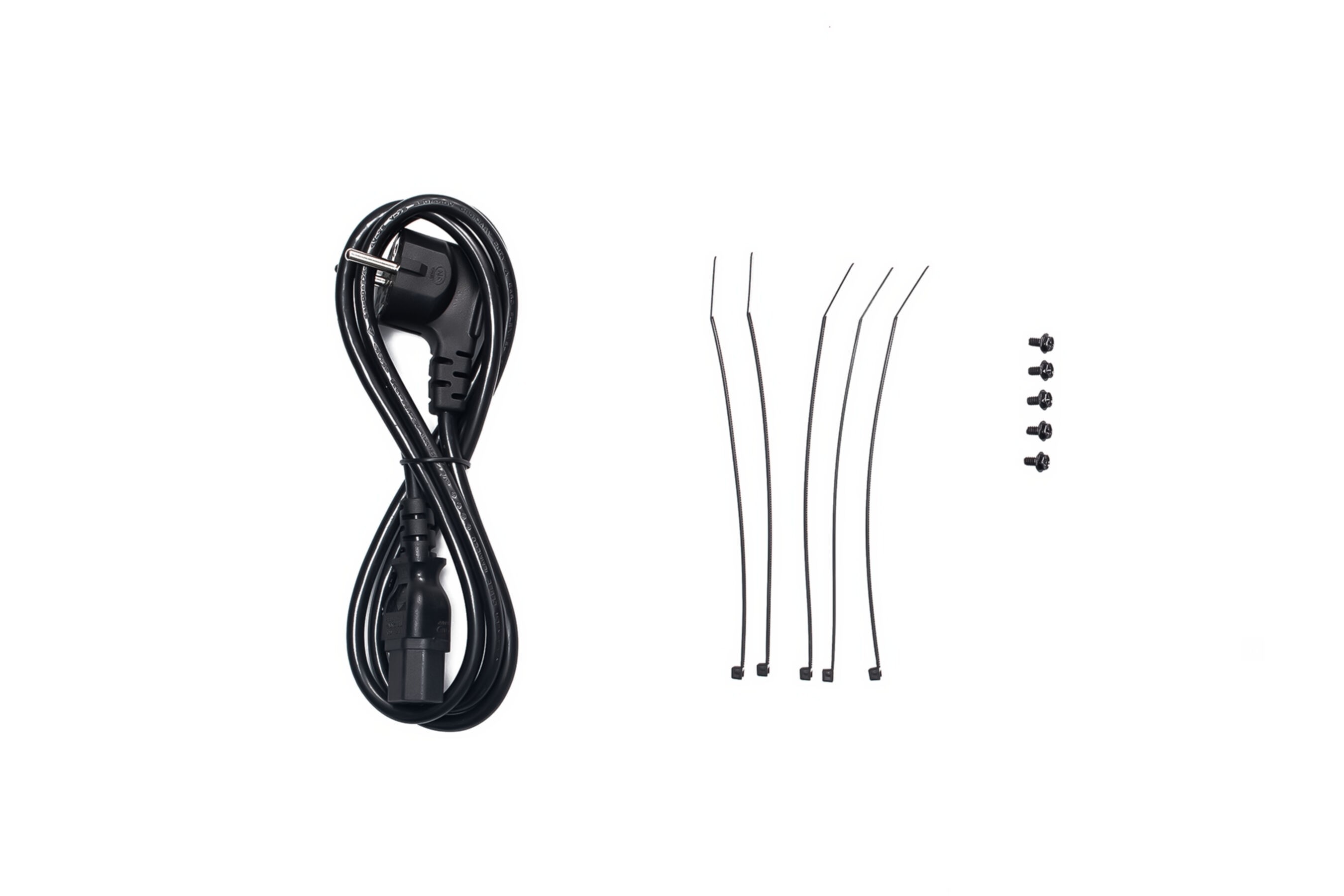

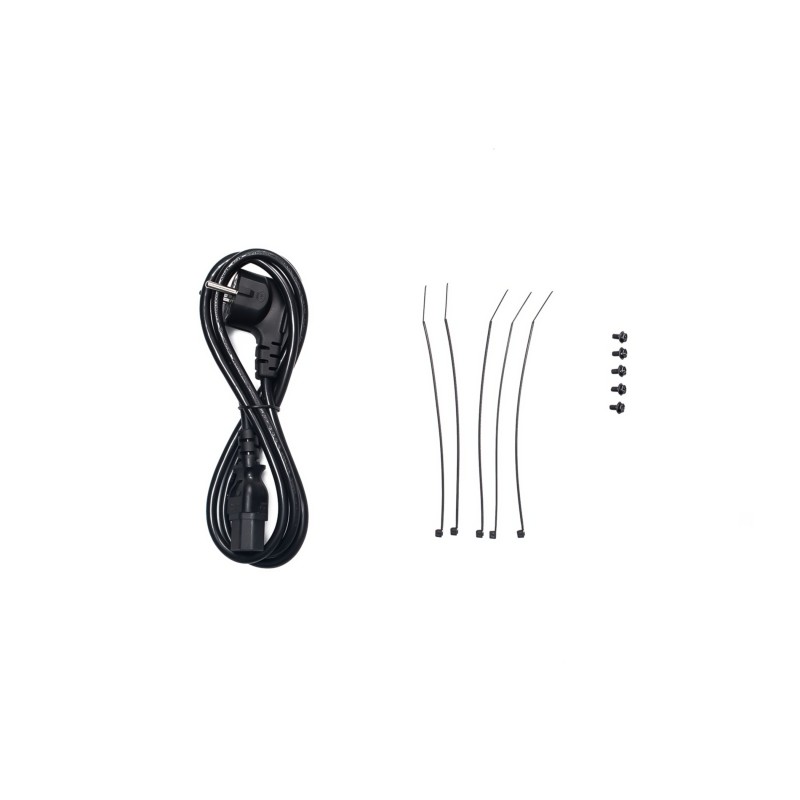

| Cables included | AC |
| Cable tie(s) included | Yes |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Width | 86 mm |
| Depth | 160 mm |
| Height | 150 mm |
| Weight | 2.3 kg |
| Package width | 133 mm |
| Package depth | 320 mm |
| Package height | 210 mm |
| Package weight | 2.8 kg |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 34.5 cm |
| Shipping (inner) case height | 41.8 cm |
| Shipping (inner) case net weight | 17.7 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Warranty period | 10 year(s) |
| Screws included | Yes |
