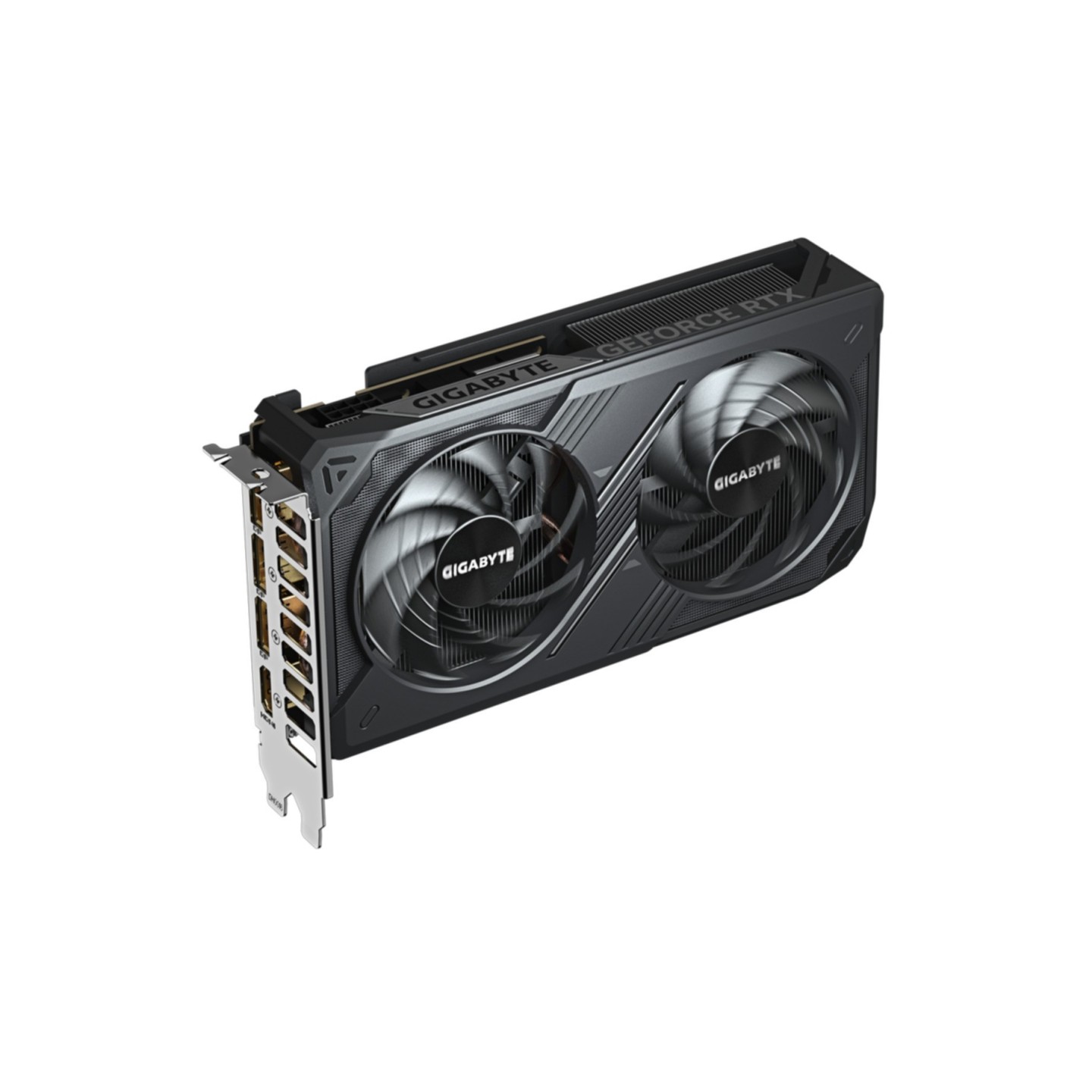

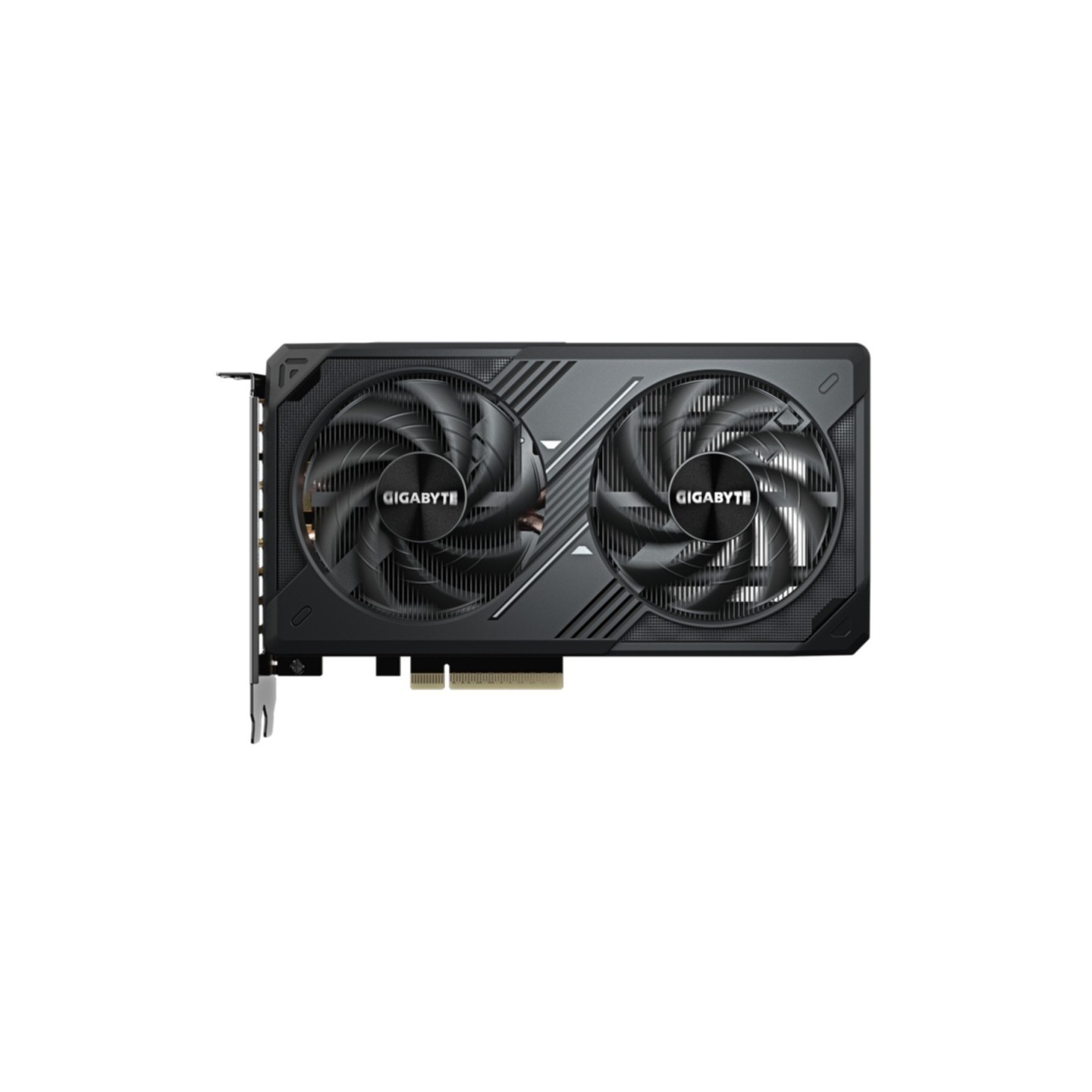

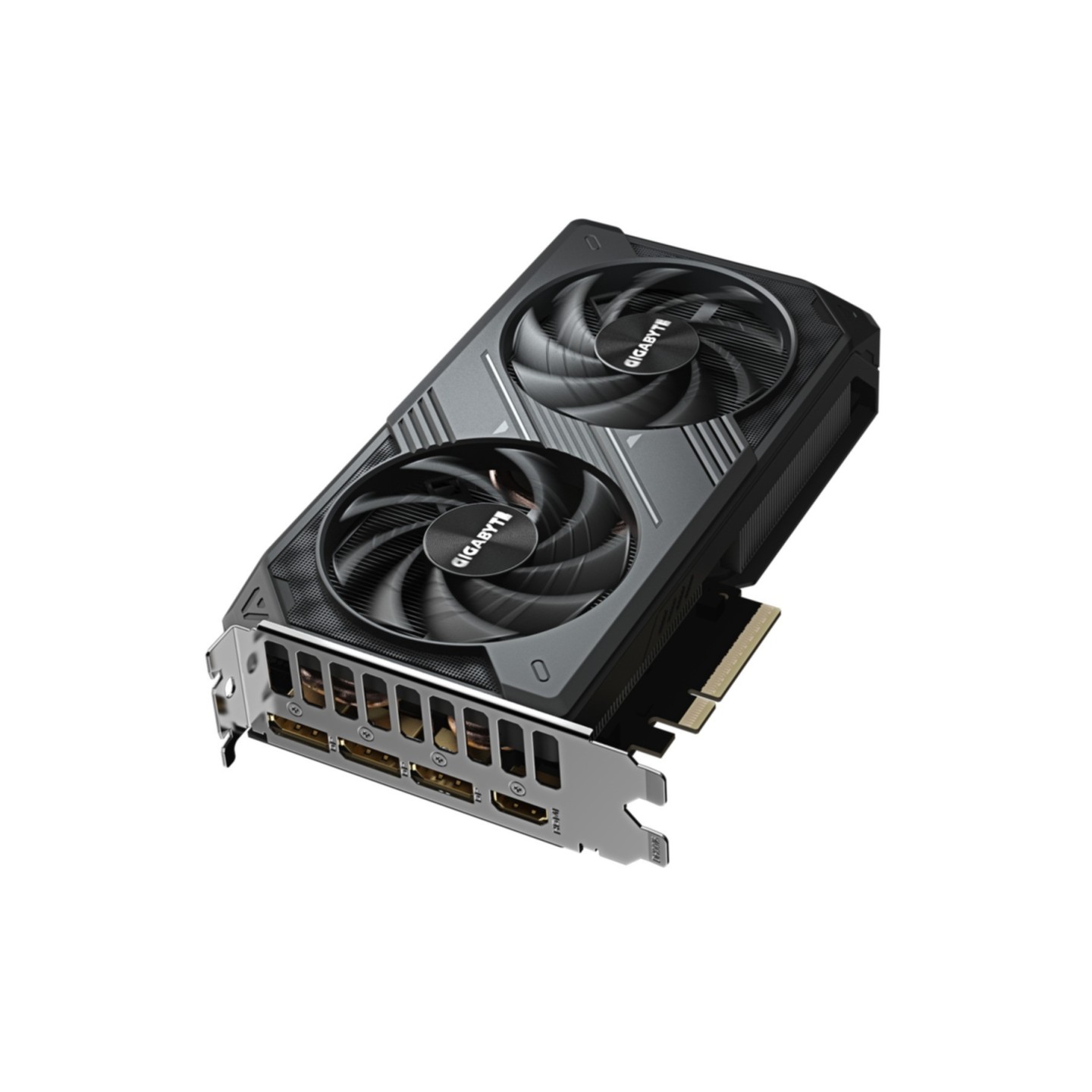

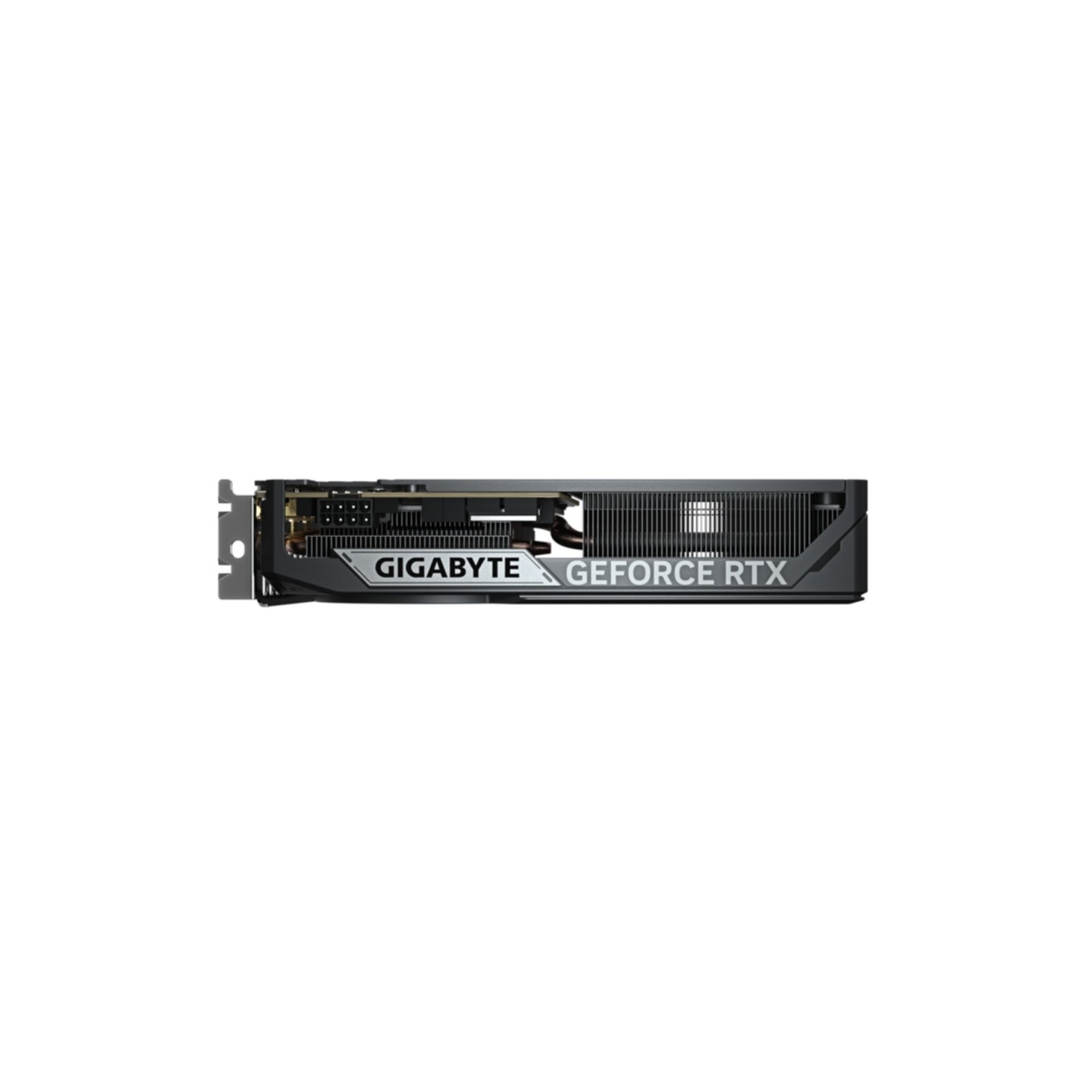

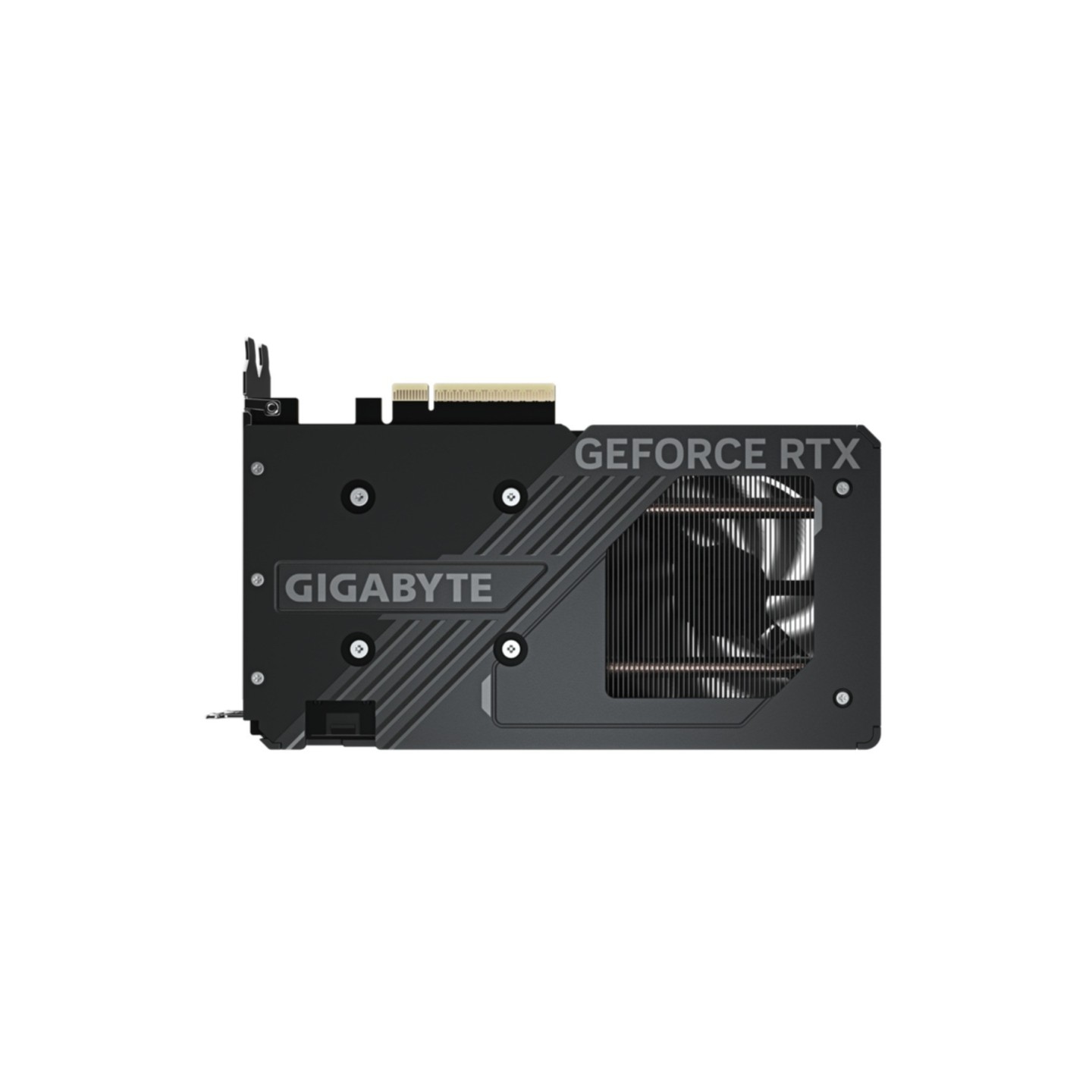

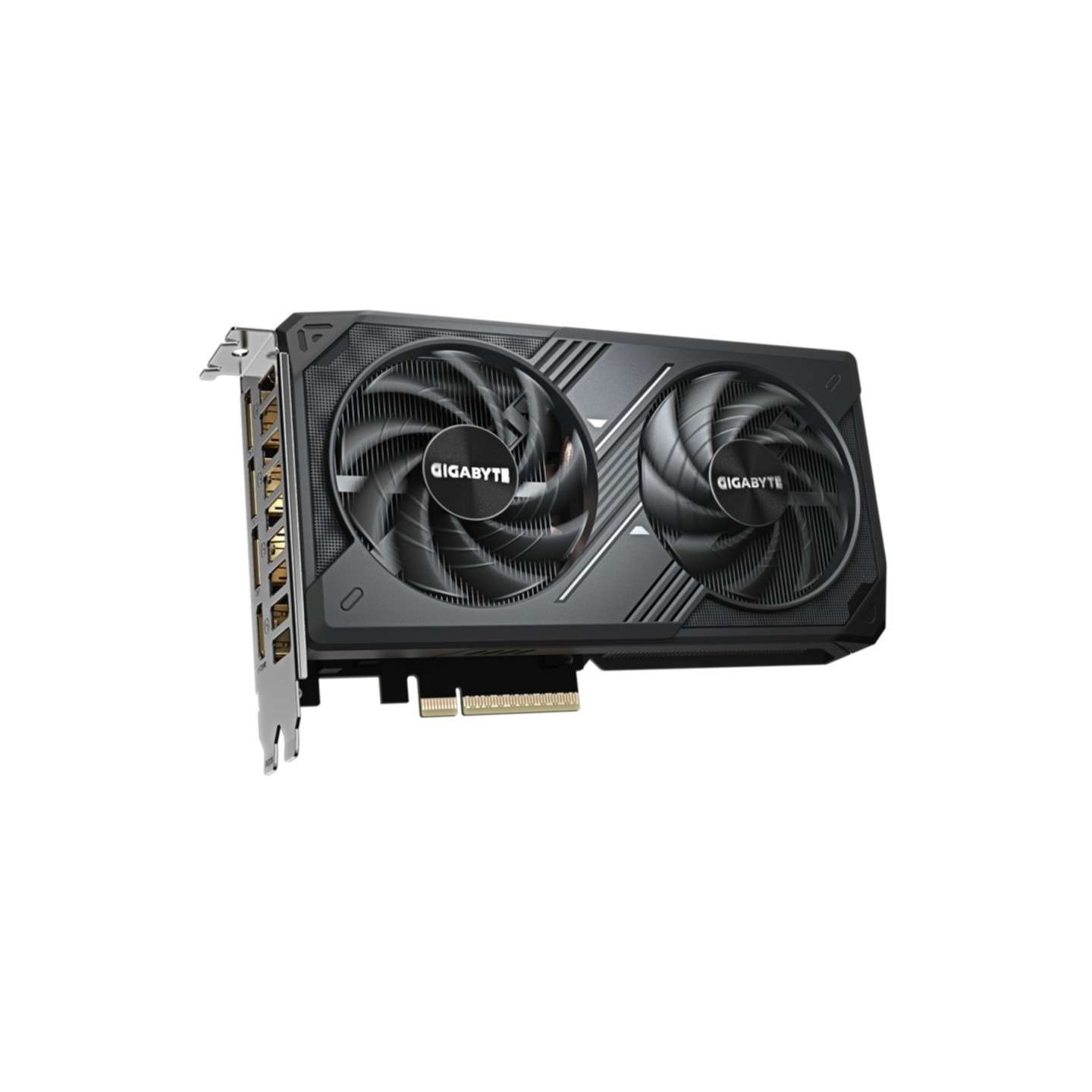

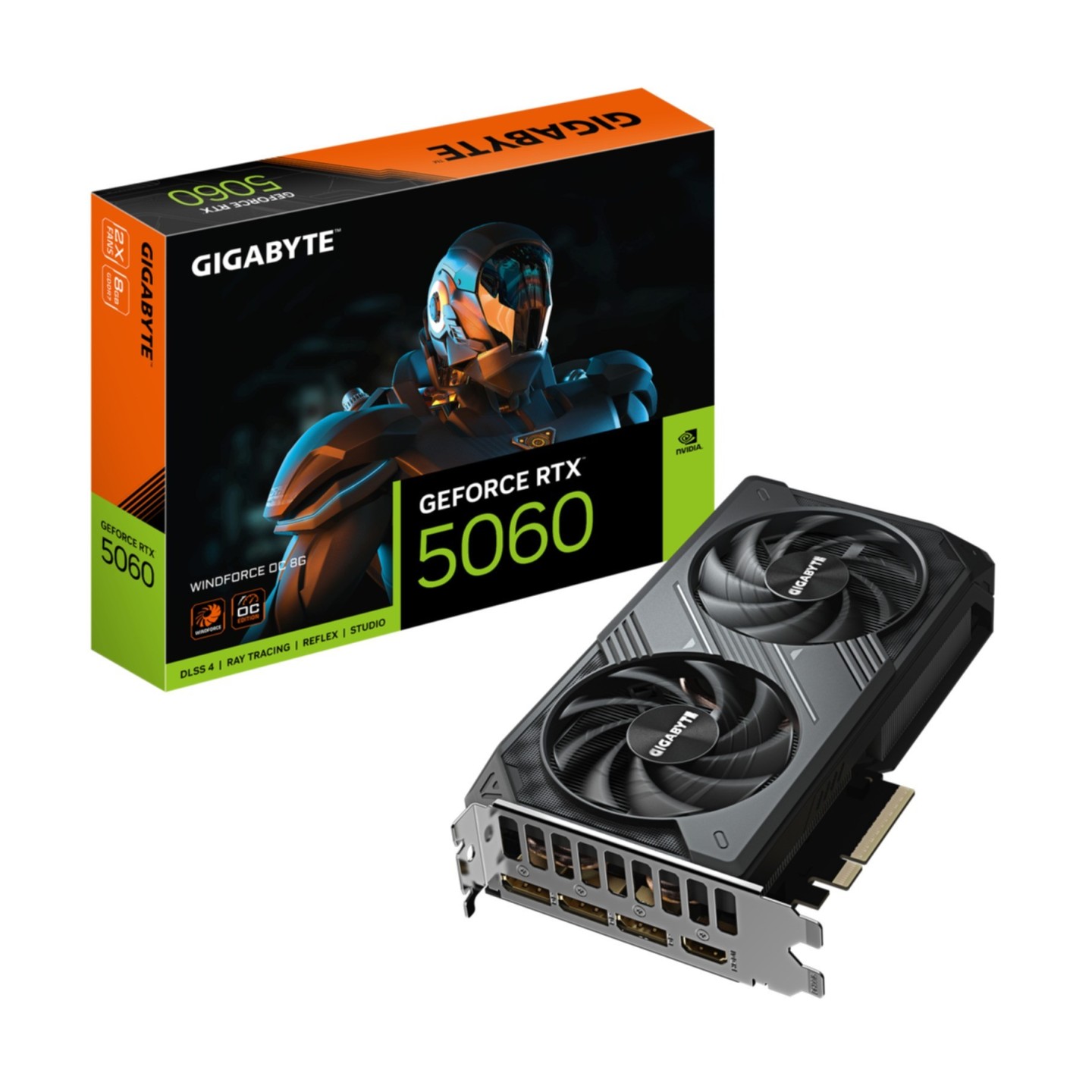

GIGABYTE GeForce RTX 5060 Windforce OC - Black, 8GB GDDR7, 2512 MHz, PCIe 5.0 (Boxed)
GIGABYTE GeForce RTX 5060 Windforce OC: 8GB GDDR7, 3840 CUDA cores, 2512 MHz boost, PCIe 5.0. WINDFORCE 2X cooling, 1x HDMI 2.1b + 3x DP 2.1b. 109W TDP, 450W PSU min. Ideal 1080p/1440p gaming w/DLSS4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Compact (170-200 mm) |
Experience next-level gaming with the GIGABYTE GeForce RTX 5060 Windforce OC, powered by NVIDIA's Blackwell architecture. Featuring 3840 CUDA cores, 8GB GDDR7 memory on a 128-bit bus, and a boost clock of 2512 MHz, this card delivers smooth 1080p and playable 1440p performance in modern titles.
The WINDFORCE 2X cooling system with dual fans keeps temperatures low even under load, while PCIe 5.0 ensures future-proof compatibility. Support for DLSS 4 with multi-frame generation boosts frame rates significantly. Connect up to 4 displays via 1x HDMI 2.1b and 3x DisplayPort 2.1b for immersive visuals up to 8K.
- Overclocked edition for extra performance
- NVIDIA G-SYNC for tear-free gaming
- Compact FH/HL form factor: 199 x 116 x 40 mm
- Requires 450W PSU with 1x 8-pin connector
- 3-year warranty
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency | 2512 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
| Weight | 490 g |
| Length | 199 mm |
| Depth | 40 mm |
| Height | 116 mm |
| Package width | 210.5 mm |
| Package depth | 295 mm |
| Package height | 50 mm |
| Package weight | 810 g |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
