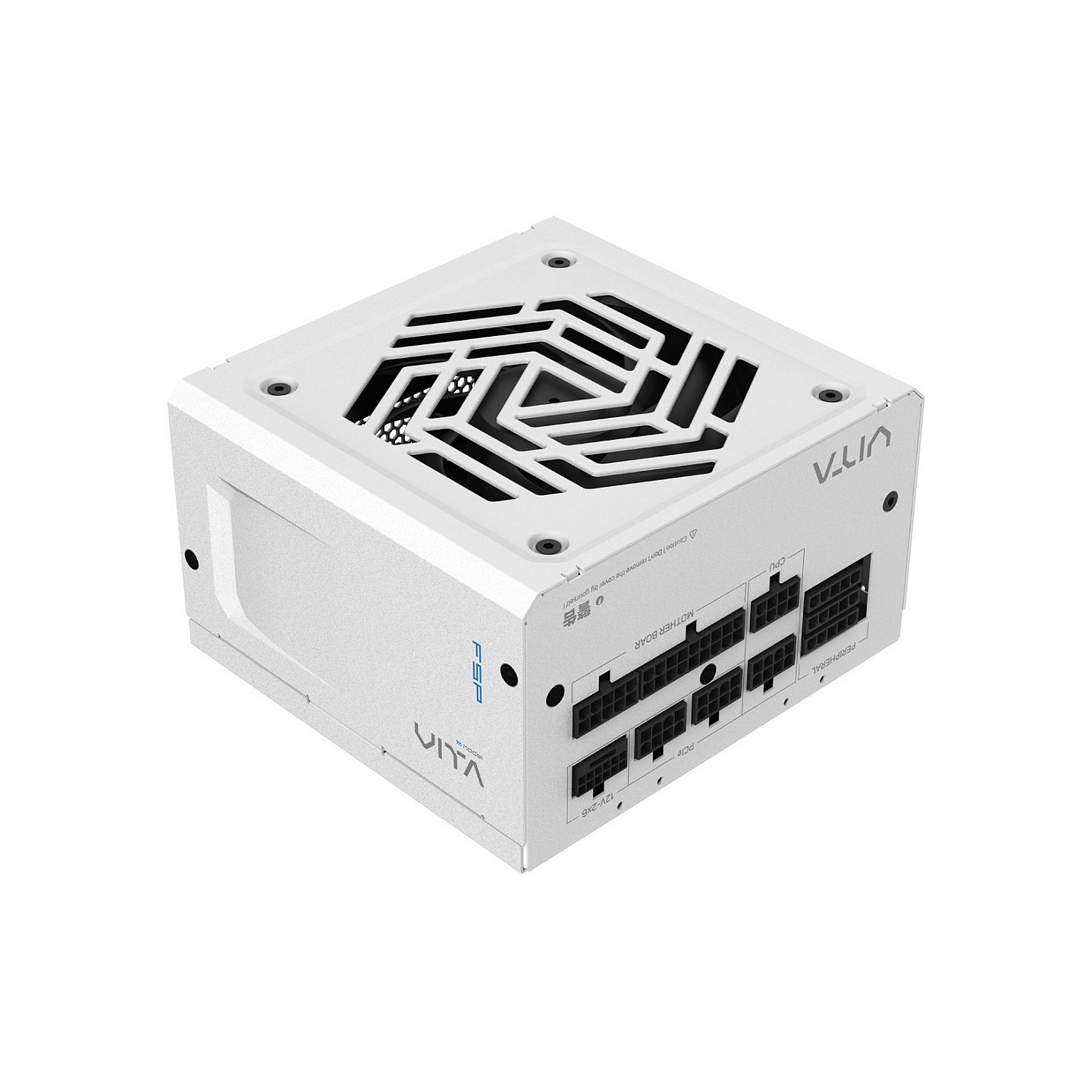

FSP VITA GM 1000W - 80+ Gold ATX 3.1 Fully Modular PSU - VITA-1000GM (Boxed)
FSP VITA GM 1000W is an ATX 3.1 / PCIe 5.1 compliant PSU with 80+ Gold efficiency, fully modular design, and compact 140mm depth. Features 1x 12V-2x6 (600W) + 4x 6+2 PCIe connectors for modern GPUs, 120mm HYB fan, Japanese capacitors, and 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The FSP VITA GM 1000W (VITA-1000GM) is a high-performance, fully modular ATX 3.1 power supply designed for demanding gaming and workstation builds. Certified 80 PLUS Gold with Cybenetics Gold (A- noise), it delivers over 90% efficiency at typical loads, minimizing heat and power waste. Compliant with Intel ATX 3.1 and PCIe Gen 5.1 standards, it supports power excursions for next-gen NVIDIA RTX 40/50 series GPUs.
Key features include a compact 140 x 150 x 86 mm chassis with 120mm hydraulic bearing fan for quiet operation, 105°C Japanese bulk capacitors for reliability, and full protections (OVP/OCP/OPP/OTP/SCP/UVP). It provides single +12V rail (83.3A, 1000W) with dual EPS connectors and versatile PCIe power: 1x 12V-2x6 (12+4 pin, 600W) plus 4x 6+2 pin PCIe connectors.
- ✅ ATX 3.1 / PCIe 5.1 ready with 12V-2x6 connector
- ✅ 80+ Gold certified, 90%+ efficiency
- ✅ Fully modular for clean builds
- ✅ 120mm HYB fan, compact 140mm depth
- ✅ 10-year warranty, Japanese capacitors
- ✅ Connectors: 2x EPS, 1x 12V-2x6, 4x PCIe 6+2, 8x SATA, 4x Molex
| Model | VITA-1000GM |
| Rated Output Power | 1000W |
| Form Factor | ATX 12V v3.1 |
| 80 PLUS Certification | Gold |
| Cybenetics Certification | Gold (A- Noise) |
| Dimensions (WxHxD) | 150 x 86 x 140 mm |
| Fan | 120mm Hydraulic Bearing (HYB) |
| Capacitors | 105°C Japanese Bulk |
| Modular | Fully Modular |
| PCIe Connectors | 1x 12V-2x6 (600W), 4x 6+2 pin |
| EPS Connectors | 2x 4+4 pin |
| SATA Connectors | 8x |
| Molex Connectors | 4x 4-pin |
| Warranty | 10 Years |
| +12V Rail | 83.3A (1000W) |
| Input Voltage | 100-240V, 50-60Hz |
