Noctua NH-L9i-17xx - Low-Profile CPU Cooler for LGA1700, 92mm Fan, Beige/Brown, 37mm Height
Low-profile CPU cooler for LGA1700 with 92 x 25 mm fan, 37 mm total height, copper base, 385 g, up to 2500 RPM, quiet operation (23.6 dB).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | Top-flow/Low-profile |
|---|---|
| Cooling (CPU & Case) - Socket Support | LGA1700 |
| Cooling (CPU & Case) - Height (Air) | less than or equal to47 mm (LP) |
| Cooling (CPU & Case) - Noise Level | less than or equal to25 dBA |
| Cooling (CPU & Case) - RGB (Cooler) | None |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Speed (RPM) | 2001-3000 |
| Cooling (CPU & Case) - Use Case | Airflow |
| Cooling (CPU & Case) - Lighting (Fan) | None |
The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2 mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.

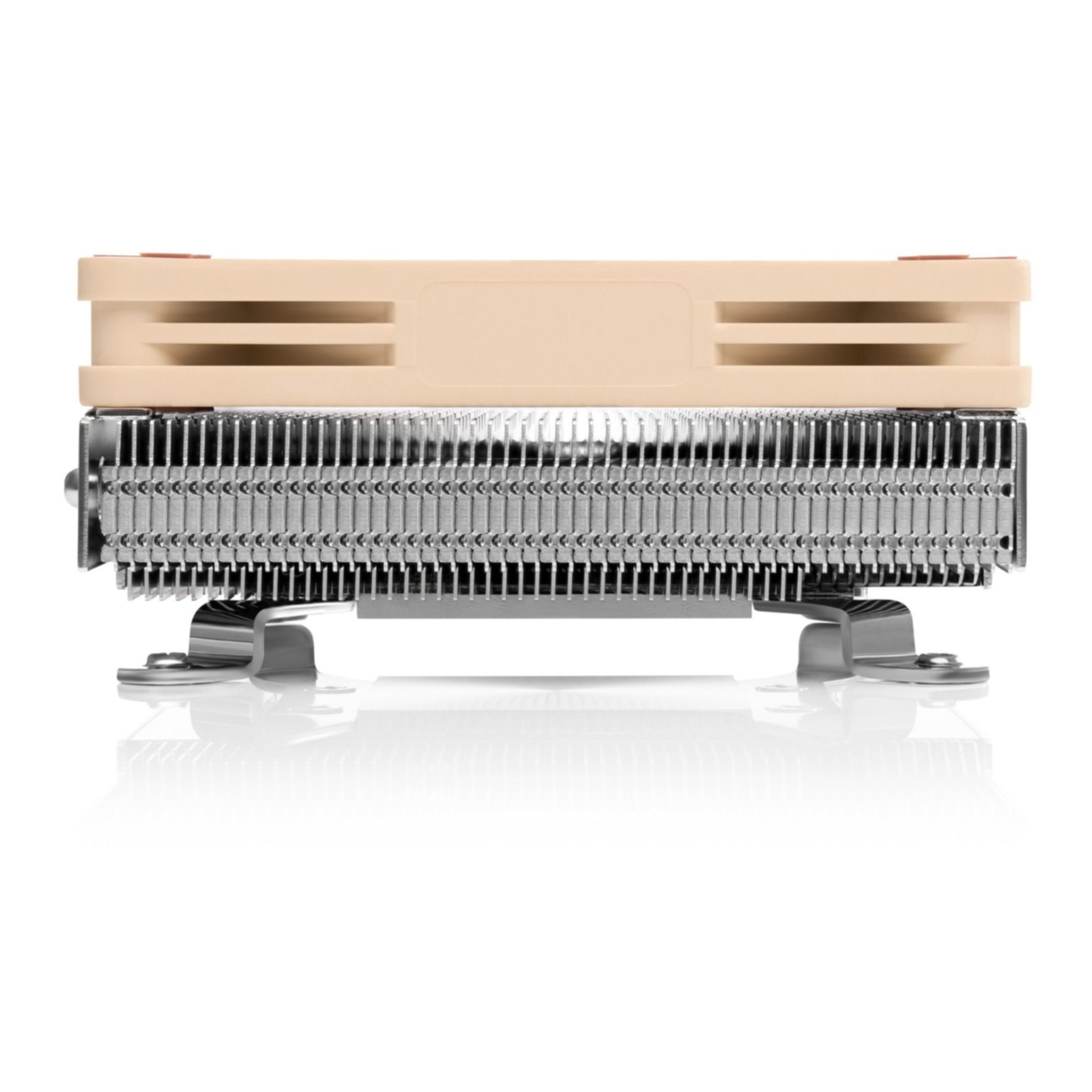

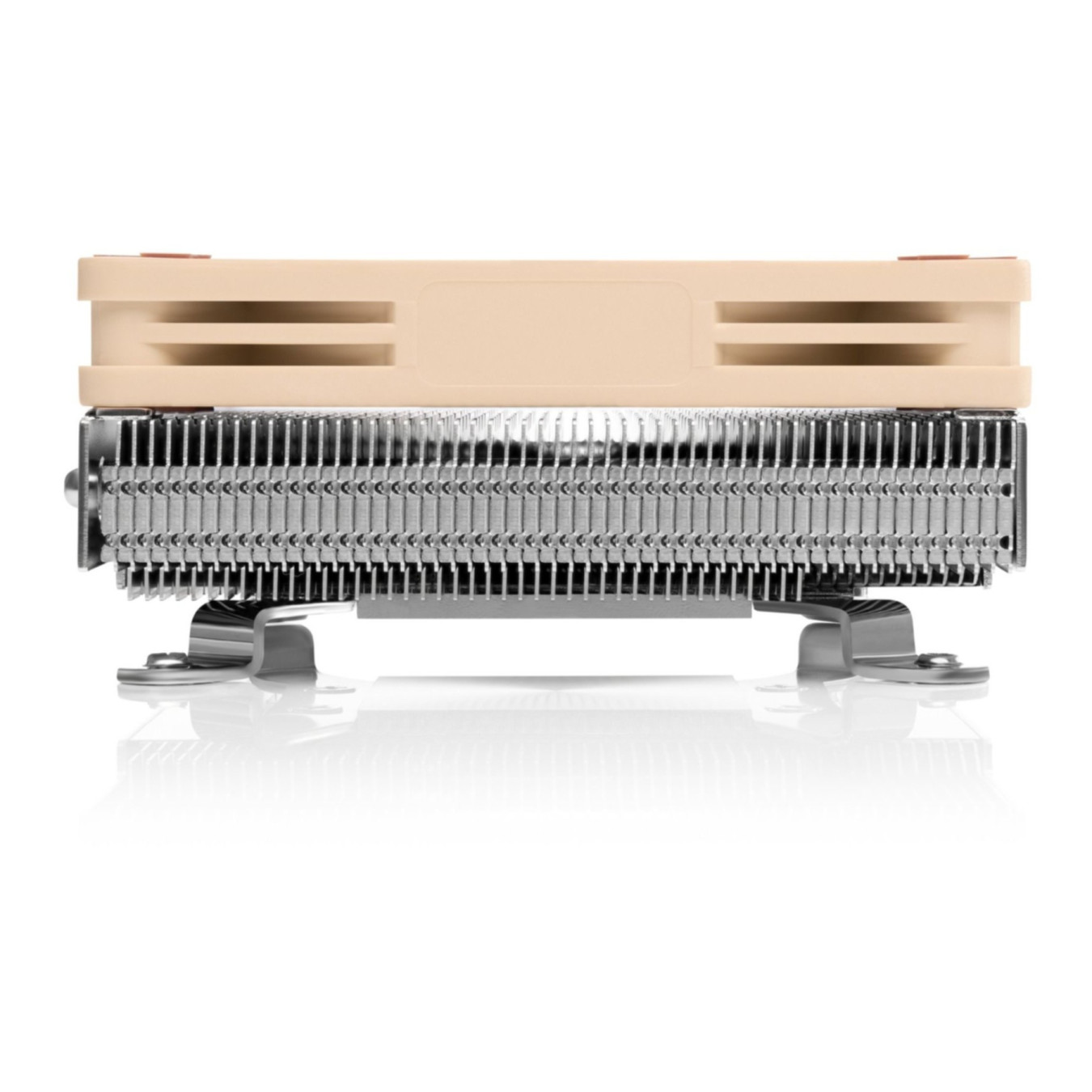

37mm low profile
Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.
100% RAM compatibility
The NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Most Intel LGA115x based mini-ITX motherboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.
NF-A9x14 PWM premium fan
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.
Low-Noise Adaptor
Allowing the maximum speed of the NF-A9x14 PWM fan to be reduced from 2500 to 1800rpm, the included Low-Noise Adaptor (LNA) makes it possible to achieve near-silent setups with suitable CPUs that only create smaller heat loads.
Custom-designed SecuFirm2 mounting for LGA115x/1200
The NH-L9i bundles a custom-designed, backplate-less SecuFirm2 mounting system for LGA115x/1200 that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2 quality.
NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2500 RPM |
| Noise level (high speed) | 23.6 dB |
| Airflow | 57.5 m³/h |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 150000 h |
| Product colour | Beige, Brown |
| Base plate material | Copper |
| Power supply | 2.52 W |
| Voltage | 12 V |
| Width | 95 mm |
| Depth | 95 mm |
| Height | 37 mm |
| Weight | 385 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Package width | 213 mm |
| Package depth | 149 mm |
| Package height | 54 mm |
| Package weight | 636 g |
| Harmonized System (HS) code | 84733080 |
