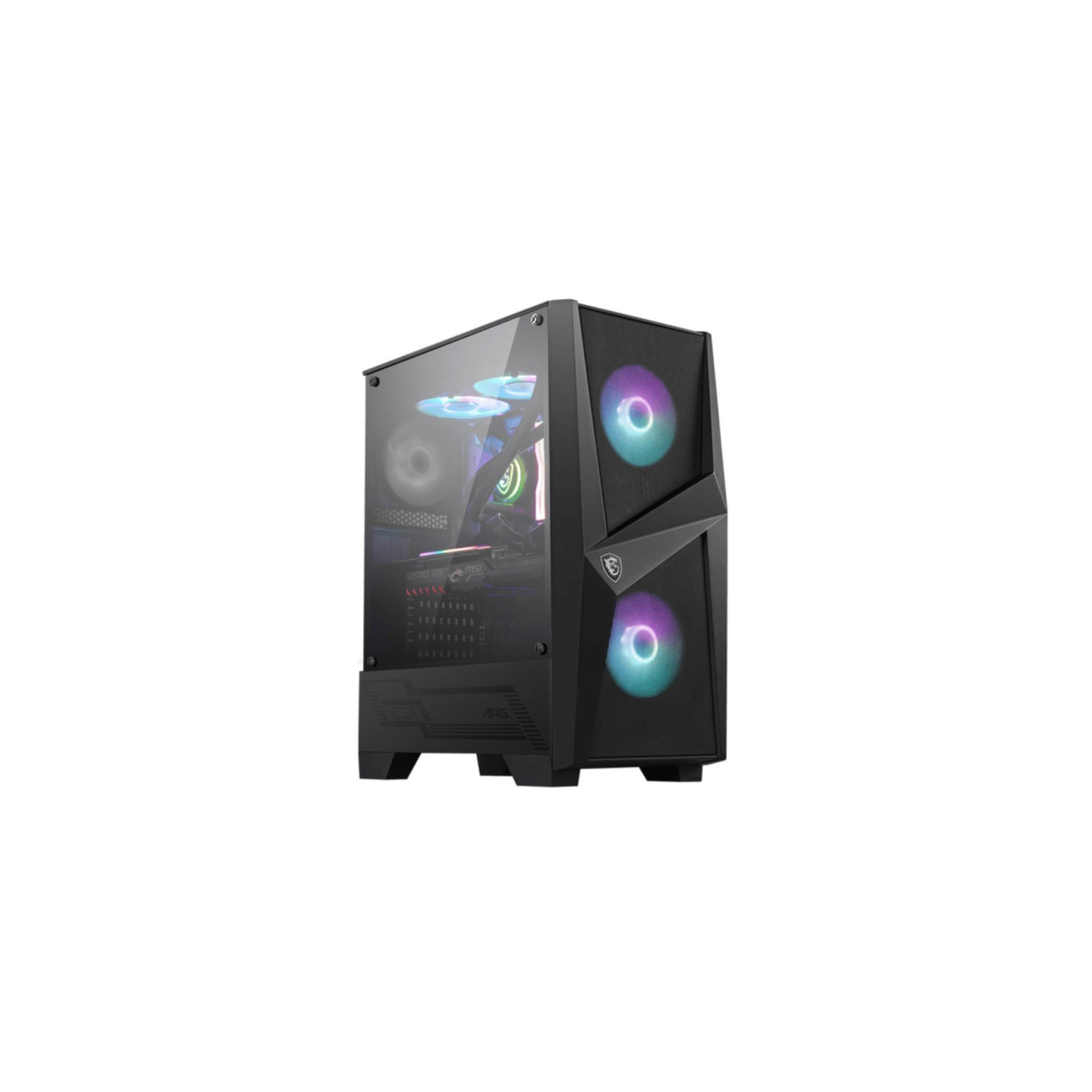

MSI MAG FORGE 100R - Mid-Tower PC Case - Black, Tempered Glass, ARGB Fans, 330mm GPU, 160mm CPU Cooler

SKU 6717 Brand MSI EAN13 4719072676407
Mid-tower ATX/microATX/Mini-ITX case with tempered glass side panel, 3x preinstalled ARGB fans (2 front, 1 rear), supports up to 330mm GPU, 160mm CPU cooler, PSU bottom
PC Cases - Type Mid Tower
PC Cases - Max GPU Length 301-340 mm
PC Cases - CPU Cooler Clearance 151-165 mm
PC Cases - Included Fans 3
PC Cases - Front I/O 2xUSB-A
PC Cases - GPU Orientation Horizontal

OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

TOOL-LESS TEMPERED GLASS

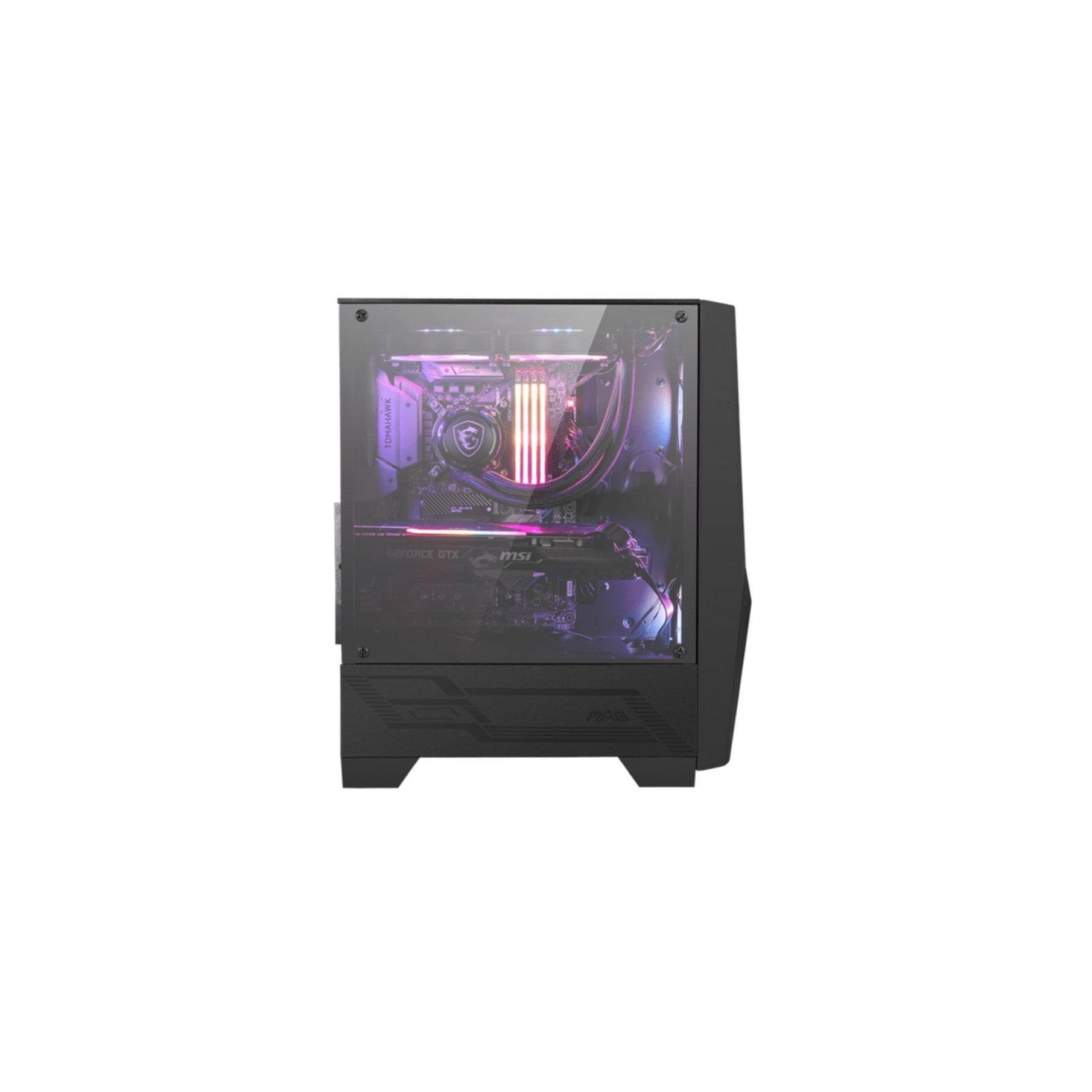

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

PERSONALIZE YOUR GAMING RIG
ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.

LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.


MaterialTempered glass
Form factorMidi Tower
TypePC
Product colourBlack, Transparent
Supported motherboard form factorsATX, micro ATX, Mini-ITX
Number of 3.5" bays2
Number of 2.5" bays3
Number of internal 3.5" bays2
Number of expansion slots7
Side windowYes
Suitable forGaming
IlluminationYes
Illumination colourMulti
Illumination locationCase fans
Tempered glass panel(s)Yes
Anti-dust filterYes
Reset buttonYes
On/off buttonYes
LED indicatorsYes
Maximum CPU cooler height16 cm
Maximum graphics card length33 cm
Maximum PSU length20 cm
Power supply includedNo
Power supply locationBottom
Audio inputYes
Audio outputYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Front fans installed2x 120 mm
Number of front fans supported (max)3
Front fans diameters supported120, 140 mm
Front fans supported descriptionaddressable RGB LED
Rear fans installed1x 120 mm
Number of rear fans supported (max)1
Rear fans diameters supported120 mm
Number of top fans supported (max)2
Top fans diameters supported120, 140 mm
Supported HDD sizes2.5, 3.5"
HDD/SSD combo cageYes
Width210 mm
Depth421 mm
Height499 mm
Weight5.64 kg
Harmonized System (HS) code84733080
