Chieftec UNI Series BU-12B-300 Mini-ITX SFF Case 300W PSU Black (Boxed)
Compact Mini-ITX small-form-factor case with integrated 300W 80 PLUS Bronze TFX PSU. Supports Mini-ITX motherboards, up to 150mm GPU, 65mm CPU cooler. Features 1x 3.5" bay, 1x 5.25" slim ODD, 2x USB3.0 front ports, SD card reader, audio I/O.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Mini ITX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 1 |
| PC Cases - Front I/O | Audio Jacks SD Card Reader USB A |
| PC Cases - GPU Orientation | Horizontal Vertical Supported |
| PC Cases - Form Factor | Small Form Factor |
| PC Cases - Max GPU Length | Up to 250 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |

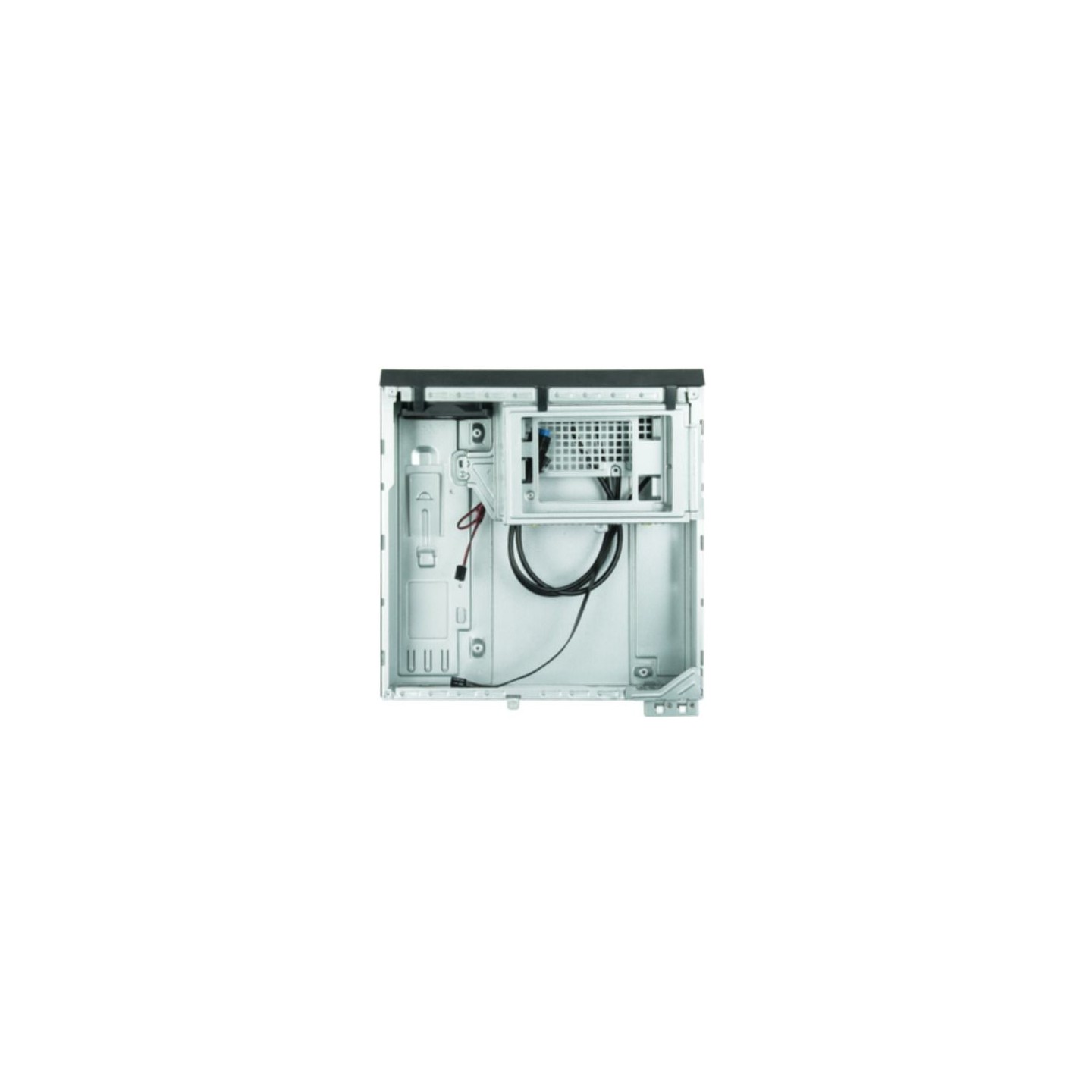

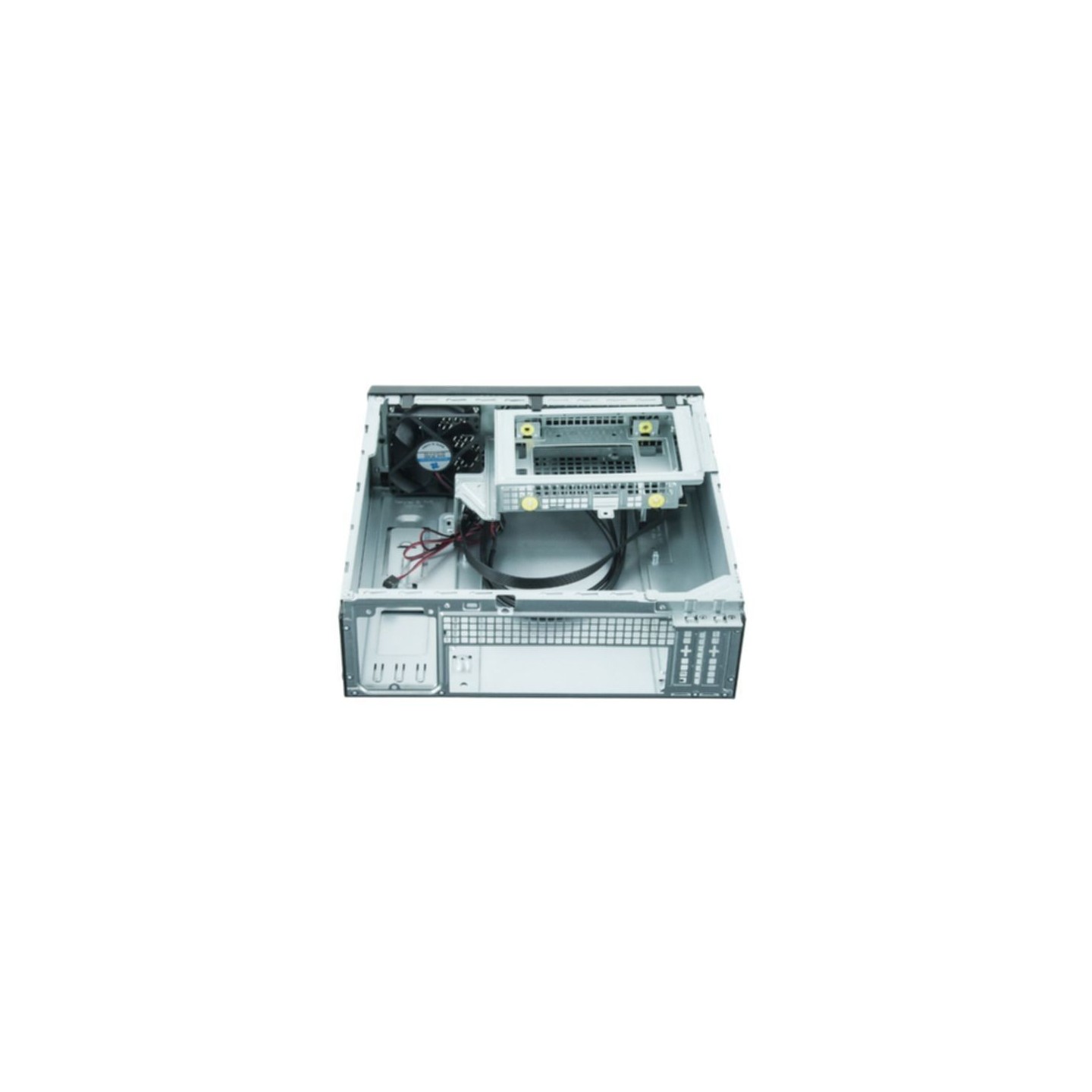

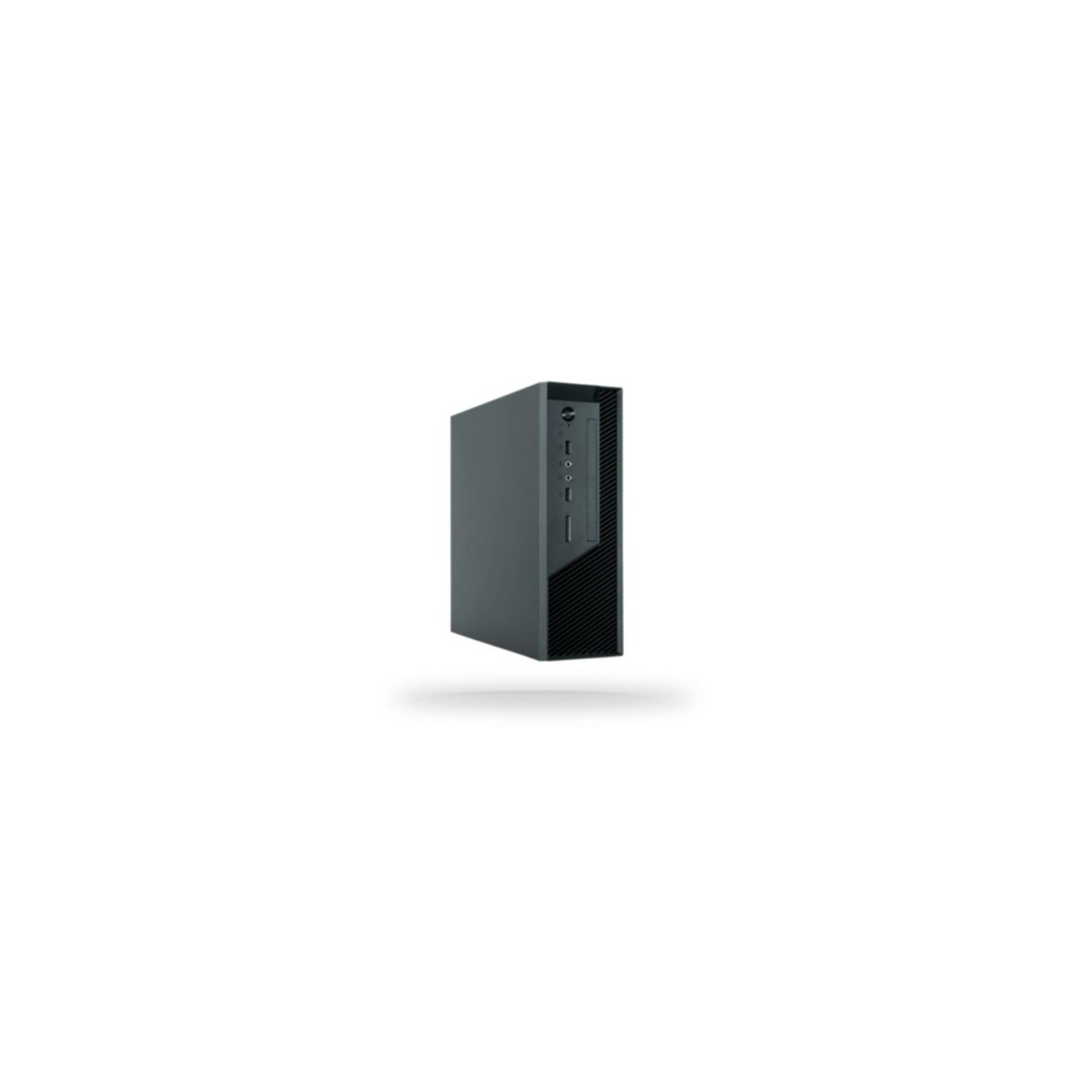

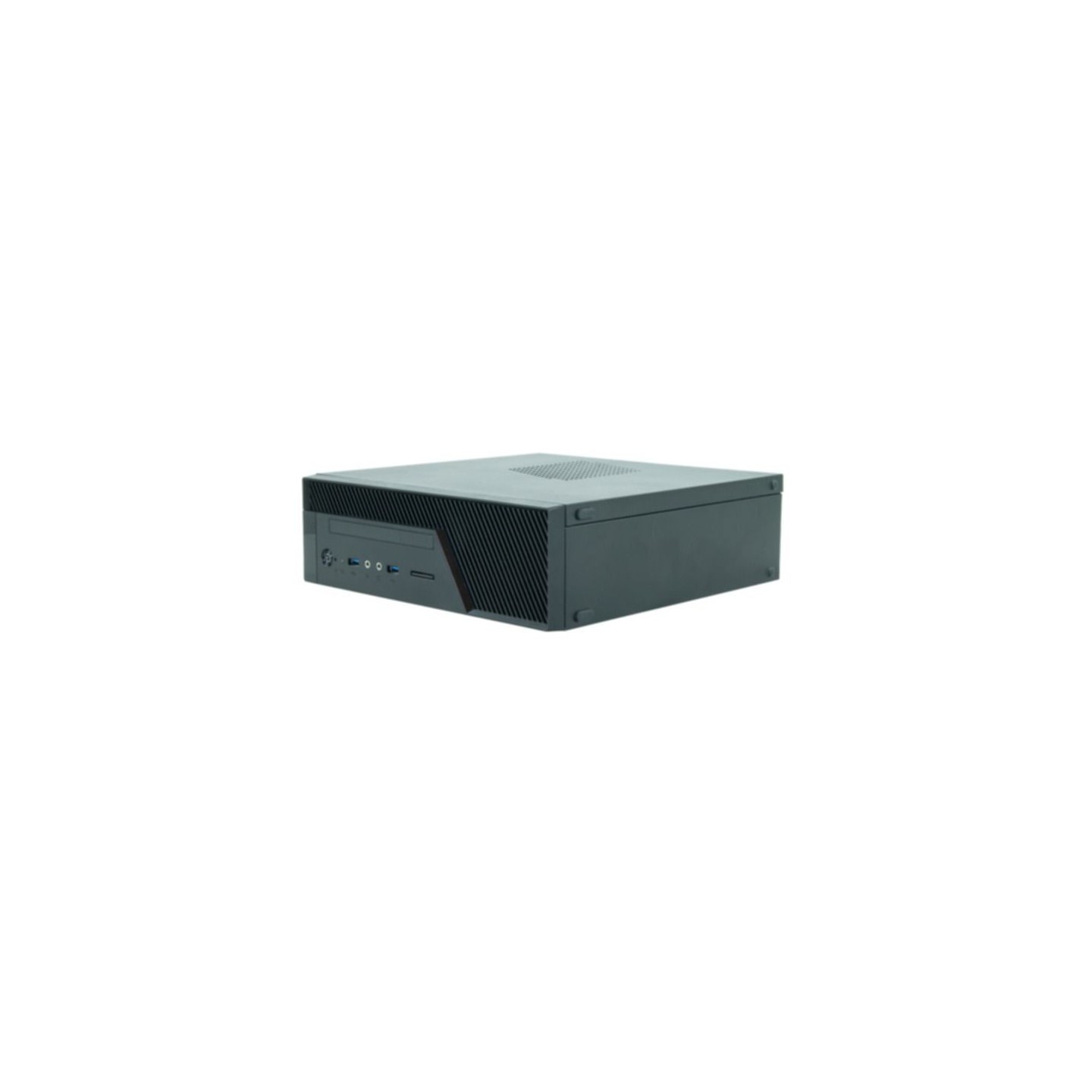

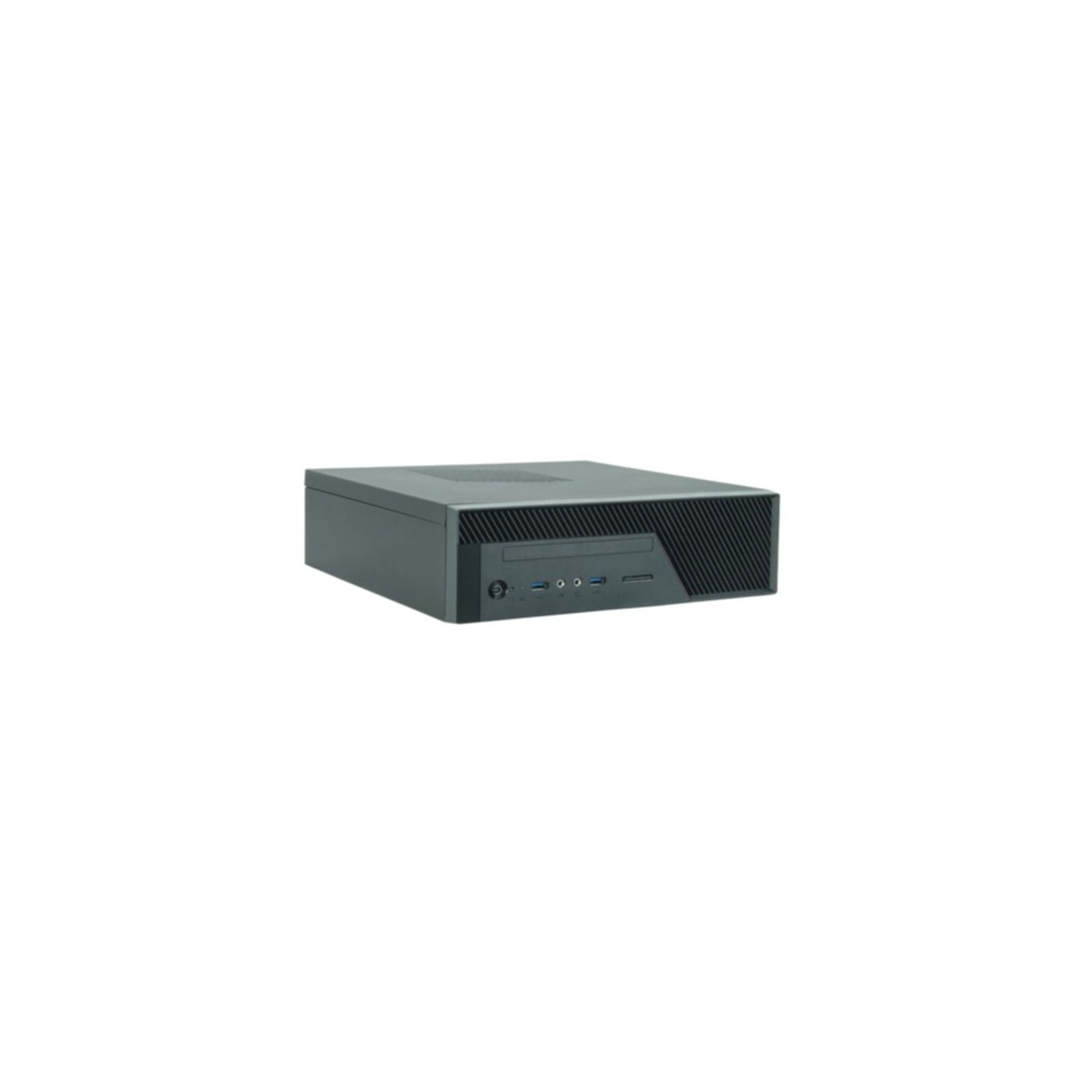

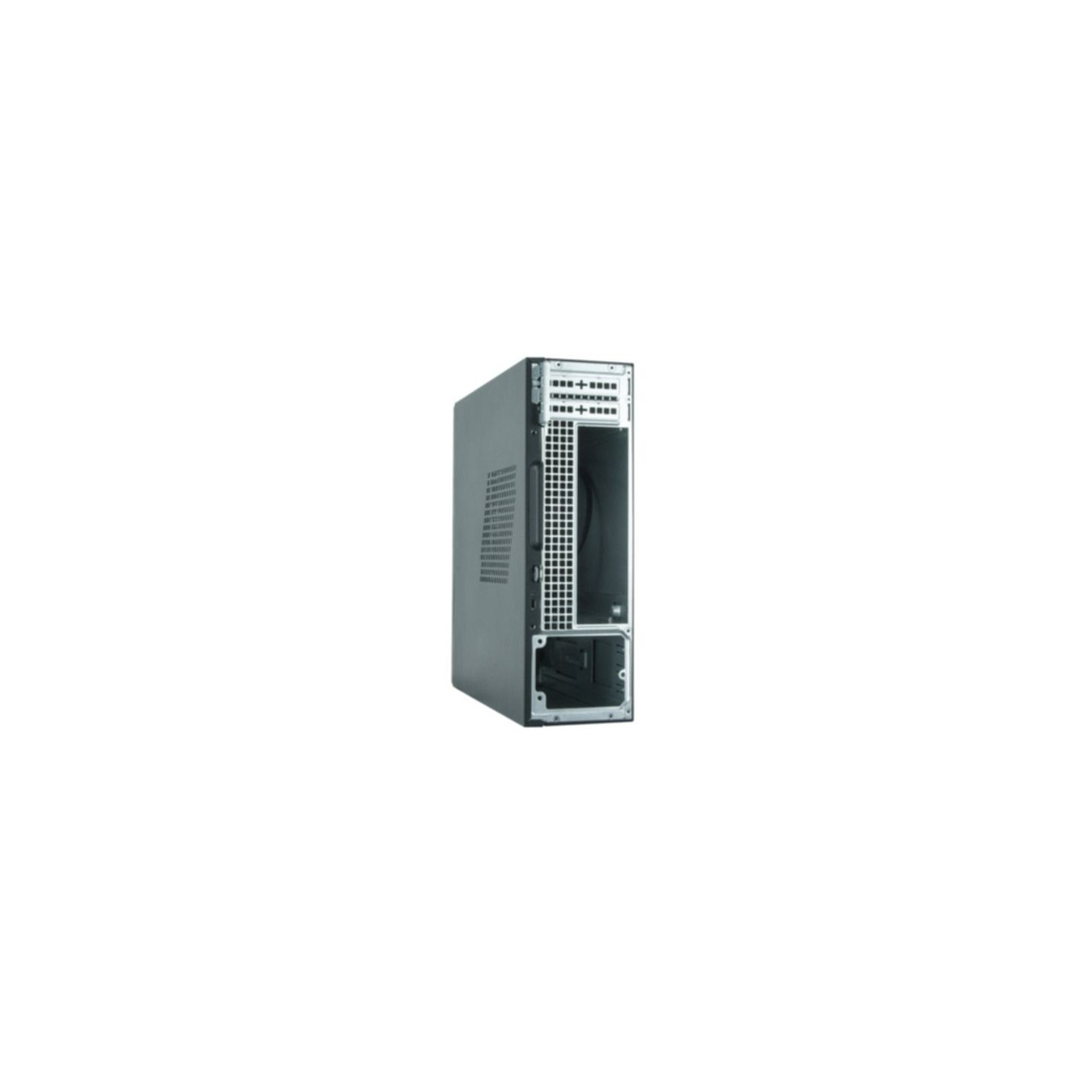

The Chieftec UNI Series BU-12B-300 is a compact small-form-factor (SFF) PC case designed for building high-performance systems in minimal space. With dimensions of just 290 x 92.5 x 280mm, this case combines the compactness of Mini-ITX form factor with full functionality and flexibility. The case can be operated in both horizontal and vertical orientations, making it ideal for space-constrained environments such as offices, home theaters, or compact workstations.
The BU-12B-300 comes pre-equipped with a 300W 80 PLUS Bronze certified TFX power supply (GPF-300P), eliminating the need for separate PSU sourcing. It supports Mini-ITX motherboards exclusively and features 2 low-profile PCI/PCI-E expansion slots for graphics cards and other expansion cards. The case includes 1x preinstalled 80mm front cooling fan and supports a maximum CPU cooler height of 65mm and GPU length of 150mm. Storage options include 1x external 5.25" ultra-slim ODD bay and 1x internal 3.5" plus 1x internal 2.5" drive bays.
Front I/O connectivity includes 2x USB 3.0 (USB 3.1 Gen 1) ports, audio output, microphone input, and an SD card reader supporting SD/MMC/MS cards at 480Mbps transfer speed. The case is constructed from 0.5mm SECC steel and includes a 24-month manufacturer warranty. Ergonomically positioned front interfaces and space-saving design make this case an excellent choice for budget-conscious builders seeking compact, reliable systems.
- Compact dimensions: 290 x 92.5 x 280mm (unboxed)
- Mini-ITX motherboard support only
- Integrated 300W 80 PLUS Bronze TFX PSU (GPF-300P)
- 2x USB 3.0 front ports with SD card reader and audio I/O
- Supports up to 150mm GPU and 65mm CPU cooler
- Horizontal and vertical operation capability
- 1x preinstalled 80mm front fan
- 24-month warranty
| Type | PC Case |
| Form Factor | Small Form Factor (SFF) |
| Color | Black |
| Material | 0.5mm SECC Steel |
| Motherboard Support | Mini-ITX |
| Dimensions (W x D x H) Unboxed | 92.5 x 290 x 280 mm |
| Weight Unboxed | 2.98 kg |
| Weight with Packaging | 3.78 kg |
| External Drive Bays | 1x 5.25 |
| Internal Drive Bays | 1x 3.5 |
| Expansion Slots | 2x Low Profile PCI/PCI-E |
| Power Supply | 300W TFX GPF-300P (80 PLUS Bronze Certified) |
| Front I/O Ports | 2x USB 3.0 (USB 3.1 Gen 1), Audio Output (AZALIA/HD-Audio), Microphone Input, SD Card Reader (SD/MMC/MS, 480Mbps via 9-pin USB 2.0 internal) |
| Front Fans Supported | 1x 80mm (Preinstalled) |
| Maximum CPU Cooler Height | 65 mm |
| Maximum GPU Length | 150 mm |
| Orientation | Horizontal and Vertical |
| Warranty | 24 Months |
| EAN Code | 0753263077158 |
| Included Accessories | Screw Set |
