Gigabyte GeForce RTX 5060 Ti EAGLE OC 8GB GDDR7 - 2617 MHz (Boxed)
Gigabyte RTX 5060 Ti EAGLE OC 8GB - Factory overclocked to 2617 MHz, WINDFORCE 2X cooling, PCIe 5.0, HDMI 2.1b + 3x DP 2.1b outputs, 180W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The Gigabyte GeForce RTX 5060 Ti EAGLE OC is a factory-overclocked graphics card featuring NVIDIA's latest Blackwell architecture with 4608 CUDA cores and 8GB of GDDR7 memory. Clocked at 2617 MHz (versus the reference 2570 MHz), this card delivers enhanced gaming performance with support for NVIDIA DLSS 4 and advanced AI features including new FP4 capabilities and Second-Generation FP8 Transformer Engine support. The WINDFORCE 2X dual-fan cooling system ensures efficient thermal management at 180W TDP, making it suitable for 1080p and 1440p gaming with excellent frame rates.

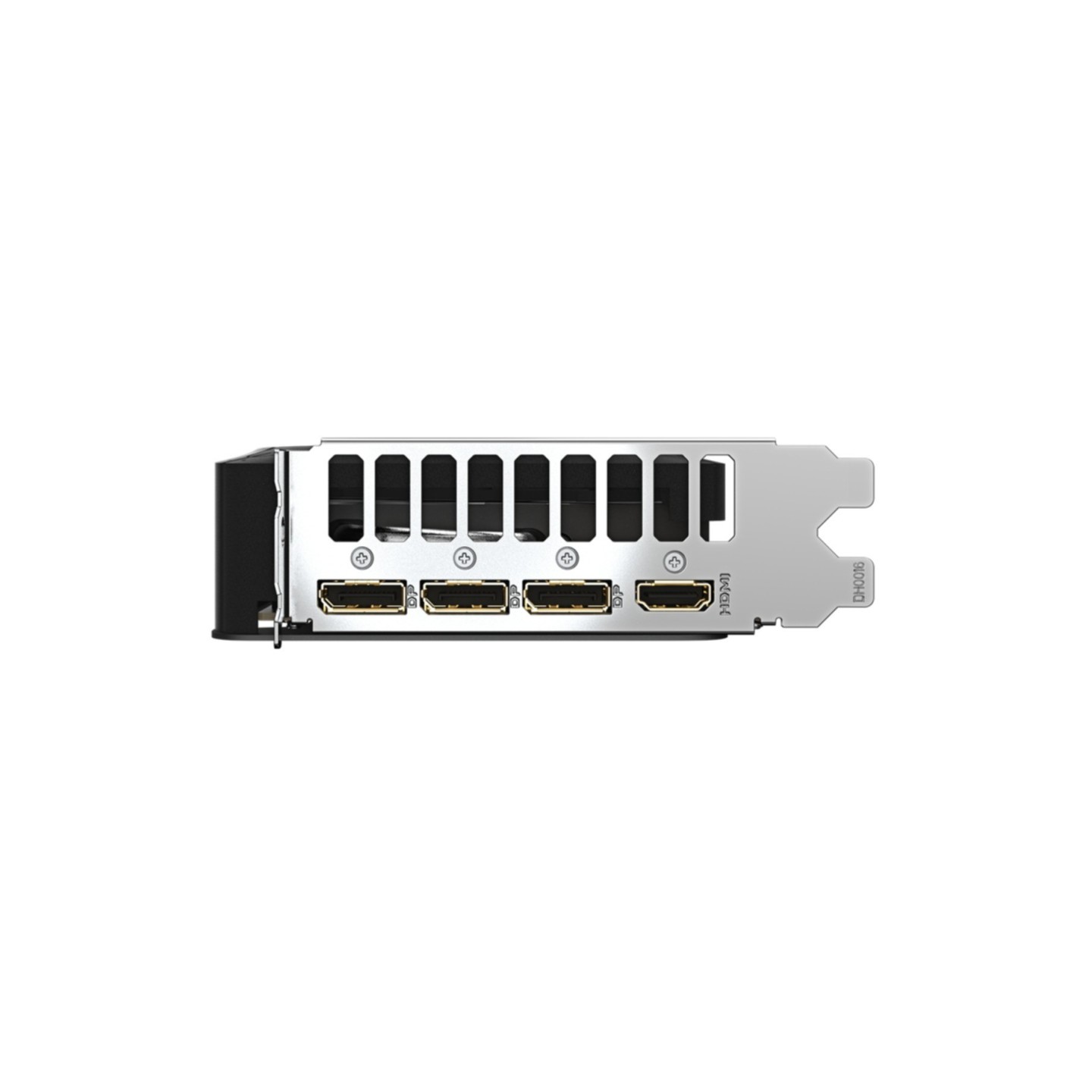

Connectivity is comprehensive with 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs, supporting up to 4 simultaneous displays at resolutions up to 7680x4320. The card utilizes a 128-bit memory bus with 28 Gb/s memory speed, delivering 448 GB/s bandwidth. It connects via PCIe 5.0 x8 interface and requires a single 8-pin supplementary power connector, making it compatible with 650W+ power supplies. The compact form factor (215mm length, 2-slot design) fits most modern cases while maintaining excellent cooling performance.
Key features and specifications:
- 4608 CUDA cores with 36 RT cores and 144 Tensor cores
- Factory overclocked to 2617 MHz boost clock
- 8GB GDDR7 memory with 128-bit bus (448 GB/s bandwidth)
- WINDFORCE 2X dual-fan active cooling system
- DirectX 12.0 and OpenGL 4.6 support
- NVIDIA G-SYNC technology enabled
- 1x HDMI 2.1b + 3x DisplayPort 2.1b outputs
- 180W power limit with 1x 8-pin connector
- 3-year manufacturer warranty
| GPU Architecture | NVIDIA Blackwell (RTX 5060 Ti) |
| CUDA Cores | 4608 |
| RT Cores | 36 |
| Tensor Cores | 144 |
| Texture Mapping Units | 144 |
| Raster Units | 48 |
| GPU Die Size | 181 mm² |
| Transistor Count | 21 billion |
| Base Clock | 2407 MHz |
| Boost Clock | 2617 MHz |
| Memory Capacity | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128-bit |
| Memory Speed | 28 Gb/s |
| Memory Bandwidth | 448 GB/s |
| PCIe Interface | PCIe 5.0 x8 |
| Maximum Resolution | 7680 x 4320 pixels |
| Maximum Displays | 4 |
| HDMI Ports | 1x HDMI 2.1b |
| DisplayPort Outputs | 3x DisplayPort 2.1b |
| Power Connector | 1x 8-pin PCIe |
| Power Limit | 180 W (reference), adjustable 150-206 W |
| Thermal Design Power (TDP) | 180 W |
| Cooling Solution | WINDFORCE 2X (Dual-Fan) |
| Fan Speed | 1200-1500 RPM (typical) |
| DirectX Support | DirectX 12.0 |
| OpenGL Support | OpenGL 4.6 |
| NVIDIA G-SYNC | Yes |
| DLSS Support | DLSS 4 with AI multi-frame generation |
| Card Length | 215 mm |
| Card Height | 122 mm |
| Card Depth | 40 mm |
| Card Weight | 600 g |
| Form Factor | Full-Height/Half-Length (FH/HL) |
| Slot Occupancy | 2 slots |
| Backplate | Yes |
| Color | Black |
| Minimum PSU Requirement | 650 W |
| Warranty | 3 years |
| Overclocked Edition | Yes (EAGLE OC) |
