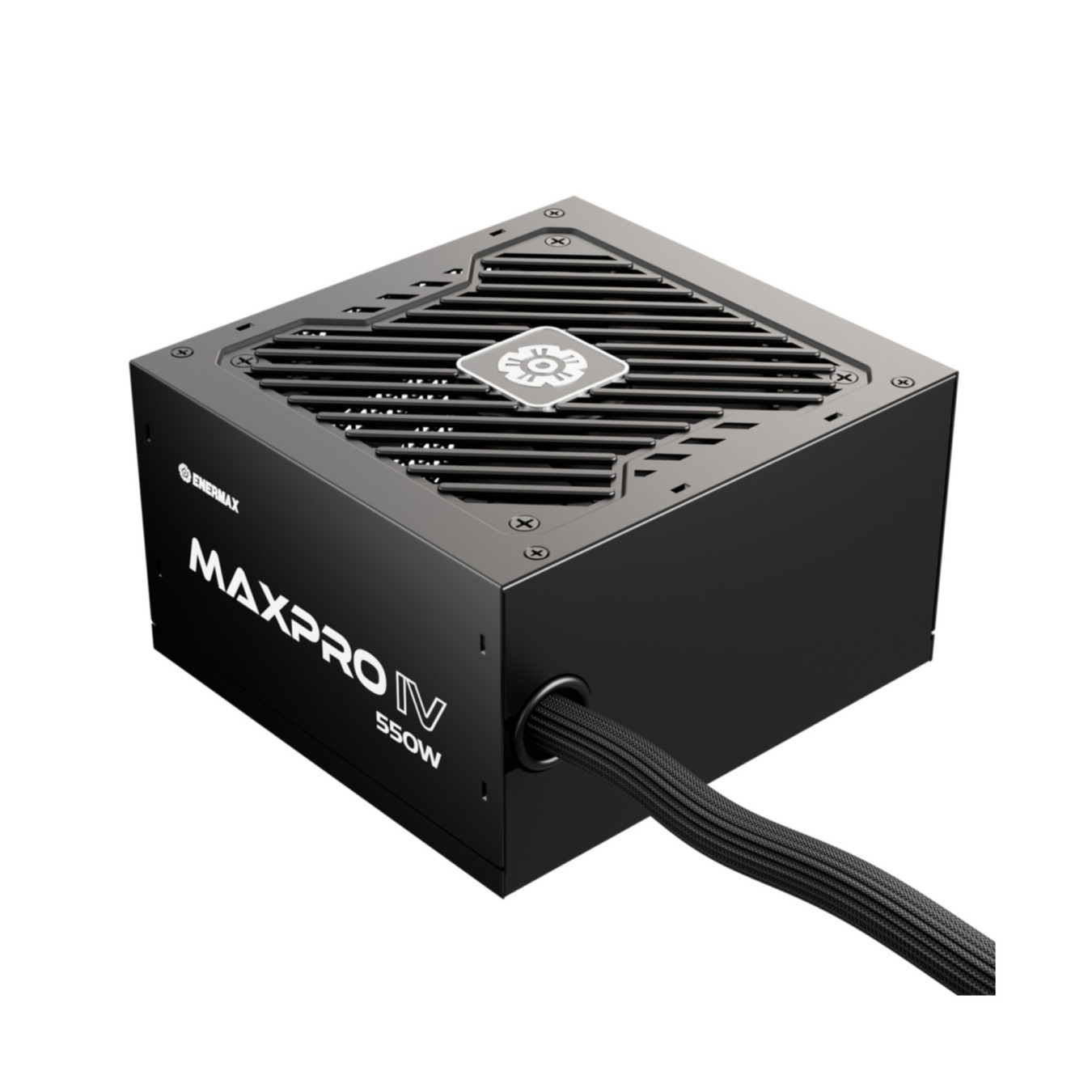

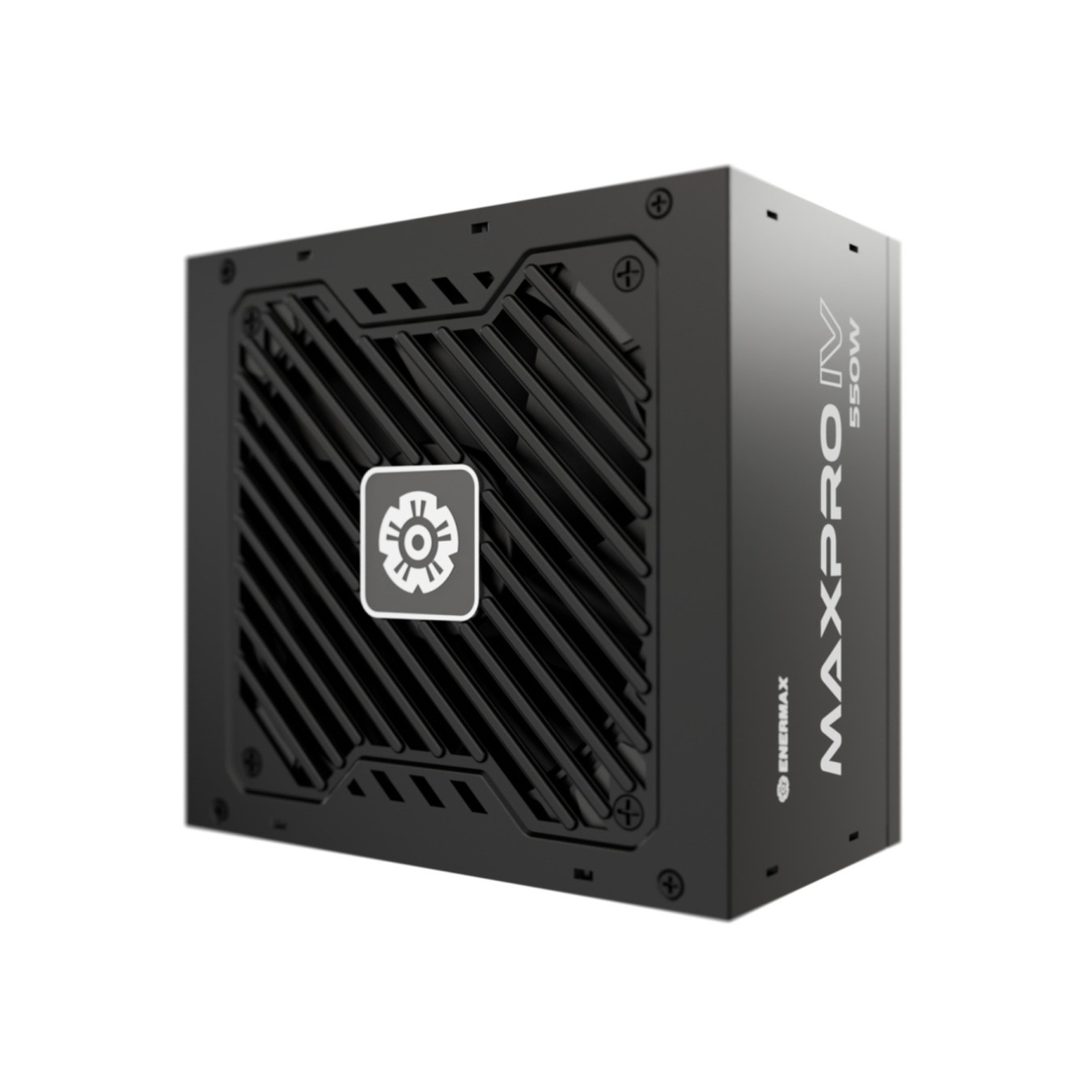

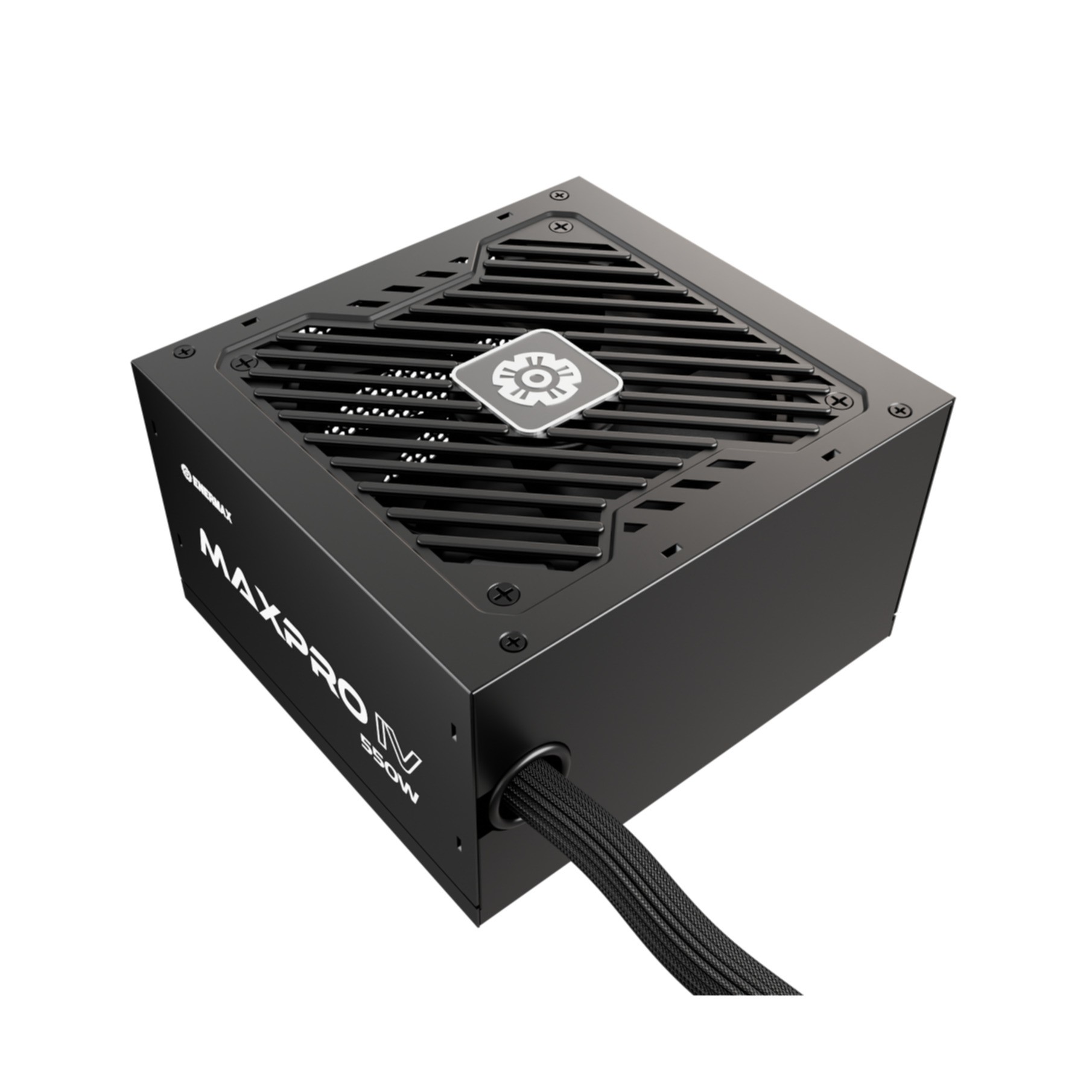

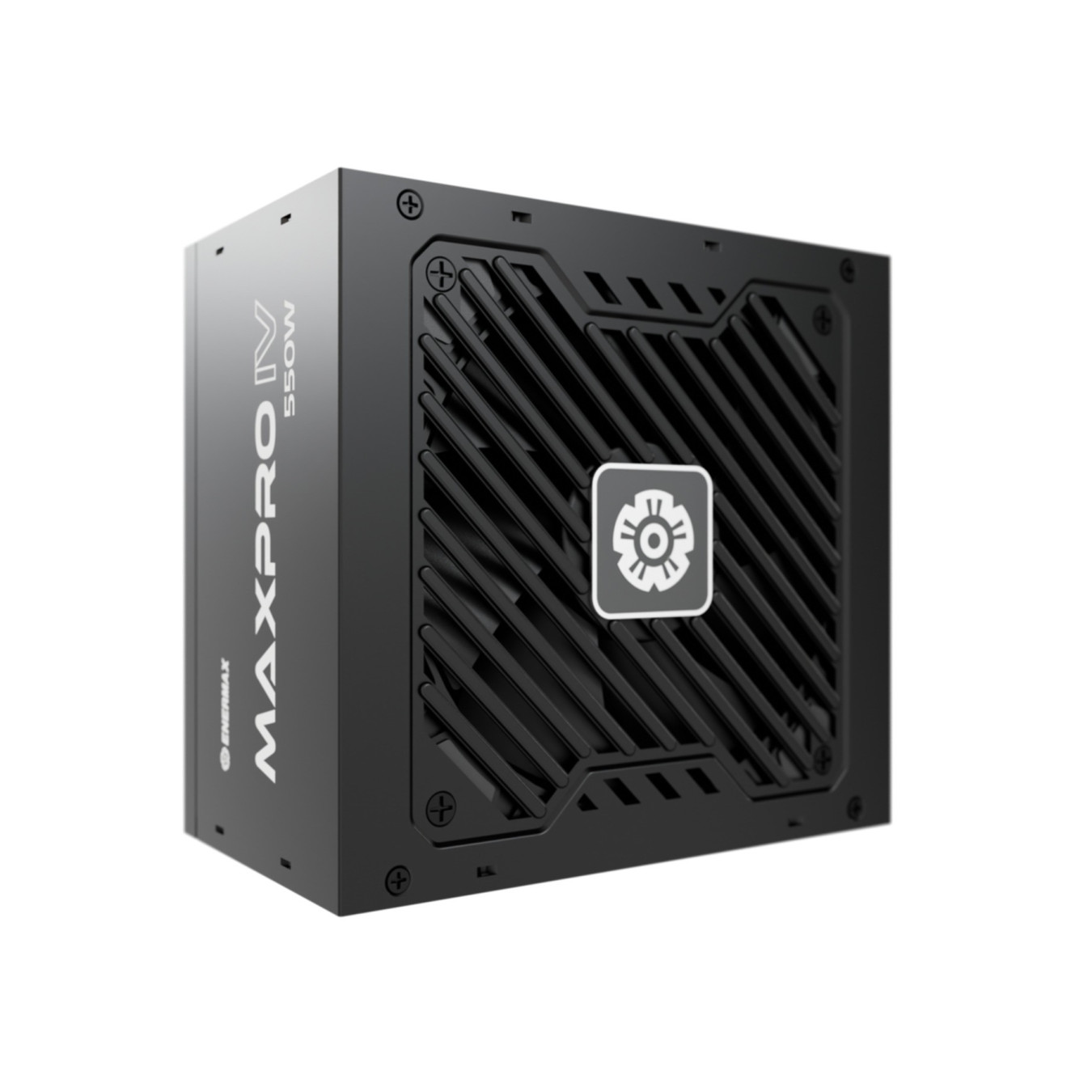

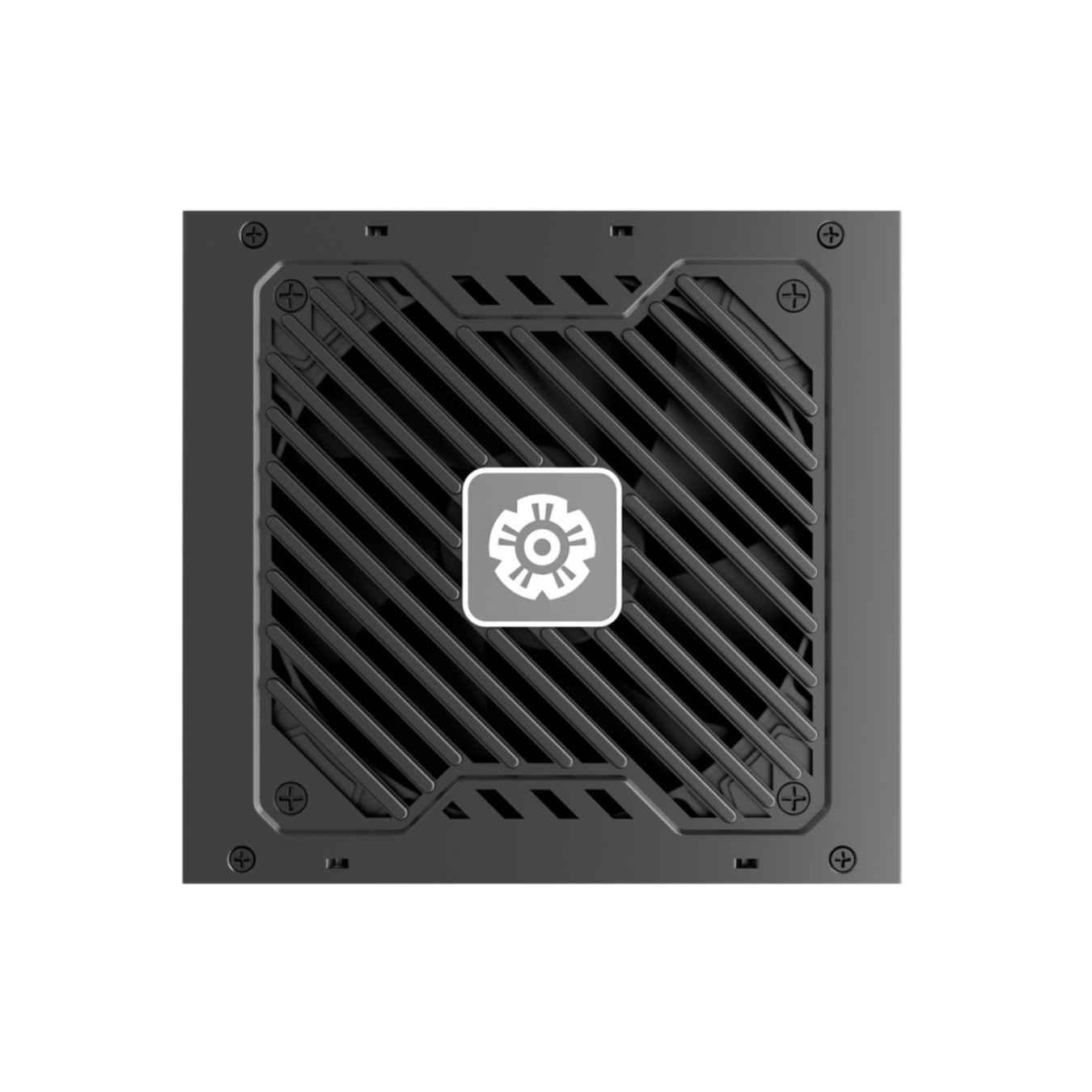

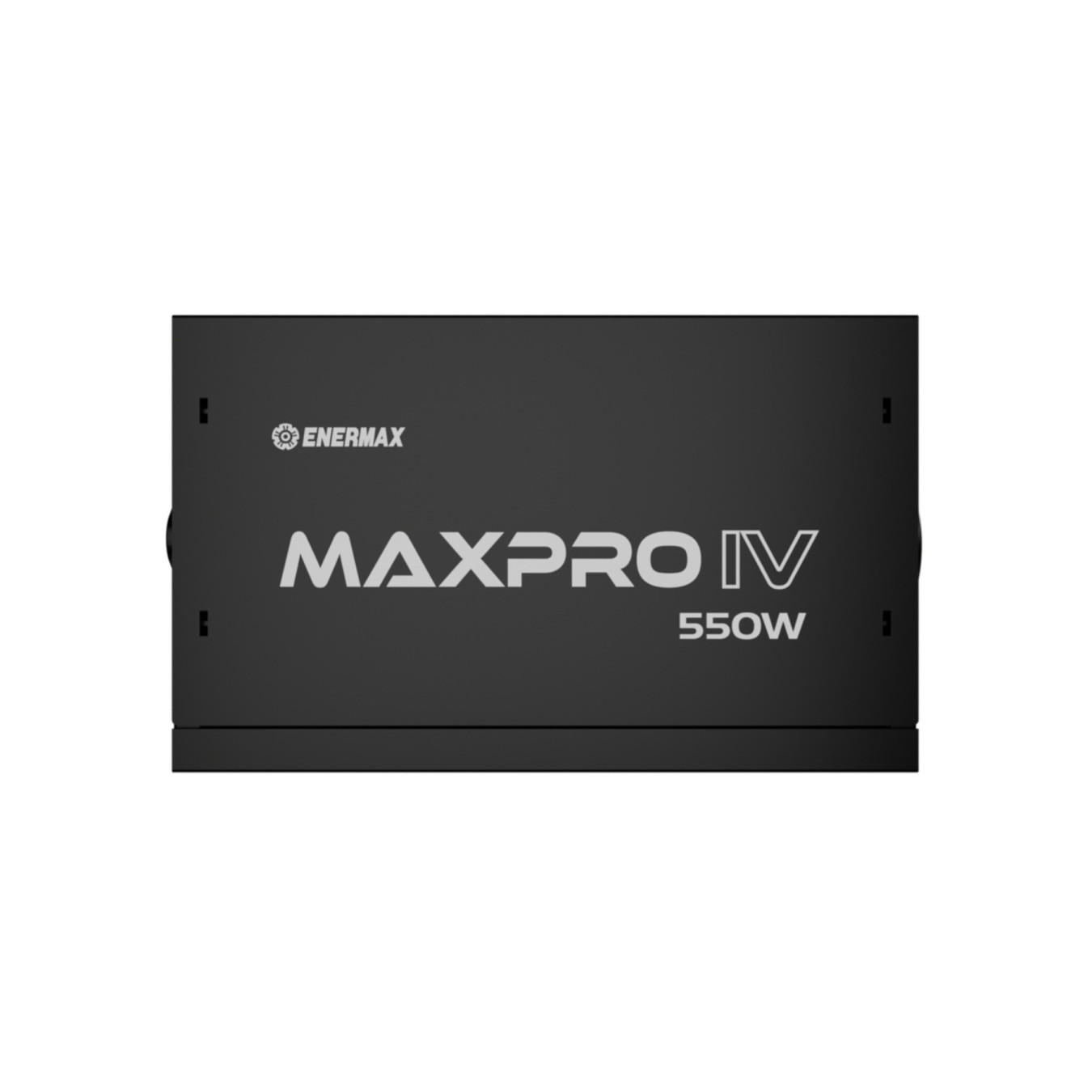

Power Supply - Enermax MaxPro IV EMP550W - 550W Black Non-Modular ATX 80 PLUS
550W Enermax MaxPro IV (EMP550W) ATX power supply — 80 PLUS certified, non-modular, 120mm fan, 20+4 ATX, 4+4 EPS, 2×6+2 PCIe, MTBF 100,000 h
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|---|
| PSU (Power Supplies) - Length | Up to 140 mm |
The MAXPRO IV 550W power supply is certified by 80 PLUS 230V EU, delivering up to 85% efficiency at 50% load.
80 PLUS® Standard 230V EU Certified
Achieves up to 85% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements
Japanese Primary Capacitor
The use of Japanese primary capacitor increases the PSU’s lifespan.
Non-Modular Mesh-Sleeved Cables
Mesh-sleeved cables offer a soft texture, making cable management easier and enhancing the aesthetics and airflow within your PC build.
Built-in Industrial Grade Protection
MAXPRO IV 550W power supply is equipped with comprehensive industry-grade protection mechanisms to ensure the safety and longevity of your components.
2014 & 2013 ErP ready!
<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards.
| Total power | 550 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 492 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 41 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
