Chieftec APEX Q GA-01B-Q-OP Mid-Tower PC Case 3xPWM Fans (Boxed)
Mid-tower PC case with elegant brushed front, sound-dampening panels, supports E-ATX/ATX. Includes 3 PWM fans (140mm front/rear, 120mm PSU shroud). Max CPU cooler 175mm, GPU 400mm, radiators up to 420mm front.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 361–400 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

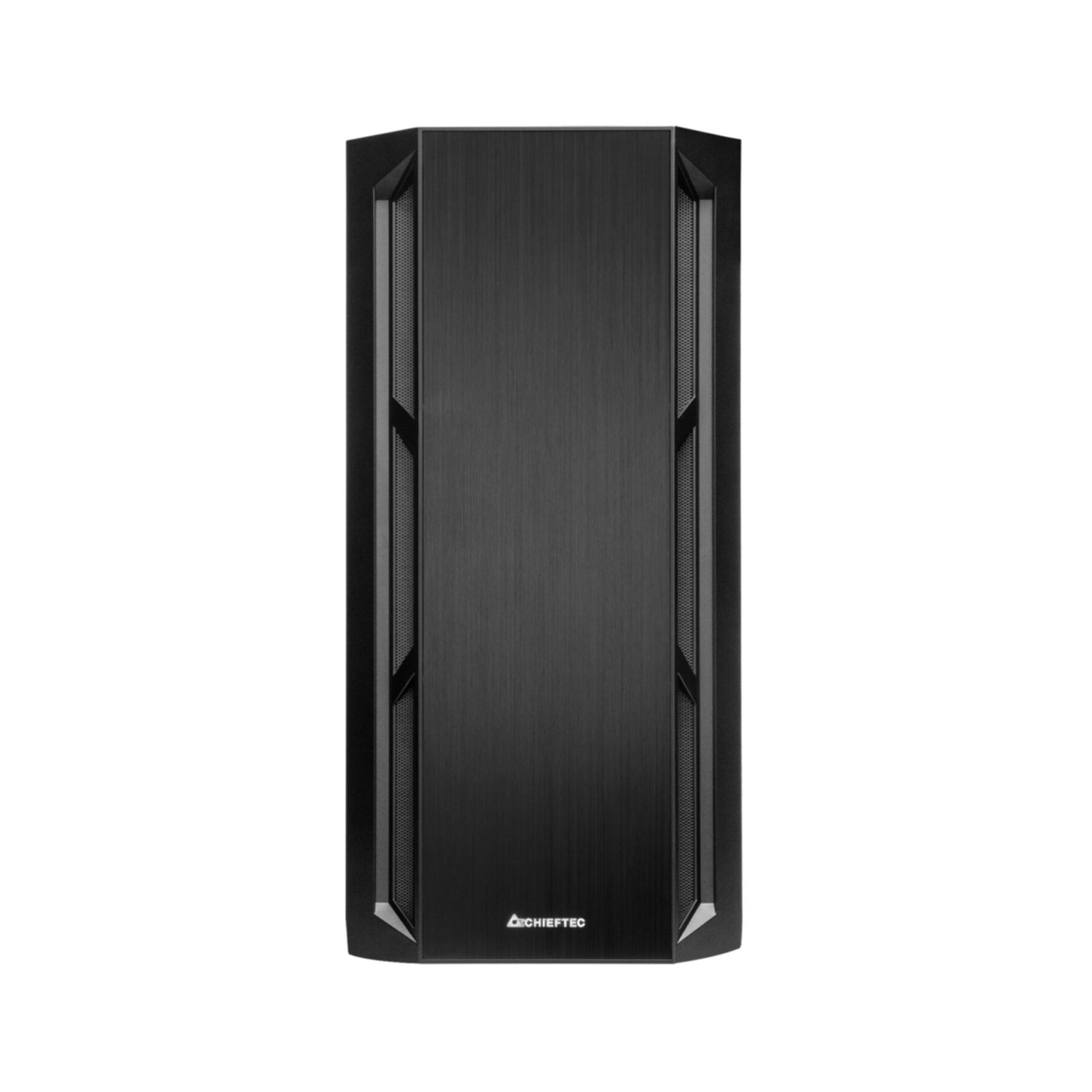

The CHIEFTEC APEX Q (GA-01B-Q-OP) features an elegant brushed front panel design with sound-absorbing material on front, left, and right panels for a quiet experience. The modern interior layout optimizes cooling compatibility for high-performance builds.

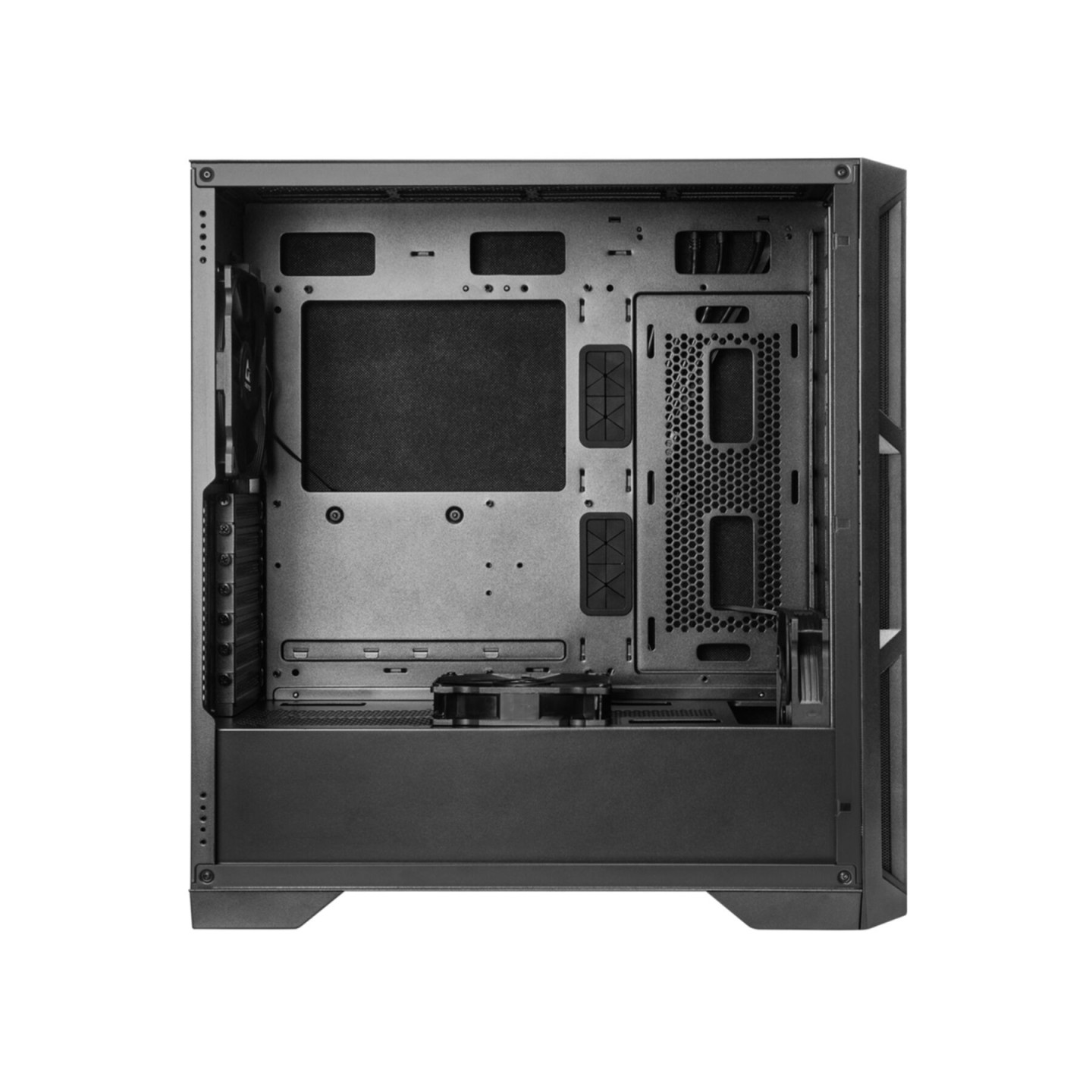

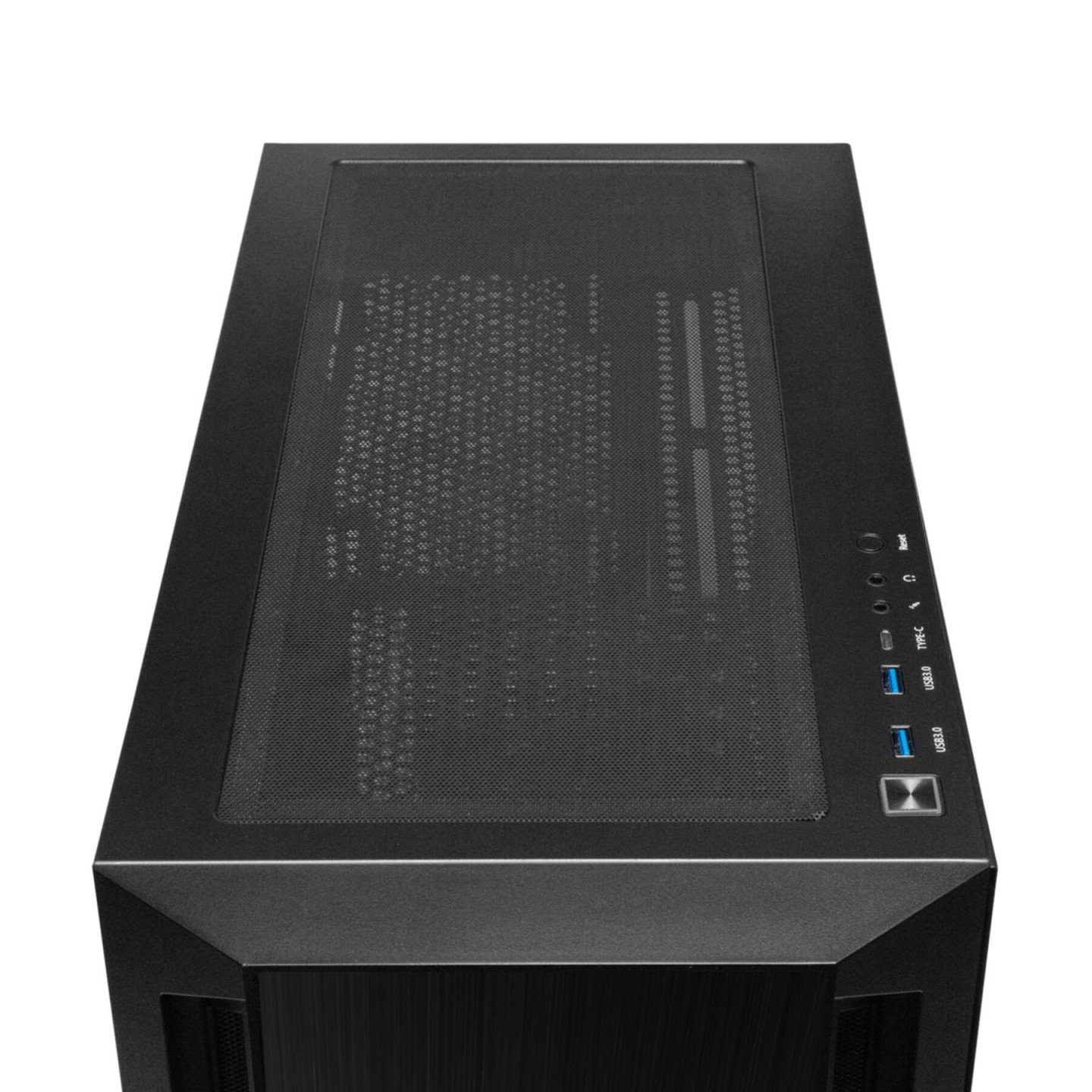

Pre-installed with three PWM fans: 1x140mm front, 1x140mm rear, 1x120mm on PSU cover for excellent GPU airflow. Supports E-ATX motherboards, CPU coolers up to 175mm, GPUs up to 400mm, and large radiators (420mm front, 360mm top). Front I/O includes 1x USB-C 3.2 Gen2, 2x USB 3.0, HD audio.
- Drive Bays: 2x 2.5", 2x 3.5"
- Expansion Slots: 7
- Cooling: Front up to 3x140mm/420mm rad, Top 3x120mm/360mm rad
- Dimensions: 465 x 230 x 495 mm
- Material: 0.6mm SPCC steel
| Material | SPCC 0.6mm, sound-absorbing panels |
| Form factor | Mid Tower |
| Motherboard Support | Mini-ITX, Micro ATX, ATX, E-ATX |
| Dimensions (DxWxH) | 465 x 230 x 495 mm |
| Weight (net) | 7.3 kg |
| Weight (packaged) | 8.75 kg |
| Drive Bays | 2x 2.5 |
| Expansion Slots | 7 |
| Side Window | No |
| Front I/O | 1x USB 3.2 Gen2 Type-C, 2x USB 3.0, Audio, Mic |
| Max CPU Cooler Height | 175 mm |
| Max GPU Length | 400 mm |
| Max PSU Length | 220 mm |
| Fans Included | 1x140mm front PWM, 1x140mm rear PWM, 1x120mm PSU cover PWM |
| Front Radiator Support | 240/280/360/420 mm |
| Top Radiator Support | 240/280/360 mm |
| Color | Black |
| Warranty | 24 Months |
