Chieftec APEX Q - GA-01B-Q-OP - Mid-Tower PC Case, Brushed Front, Sound-Dampened, 3x PWM Fans, E-ATX/ATX Support
Mid-tower PC case with brushed front and sound-dampening panels. Supports E-ATX/ATX/mATX/Mini-ITX, CPU cooler up to 175mm, GPU up to 400mm, includes 3 PWM fans.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Type | Mid Tower |
|---|---|
| PC Cases - Max GPU Length | greater than380 mm |
| PC Cases - CPU Cooler Clearance | greater than170 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - GPU Orientation | Horizontal |

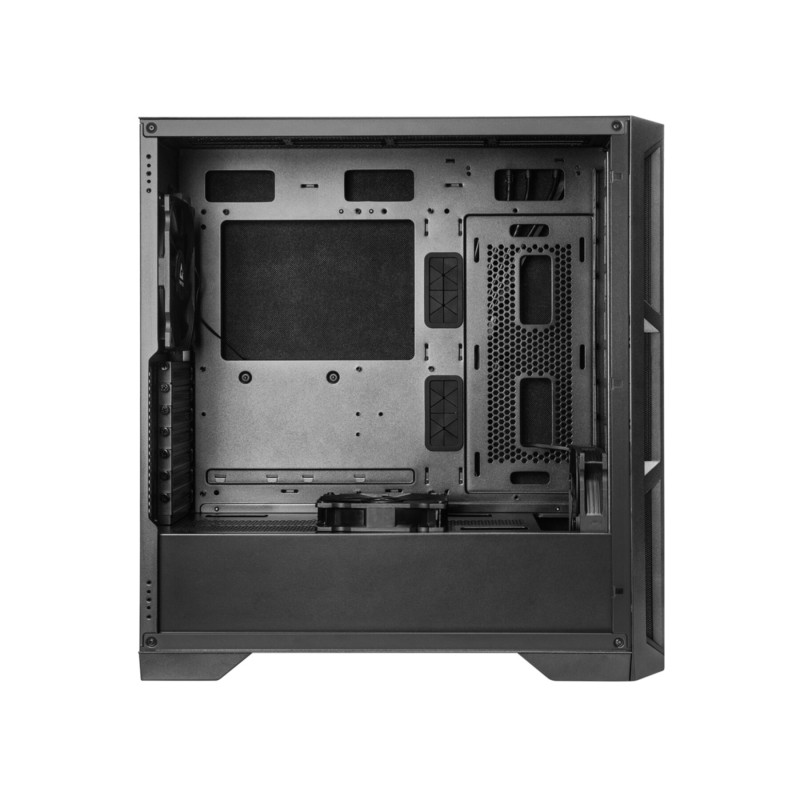

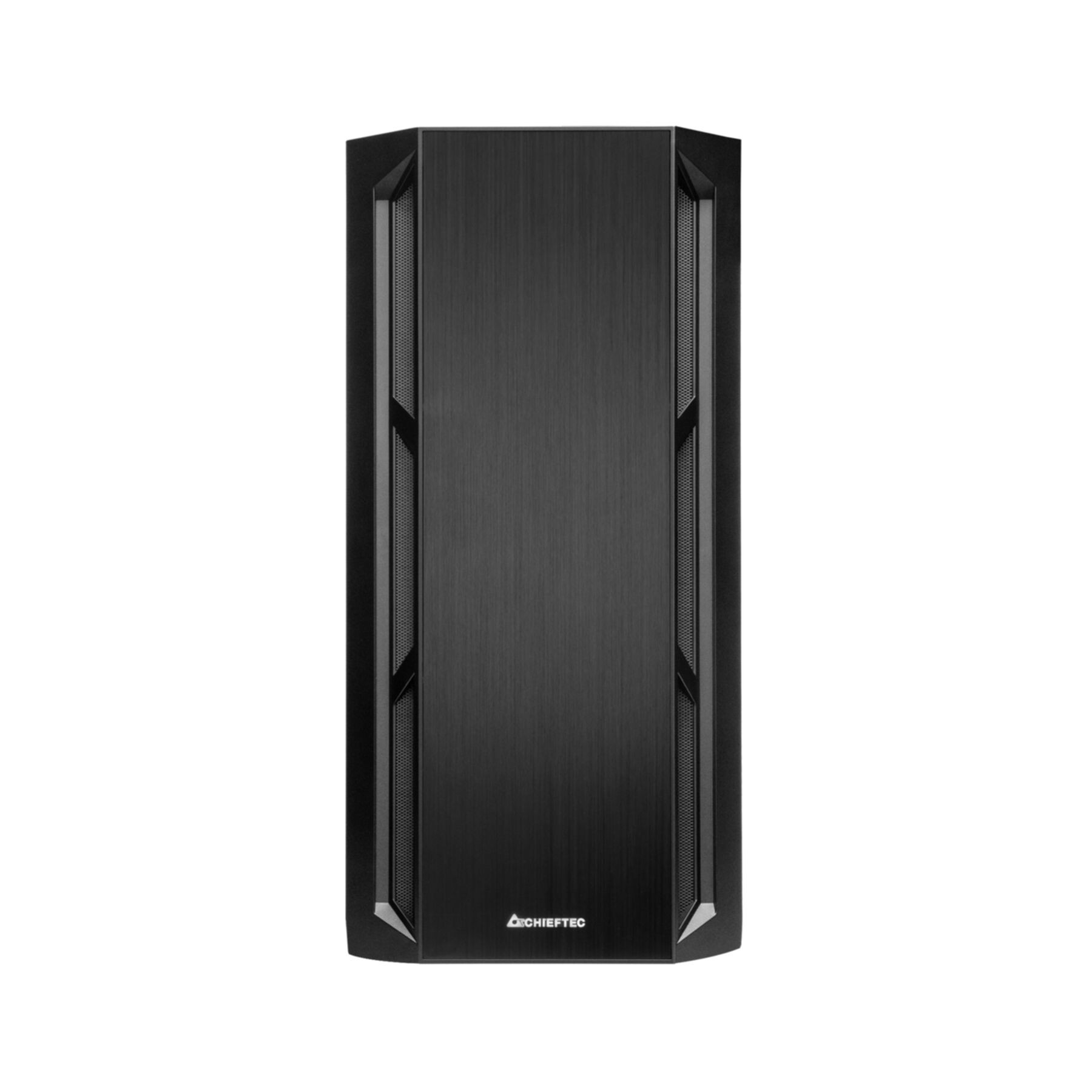

The CHIEFTEC APEX Q presents an elegant and subtle brushed front panel design, complemented by an interior equipped with a modern layout for optimal cooling compatibility.
It features added sound-absorbing material on the side and front panels to provide a quiet user experience. The APEX Q comes with three PWM fans pre-installed, one 140mm in the front, another 140mm in the rear, and one 120mm on the PSU cover, optimizing the cooling performance and airflow particular for the GPU.
The CHIEFTEC APEX Q is ready to deliver customers an enhanced experience of elegance and quality design.
| Material | SPCC |
| Form factor | Midi Tower |
| Type | PC |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 7 |
| Full-Height expansion slots | 7 |
| Side window | No |
| Illumination | No |
| Tempered glass panel(s) | No |
| Heat sink included | No |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40 cm |
| Maximum PSU length | 22 cm |
| Power supply included | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120, 140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120, 140 mm |
| Number of top fans supported (max) | 3 |
| Bottom fans installed | 1x 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Liquid cooling installed | No |
| Front radiator sizes supported | 240, 280, 360, 420 mm |
| Top radiator sizes supported | 240, 280, 360 mm |
| Supported HDD sizes | 2.5, 3.5" |
| Width | 230 mm |
| Depth | 465 mm |
| Height | 495 mm |
| Weight | 7.3 g |
| Material thickness | 0.6 mm |
| Package weight | 8.75 g |
