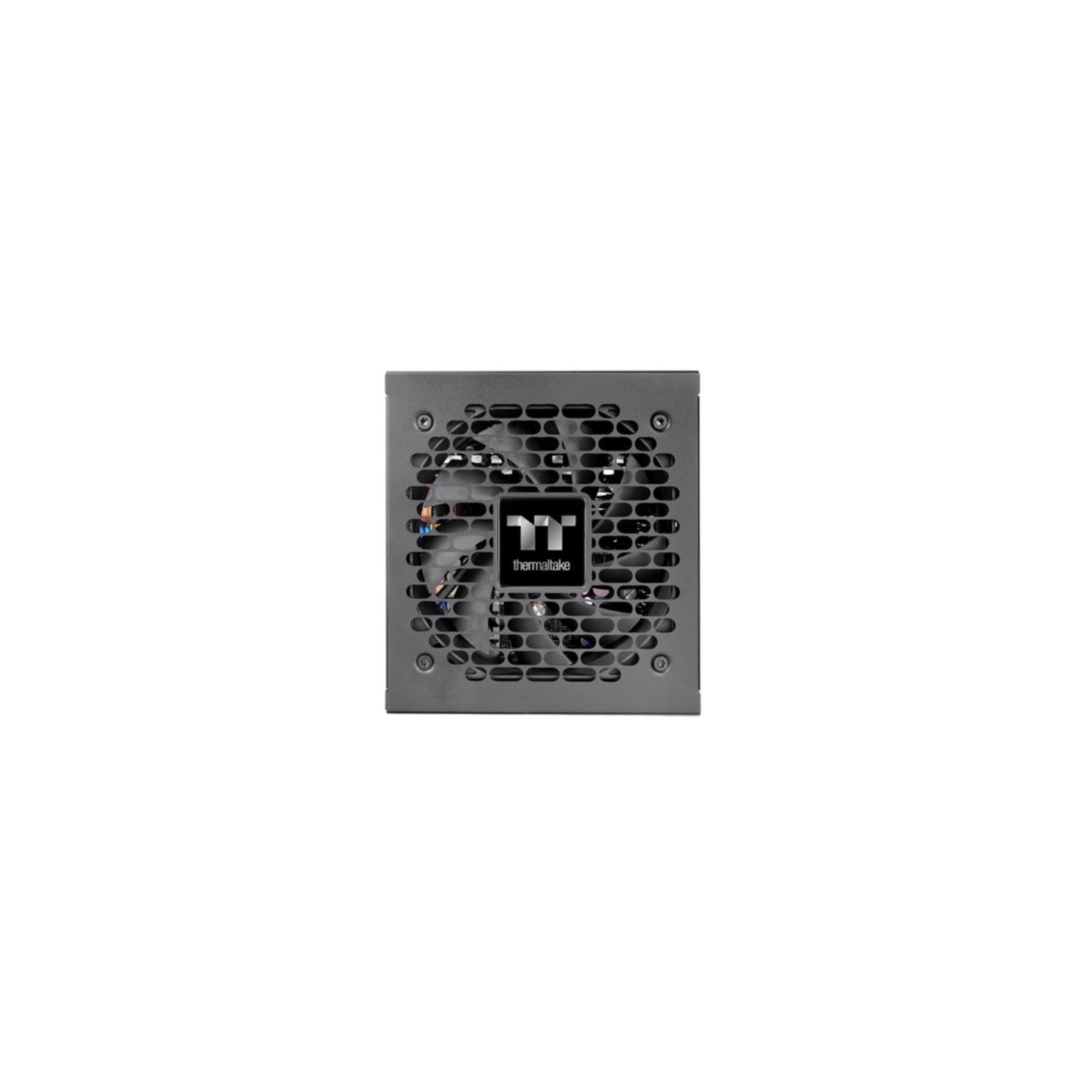

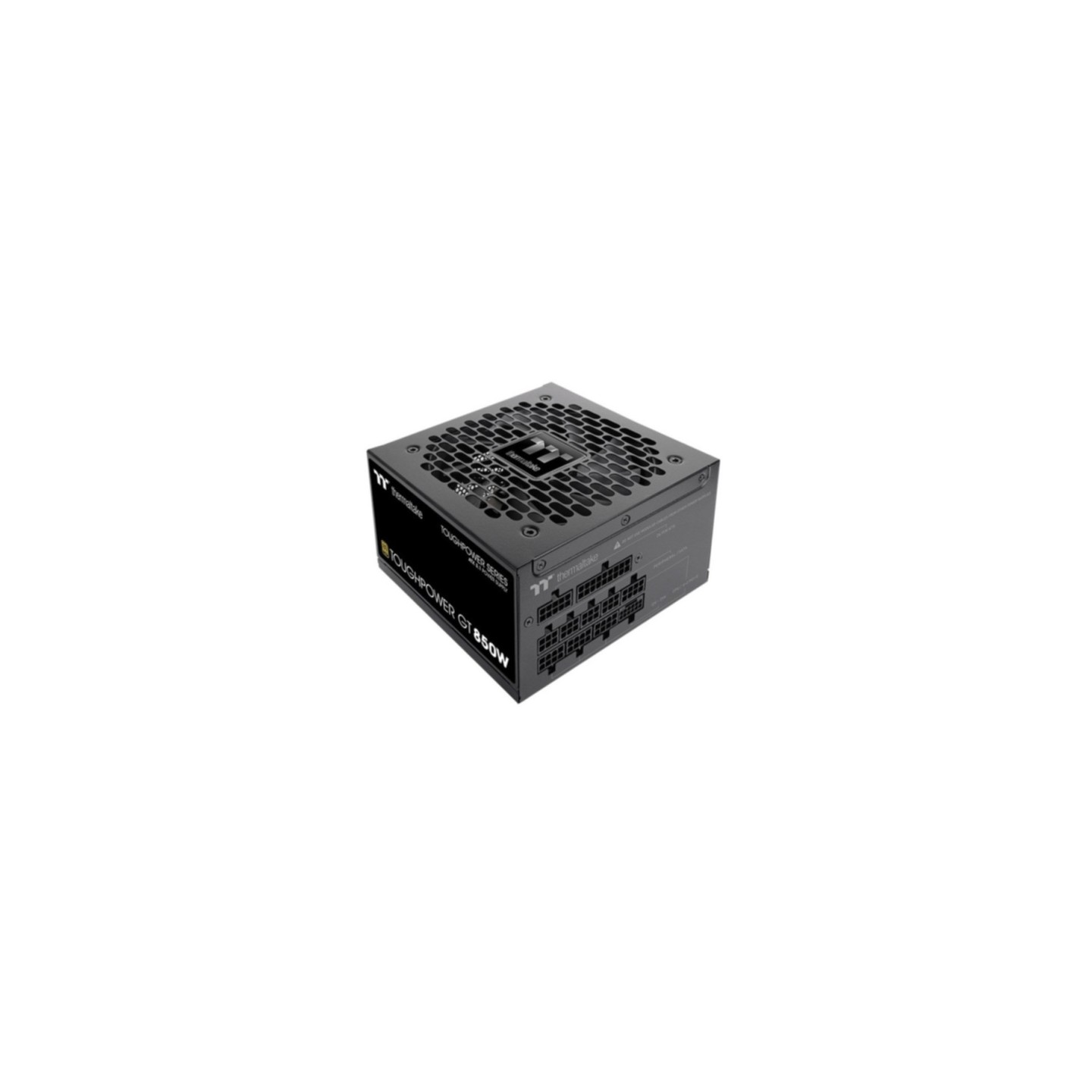

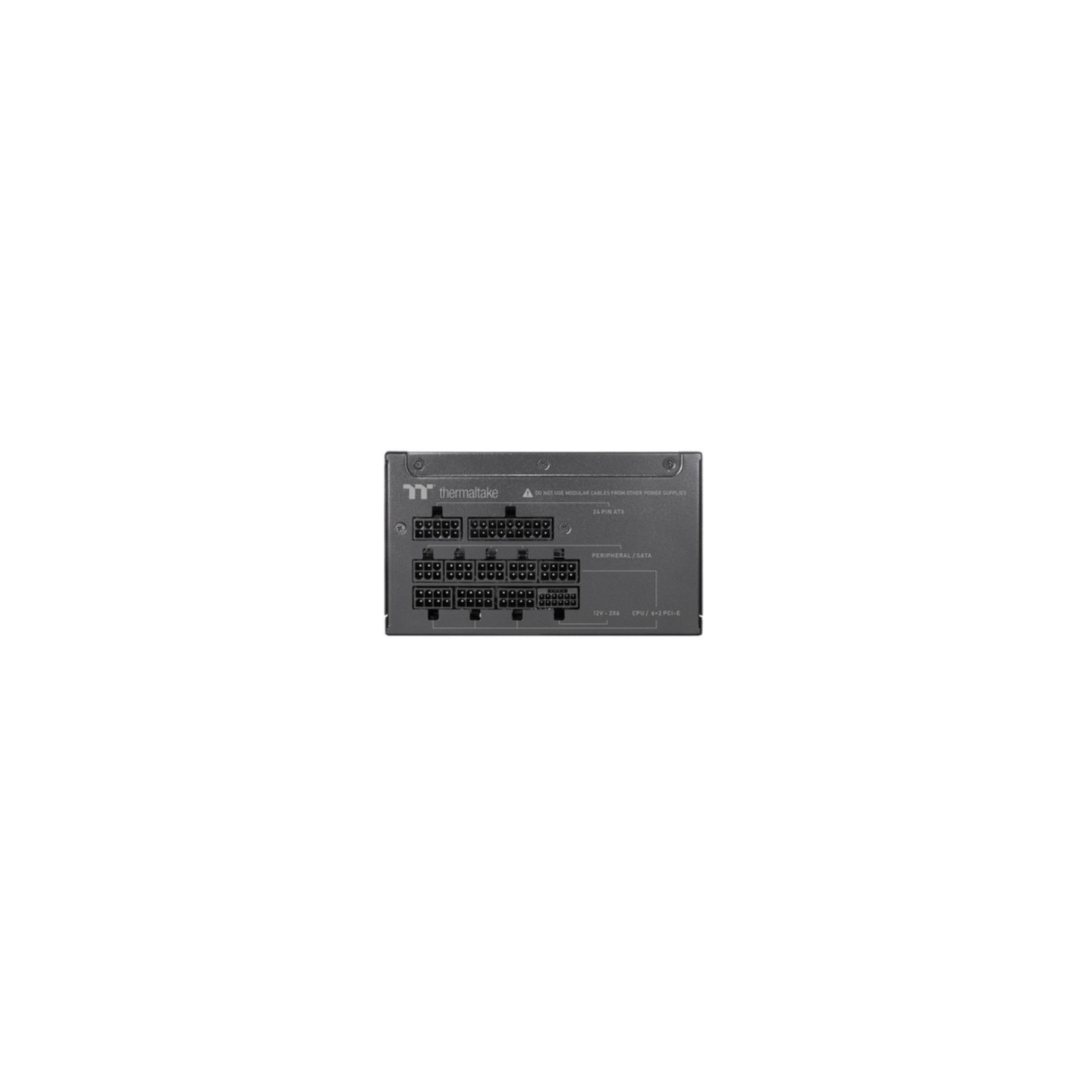

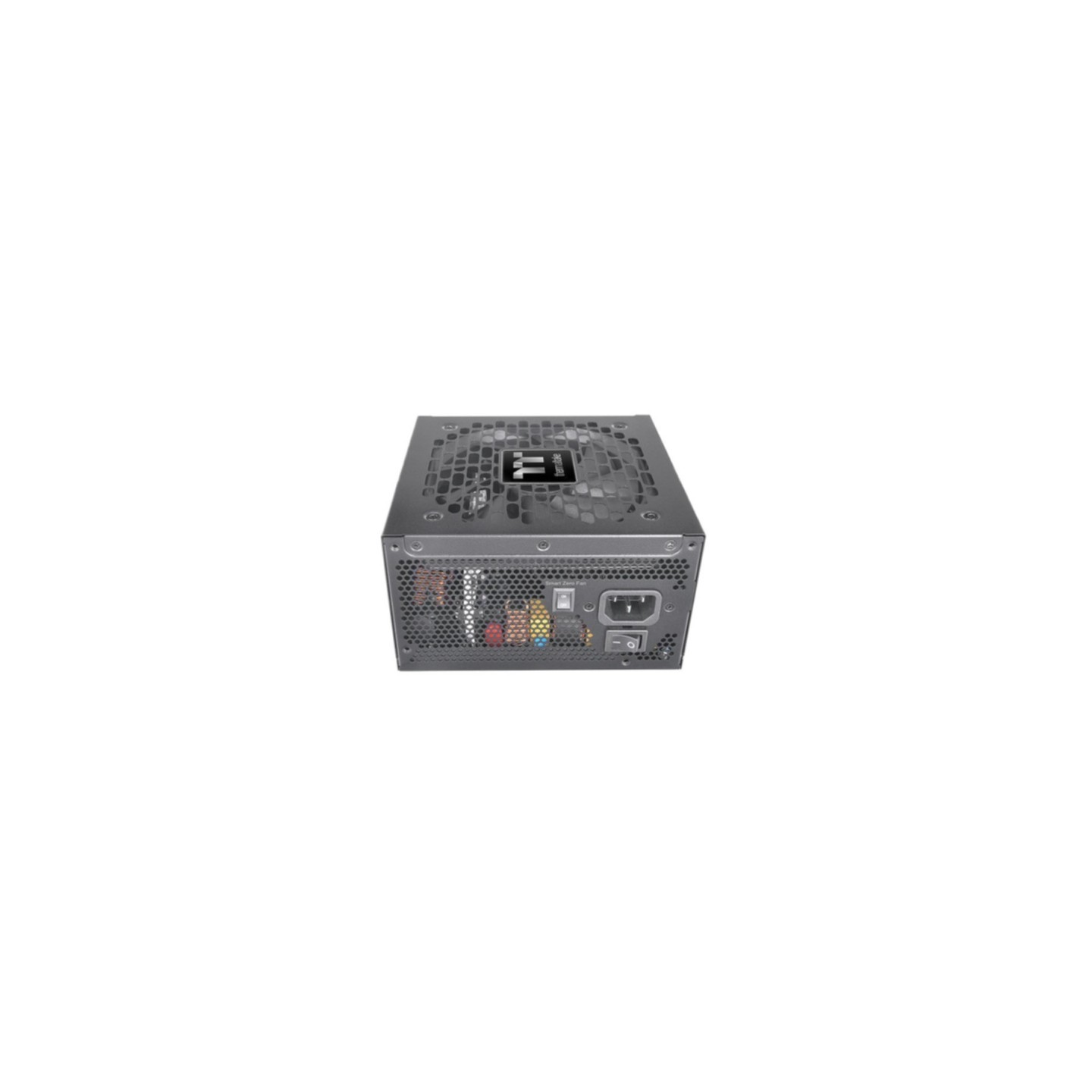

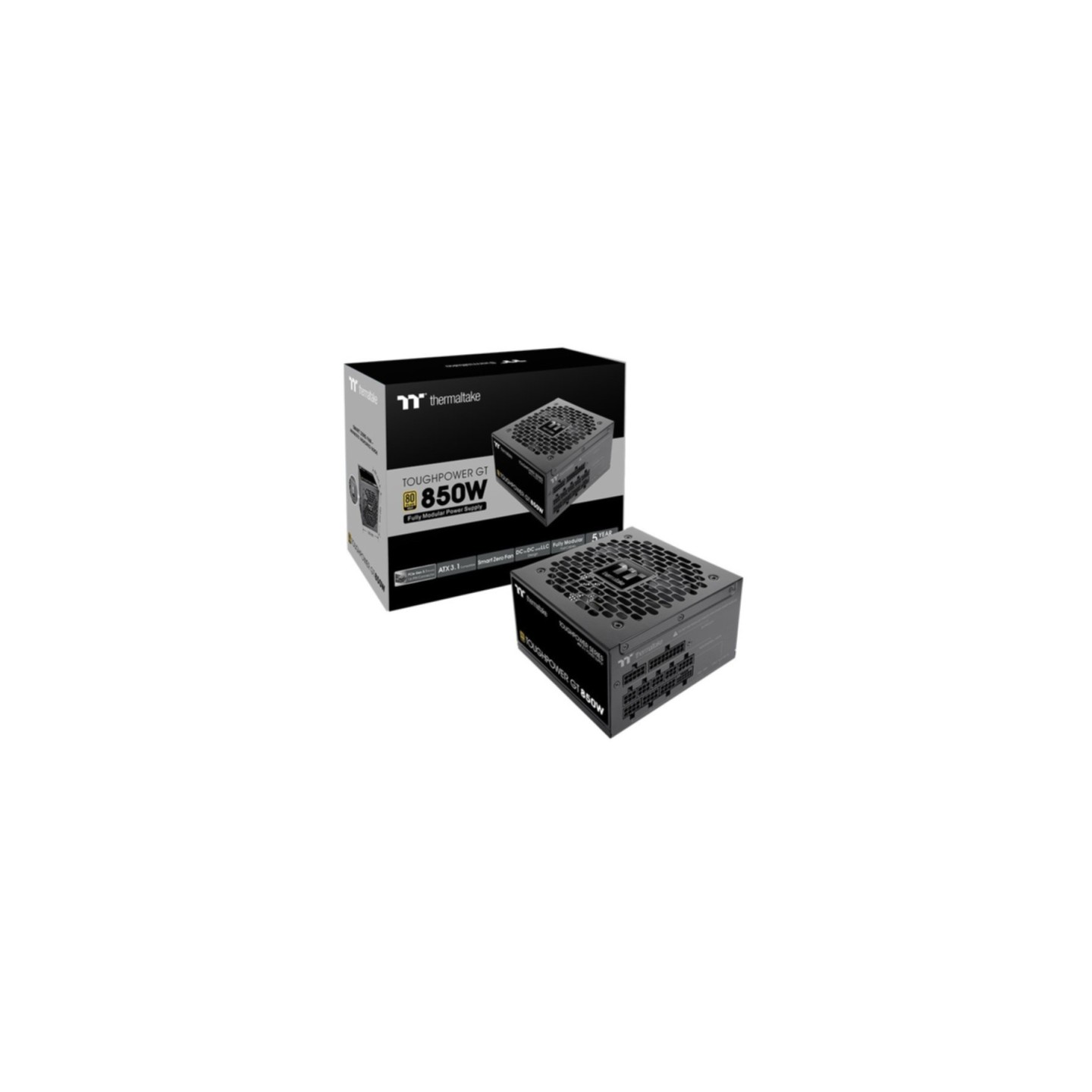

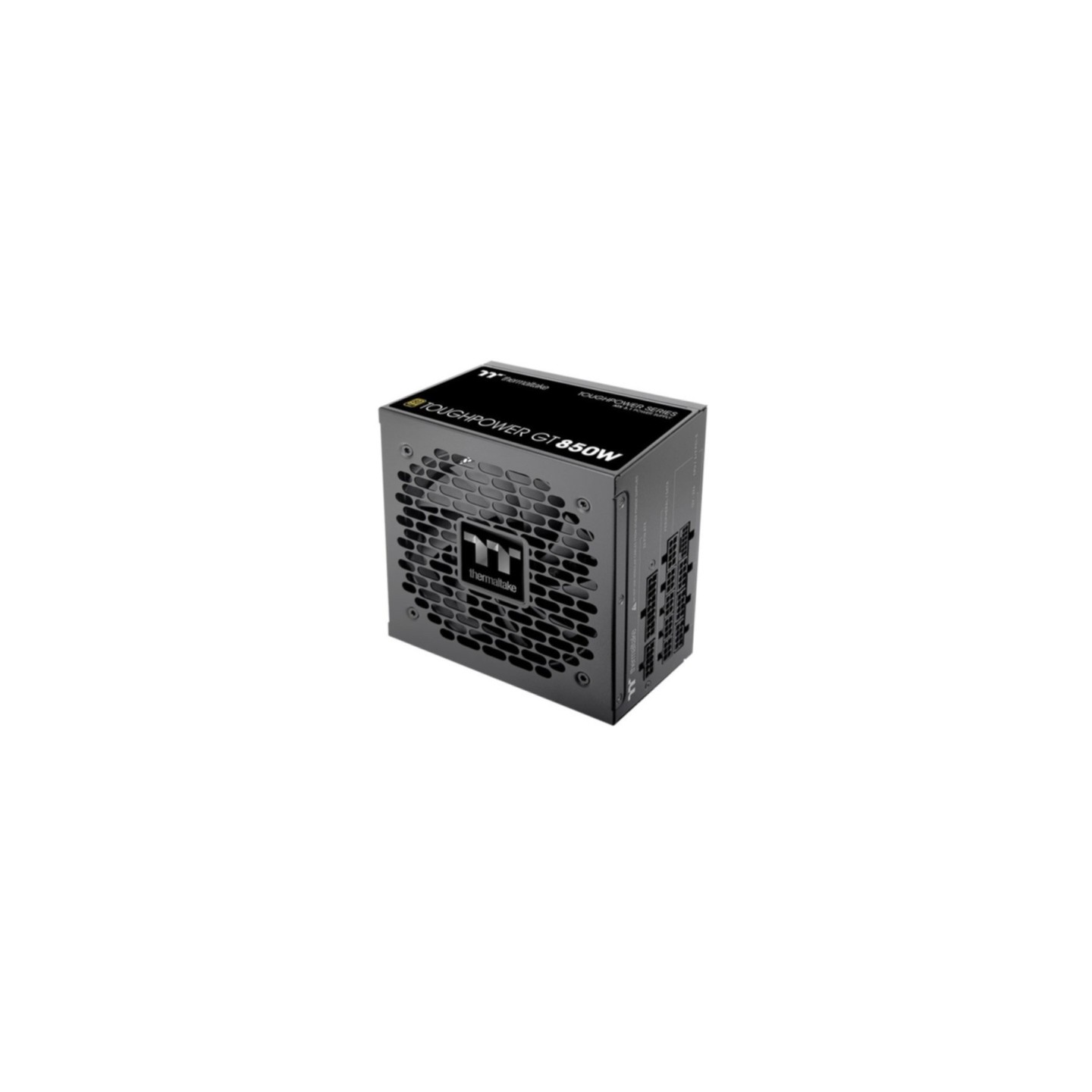

Thermaltake Toughpower GT 850W PS-TPT-0850FNFAGE-3 80+ Gold ATX 3.1 (Boxed)
850W ATX 3.1 PSU with 80 PLUS Gold efficiency, fully modular cables, native PCIe 12V-2x6 for next-gen GPUs. Ultra-quiet hydraulic fan, single +12V rail, 5-year warranty, full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
Toughpower GT Series
The fully modular Toughpower GT 850W delivers 80 PLUS Gold efficiency and full ATX 3.1 compatibility, including 200% power excursions. Native PCIe 12V-2x6 (12+4 pin) powers next-gen GPUs like RTX 40 series reliably. 5-year warranty ensures long-term value.
Key Features
ATX 3.1 & PCIe 5.1 ready with smart zero fan mode on 120mm hydraulic bearing fan for silent operation. Single +12V rail (70.8A) with LLC/DC-DC design for stable power. Fully modular low-profile cables simplify management and boost airflow. Industrial protections: OCP, OVP, UVP, OPP, SCP, OTP.
- 80 PLUS Gold certified (90%+ efficiency)
- 1x PCIe 12+4 pin + 4x 6+2 pin PCIe connectors
- 1x 4+4 pin CPU EPS, 24-pin ATX, 6x SATA, 4x Molex
- Active PFC, 100-240V input, MTBF 100,000 hours
- Black color, compact 150x140x86mm size
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power Good signal delay range | 100 - 250 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| CPU power connector (4+4 pin) | Yes |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | Hydraulic |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
